Maintenance Adjustment Main Body Beam Remarks Item Once the sensor position is adjusted, enter 50 into the [W] box and press [Run]. Measure the width. It should be 50. 5 mm. 50.5 mm+0 mm to 0.2mm (50.5 mm to 50.7 mm) Put…
Maintenance Adjustment Main Body Beam
Remarks

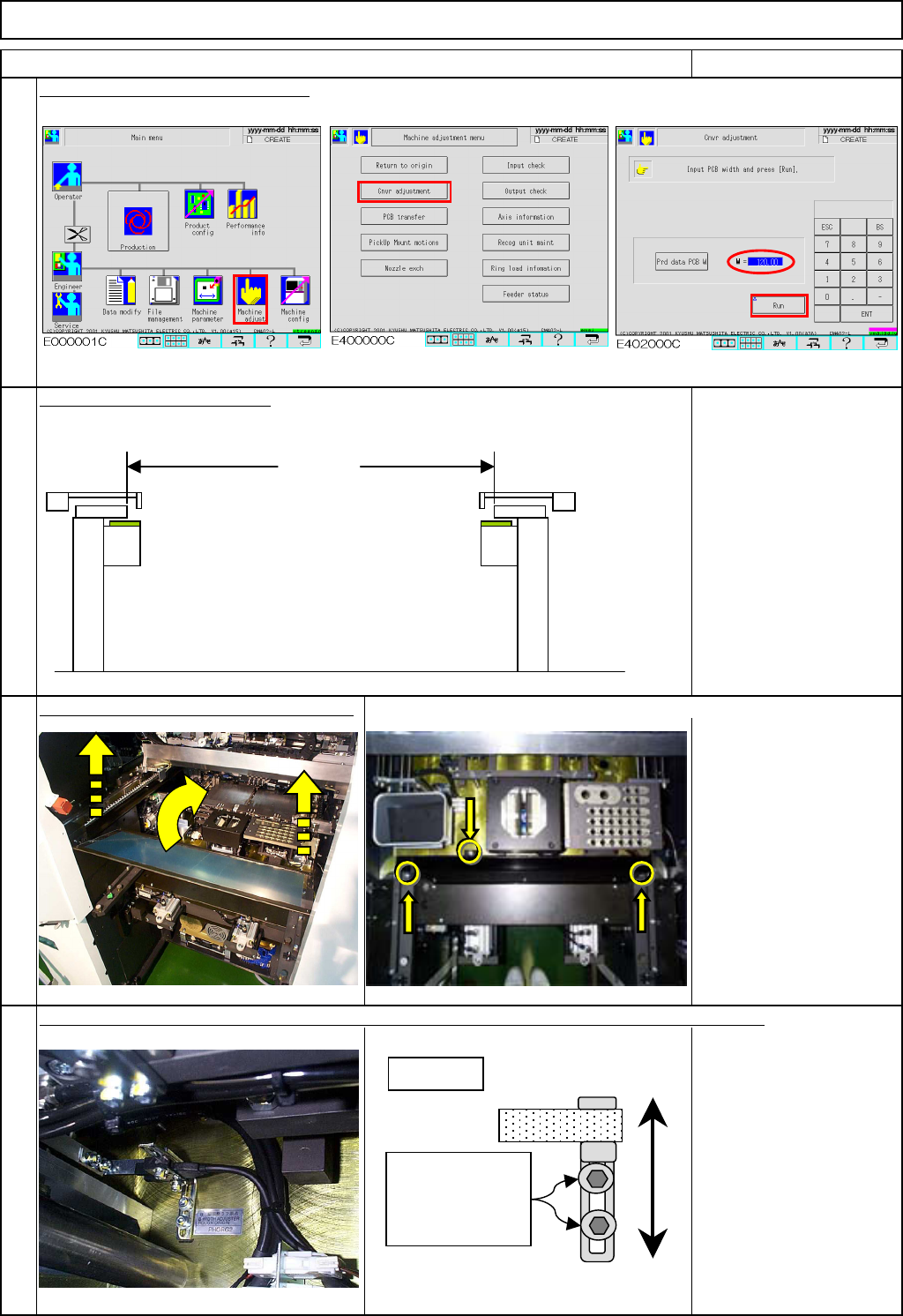

Set the conveyor width to 460 mm.
Enter 460 into the [W] box and press [Run]
so that the conveyor width becomes 460.5 mm automatically.
Check the width with calipers.
Specifications:
460.5 mm+0 mm to
0.2mm
(460.5 mm to 460.7 mm)
Remove the feeder cover and the chute.
Phillips screwdriver #2
Allen key 3 mm
Screw M4 2 pcs.
Screw M4-10 3 pcs.
Thick washer 3 pcs.
If the width is out of the specification, change the position of the width-adjusting origin sensor.
Allen key 2.5 mm
Screw M3 2 pcs.
Item
Remove the three screws below. Pull up the chute and remove it.
3
4
1
2
Sensor
Dog
Loosen the two
screws and
adjust the sensor
position.
460.5 mm
EJM8A-E-SMA040103-A01-00
Page 4-1-3-2
Maintenance Adjustment Main Body Beam
Remarks
Item

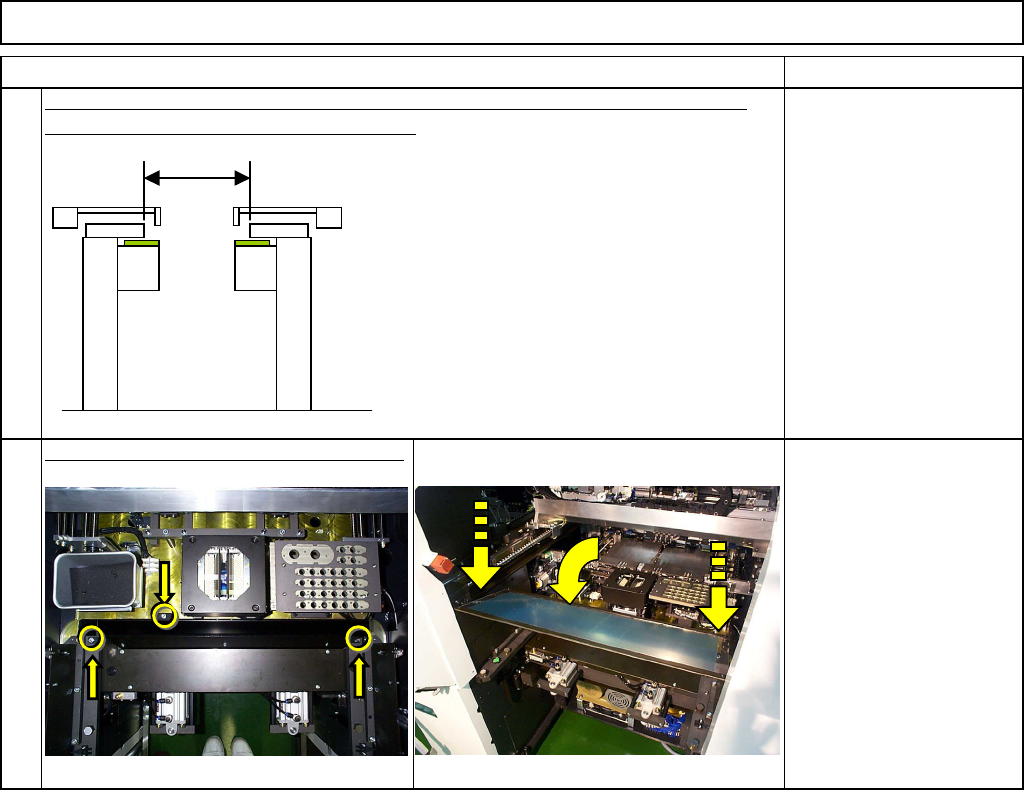

Once the sensor position is adjusted, enter 50 into the [W] box and press [Run].
Measure the width. It should be 50. 5 mm.
50.5 mm+0 mm to 0.2mm
(50.5 mm to 50.7 mm)
Put back the feeder cover and the chute.
Ti
g
hten the two screws at both ends o
f
the cover. Close the cover.
Phillips screwdriver #2
Allen key 3 mm
Screw M4 2 pcs.
Screw M4-10 3 pcs.
Thick washer 3 pcs.
5
6
50.5 mm
EJM8A-E-SMA040103-A01-00
Page 4-1-3-3
Maintenance Adjustment Main Body Beam

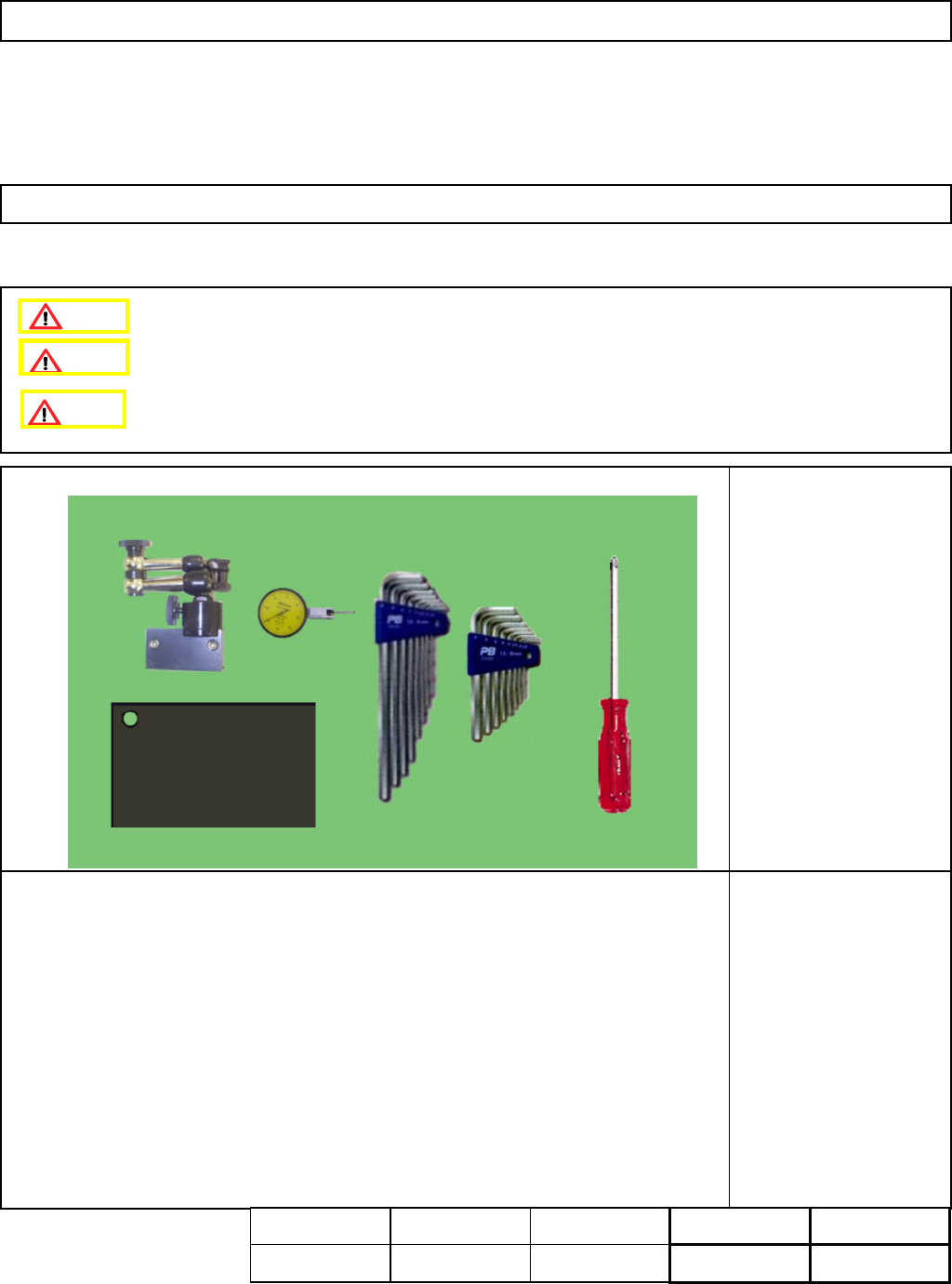

・Tools
Phillips screwdriver #2
Dial gauge
Iron plate
Allen key 3 mm
Magnetic stand
・Jig
None
4-1-4 Parallelism of Board Transfer Conveyors
Be sure to remove the support pins beforehand.
This section describes the procedures for adjusting the board transfer conveyors to parallel.
Assembly
Adjustment
20min.
Teaching
min.
Total Time Weight of
Part
Removal
Disassembly
20min.
40min. kgs
Caution
Dange
r
Warning
EJM8A-E-SMA040104-A01-00
Page 4-1-4-1
