Maintenance Adjustment Main Body Beam Remarks Remove the feeder cover. Phillips screwdriver #2 Screw M4 2 pcs. Loosen the sensor holding screws. 3-000056 Allen key 2.5 mm Screw M3 2 pcs. for each sensor Front reference, …
Maintenance Adjustment Main Body Beam

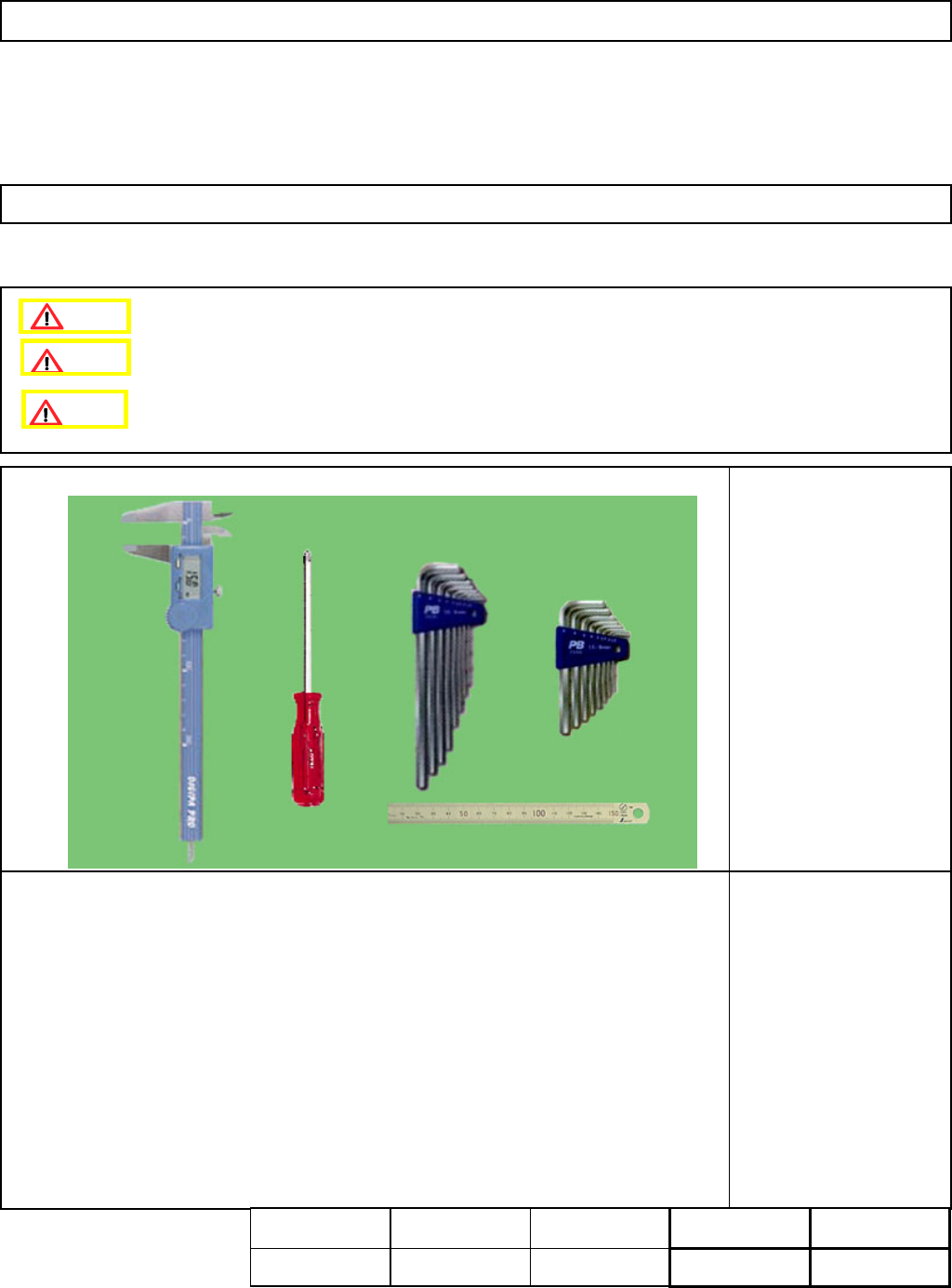

This section describes the procedures for adjusting the board sensor.
・Tools
Phillips screwdriver #2
Allen key 2.5 mm
Ruler 150 mm
Caliper
・Jig
None
Time for replacement:
10 min.
Part Weight: - kgs.
4-1-5 Board Sensor Positioning
Assembly
Adjustment
5min.
Teaching
min.
Total Time Weight of
Part
Removal
Disassembly
5min.
10min.
kgs
Caution
Dange
r
Warning
EJM8A-E-SMA040105-A01-00
Page4-1-5-1
Maintenance Adjustment Main Body Beam
Remarks

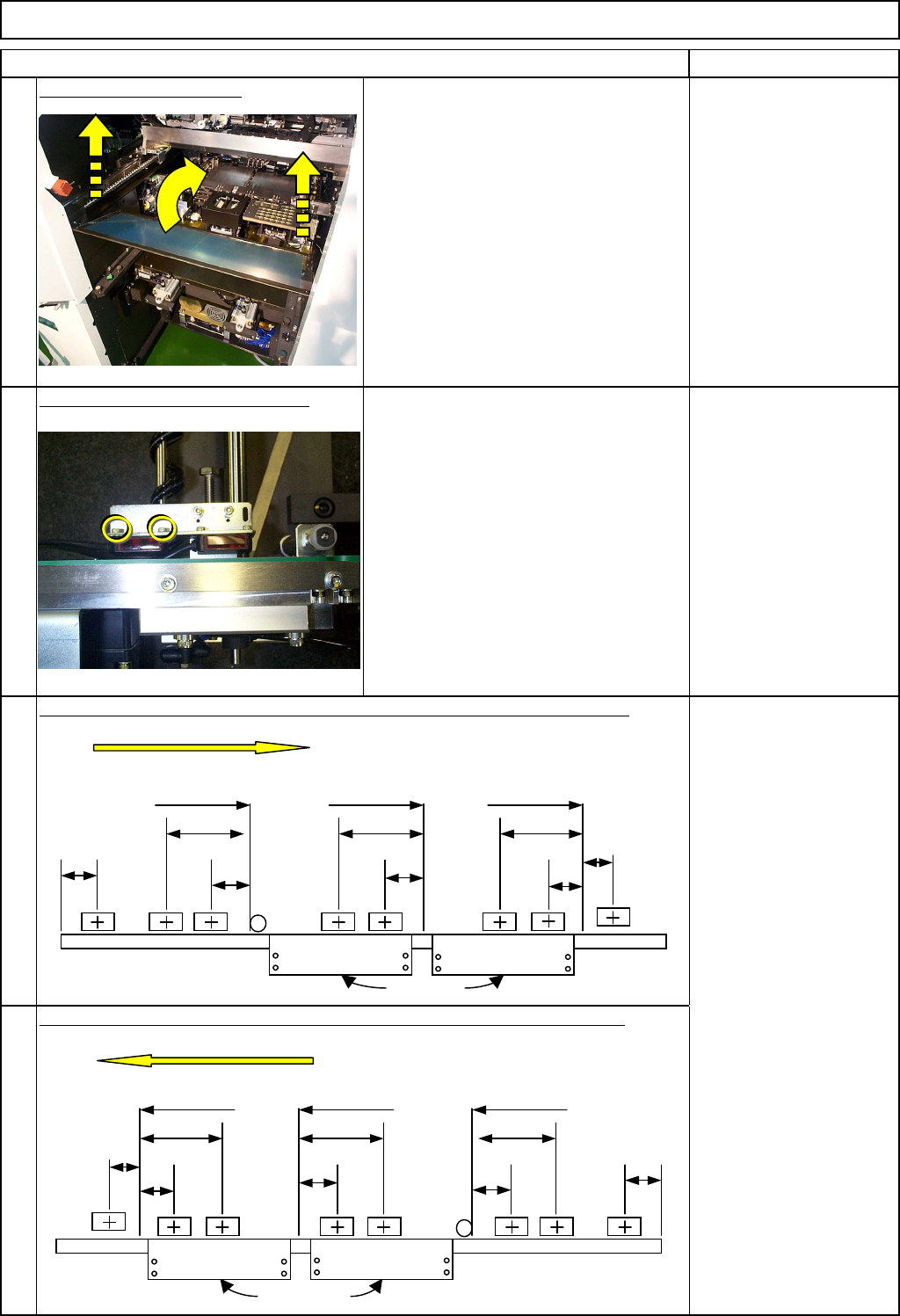

Remove the feeder cover.
Phillips screwdriver #2
Screw M4 2 pcs.
Loosen the sensor holding screws.
3-000056
Allen key 2.5 mm
Screw M3
2 pcs. for each sensor
Front reference, Left-to-Right flow Inner-side reference, Right-to-Left flow
Specifications:
A= 49mm±0.5mm
B=100mm±0.5mm
C= 49mm±0.5mm
D=100mm±0.5mm
E= 38mm±0.5mm
F= 10.4mm±0.5mm
G= 49mm±0.5mm
H=100mm±0.5mm
Front reference, Right-to-Left flow, Inner-side reference, Left-to-Right flow
Item
3
4
1
2
F
H
G
B
A
D
C
E
Fixed conveyor rail
Z clamper
End of Stopper
Z clamper
F
H
G
B
A
D
C
E
End of Stopper
End of Stopper
End of Stopper
End of Sto
pp
er
End of Stopper
Fixed conveyor rail
EJM8A-E-SMA040105-A01-00
Page4-1-5-2
Maintenance Adjustment Main Body Beam
Remarks
Item

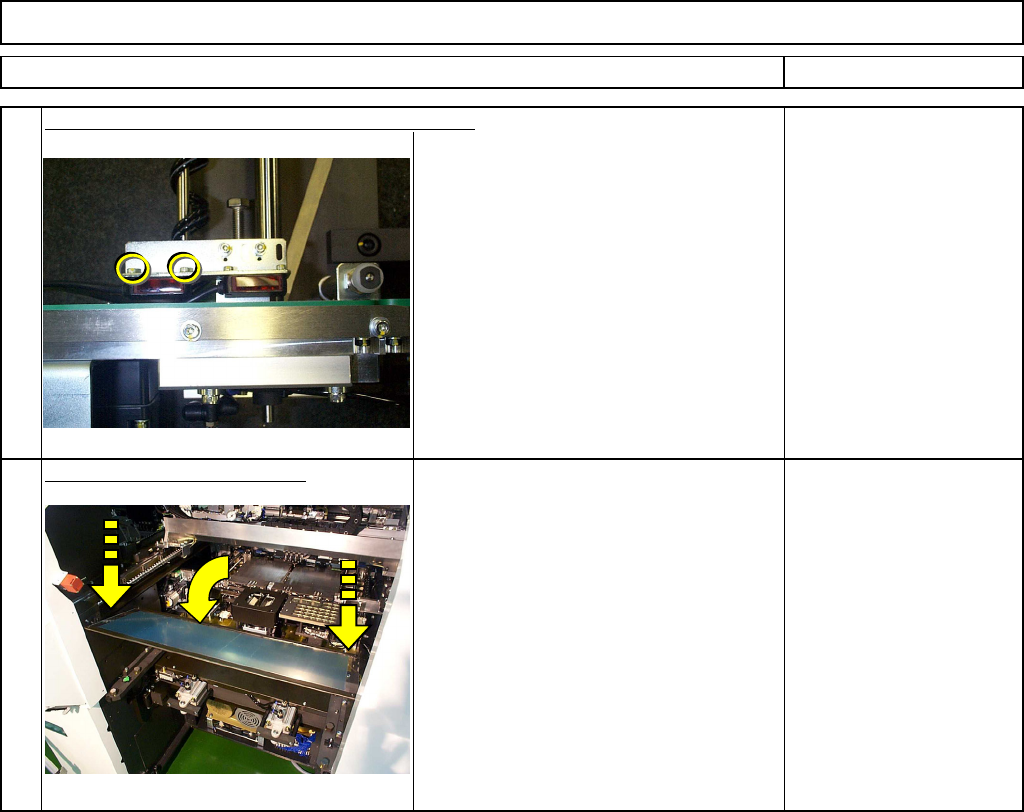

Once the adjustment is finished, lock the sensor.
3-000056
Allen key 2.5 mm
Screw M3
2 pcs. for each sensor
Put the feeder cover back on.
Phillips screwdriver #2
Screw M4 2 pcs.
6
5
EJM8A-E-SMA040105-A01-00
Page4-1-5-3
