Maintenance Adjustment Main Body Beam Remarks Remove the cutter unit. See "Cutter Unit Replacement." Section 5-9-4 Check the clearance between the fixed and the movable cutter blades. Record the current clearan…
Maintenance Adjustment Main Body Beam
This section describes the procedures for adjusting the clearance between the cutter blades.

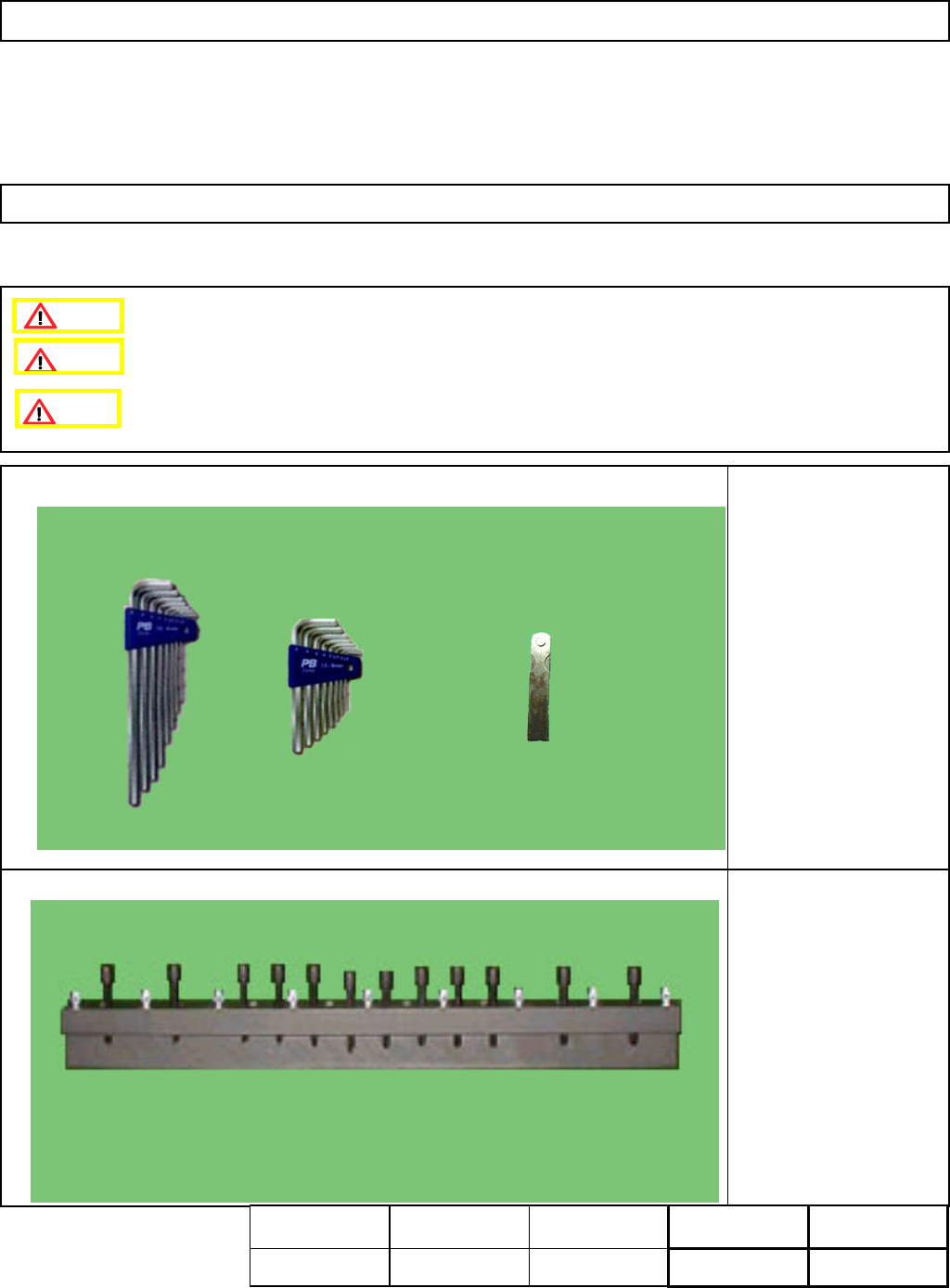

・Tools
Feeler gauge
Allen key 4 mm
Hammer
・Jig
FM-1044
Cutter blade installing jig
4-1-12 Adjusting the Clearance between the Cutter Blades
Danger! Do not touch the cutter blades.
Be very careful when removing the cutter unit; it is heavy.
Assembly
Adjustment
45min.
Teaching
min.
Total Time Weight of
Part
Removal
Disassembly
45min.
90min.
40kgs
Caution
Dange
r
Warning
EJM8A-E-SMA040112-A01-00
Page 4-1-12-1
Maintenance Adjustment Main Body Beam
Remarks

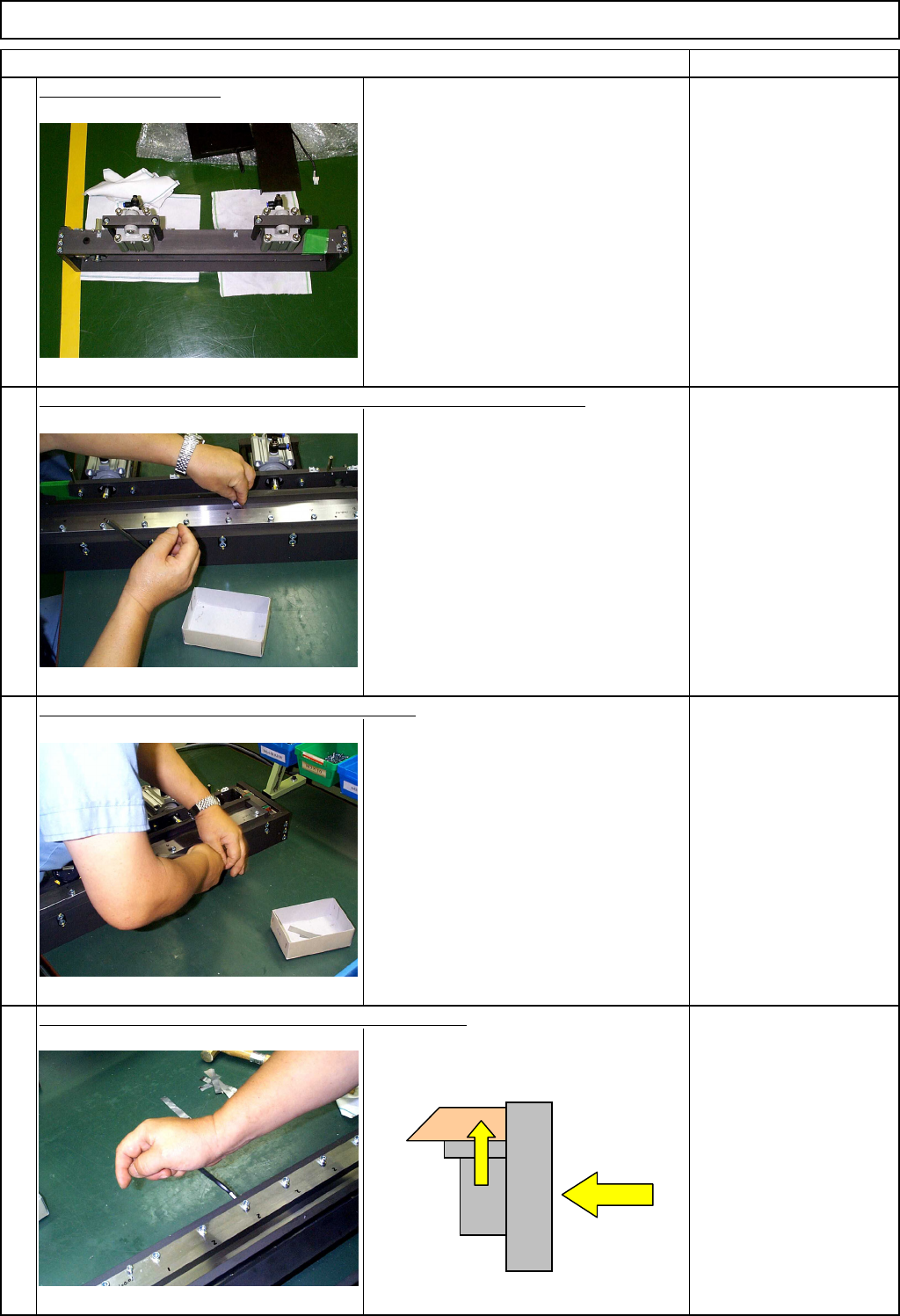

Remove the cutter unit.
See "Cutter Unit Replacement." Section 5-9-4
Check the clearance between the fixed and the movable cutter blades.
Record the current clearance.
Feeler gauge
Loosen the screws holding the fixed blade block
Allen key 4 mm
Screw M5 12 pcs.
Raising the fixed blade block, lightly tighten the screws.
Allen key 4 mm
Screw M5 9 pcs.
3
4
1
Item
2
Raise
Tighten lightly
EJM8A-E-SMA040112-A01-00
Page 4-1-12-2
Maintenance Adjustment Main Body Beam
Remarks
Item

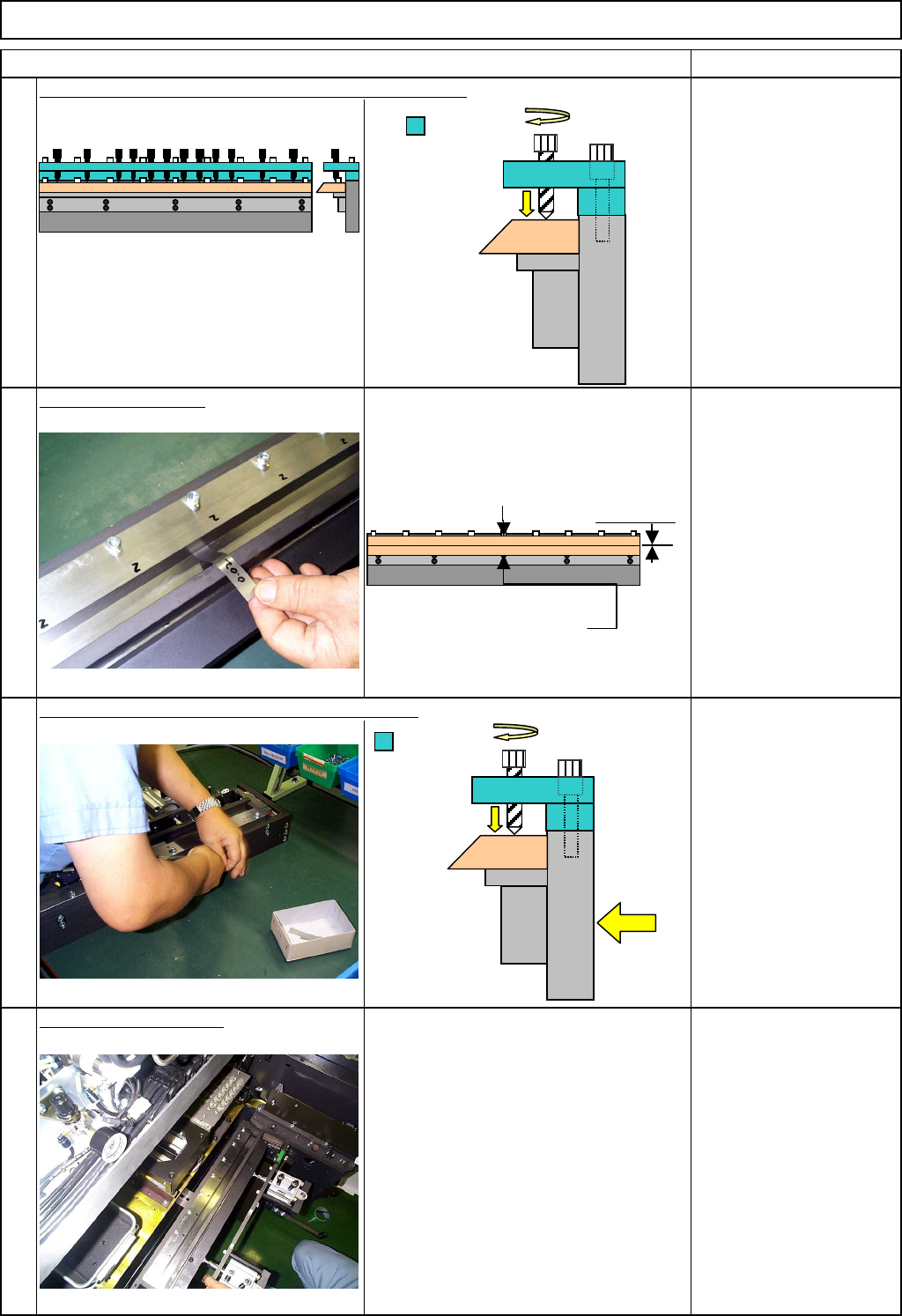

Adjust the clearance, hammering the fixed blade block.
Hammer
Allen key 4 mm
Screw M5 9 pcs.
Check the clearance.
Specification:
0 to 0.02 mm
Feeler gauge
Tighten the screws holding the fixed balde block.
Allen key 4 mm
Screw M5 12 pcs.
Put back the cutter unit.
See "Cutter Unit Replacement." Section 5-9-4
5
6
7
8
Lowering the fixed cutter blade slowly,.
adjust the gap of the movable and the
fixed cutter blades.
If lower excessively, return to Step 4
and raise the cutter blade.
=Jig
0 to 0.02 mm
Fixed cutter blade
Movabel cutter blade
=Jig
Once adjustment
is finished, tighten.
EJM8A-E-SMA040112-A01-00
Page 4-1-12-3
