Maintenance Adjustment LIght Transfer-Head Assembly (8 nozzles) ・ Tools None ・ Jig None 4-2-2 Board Recognition Camera --- X and Y-axis Origin Offset Clean the thermal correction mark beforehand. This section describes t…
Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles)
Remarks
Item

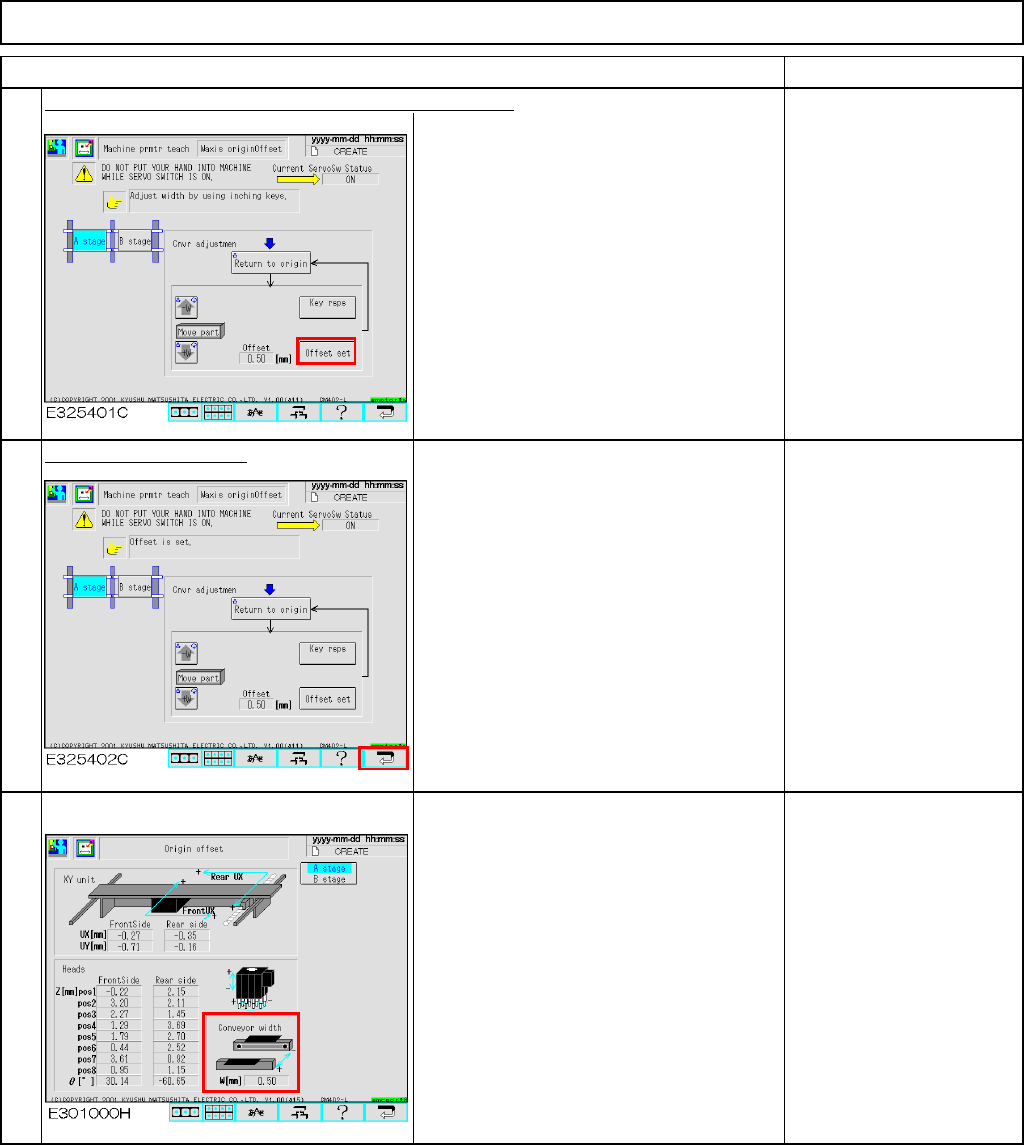

Once the width has been adjusted, press [Offset set].
The preset offset is changed to the new
one.
Press the [Return] key.
Max: 460 mm+/-0.2mm
Min: 50 mm+/-0.2mm
The offset is entered into the screen below:
Offset range:
0.00mm to +5.00mm
7
6
5
EJM8A-E-SMA040201-A01-00
Page 4-2-1-3
Maintenance Adjustment LIght Transfer-Head Assembly (8 nozzles)
・Tools
None
・Jig
None
4-2-2 Board Recognition Camera --- X and Y-axis Origin Offset
Clean the thermal correction mark beforehand.
This section describes the procedures for entering the offset for the origin of the X- and the Y-axes of the board
recognition camera.
Assembly
Adjustment
min.
Teaching
2min.
Total Time Weight of
Part
Removal
Disassembly
min.
2min.
kgs
Caution
Dange
r
Warning
EJM8A-E-SMA040202-A01-00
Page 4-2-2-1
Maintenance Adjustment LIght Transfer-Head Assembly (8 nozzles)
Remarks

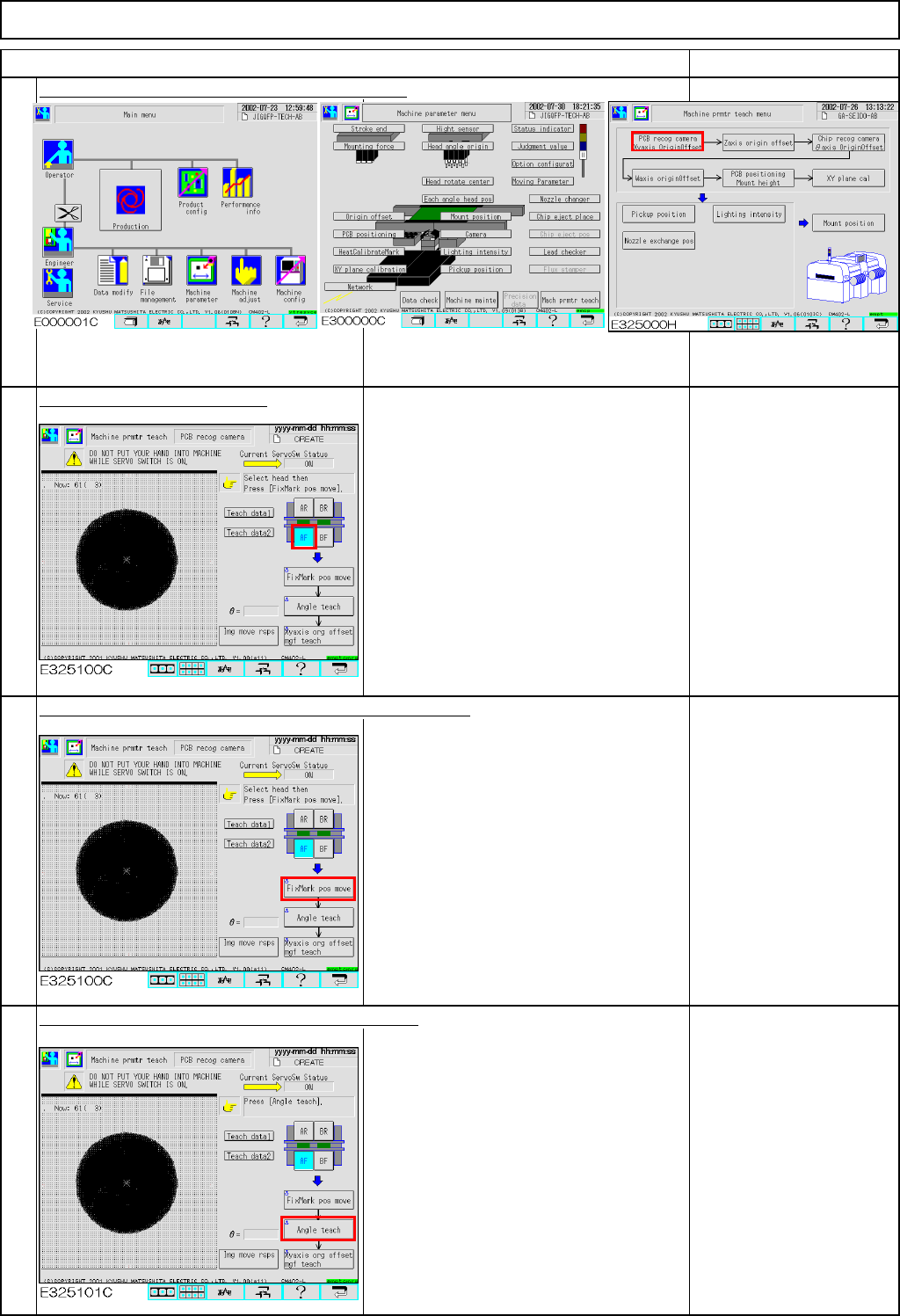

Press [PCB recog camera Xyaxis OriginOffset].
Select the stage to be taught.
Press [Unlock] and [FixMark pos move] simultaneously.
The head camera for the selected stage
moves to the heat calibration mark.
The head camera recognizes the mark.
The offsets for the X- and the Y-axes are
entered.
If the mark is not
displayed on the window,
adjustment with the XY-
axis origin jig failed.
Press [Unlock] and [Angle teach] simultaneously.
The head camera recognizes the mark.
The offset for the angle of the camera is
entered.
"Angle teach" error:
If the theta is out of the
range of +/- 0.2°,
this error will occur.
See Section 4-1-2
"Head Camera
Adjustment - Focus and
Theta."
1
Item
2
3
4
EJM8A-E-SMA040202-A01-00
Page 4-2-2-2
