Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles) Remarks Press [Zaxis origin offset]. When using eight nozzles, follow Steps 1 to 8. Select the stage to be taught. When selecting the stage, check that [Gan…

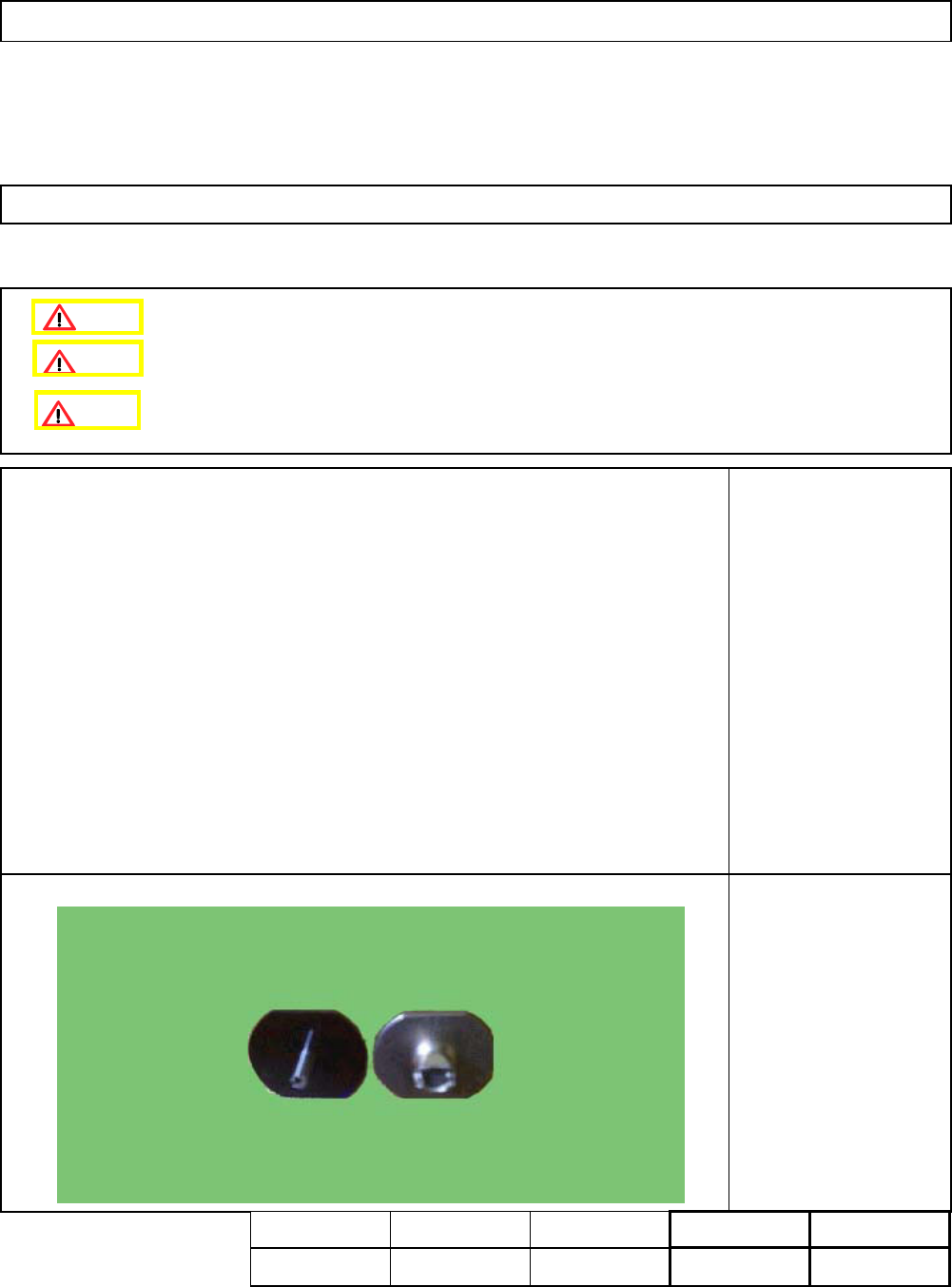

Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles)
This section describes the procedures for entering the offset for the Z-axis origin.
・Tools
None
・Jig
Nozzle 130
1 pc or 8 pcs.
4-2-3 Z-axis Origin Offset
Clean the upper surface of the themarl correction mark beforehand.
Remove the feeder cover.
Assembly
Adjustment
min.
Teaching
5min.
Total Time Weight of
Part
Removal
Disassembly
min.
5min.
kgs
Caution
Dange
r
Warning
EJM8A-E-SMA040203-A01-00
Page 4-2-3-1

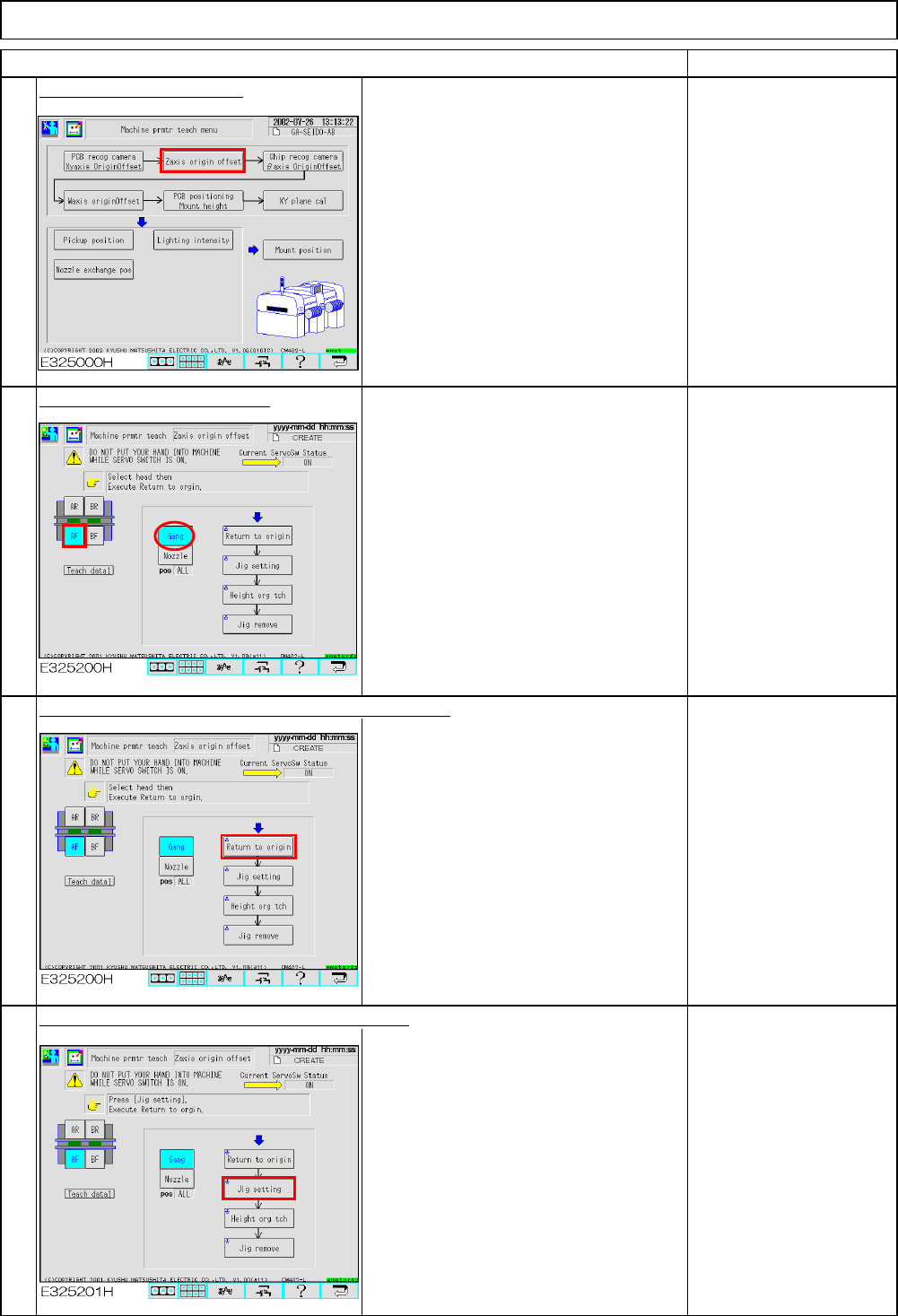

Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles)
Remarks
Press [Zaxis origin offset].
When using eight
nozzles, follow Steps 1 to
8.
Select the stage to be taught.
When selecting the
stage, check that [Gang]
is selected.
Press [Unlock] and [Return to origin] simultaneously.
The selected stage returns to the origin.
Press [Unlock] and [Jig setting] simultaneously.
The head moves to the nozzle setting
position (over the NG box).
Set Nozzle 130 on each
nozzle position.
2
3
4
Item
1
EJM8A-E-SMA040203-A01-00
Page 4-2-3-2
Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles)
Remarks
Item
Press [Unlock] and [Height org tch] simultaneously.
The head camera moves to the heat
calibration mark of that stage and
measures the height of each nozzle.
After the height of Nozzle 8 is measured,
the head stops moving down.
Press [Unlock] and [Jig remove] simultaneously.
The head moves to the nozzle setting
position.
Remove Nozzle 130 from
each nozzle position.
Press the "Return" key.
To save the machine
parameter, press the
[Return] key.
Press [Unlock] and [Run] simultaneously.
The X- and the Y- axes return to the
origin.
5
6
7
8
EJM8A-E-SMA040203-A01-00
Page 4-2-3-3
