Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles) Remarks Item Machine parameter offset Specifications: The newly measured offsets will be entered automatically into the screen at left. Z=-2.50 mm to 4.50 m…
Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles)
Remarks
Item
Press [Unlock] and [Height org tch] simultaneously.
The head camera moves to the heat
calibration mark of that stage and
measures the height of that nozzle.
Follow Steps 5 and 6 for
Nozzle Positions 2 to 8.
Press [Unlock] and [Jig remove] simultaneously.
The head moves to the nozzle set
position (over the NG box).
Remove Nozzle 130.
Press the "Return" key.
To save the machine
parameter, press the
[Return] key.
Press [Unlock] and [Run] simultaneously.
The X- and the Y- axes return to the
origin.
16
13
14
15
EJM8A-E-SMA040203-A01-00
Page 4-2-3-5
Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles)
Remarks
Item

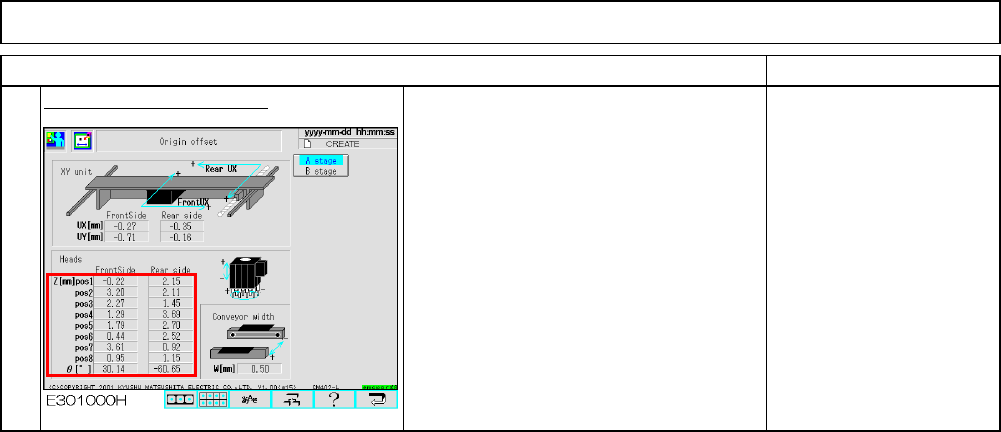

Machine parameter offset Specifications:
The newly measured offsets will be
entered automatically into the screen at
left.
Z=-2.50 mm to 4.50 mm
If an offset is out of the
specification, check that:
1. the vacuum pressure is
not excessively low.
2. the nozzle is not worn.
3. the nozzle is set
properly.
4. the vacuum sensor
functions properly.
17
EJM8A-E-SMA040203-A01-00
Page 4-2-3-6
Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles)

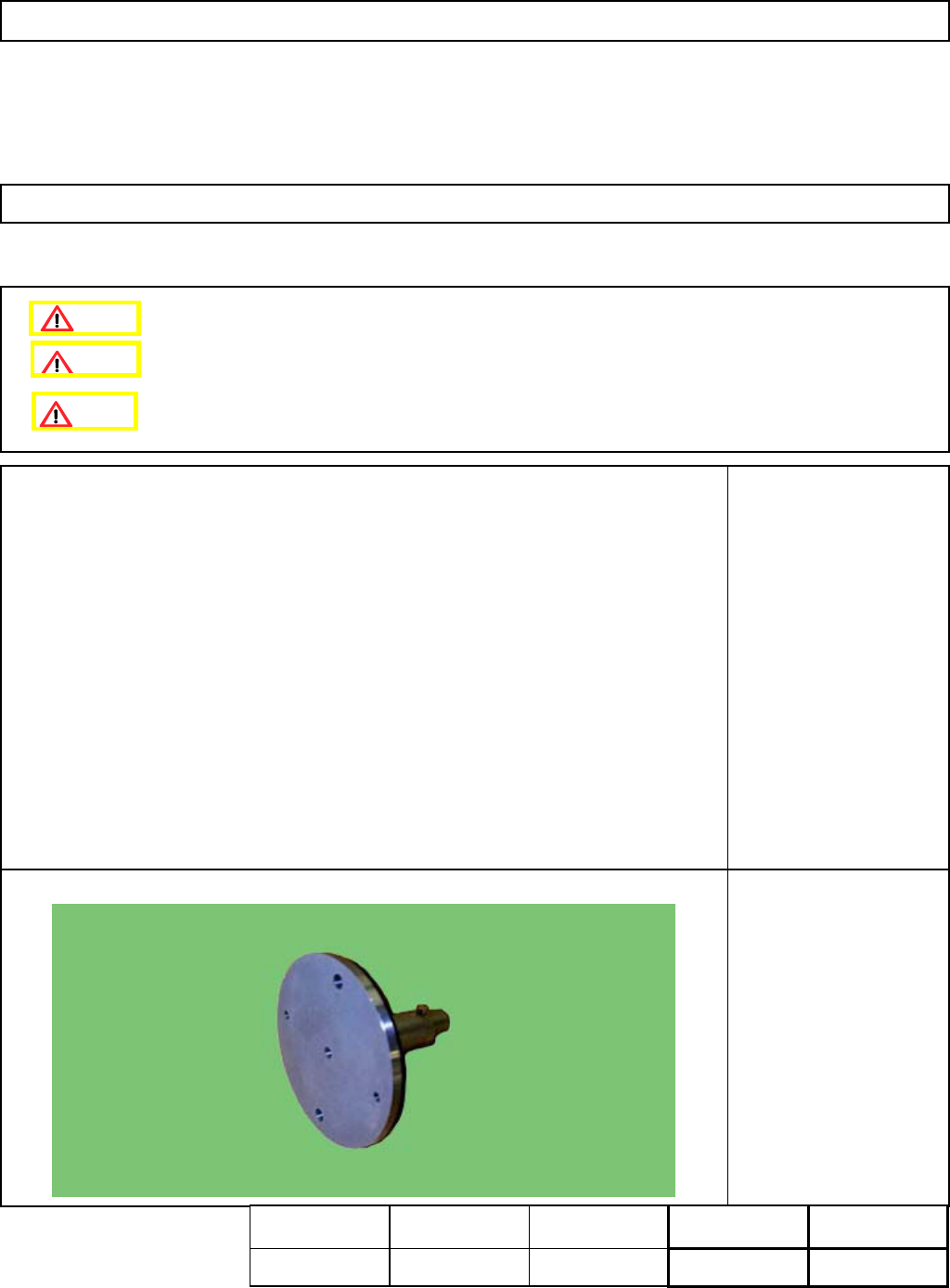

・Tools
None
・Jig
5-Hole Camera Teaching
Jig
4-2-4 Chip Recognition Camera - Theta-axis Origin Offset
Remove the nozzle holders beforehand.
Remove the NG box beforehand.
This section describes the procedures for entering the offset for the origin of the X- and the Y-axes of the board
recognition camera.
Assembly
Adjustment
min.
Teaching
10min.
Total Time Weight of
Part
Removal
Disassembly
min.
10min. kgs
Caution
Dange
r
Warning
EJM8A-E-SMA040204-A01-00
Page 4-2-4-1
