Component type: 1005R with sharp corners Td4Z4C-a-SHA :Type A High-speed head shadow teaching Td4Z4C-a-DIR :Type A High-speed head direct teaching Td4Z4C-b-45D :Type B Multi-purpose head 45°teaching Td4Z4C-b-90D :Type B …

100%1 / 1093
Since the feeder cover is left removed,
block the "Tape float sensor 1" with tape
or an equivalent tool when installing the
cart.
Install the feeder change cart.
Maintenance Adjustment
3
2
See Section "5-8-1. Feeder
Cart Installation and
Removal"
Tape
4
ITEM

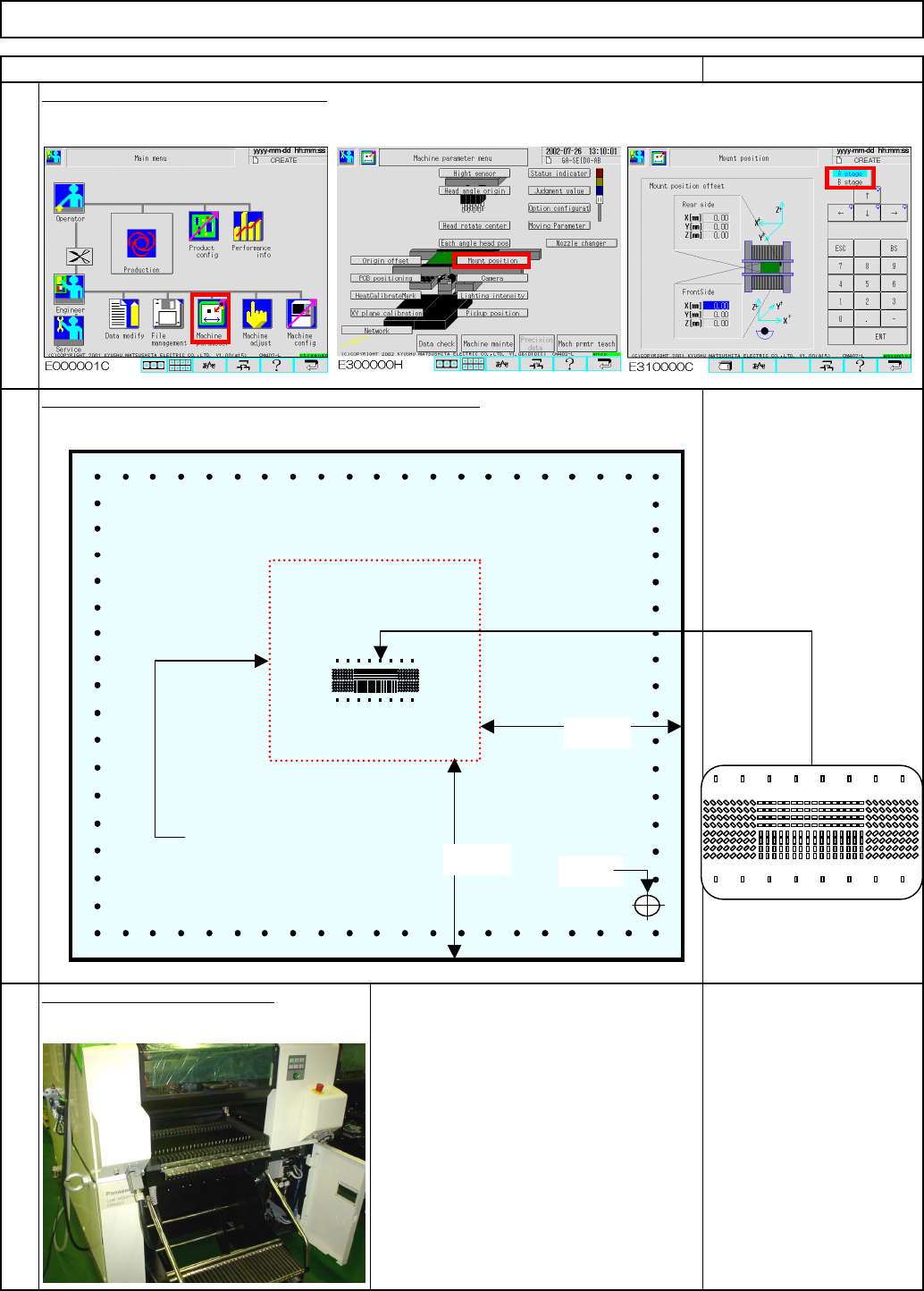

Place double-sided transparent tape on the glass board.
Double-sided tape
240×215 TH-2.4 glass
board
REMARKS
Enter "0" into "Mount position offset."
Light Transfer-Head Assembly (8 nozzles)
Components will be placed here.
Tape size 80 x 80 approx.
80mm
80mm
Origin
EJM8A-E-SMA040207-A01-00
Page　4-2-7-3
Component type:
1005R with sharp corners
Td4Z4C-a-SHA :Type A High-speed head shadow teaching
Td4Z4C-a-DIR :Type A High-speed head direct teaching
Td4Z4C-b-45D :Type B Multi-purpose head 45°teaching
Td4Z4C-b-90D :Type B Multi-purpose head 90°teaching
Td4Z4C-c-S45
:Type C High-speed shadow teaching, Multi-purpose head 45°teaching
Td4Z4C-c-D90
:Type C High-speed direct teaching, Multi-purpose head 90°teaching
* Type A: High-speed heads at Stages A and B
* Type B: Multi-purpose heads at Stages A and B
* Type C: High-speed head at Stage A, Multi-purpose head at Stage B
6
7
8

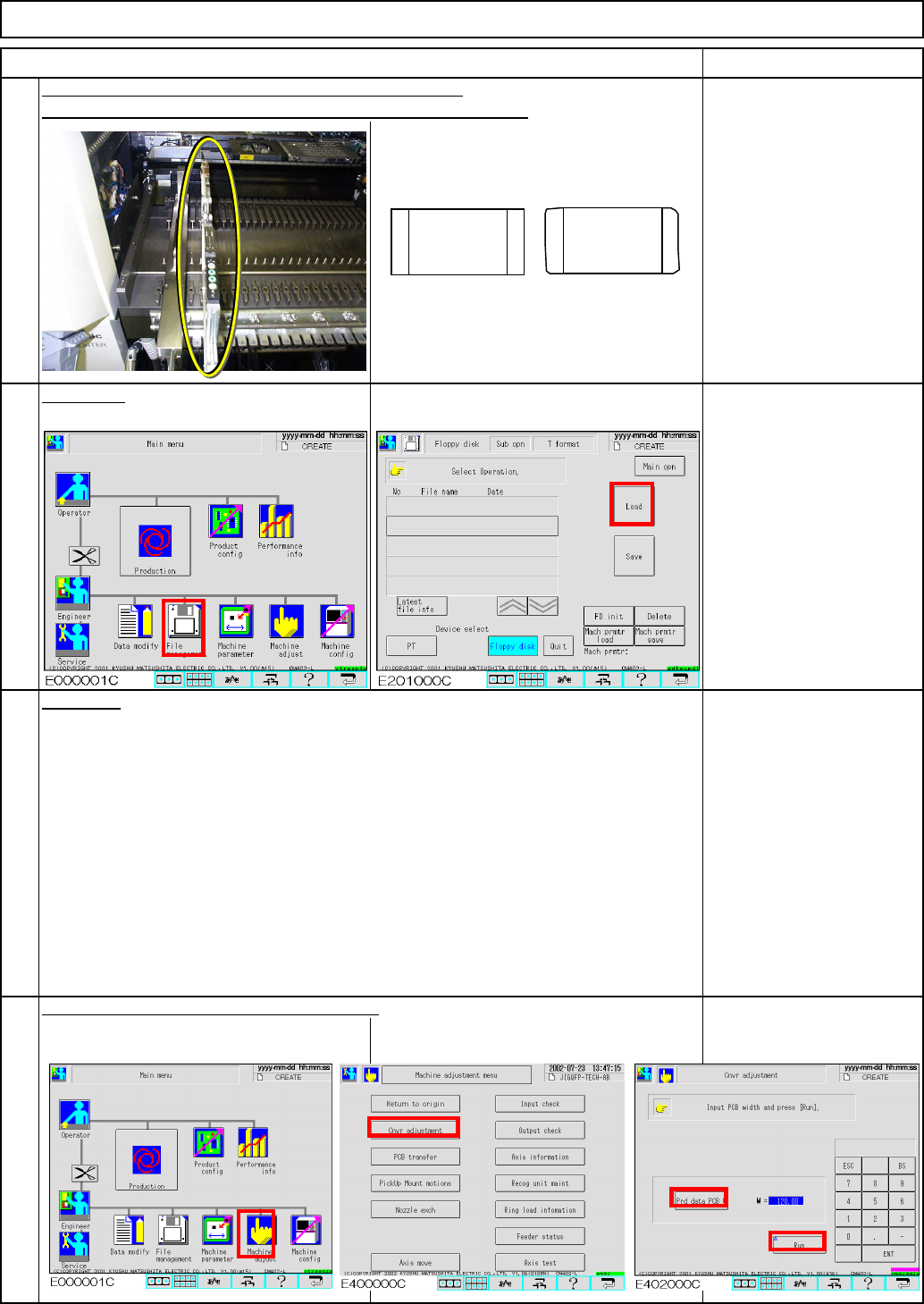

Set Component 1005 onto a 2-mm pitch tape feeders.
Adjust the width of the conveyors manually.
5
Data type:
ITEM REMARKS
Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles)
Load data.
Place one feeder onto Position 5 of each side: Front and Rear.
Component 1005R: 2 reels
OK
NG
1005R
(1)
(2)
(3)
EJM8A-E-SMA040207-A01-00
Page　4-2-7-4
E112320C
10
9
ITEM

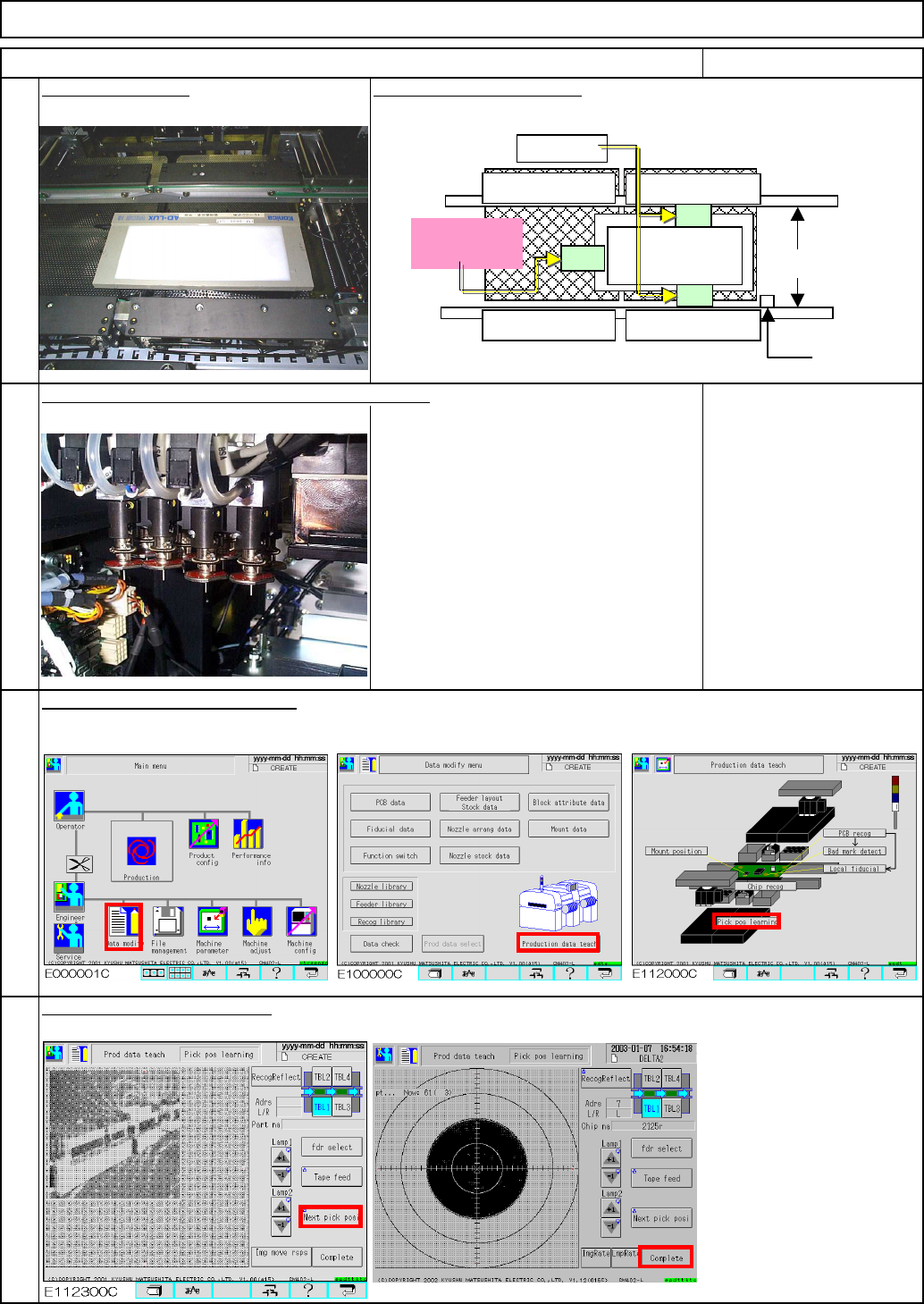

Specify pickup position offset.
11
12
There is only one tape
feeder; it is not necessary
to select the feeder.
See "Operating Manual
Section 4-6. Pick-up
Position Learning
Teaching."
Nozzle 110 x 16 pcs.
Teach "pickup position learning."
Place the light box. Be careful of tape position.
REMARKS
Light Transfer-Head Assembly (8 nozzles)Maintenance Adjustment
Fit Nozzles 110 onto both stages: Front and Rear.
Stopper
Light Box
Position the light box close to the stopper.
Middle position
Do not place
tape here!
Fixed tape
EJM8A-E-SMA040207-A01-00
Page　4-2-7-5
