Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles) Remarks Item Press [Unlock] and [Run] simultaneously. The axes of the selected stage return to the origin. The offsets are entered into the following screen…
Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles)
Remarks
Item

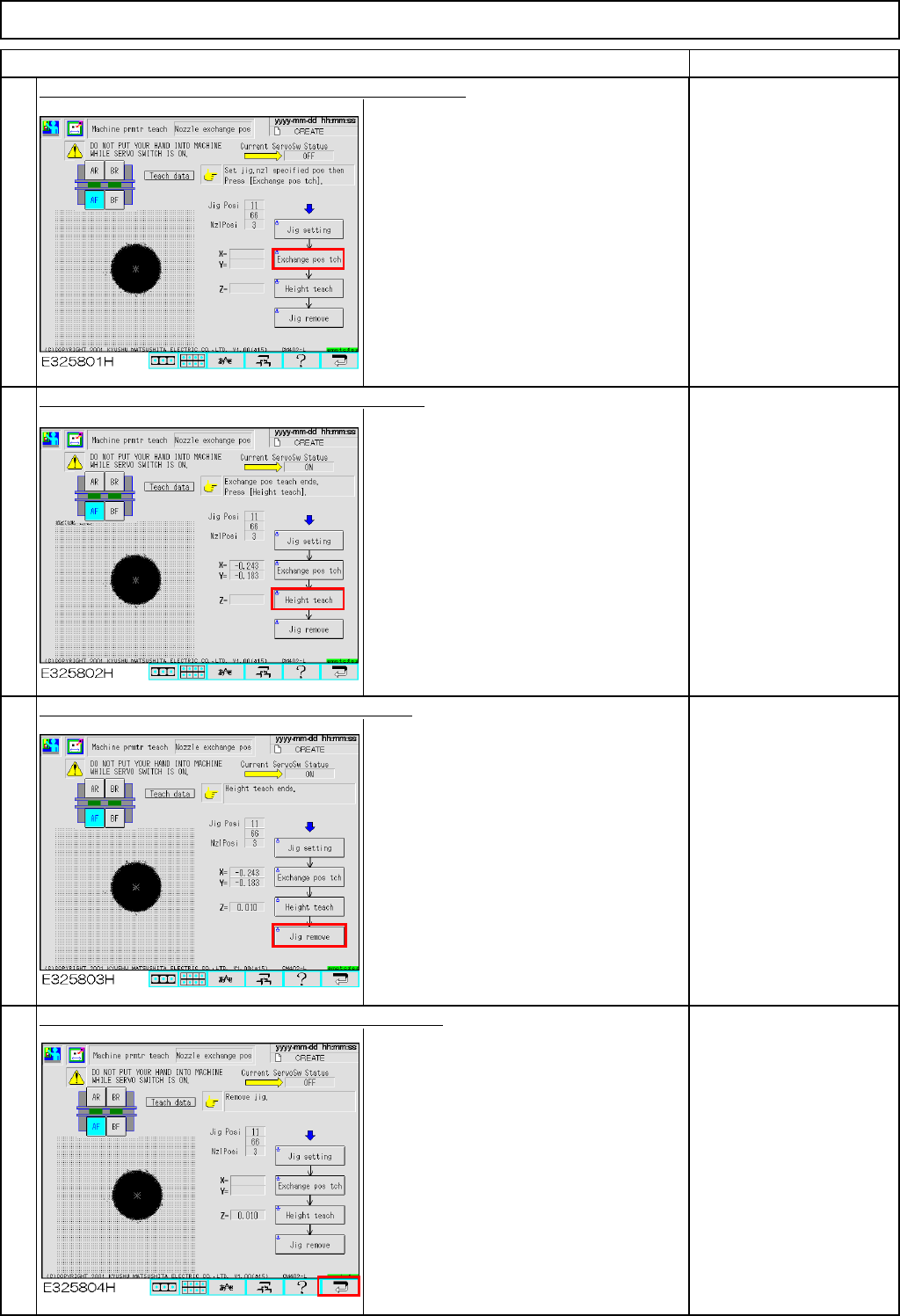

Press [Unlock] and [Exchange pos tch] simultaneously.
The head camera recognizes the nozzle
changer and the jigs automatically.
Press [Unlock] and [Height teach] simultaneously.
Head 3 descends to the nozzle changer
and the height is measured
automatically.
Press [Unlock] and [Jig remove] simultaneously.
The head moves to the nozzle setting
position (above the NG box).
Remove the jigs and
Nozzle 130.
Press [Unlock] and the "Return" key simultaneously.
5
6
7
8
EJM8A-E-SMA040209-A01-00
Page4-2-9-3
Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles)
Remarks
Item

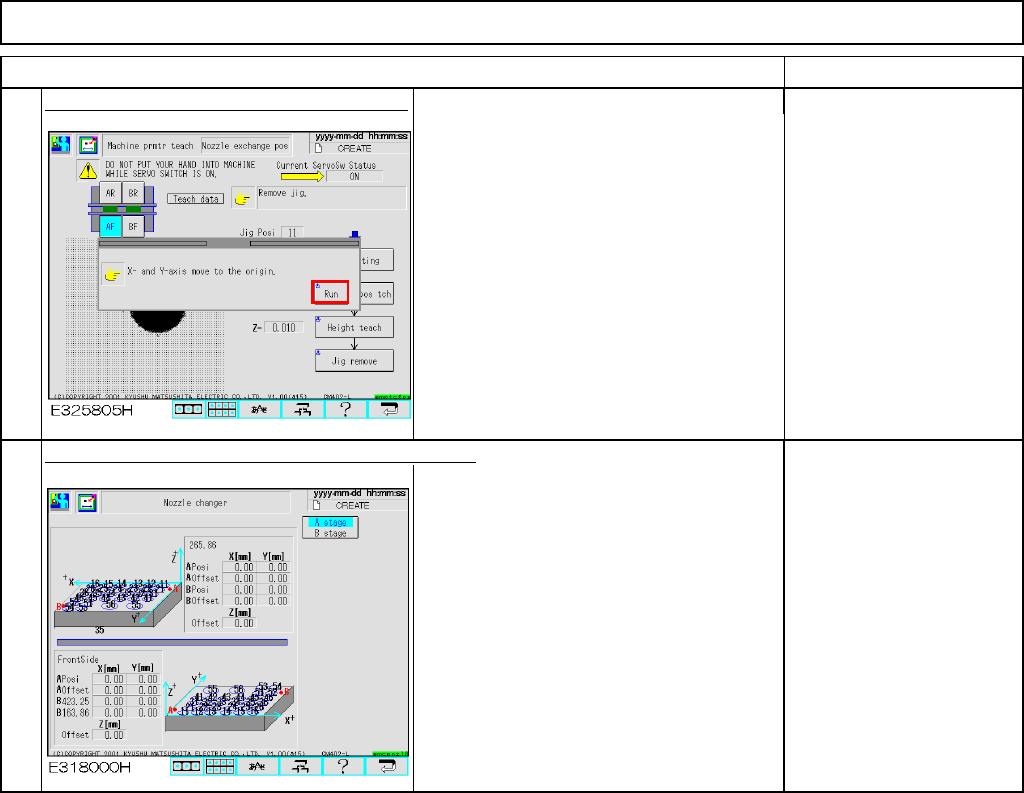

Press [Unlock] and [Run] simultaneously.
The axes of the selected stage return to
the origin.
The offsets are entered into the following screen:
Offset range:
X: -2.0 mm to 2.0 mm
Y: -2.0 mm to 2.0 mm
Z: -2.0 mm to 2.0 mm
10
9
EJM8A-E-SMA040209-A01-00
Page4-2-9-4
Kgs.
min.
None
Removal
Disassembly
A
ssembl
y
Adjustment
Teaching Total Time
FM-0934
Light Intensity Teaching
Jig
Weight of
Par
t
min.
15
min.
min. 15

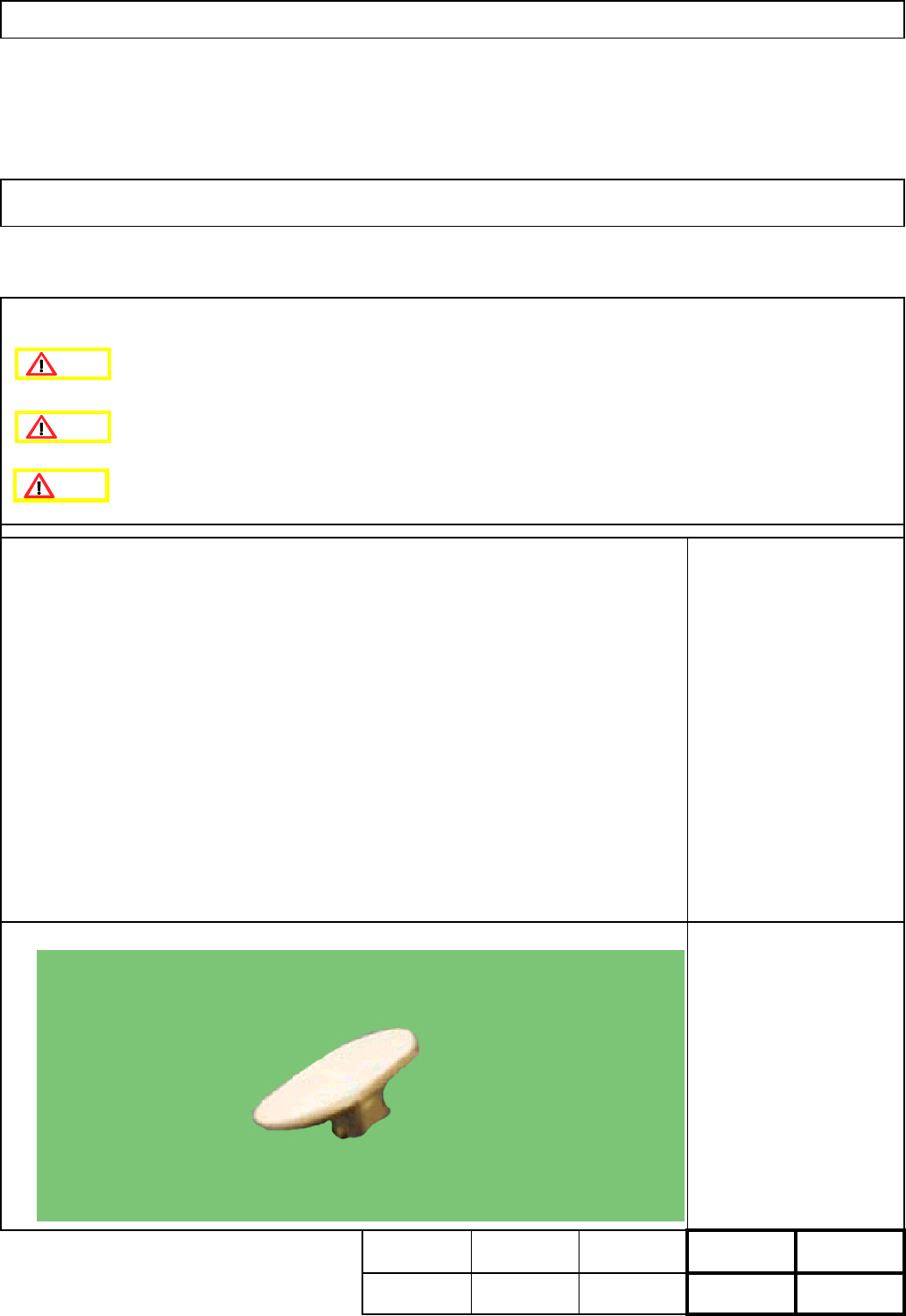

4-2-10 Light Intensity
Maintenance Adjustment Light Transfer-Head Assembly(8 nozzles)
This section describes the procedures for specifying light intensity.
Tools
Jig
Caution
Danger
Warning
EJM8A-E-SMA040210-A01-00
Page 4-2-10-1
