Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles) Remarks Item Press [Unlock] and [Height org tch] simultaneously. The head camera moves to the heat calibration mark of that stage and measures the height of…
Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles)
Remarks

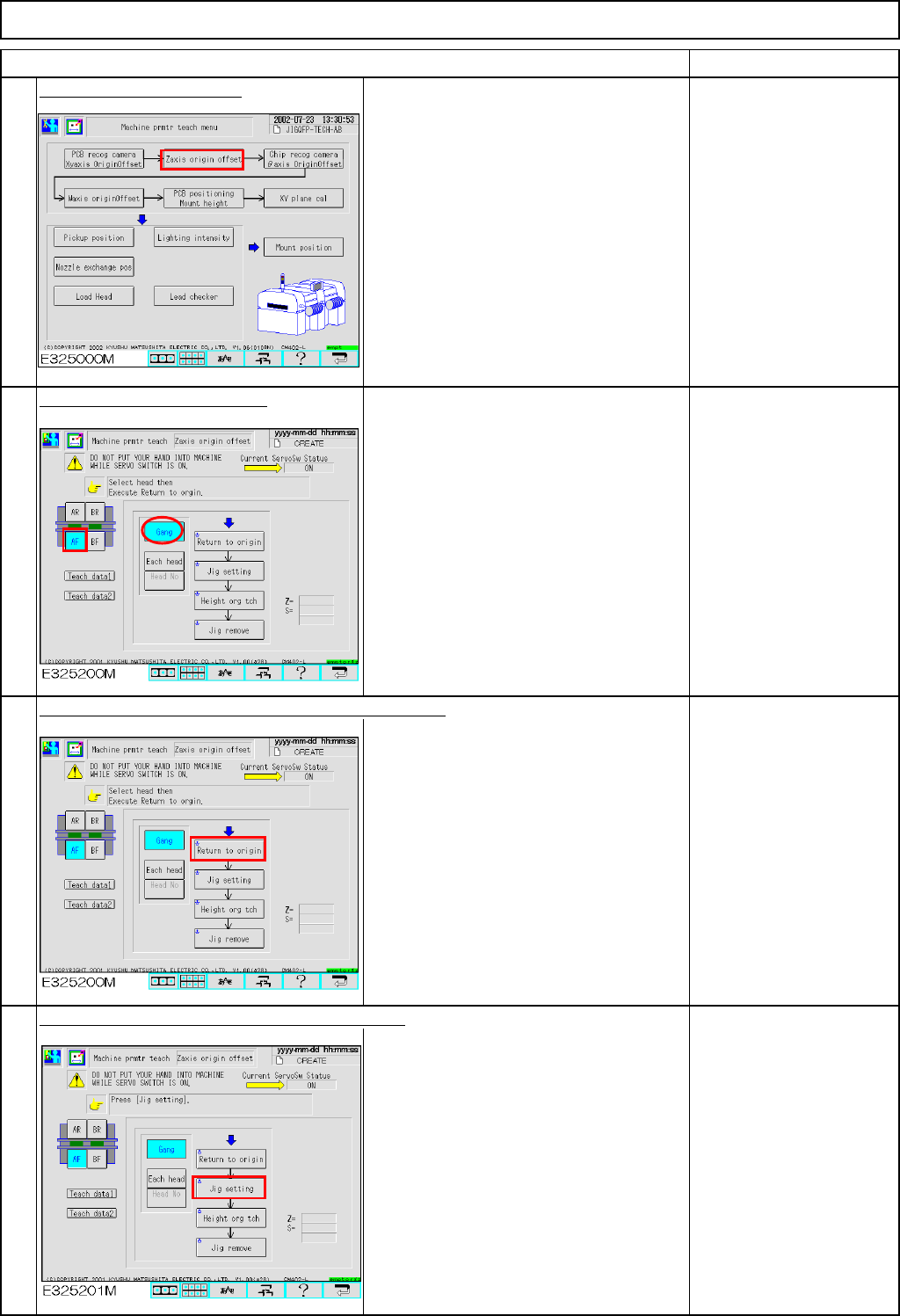

Press [Zaxis origin offset].
When using three
nozzles, follow Steps 1 to
8.
Select the stage to be taught.
When selecting the stage,
check that [Gang] is
selected.
Press [Unlock] and [Return to origin] simultaneously.
The selected stage returns to the origin.
Press [Unlock] and [Jig setting] simultaneously.
The head moves to the nozzle setting
position (over the NG box).
Set Nozzle 1003 on all
nozzle positions.
3
4
1
Item
2
EJM8A-E-SMA040303-A01-00
Page4-3-3-2
Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles)
Remarks
Item

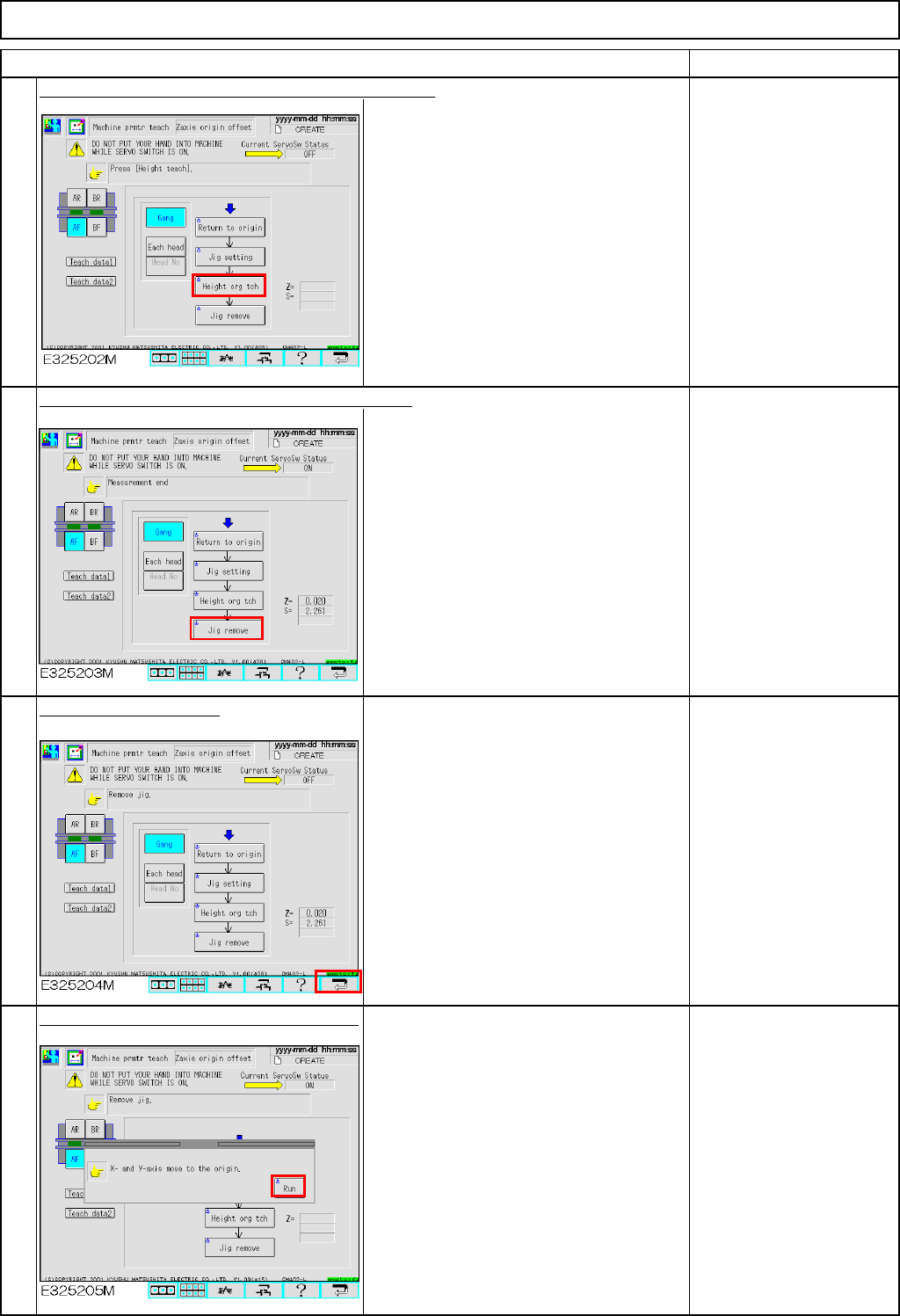

Press [Unlock] and [Height org tch] simultaneously.
The head camera moves to the heat
calibration mark of that stage and
measures the height of each nozzle.
After the height of Nozzle 3 is measured,
the head stops moving down.
Press [Unlock] and [Jig remove] simultaneously.
The head moves to the nozzle setting
position (over the NG box).
Remove Nozzle 1003
from each nozzle position.
Press the "Return" key.
To save the machine
parameter, press the
[Return] key.
Press [Unlock] and [Run] simultaneously.
The X- and the Y- axes return to the
origin.
5
6
7
8
EJM8A-E-SMA040303-A01-00
Page4-3-3-3
Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles)
Remarks
Item
Select the stage to be taught.
When using one nozzle, follow Steps 9 to
16.
Press [Each head].
Select the head number.
Press [Head No.] until the desired
head number is displayed.
When using one nozzle,
teach each nozzle
separately.
Press [Unlock] and [Return to origin] simultaneously.
The selected stage returns to the
origin.
Press
[
Unlock
]
and
[
Ji
g
settin
g]
simultaneousl
y
.
Set Nozzle 1003 on the
position displayed on the
screen.
9
10
11
12
EJM8A-E-SMA040303-A01-00
Page4-3-3-4
