Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles) Remarks Item Press the "Unlock" key and [Jig adjust]. Check that "Left" is selected for the jig position. Firmly press the jig against t…
Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles)
Remarks
Item

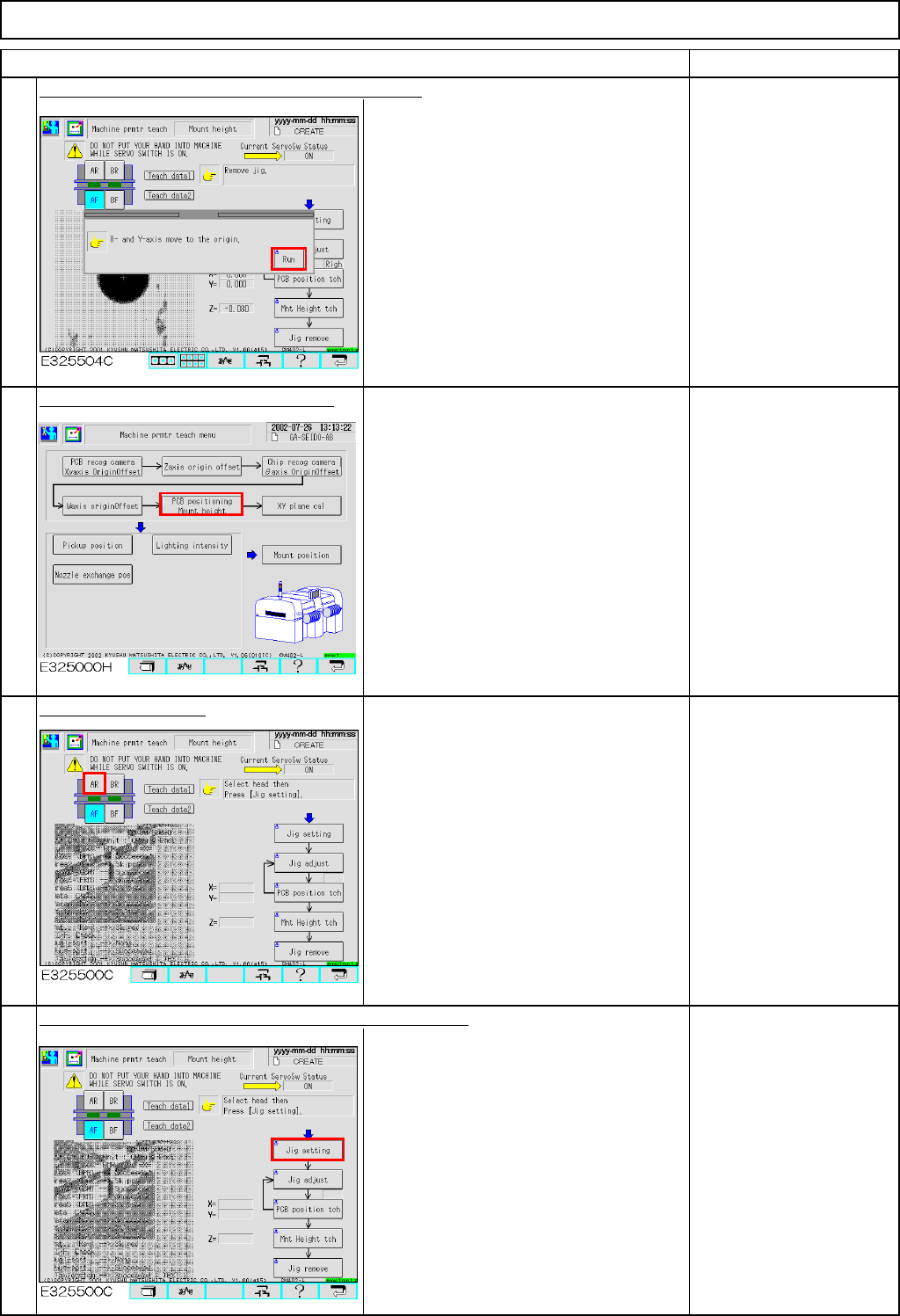

Press the "Unlock" key and [Run] simultaneously.
All axes of the selected stage return to
the origin.
Press [PCB positioning Mount height].
Select the rear stage.
Press the "Unlock" key and [Jig setting] simultaneously.
Fit Nozzle 1003 onto
Nozzle Position 3.
14
15
16
13
EJM8A-E-SMA040305-A01-00
Page 4-3-5-5
Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles)
Remarks
Item
Press the "Unlock" key and [Jig adjust].
Check that "Left" is selected for the jig
position. Firmly press the jig against the
board-clamp-holding guide and the
stopper.
Take care with the
orientation of the jig;
the hole on the jig should
face the stopper and the
fixed guide.
Press the "Unlock" key and [Mnt Height tch].
While the nozzle ascending and
descending above the jig, the vacuum
pressure is measured and the offset is
set automatically.
Only the mounting height is taught on the
rear side.
Check the data after teaching.
The offsets are entered automatically into the screens below:
Offset range:
PCB stopper:
X: -2.0 mm to +2.0 mm
Y: -2.0 mm to +2.0 mm
Mount position offset:
X: -1.0 mm to +1.0 mm
Y: -1.0 mm to +1.0 mm
Z: -1.0 mm to +1.0 mm
18
19
20
17
No gap should
be created.
ｽﾄｯﾊﾟｰ
固定側
Stopper
Fixed guide
EJM8A-E-SMA040305-A01-00
Page 4-3-5-6
Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles)
This section describes the procedures for carrying out the XY plane calibration.
・Tools
None
・Jig
FM-1045
XY plane calibration jig
510 mm x 460 mm
Remove dirt from the
recognition side of the jig
with soft cloth.
4-3-6 XY Plane Calibration
Remove the support pins beforehand.
Handle the jig with care since it is made of glass.
This calibration should be carried out on the operator's side; it cannot
Caution
Dange
r
Warning
Assembly
Adjustment
min.
Teaching
20min.
Total Time Weight of
Part
Removal
Disassembly
min.
20min.
kgs
