Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles) Remarks Press [Pickup position]. Select the stage to be taught. Check that [XY] and [Z] are highlighted. Check that the left table is selected. If the right…
Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles)
This section describes the procedures for determining the pickup position.
・Tools
None
• Jig
Pickup Position Adjusting
Jig
Nozzle 1003
4-3-8 Pickup Position
Install the feeder change cart.
Caution
Dange
r
Warning
Assembly
A
d
j
ustment
min.
Teaching
5min.
Total Time Weight of
Part
Removal
Disassembl
y
min.
5min. kgs
EJM8A-E-SMA040308-A01-00
Page4-3-8-1
Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles)
Remarks
Press [Pickup position].
Select the stage to be taught.
Check that [XY] and [Z]
are highlighted.
Check that the left table is
selected.
If the right table is
selected, press [Teach
Posi R table] in order to
select the left table.
Press [Unlock] and [Jig setting] simultaneously.
Place the jig on Feeder
Table Position 2.
Place Nozzle 1003 onto
Head 3.
Press [Unlock] and [Jig setting] simultaneously.
The head moves to the jig. → The holes
of the jig are recognized. (X・Y)→ Head 1
descends. (Z)
3
4
1
Item
2
EJM8A-E-SMA040308-A01-00
Page4-3-8-2
Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles)
Remarks
Item

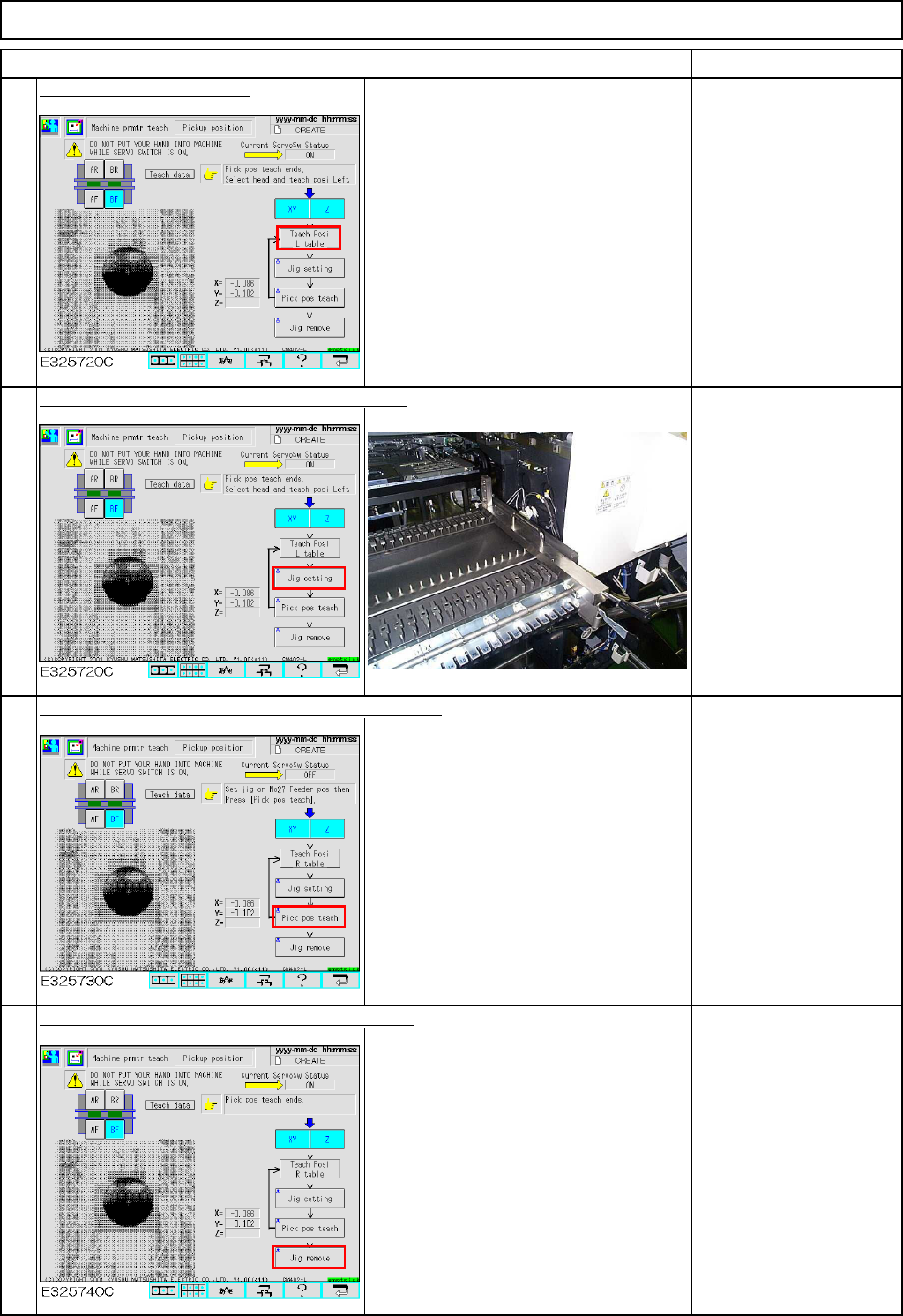

Press [Teach Posi L table].
Change to [Teach Posi R table]. If the left table is selected,
press [Teach Posi L table]
in order to select the right
table.
Press [Unlock] and [Jig setting] simultaneously.
Place the jig on the
Feeder Table Position 27
of the selected stage.
Press [Unlock] and [Pick pos teach] simultaneously.
The head moves to the jig. → The holes
of the jig are recognized. (X・Y)→ Head 1
descends. (Z)
Press [Unlock] and [Jig remove] simultaneously.
The head moves to the nozzle setting
position (over NG box).
Remove the jig and the
nozzle.
5
6
7
8
EJM8A-E-SMA040308-A01-00
Page4-3-8-3
