Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles) This section describes the procedures for determining offsets for the load applied to the load head. ・ Tools None ・ Jig Nozzle 1003 Load Measuring Jig 作業時間 …
Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles)
Remarks
Item
Press [Unlock] and [Run] simultaneously.
All axes of the selected stage return to
the origin.
The offsets are entered into the screen below:
Offset range:
X：-2.0mm to 2.0mm
Y：-2.0mm to 2.0mm
Z：-2.0mm to 2.0mm
9
10
EJM8A-E-SMA040309-A01-00
Page 4-3-9-4

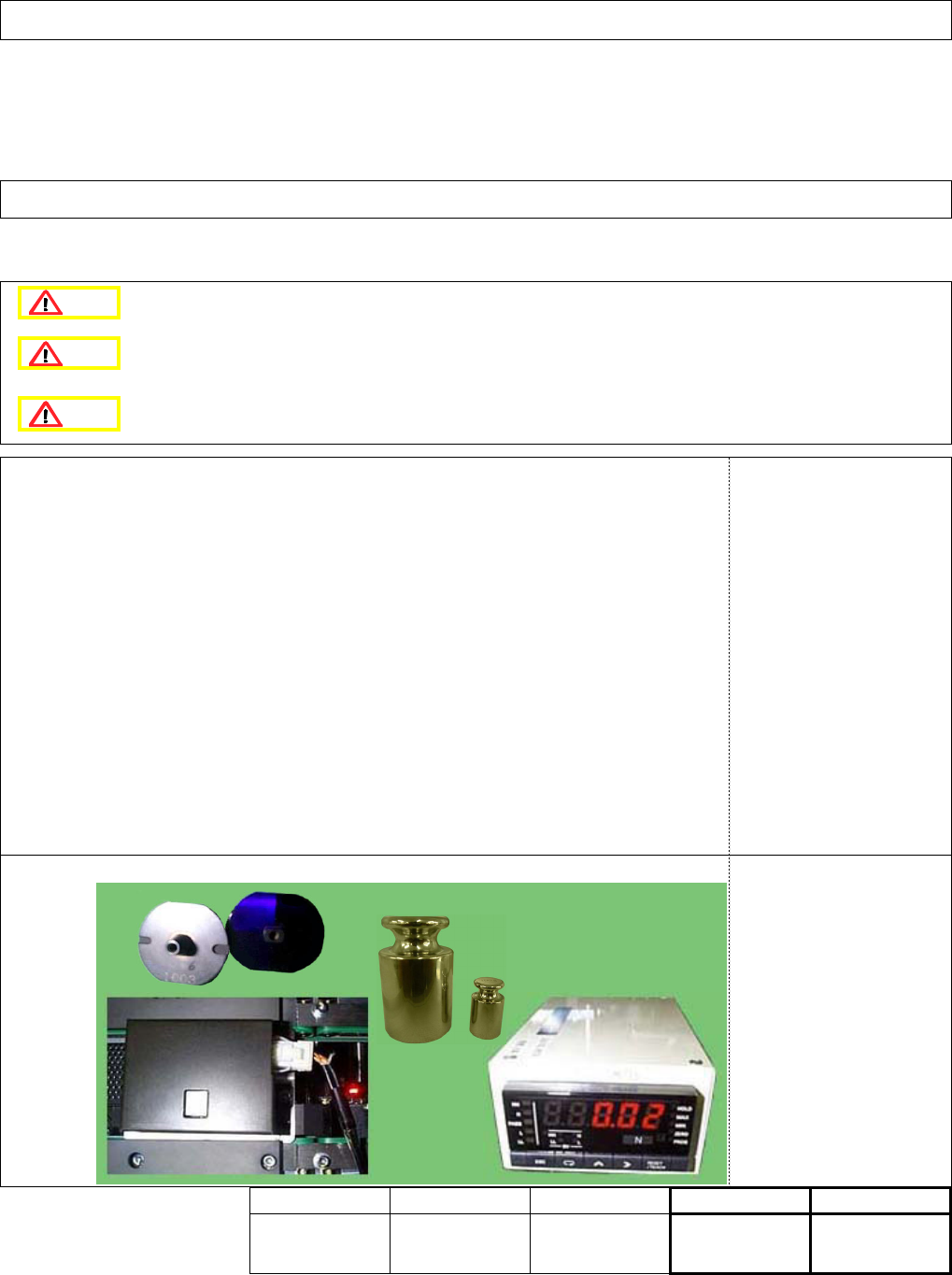

Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles)
This section describes the procedures for determining offsets for the load applied to the load head.
・Tools
None
・Jig
Nozzle 1003
Load Measuring Jig
作業時間 15分
部品重量 - kg
4-3-10 Load Head
Caution
Danger
Warning
Assembly/Adjustment
20 min.
Teaching
15 min.
Removal/Disassembly
min.
Total Time
35 min.
Part Weight
kgs.
EJM8A-E-SMA040310-A01-00
Page4-3-10-1
Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles)
Remarks

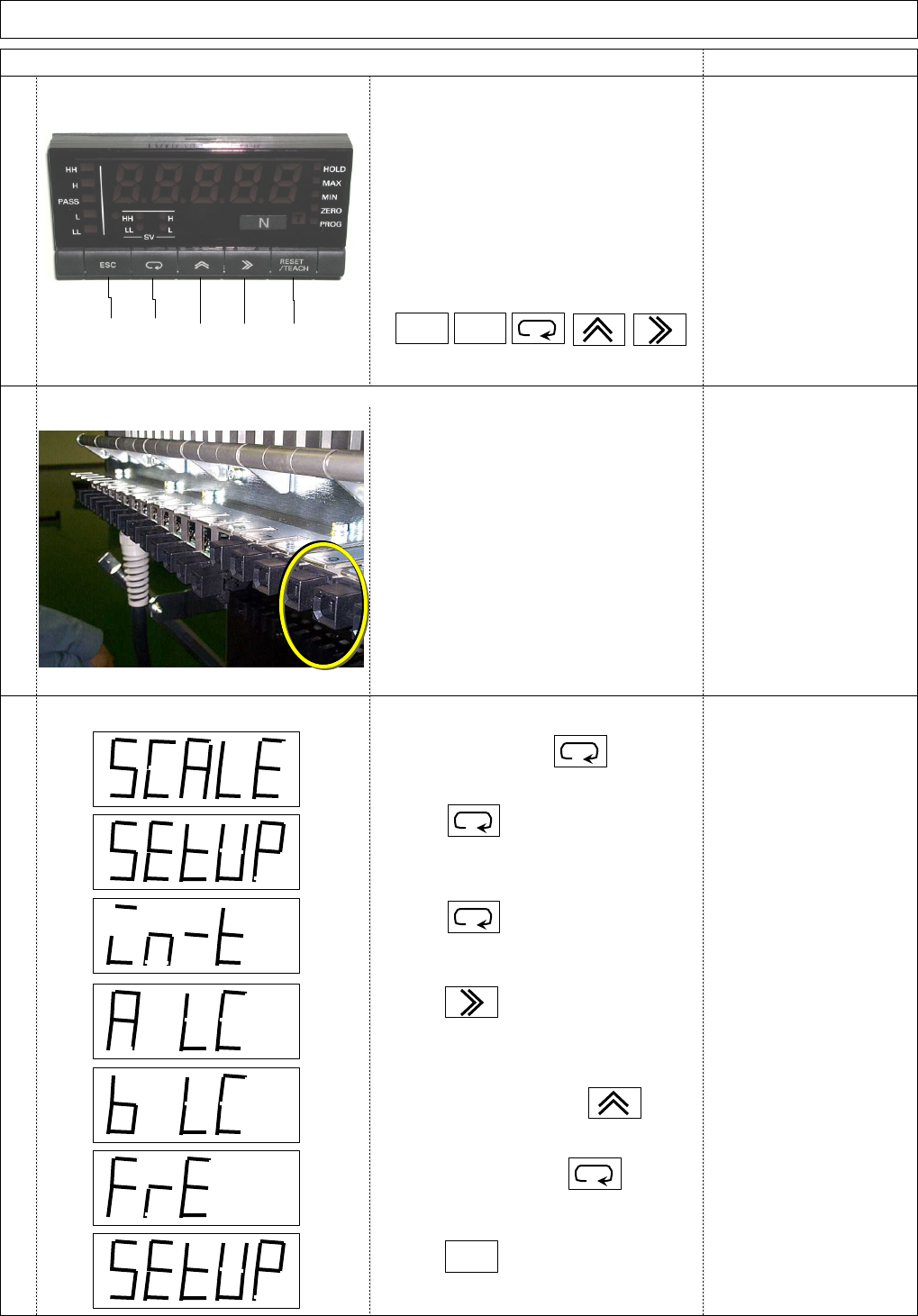

Initial setup
Connect the power supply cord to the feeder connector.
Set "Input range."
1
2
3
Item
①Escape: used to return to the previous operation.
②Mode: used to change menu or to determine the set value.
③Up: used to change setting.
④Shift: used to shift the highlight to the right digit when setting.
⑤RESET/TEACH: used to reset or to teach.
①②
③④ ⑤
ESC
RESET/
TEACH
Press several times until
"SETUP" is displayed.
Power up and press for 1 sec.
Press for 1 sec.
Press to highlight the digit
to be changed.
To display "b LC," press
To determine, press
ESC
and
EJM8A-E-SMA040310-A01-00
Page4-3-10-2
