Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles) Remarks Item Press the "Return" key. Press [Unlock] and [Nozzle remove] simultaneously. Remove the nozzle from the head. If the other heads are ta…

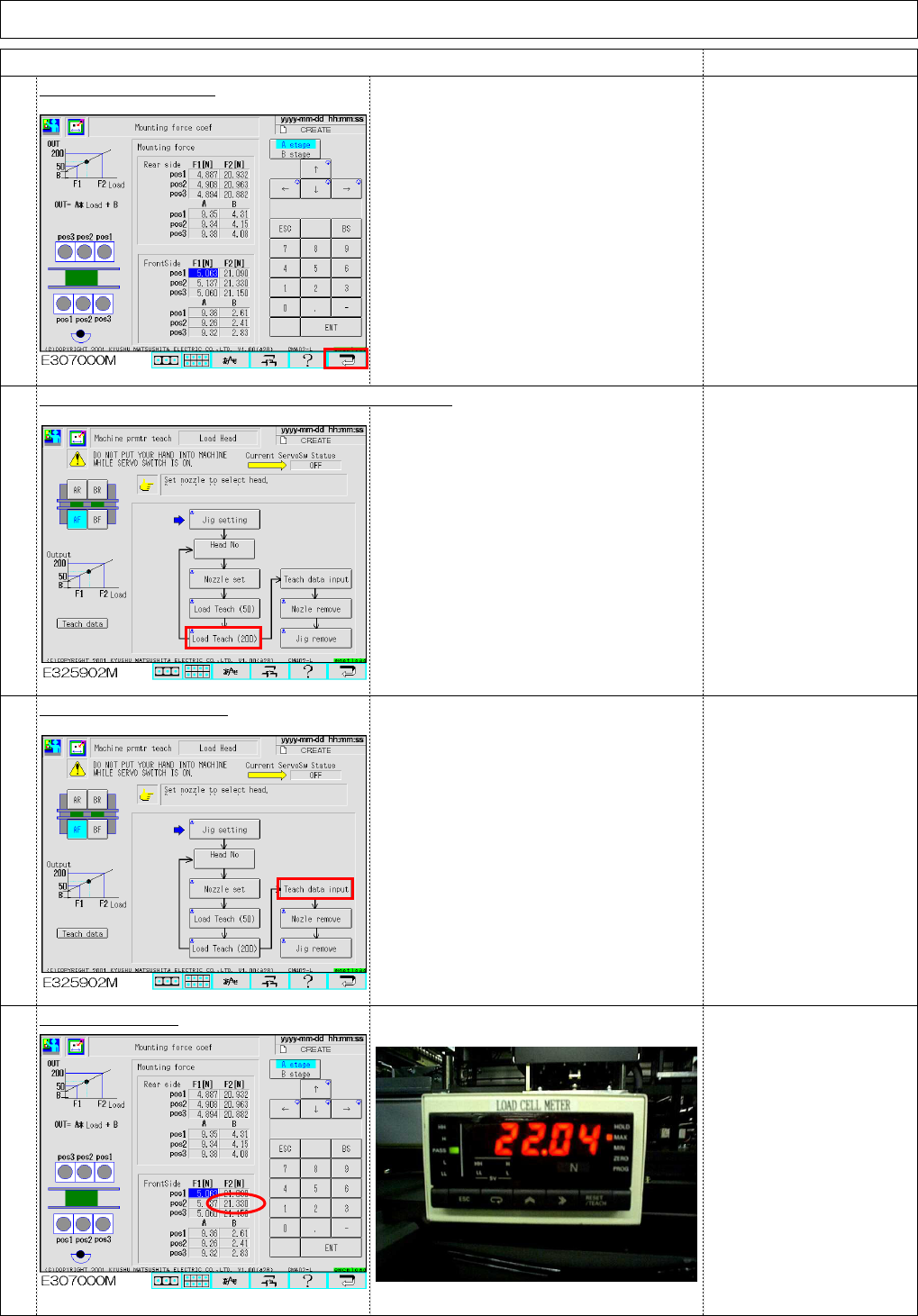

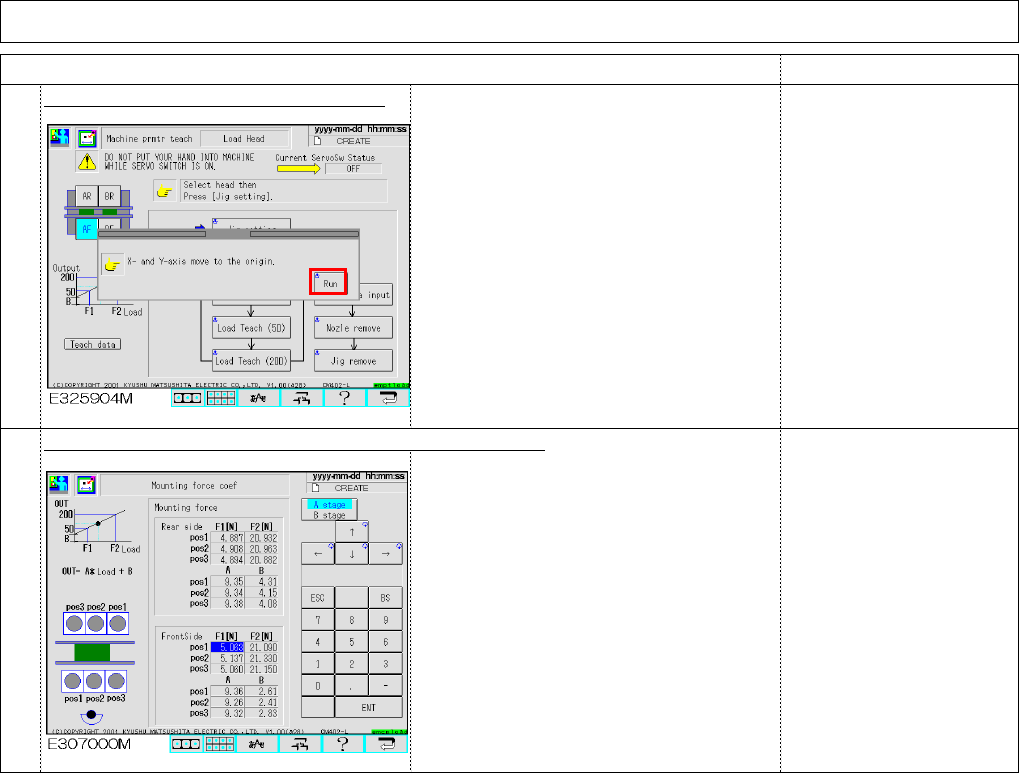

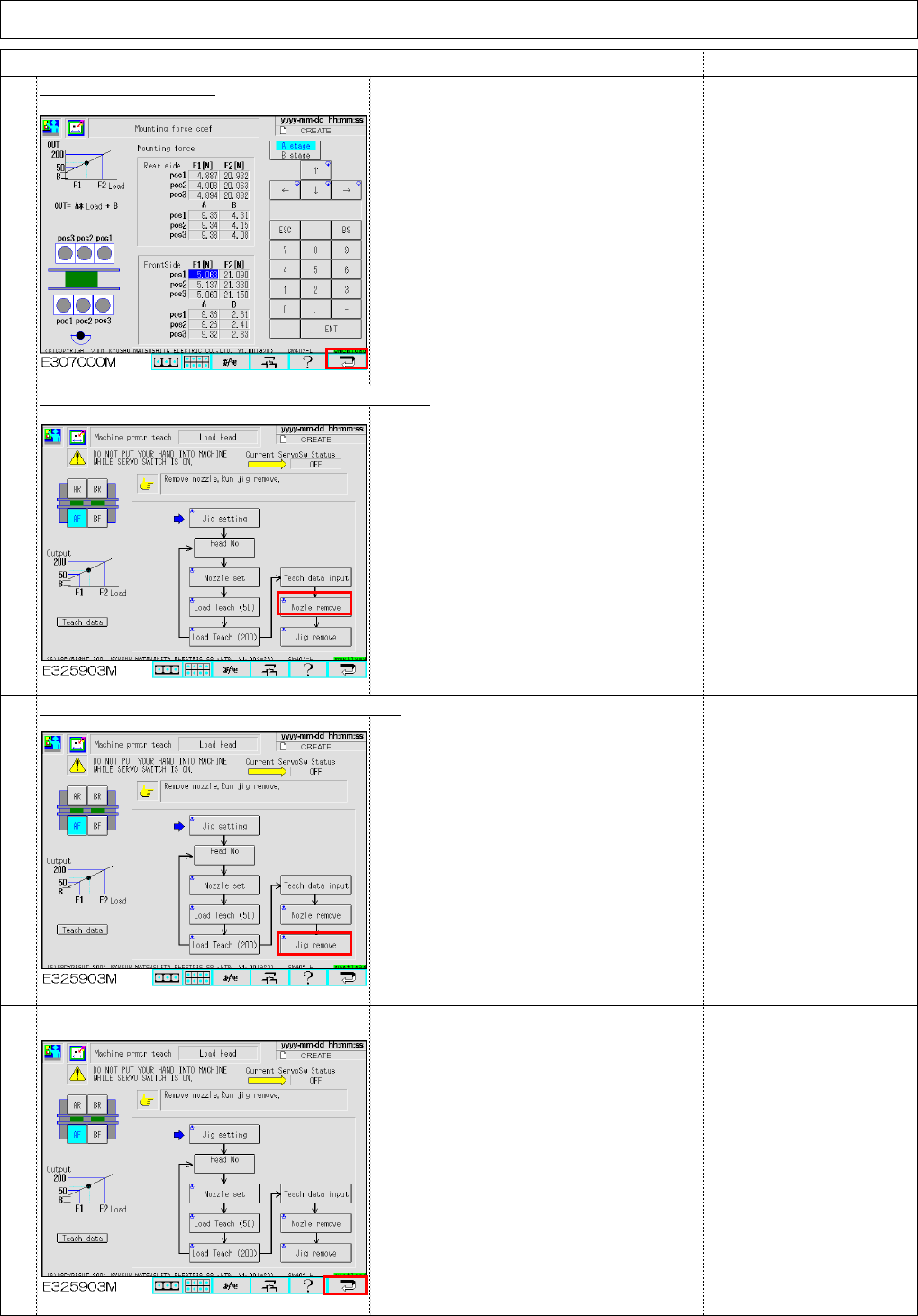

Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles)
Remarks
Item
Press the "Return" key.
Press [Unlock] and [Load Teach (200)] simultaneously.
Press [Teach data input].
Enter the jig value.
Enter the value displayed
on the monitor into the
flashing box on the screen
at left.
F2: 15.0 N to 25.0 N
19
20
21
22
EJM8A-E-SMA040310-A01-00
Page4-3-10-8
Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles)
Remarks
Item
Press the "Return" key.
Press [Unlock] and [Nozzle remove] simultaneously.
Remove the nozzle from
the head.
If the other heads are
taught, follow Steps 3 to
12.
Press [Unlock] and [Jig remove] simultaneously.
Remove the jig.
Press the "Return" key.
23
24
25
26
EJM8A-E-SMA040310-A01-00
Page4-3-10-9
Maintenance Adjustment Light Transfer-Head Assembly (3 nozzles)
Remarks
Item
Press [Unlock] and [Run] simultaneously.
The offsets are entered automatically into the screen below:
If a large negative value is entered into
Offset B, check:
1. that a vacuum ring is suspended by two
extension springs.
2. that the spline shaft slides smoothly.
Manually enter "F1" and
"F2" values.
F1: 4.0 N to 6.0 N
F2: 15.0 N to 25.0 N
Once the loads above are
entered, offsets will be
calculated automatically.
A: 8.0 to 9.5
B: 0.0 to 15.0
28
27
EJM8A-E-SMA040310-A01-00
Page4-3-10-10
