Machinery Part Replacement Main Body
Tools
Phillips screwdriver #2
Phillips screwdriver #1
Tape
Jig
FM-1055
Tape Float Sensor
Adjusting Jig
5-1-2　　　　 　 Tape Float Sensor Replacement
This section describes the procedures for replacing the tape float sensor.
Assembly
Adjustment
10min.
Teaching
min.
Total　Time Weight　of
Part
Removal
Disassembly
13min.
23min. kgs
Caution
Dange
r
Warning
EJM8A-E-SMA050102-A01-00
Page　5-1-2-1

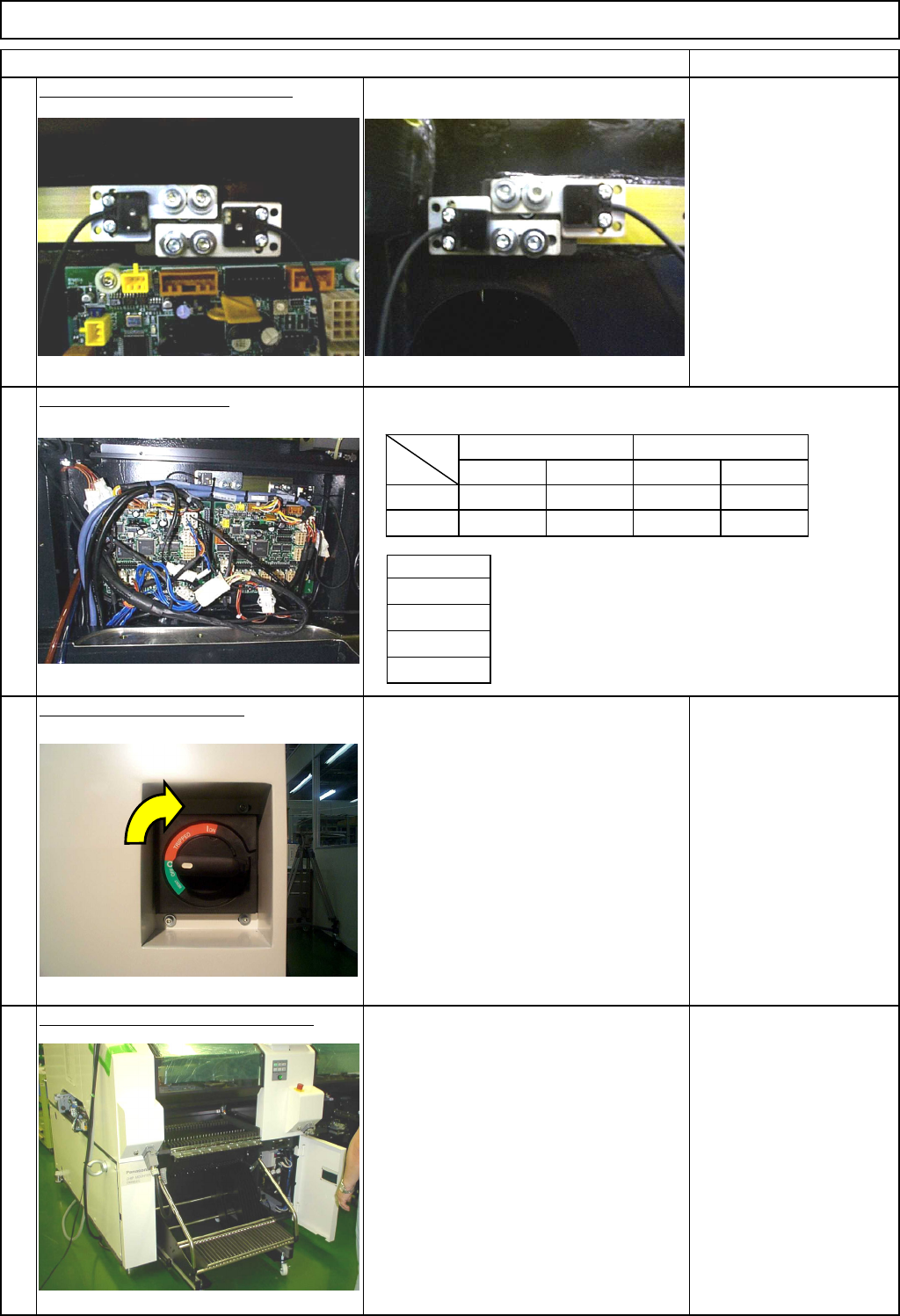

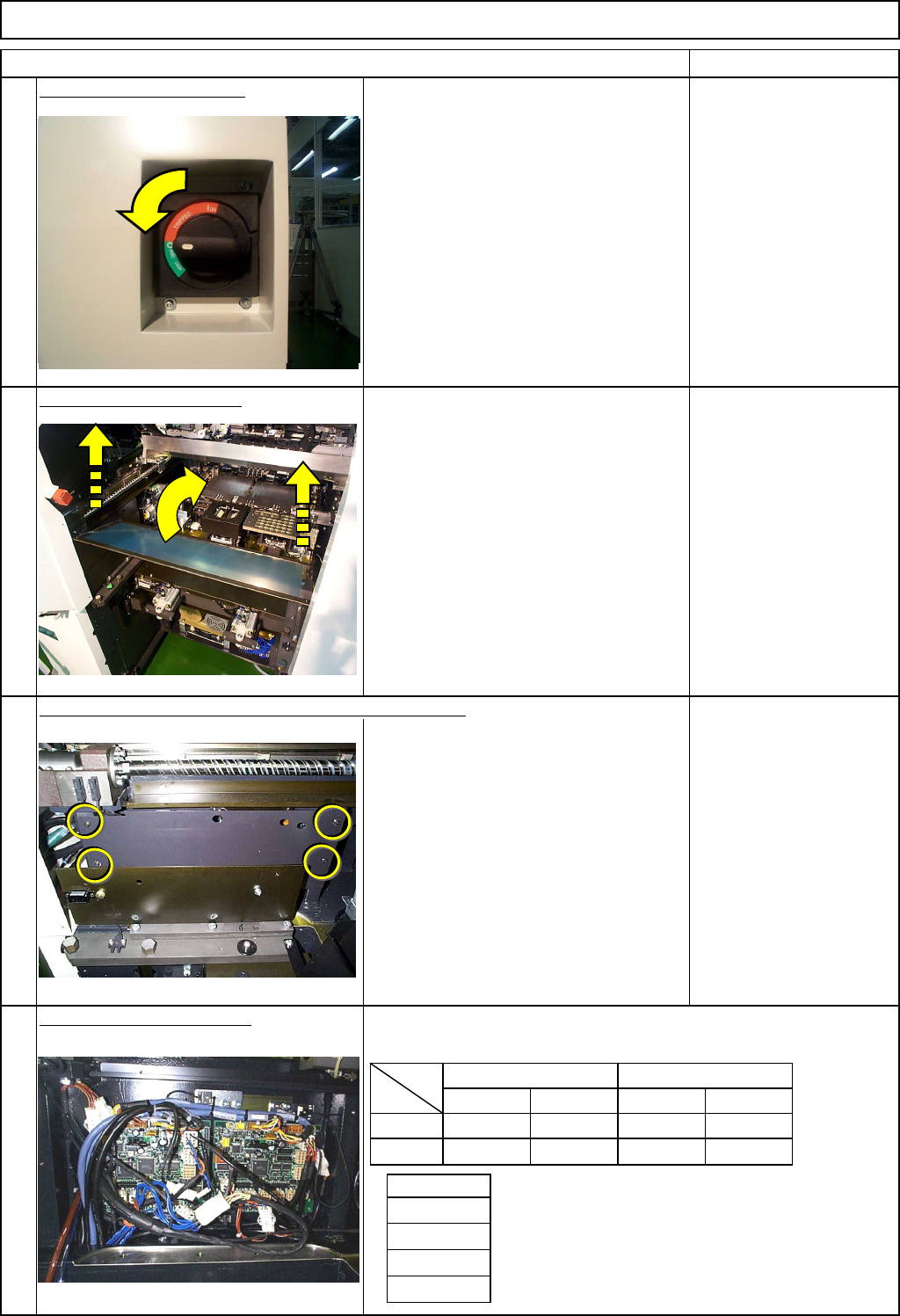

Machinery Part Replacement Main Body
Remarks
Switch off the main power.
Remove the feeder cover.
Phillips screwdriver #2
Screw M4 2 pcs.
Remove the side cover near the sensor to be replaced.
Phillips screwdriver #2
Screw M4 4 pcs.
Disconnect the connectors.
1
2
3
4
Item
■=
AF　-　2
AR　-　4
BF　-　B
BR　-　D
J1■27 J1■37 J1■33 J2■33
PH■33PH■27 PH■27T PH■33T
Tape Float Sensor 1
Light sensing Light emitting
Tape Float Sensor 2
Connector
Sensor No.
Light sensing Light emitting
No.
EJM8A-E-SMA050102-A01-00
Page　5-1-2-2
Machinery Part Replacement Main Body
Remarks
Item
Remove and replace the sensor.
Phillips screwdriver #1
Screw M3 2 pcs.
Connect the connectors.
Switch on the main power.
Install the feeder gang change cart.
Refer to "Feeder Gang Exchange Cart
Installation and Removal."
Since the feeder covers are left off, block
the light beam of "Tape Float Sensor 1"
with tape or equivalent.
Section 5-8-1
Tape
8
5
6
7
■=
AF　-　2
AR　-　4
BF　-　B
BR　-　D
J1■27 J1■37 J1■33 J2■33
PH■33PH■27 PH■27T PH■33T
Tape Float Sensor 1
Light sensing Light emitting
Tape Float Sensor 2
Connector
Sensor No.
Light sensing Light emitting
No.
EJM8A-E-SMA050102-A01-00
Page　5-1-2-3
