Machinery Part Replacement Main Body
This section describes the procedures for replacing the Y-axis rough sensor.

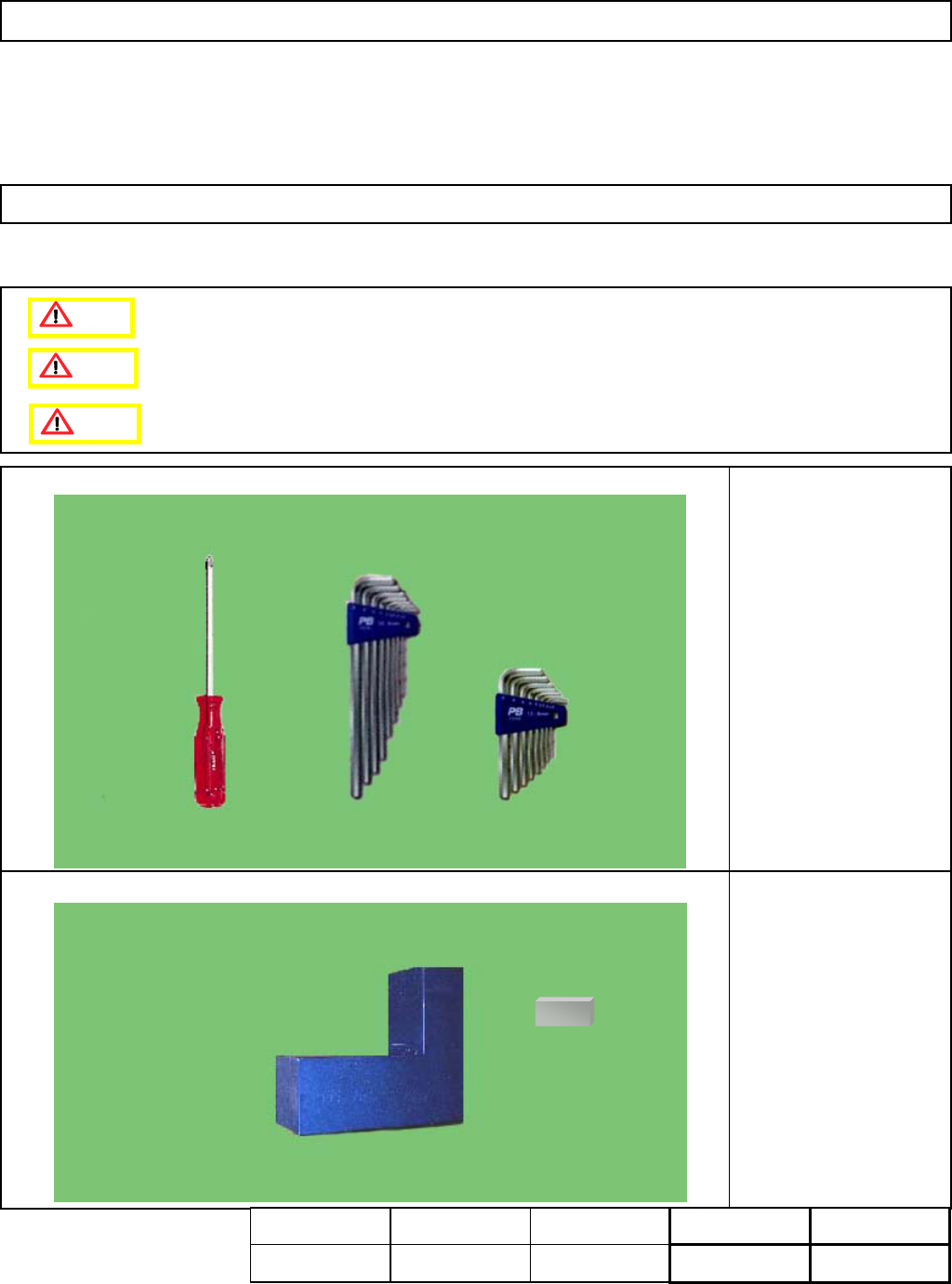

Tools
Phillips screwdriver #2
Allen key 2.5 mm
Jig
Y-axis Origin Positioning
Jig
Block gauge (2 mm)
5-1-3 Y-axis Rough Sensor Replacement
Assembly
Adjustment
7min.
Teaching
min.
Total Time Weight of
Part
Removal
Disassembly
8min.
15min. kgs
Caution
Dange
r
Warning
EJM8A-E-SMA050103-A01-00
Page 5-1-3-1
Machinery Part Replacement Main Body
Remarks

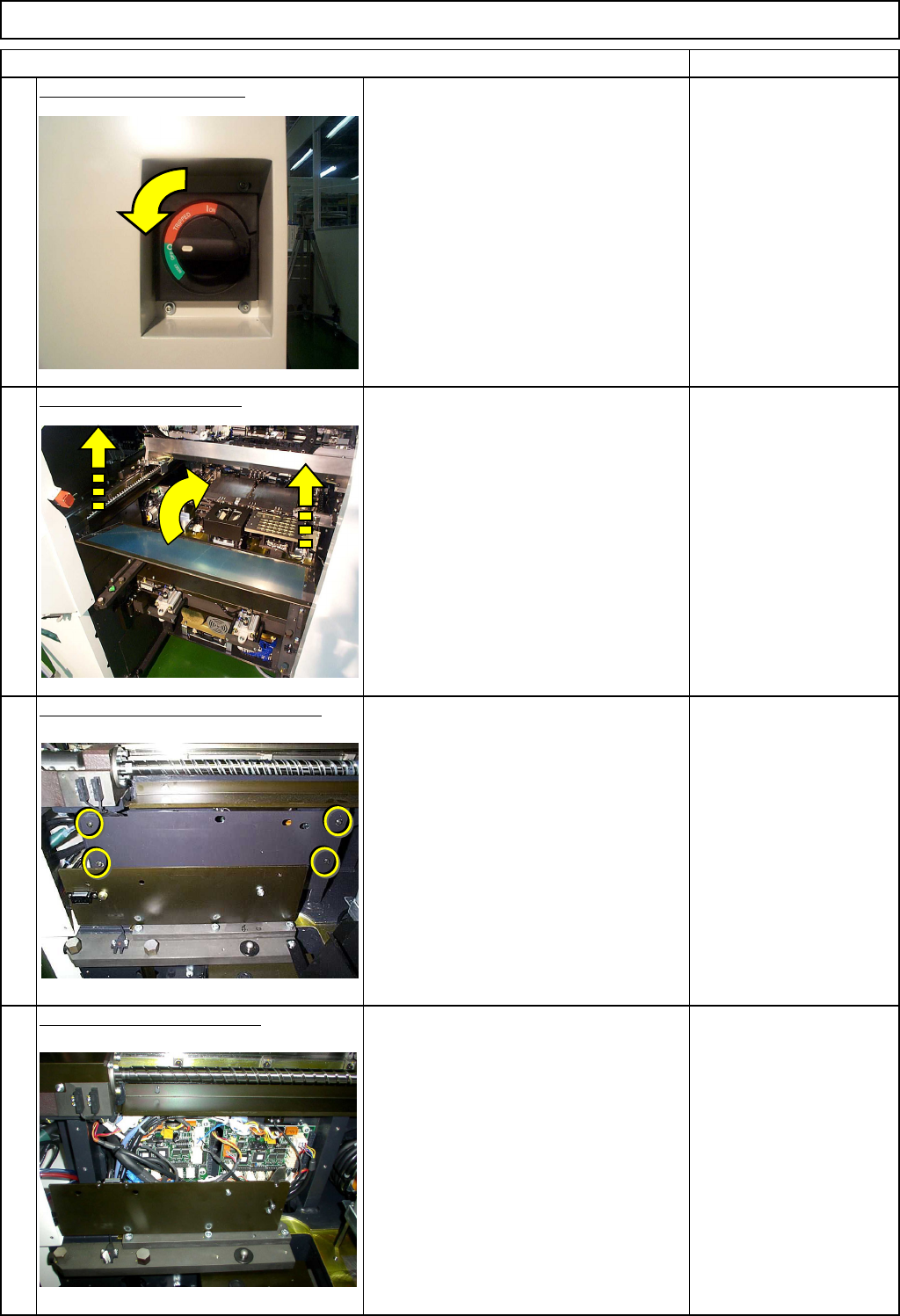

Switch off the main power.
Remove the feeder cover.
Phillips screwdriver #2
Screw M4 2 pcs.
Remove the cover from the left side.
Phillips screwdriver #2
Screw M4 4 pcs.
Remove J1
■27 connectors.
11-000001
The missing part ■ of the connector
name is one of the followings:
AF-1
AR-3
BF-A
BR-C
Item
2
3
4
1
EJM8A-E-SMA050103-A01-00
Page 5-1-3-2
Machinery Part Replacement Main Body
Remarks
Item

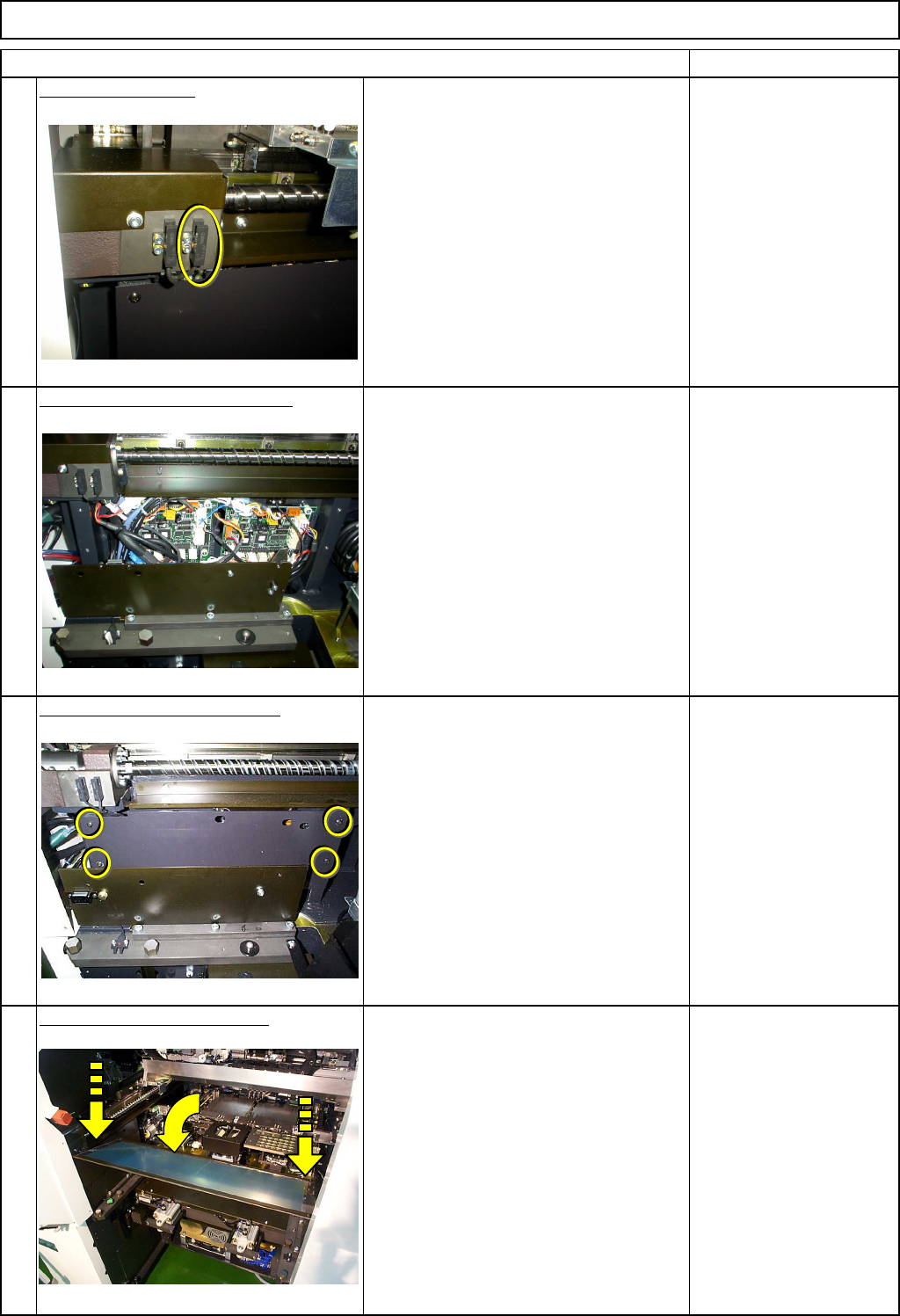

Replace the sensor.
8-000024
Allen key 2.5 mm
Screw M3 2 pcs.
Put back the J1
■27 connectors.
11-000001
The missing part ■ of the connector
name is one of the followings:
AF-1
AR-3
BF-A
BR-C
Put the left-side cover back on.
Phillips screwdriver #2
Screw M4 4 pcs.
Put the feeder cover back on.
ｶﾊﾞｰ達
Phillips screwdriver #2
Screw M4 2 pcs.
5
6
7
8
EJM8A-E-SMA050103-A01-00
Page 5-1-3-3
