Machinery Part Replacement Main Body Remarks Item Replace the vacuum pump bracket. (Take care with orientation of the bracket.) How to distinguish orientation: Hole position is different for the front and the inner sides…
Machinery Part Replacement Main Body
Remarks
Item

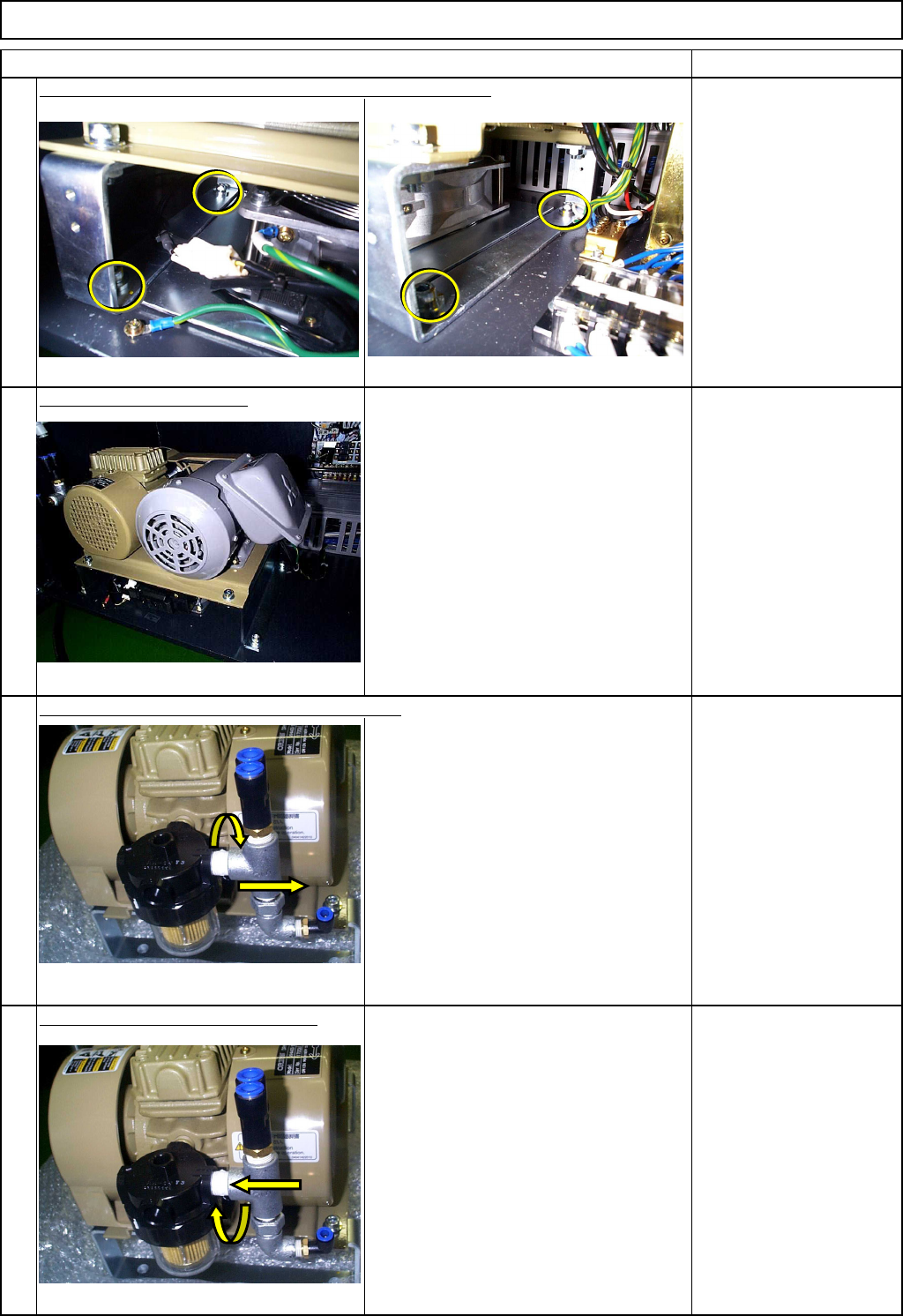

Remove the bolts from the vacuum pump holding bracket.
Allen key 6 mm
Screw M8 4 pcs.
Pull out the vacuum pump.
Remove the tube joint from the vacuum pump.
Wrench 22 mm
Wrench 19 mm
Wrench 14 mm
Fit the tube joint into the new pump.
Wrench 22 mm
Wrench 19 mm
Wrench 14 mm
Sealing tape
9
10
11
12
EJM8A-E-SMA050104-A01-00
Page 5-1-4-4
Machinery Part Replacement Main Body
Remarks
Item
Replace the vacuum pump bracket. (Take care with orientation of the bracket.)
How to distinguish orientation:
Hole position is different for the front and
the inner sides.
Allen key 6 mm
Screw M8 4 pcs.
Install the vacuum pump.
Allen key 6 mm
Screw M8 4 pcs.
Tighten the bolts of the vacuum pump holding bracket.
Allen key 6 mm
Screw M8 4 pcs.
Put the fan earth cable back on.
Phillips screwdriver #2
Screw M4 1 pc.
13
14
15
16
EJM8A-E-SMA050104-A01-00
Page 5-1-4-5
Machinery Part Replacement Main Body
Remarks
Item
Connect the terminals.
Phillips screwdriver #2
Screw M4 4 pcs.
Put the terminal cover back on.
Phillips screwdriver #2
Screw M4 4 pcs.
Switch on the main power.
Turn the switch to the right.
Check the direction of motor rotation.
If the motors rotates in the reverse direction,
return to Step 17 and change the phase. Specification:
Vacuum pressure:
96 kpa or higher
17
18
19
20
EJM8A-E-SMA050104-A01-00
Page 5-1-4-6
