Machinery Part Replacement Main Body
Remarks

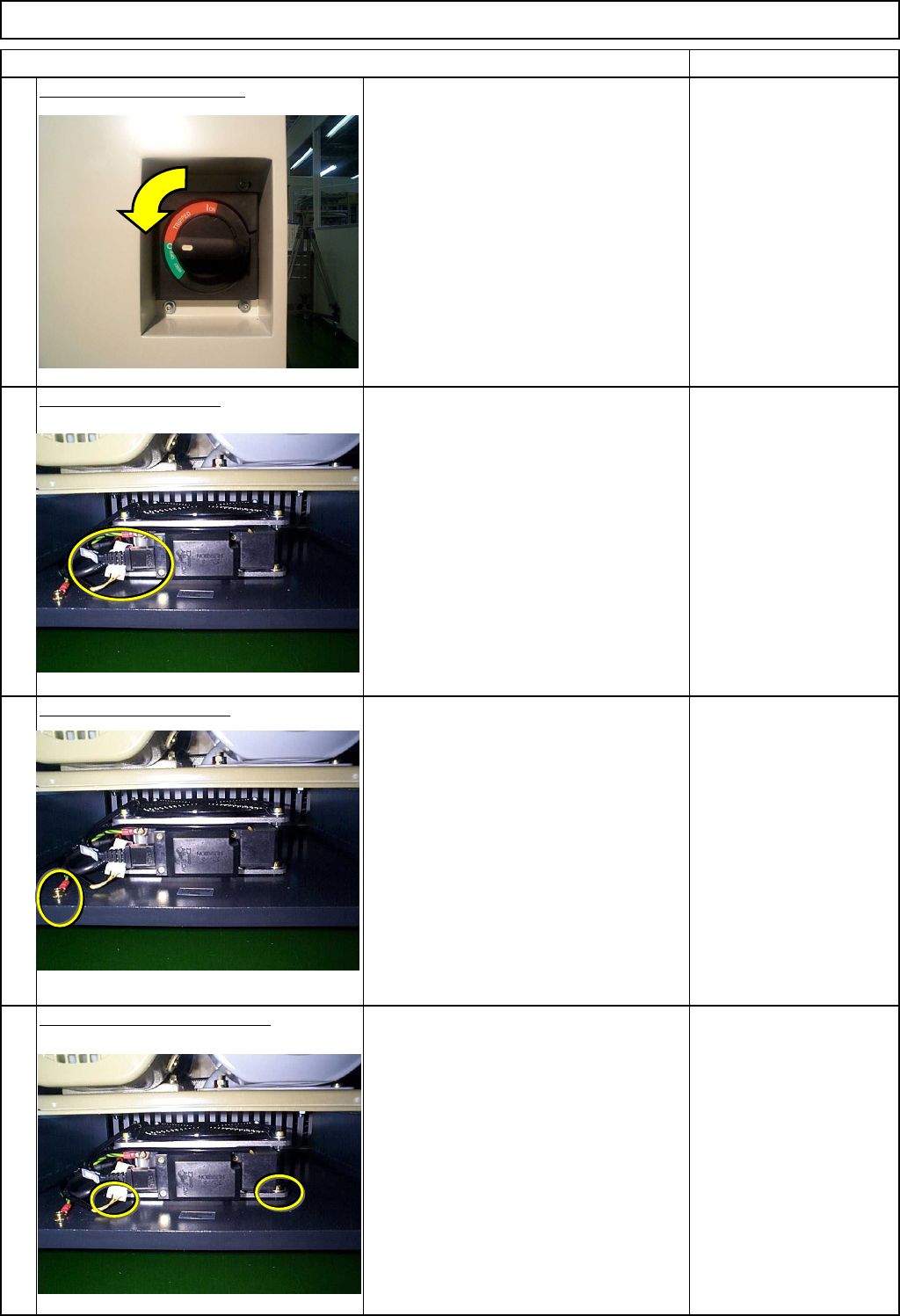

Switch off the main power.
Turn the switch to the left.
Remove the connector.
Connector No. FANAP
Remove the earth cable.
Phillips screwdriver #2
Screw M4 1 pc.
Remove the fan holding bolts.
Allen key 6 mm
Bolt M8 2 pcs.
2
3
4
1
Item
EJM8A-E-SMA050105-A01-00
Page　5-1-5-2
Machinery Part Replacement Main Body
Remarks
Item

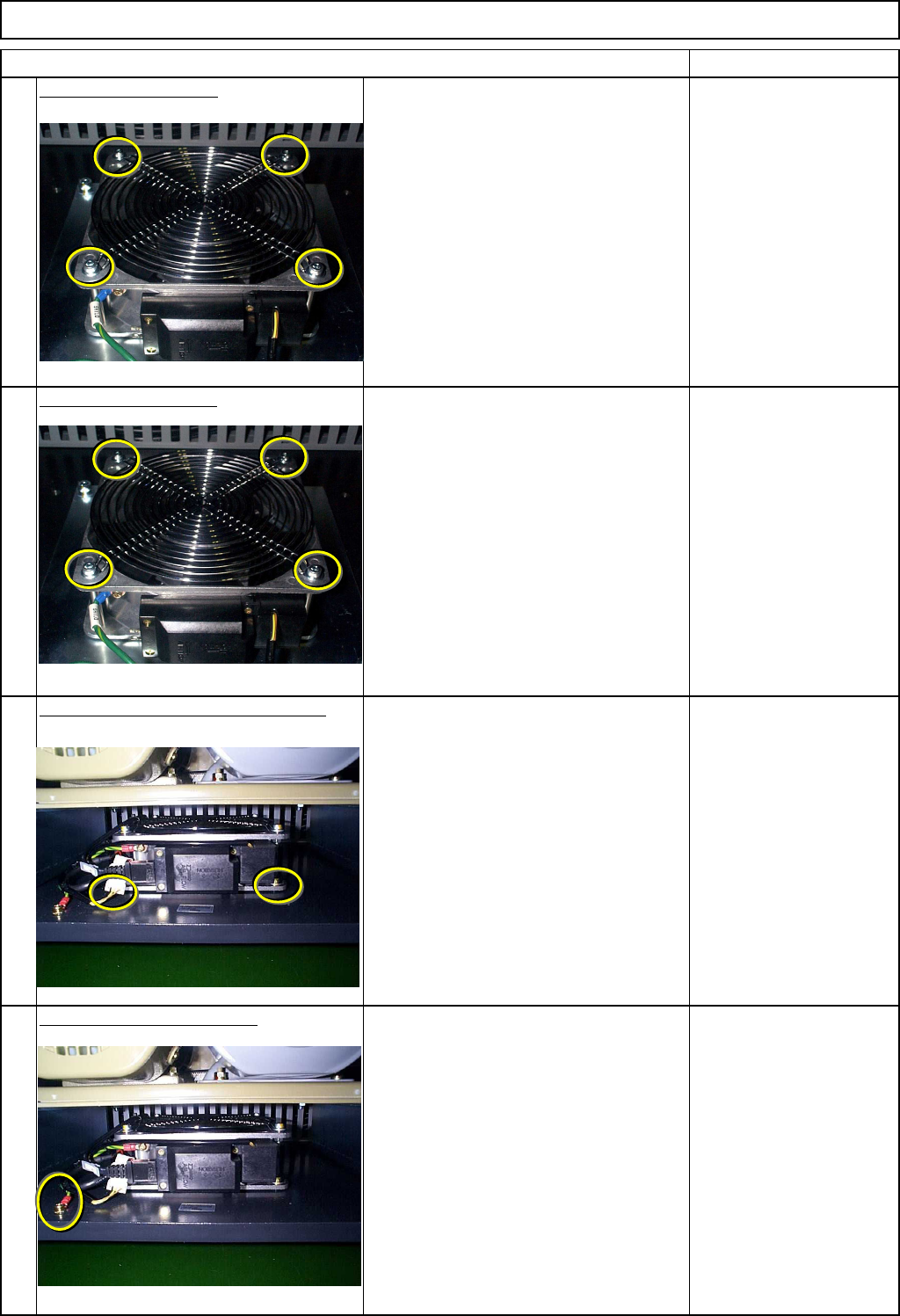

Remove the fan guard.
Allen key 4 mm
Bolt M5 4 pcs.
Replace the fan guard.
Fit the fan onto the main body frame.
Allen key 6 mm
Bolt M8 2 pcs.
Put the earth cable back on.
7
8
5
6
EJM8A-E-SMA050105-A01-00
Page　5-1-5-3
Machinery Part Replacement Main Body
Remarks
Item
Put the connector back on.
Switch on the main power.
Turn the switch to the right.
10
9
EJM8A-E-SMA050105-A01-00
Page　5-1-5-4
