CM602-L
Service Manual
32
Labels pasted on product for safety
Caution labels
The warning labels are pasted on this machine as follows. Follow the instructions on each label.
If it has come off, place an order with us for it, referring to its label No. in the Parts List; then, put the new
one on the proper location.

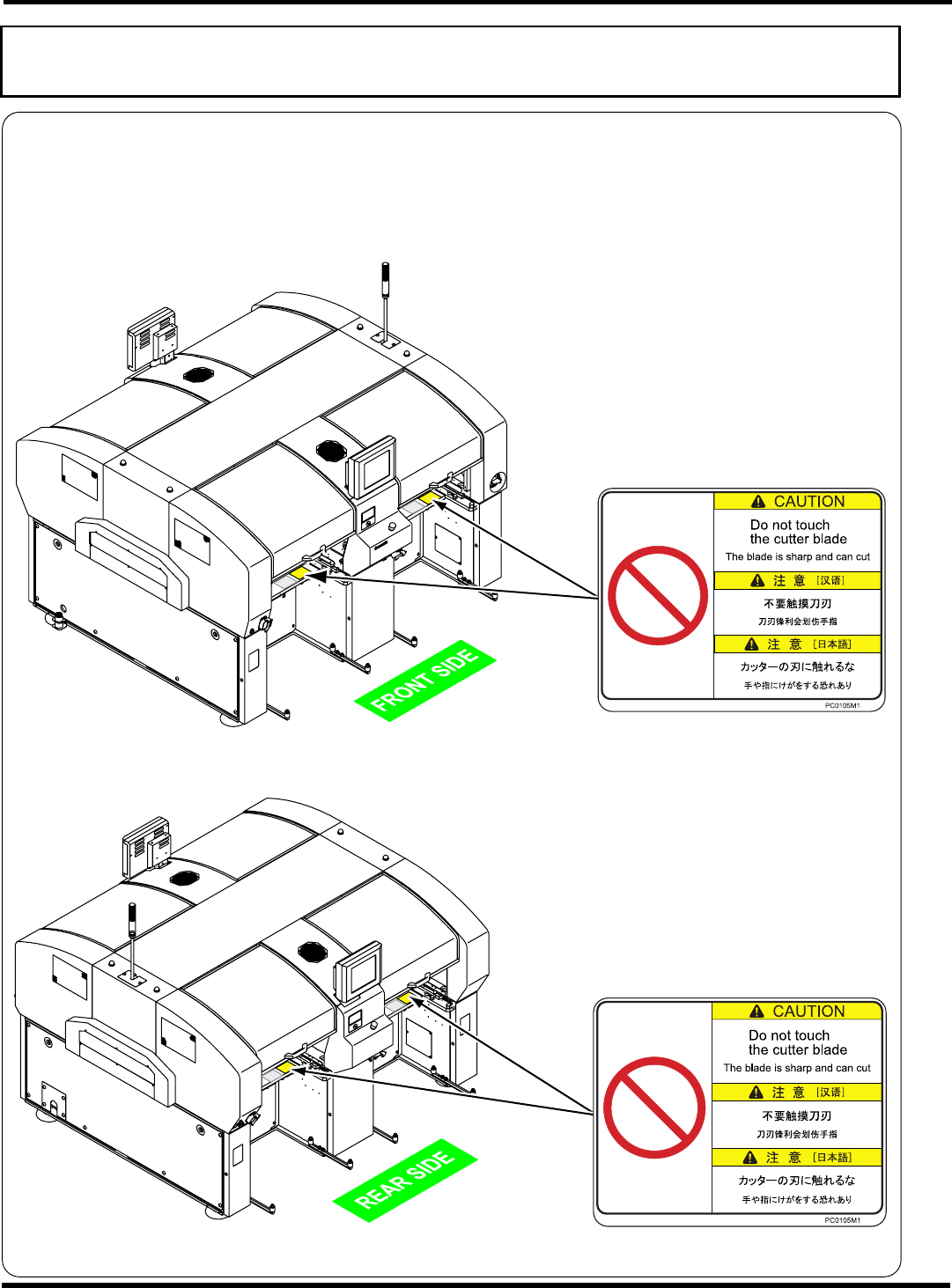

Warning label locations on the front side
Warning label locations on the rear side
EJM4A-009E
EJM4A-008E
EJM8A-E-XXA00-A04-00
CM602-L
Service Manual
33
EJM4A-001E
Labels pasted on product for safety
Extension conveyor (Option)
Warning labels
The warning labels are pasted on this machine as follows. Follow the instructions on each label.
If it has come off, place an order with us for it, referring to its label No. in the Parts List; then, put the new
one on the proper location.
Warning label locations on the left extension conveyor
Warning label locations on the right extension conveyor
EJM8A-E-XXA00-A04-00
E
J
M4A-
00
2E
CM602-L
Service Manual
34
EJM4A-140
Labels pasted on product for safety
HUB power supply unit (Option)
Warning labels
The warning labels are pasted on this machine as follows. Follow the instructions on each label.
If it has come off, place an order with us for it, referring to its label No. in the Parts List; then, put the new
one on the proper location.

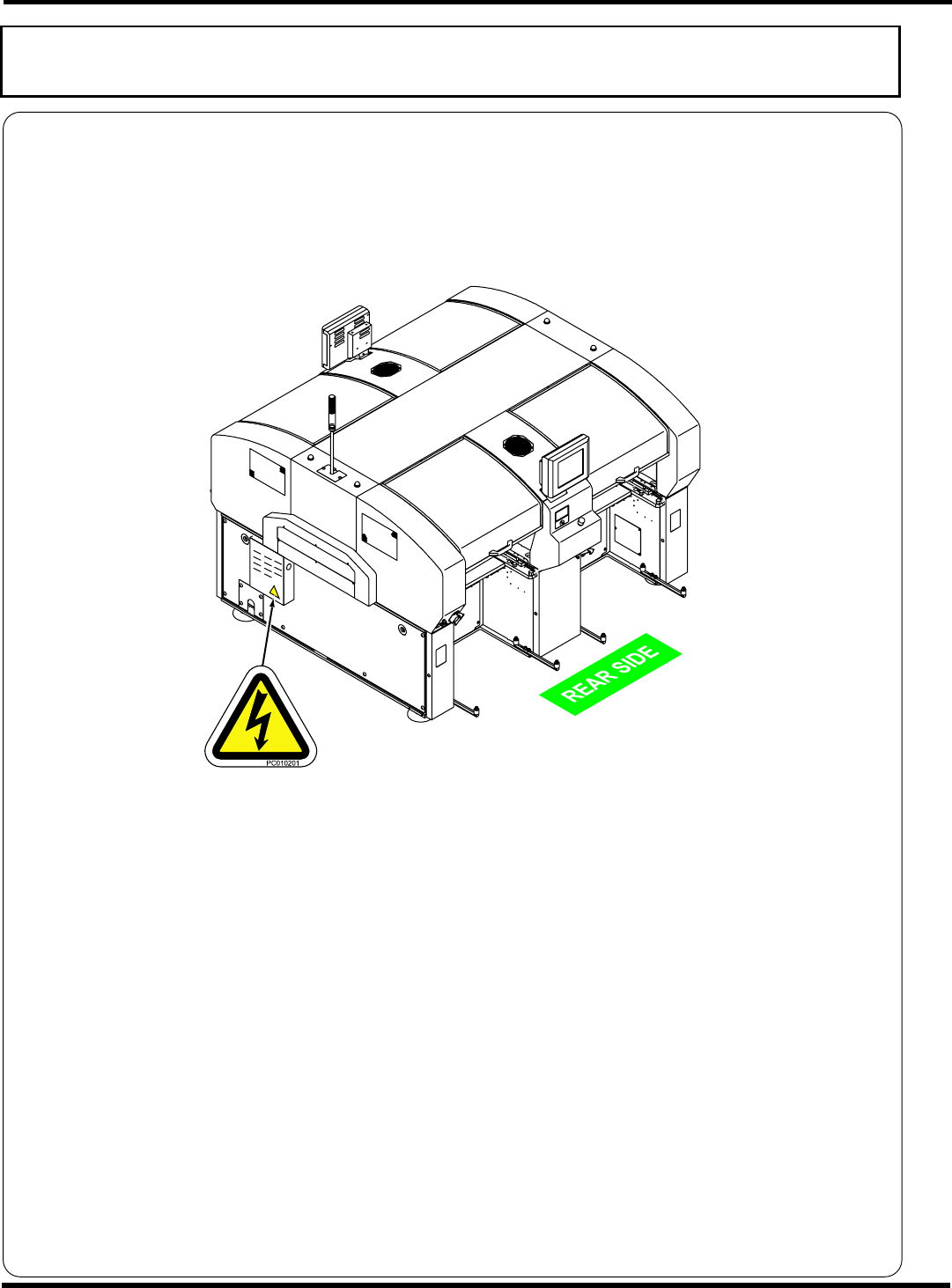

Warning label locations on the HUB power supply unit
EJM8A-E-XXA00-A04-00
