CM602all_EJM8AESM_Service Manual - 第365页
Be careful of the orientation of the nipples and the length of the joints. 10 11 12 Block gauge 35 mm Allen key 3 mm Screw M4 x 18 13 pcs. Check the reference side of the linear rail. 9 Fit the grease nipples onto the sl…
6
7
8

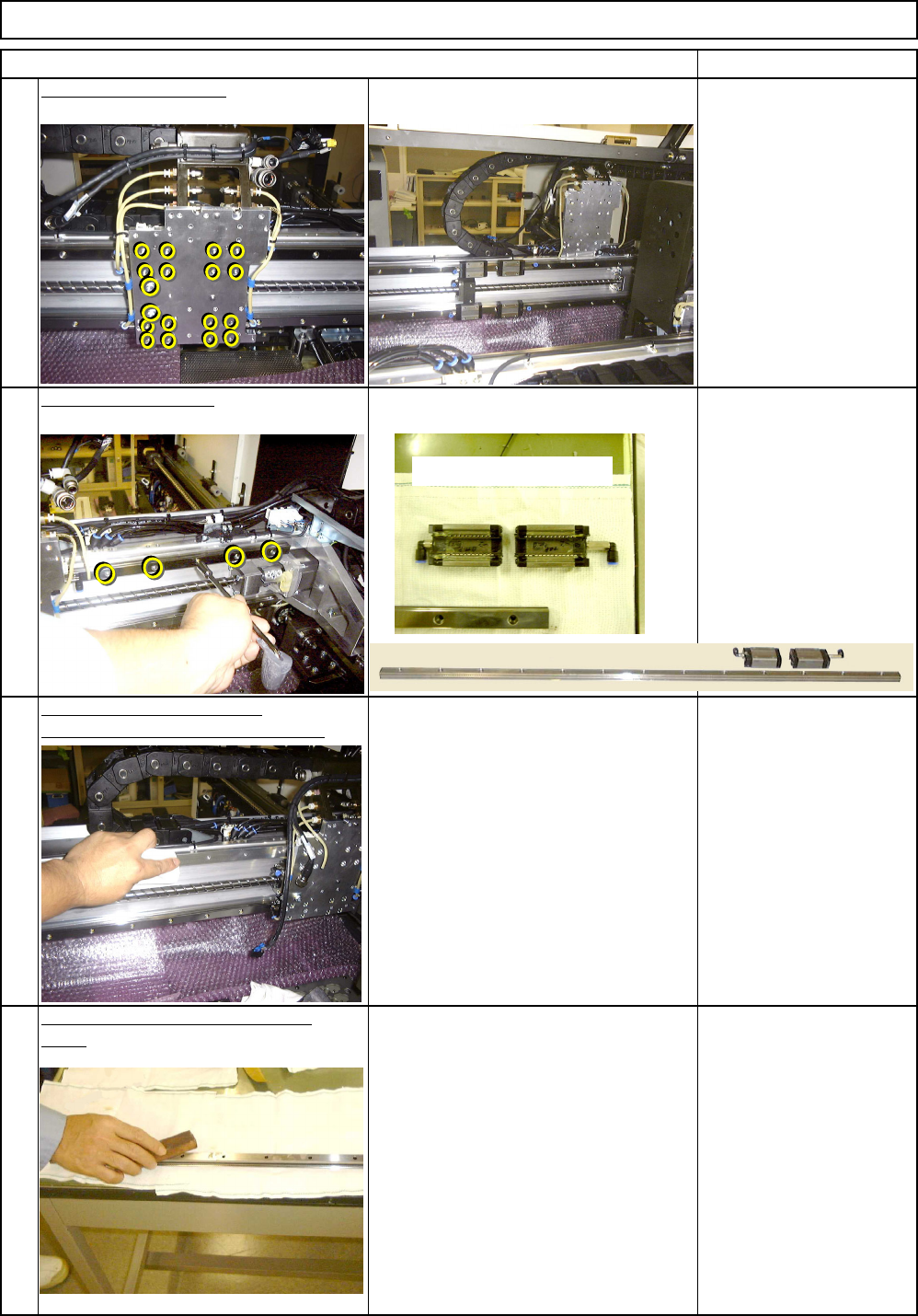

Remove the head plate.
項目(ITEM) 備考(REMARK)
Machine Part Replacement Main Body
5
Remove the linear rail.
Allen key 3 mm
Screw M8 x 18 26 pcs.
Allen key 3 mm
Allen key 4 mm
Screw M4 x 12 16 pcs.
Small flat round M4
16 pcs.
Screw M5 2 pcs.
Cloth
Oil stone
Apply oil stone to the new linear rail
softly.
After removing the linear rail,
clean the linear rail mounting section.
Do not shock the sliders.
EJM8A-E-SMA050109-A01-00
Page 5-1-9-3

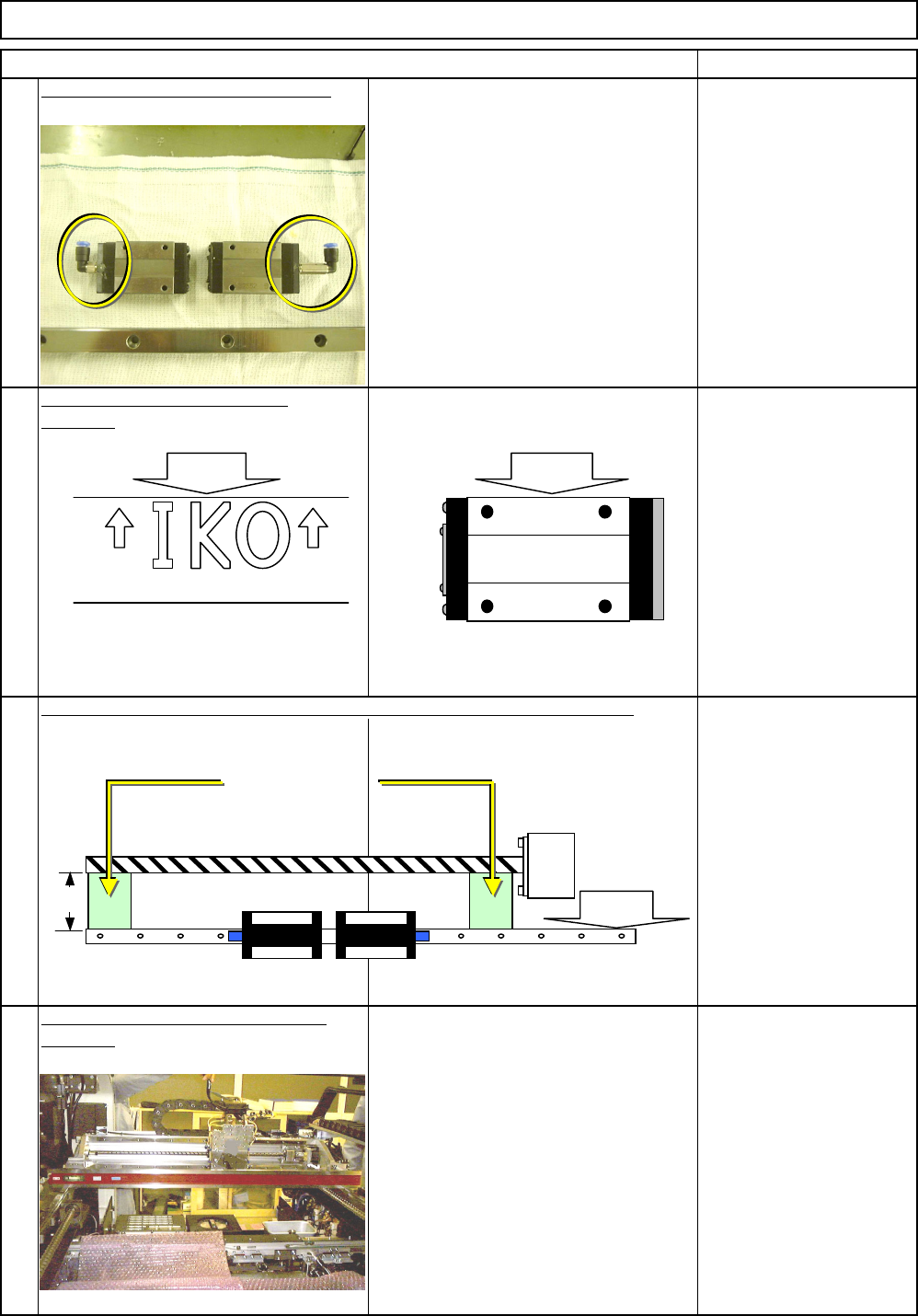

Be careful of the orientation of the
nipples and the length of the joints.
10
11
12
Block gauge 35 mm
Allen key 3 mm
Screw M4 x 18 13 pcs.
Check the reference side of the
linear rail.
9
Fit the grease nipples onto the sliders.
Position the linear rail so that it is positioned 35-mm lower than the ball screw.
Wrench 7 mm
項目(ITEM) 備考(REMARK)
Machine Part Replacement Main Body
Mount the straight edge on the Y-axis
linear rail.
Straight edge 1500 mm
E872
BZ552A
Ref. side
JAPAN LWE15
Ref. side
35 mm
35-mm block gauges
Ref. side
EJM8A-E-SMA050109-A01-00
Page 5-1-9-4

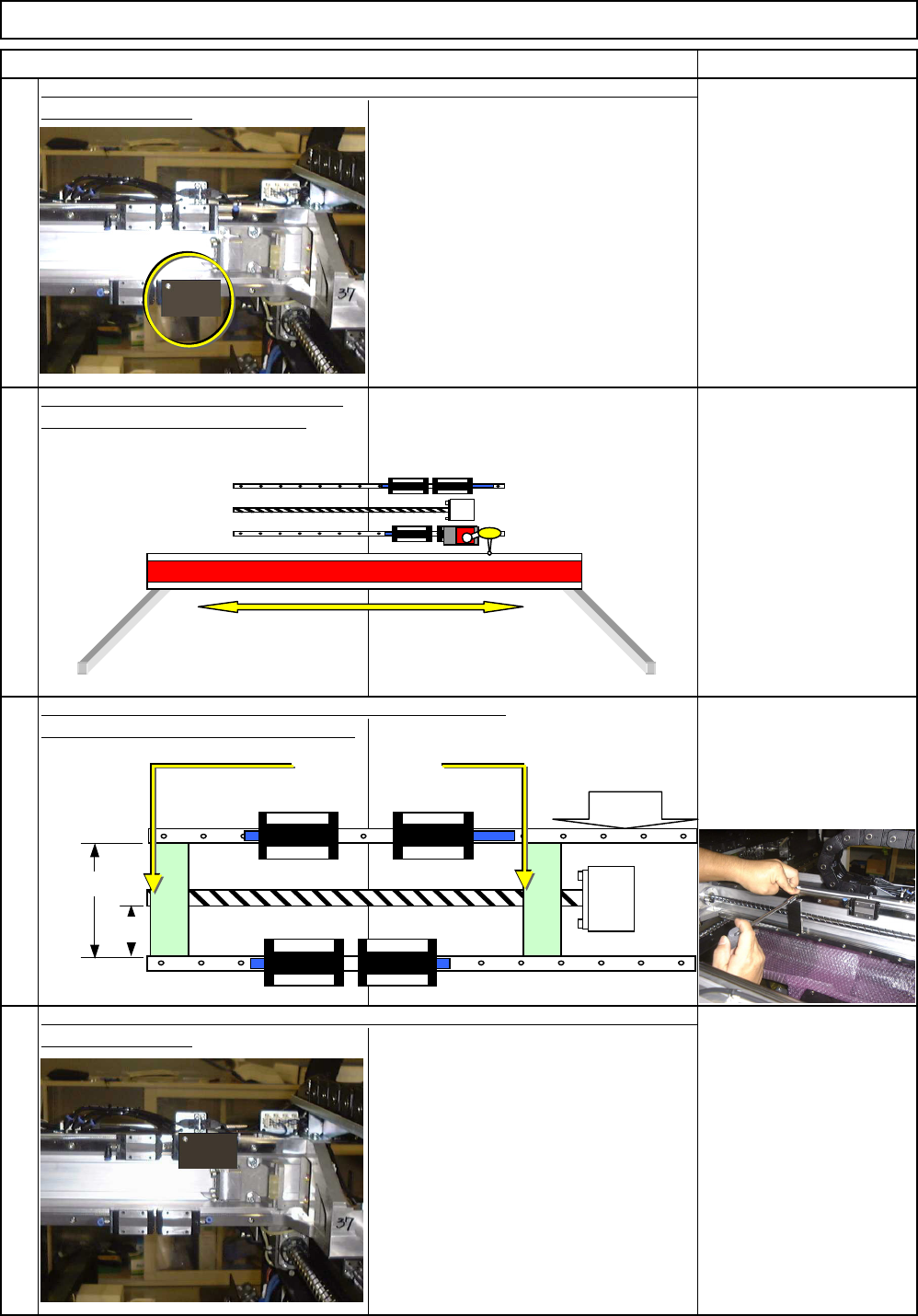

Main Body
Iron plate holding the
magnetic stand
Allen key 3 mm
Screw M4 1 pc.
Place the holding iron plate on the lower linear slider so that the magnetic stand can
placed on the plate.
16
15
Tighten the upper linear rail holding bolts.
Block gauge 85 mm
Allen key 3 mm
Screw M4 x 18 13 pcs.
Tighten the linear rail holding bolts.
placed on the plate.
Iron plate holding the
magnetic stand
Allen key 3 mm
Screw M4 1 pc.
Place the holding iron plate on the lower linear slider so that the magnetic stand can
Referring to the lower linear rail, position the upper linear rail.
Specifications:
Straightness:
0.015 mm or less
Tightening torque:
3.53 N.m
Magnetic stand
Dial gauge
Allen key 3 mm
Screw M4 x 18 13 pcs.
Check the straightness of the linear rail.
Machine Part Replacement
項目(ITEM) 備考(REMARK)
13
35 mm
85 mm
85-mm block gauge
Ref. side
EJM8A-E-SMA050109-A01-00
Page 5-1-9-5
