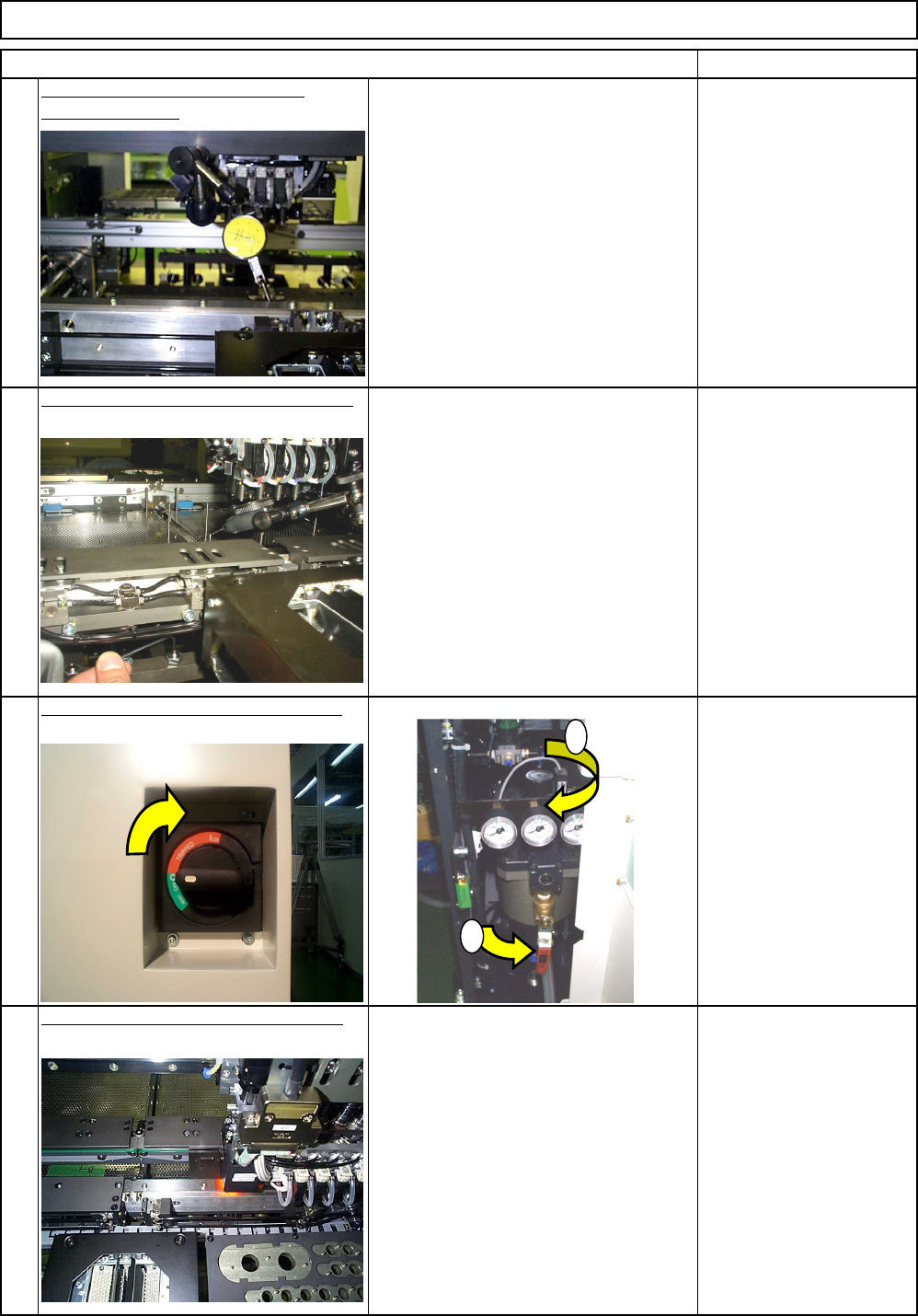

28
Check the position of the head camera.
See Section 4-1-2 "Head
Camera Adjustment ---
Focus and Theta."
See Section 4-1-6 "Leveling
the Support Plate."
27
Switch on the power and the air supply.
From 0.49MPa
to 0.54MPa
25
26
項目(ITEM) 備考(REMARK)
Machine Part Replacement Main Body
Check the parallelism of the board
transfer conveyor.
See Section 4-1-
4"Parallelism of Board
Transfer Conveyors
Check the levelness of the support plate.
1
2
EJM8A-E-SMA050109-A01-00
Page　5-1-9-8
Teaching

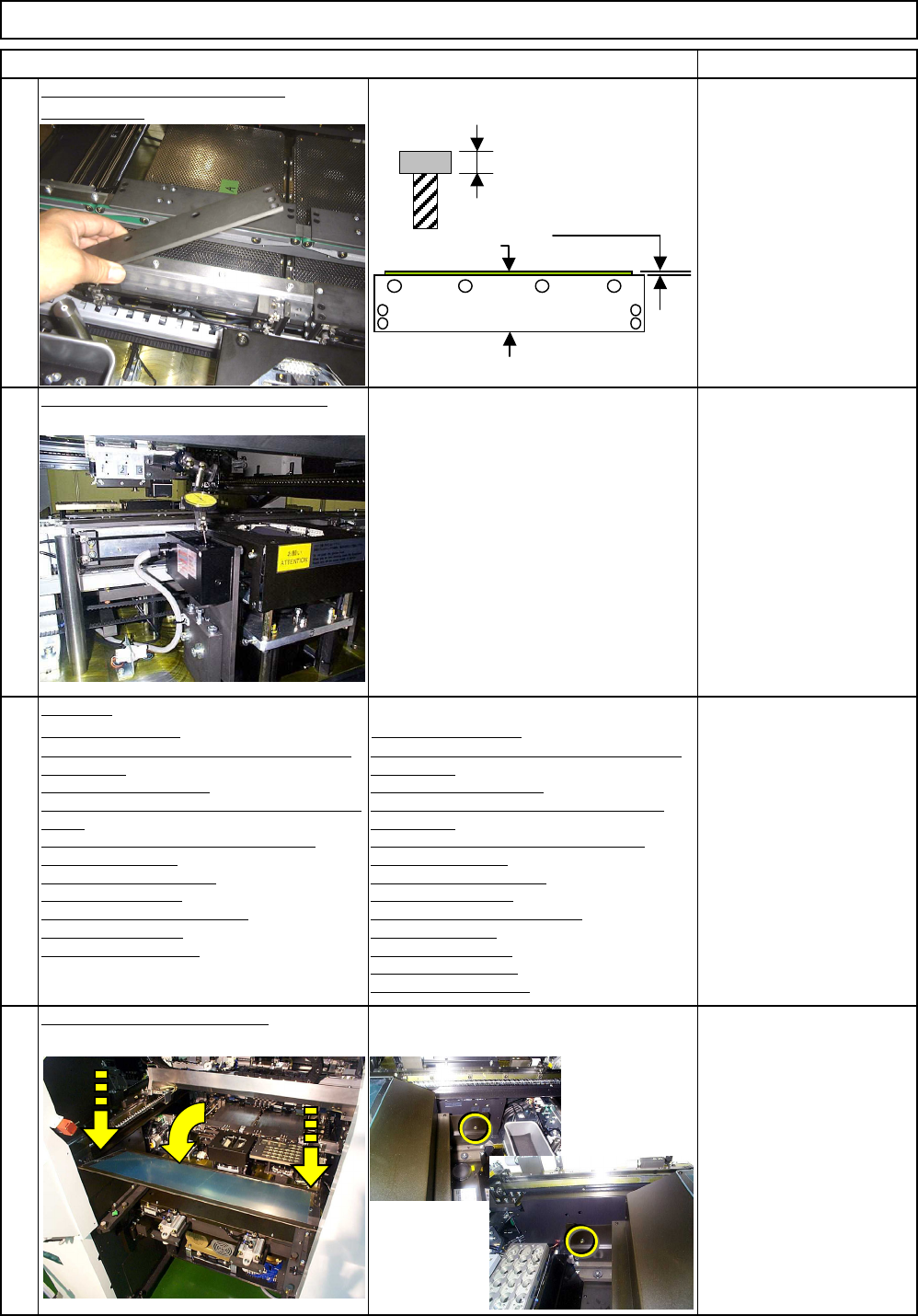

29
Put the Z clamp plates back on
the conveyor.
項目(ITEM) 備考(REMARK)
Machine Part Replacement Main Body
Allen key 3 mm
Special screw M4 x 8
16 pcs.
30
Check the height of the lead checker.
For "Multi-Purpose" head
only
See Section 4-1-9 "Lead
Checker Height
Adjustment."
31
High-Speed Head Multi-purpose Head
4-2-2 "Board Recognition Camera --- X and Y-axis
Origin Offset"
4-2-3 "Z-axis Origin Offset"
4-2-4 "Chip Recognition Camera - Theta-axis Origin
Offset"
4-2-5 "Determining the Mounting Height and
Positioning the Board"
4-2-6 "XY Plane Calibration"
4-2-8 "Pickup position"
4-2-9 "Nozzle Exchange Position"
4-2-10 "Light Intensity"
4-2-7 "Mounting Position"
4-3-2 "Board Recognition Camera --- X and Y-axis
Origin Offset"
4-3-3 "Z-axis Origin Offset"
4-3-4 "Chip Recognition Camera --- Theta Axis
Origin Offset"
4-3-5 "Determining the Mounting Height and
Positioning the Board"
4-3-6 "XY Plane Calibration"
4-3-8 "Pickup Position"
4-3-9 "Nozzle Exchange Position"
403-10 "Load Head"
4-3-11 "Lead Checker"
4-3-12 ""Light Intensity"
4-3-7 "Mounting Position"
32
Put the feeder cover back on.
Phillips screwdriver #2
Screw M4 2 pcs.
2.7 mm
0.3 to 0.5 mm
Z clamp plate
Transfer
conveyor belt
EJM8A-E-SMA050109-A01-00
Page　5-1-9-9
Min.45 Min.
Phillips screwdriver #2
Allen keys 3 mm
Allen keys 4 mm
Cloth
Teaching
Tools
Jig
Min.70
kg
235
Min.
• This section describes the procedures for replacing the X-axis linear scale.
Total Time Part Weight
Assembly/AdjustmentRemoval/Disassembly
120
Special shim (0.15 mm)
Linear-scale adjustment jig
PWT18
5-1-11 X-axis Linear Scale Replacement
Main BodyMachinery Part Replacement
0.15 mm
32.0
75.0
Caution
Danger
Warning
EJM8A-E-SMA050111-A01-00
Page　5-1-11-1
