The sensor and the dog should not interfere with each other. Machinery Part Replacement Board Holder Unit Item Remark 9 Switch on the main power. Tools and Specifications Tools and Specifications Tools and Specifications…
Allen key 2.5 mm
Screw M3 2 pcs.
Place a new sensor in position.
Put the cable back in the duct.
Connect the connector.
Tools and Specifications
Tools and Specifications
Allen key 2.5 mm
Screw M3 2 pcs.
Tools and Specifications
Machinery Part Replacement Board Holder Unit
RemarkItem
8
7
6
5
Remove the sensor.
Tools and Specifications
EJM8A-E-SMA050203-A01-00
Page 5-2-3-3
The sensor and the dog should not
interfere with each other.
Machinery Part Replacement Board Holder Unit
Item Remark
9
Switch on the main power.
Tools and Specifications
Tools and Specifications
Tools and Specifications
Phillips screwdriver #2
Screw M4 2 pcs.
Tools and Specifications
12

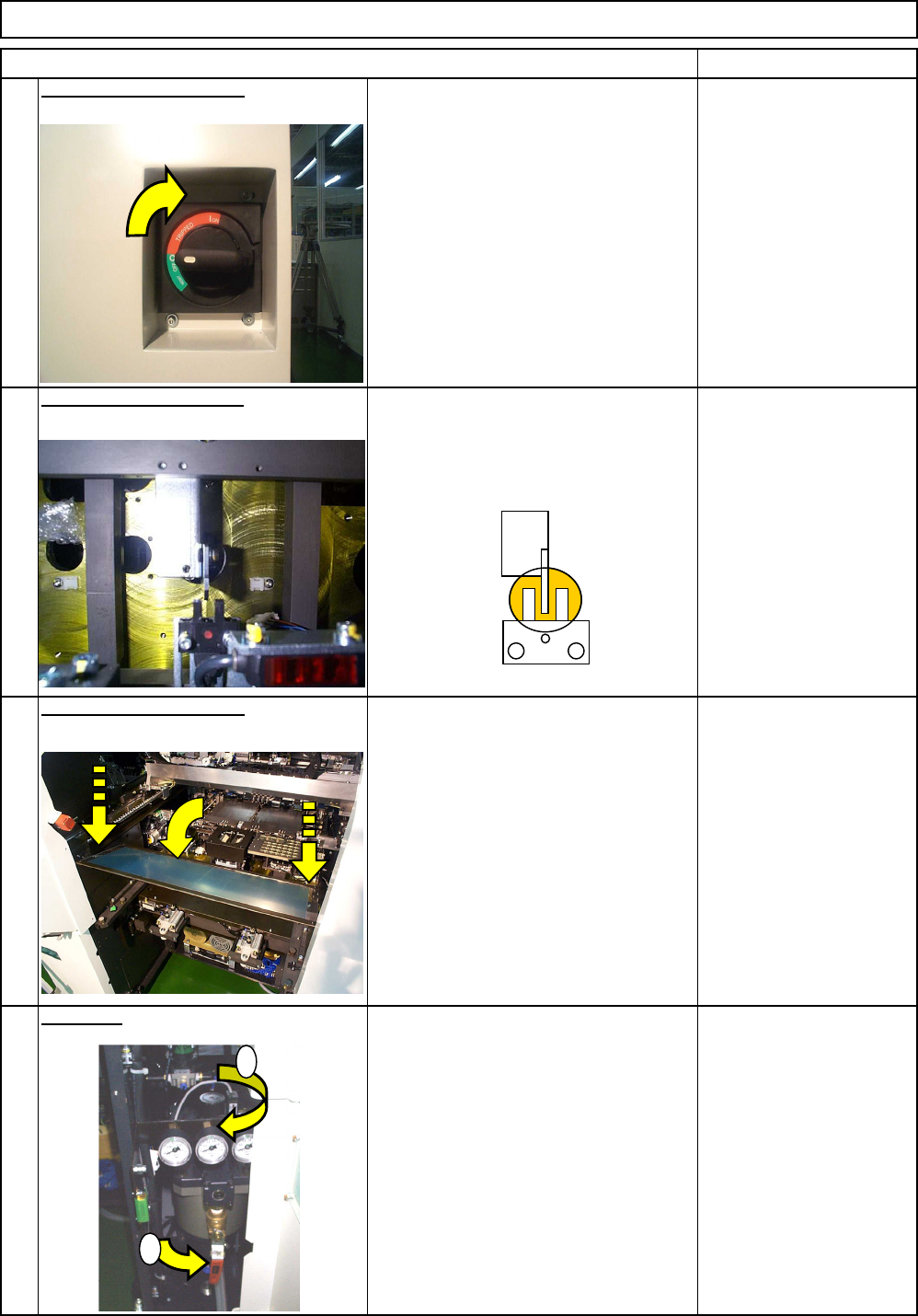

Supply air.
11
Put back the feeder cover.
10
Check the sensor position.
1
2
EJM8A-E-SMA050203-A01-00
Page 5-2-3-4
Machinery Part Replacement Board Holder Unit
This section describes the procedures for replacing the support-plate change plate ascending cylinder.
・Tools
Phillips screwdriver #2
Allen key 3 mm
Allen key 4 mm
Wrench 12 mm
Wrench 13 mm
Calipers
・Jig
None
5-2-4 Support-Plate Change Plate Ascending Cylinder Replacement
Remove the support pins and support plate before replacement.
Assembly
Adjustment
22min.
Teaching
min.
Total Time Weight of
Part
Removal
Disassembly
23min.
45min. kgs
Caution
Dange
r
Warning
EJM8A-E-SMA050204-A01-00
Page 5-2-4-1
