Machinery Part Replacement Board Holder Unit

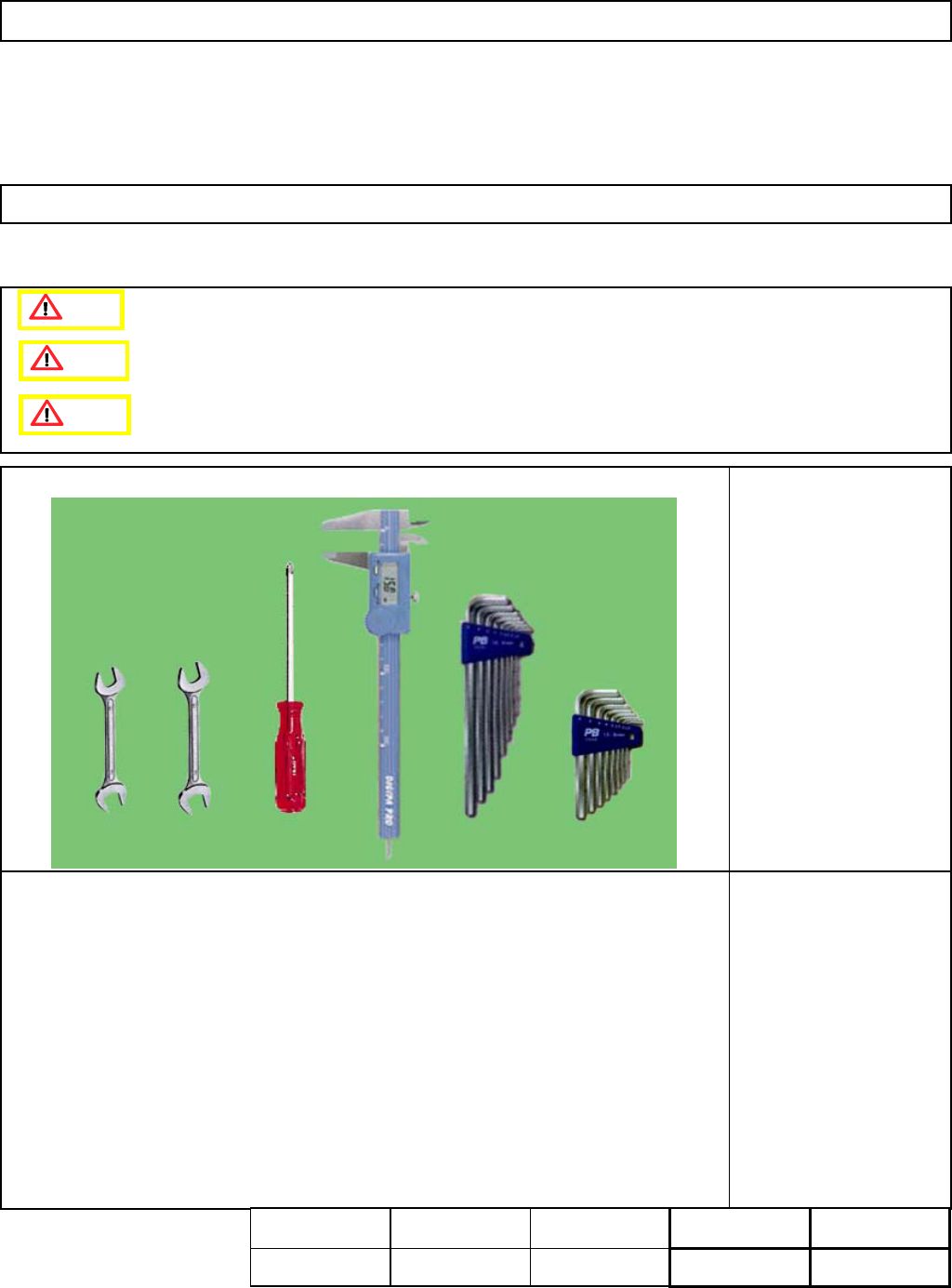

This section describes the procedures for replacing the support-plate change plate ascending cylinder.
・Tools
Phillips screwdriver #2
Allen key 3 mm
Allen key 4 mm
Wrench 12 mm
Wrench 13 mm
Calipers
・Jig
None
5-2-4 Support-Plate Change Plate Ascending Cylinder Replacement
Remove the support pins and support plate before replacement.
Assembly
Adjustment
22min.
Teaching
min.
Total Time Weight of
Part
Removal
Disassembly
23min.
45min. kgs
Caution
Dange
r
Warning
EJM8A-E-SMA050204-A01-00
Page 5-2-4-1
Machinery Part Replacement Board Holder Unit
Remarks

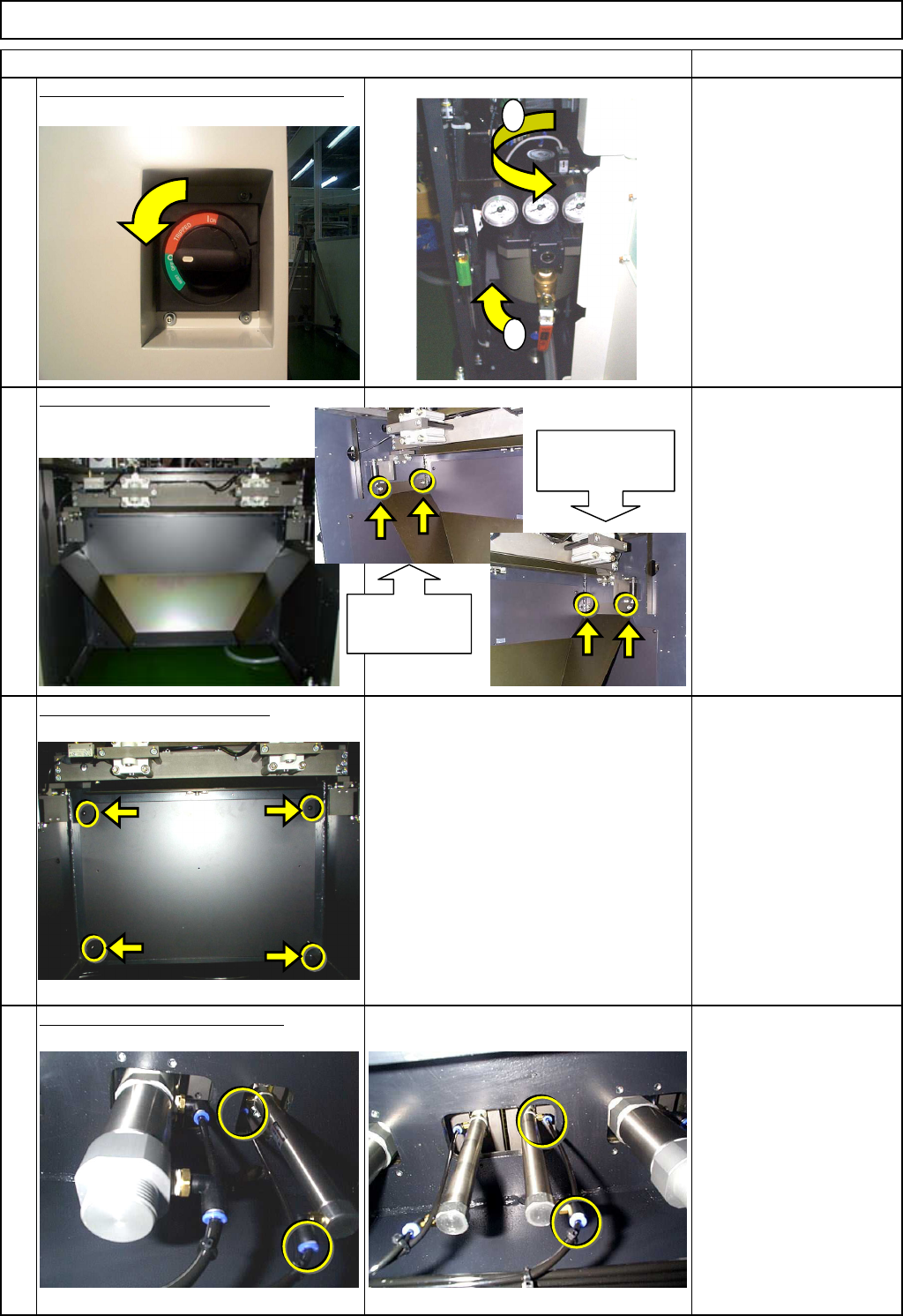

Turn off the main power and air supply.
ｶﾊﾞｰ達
From 0.49MPa
to 0.55MPa
Remove the lower rear chute.
ｶﾊﾞｰ達
Allen key 4 mm
Screw M5x12mm 4 pcs.
Thick washer 4 pcs.
Remove the lower rear cover.
ｶﾊﾞｰ達
Phillips screwdriver #2
Round cross-head screw
6 mm 4 pcs.
Remove the two cylinder tubes.
3-000118,000119
Item
1
3
2
4
1
2
Chute holding
section (left)
Chute holding
section (right)
EJM8A-E-SMA050204-A01-00
Page 5-2-4-2
Machinery Part Replacement Board Holder Unit
Remarks
Item

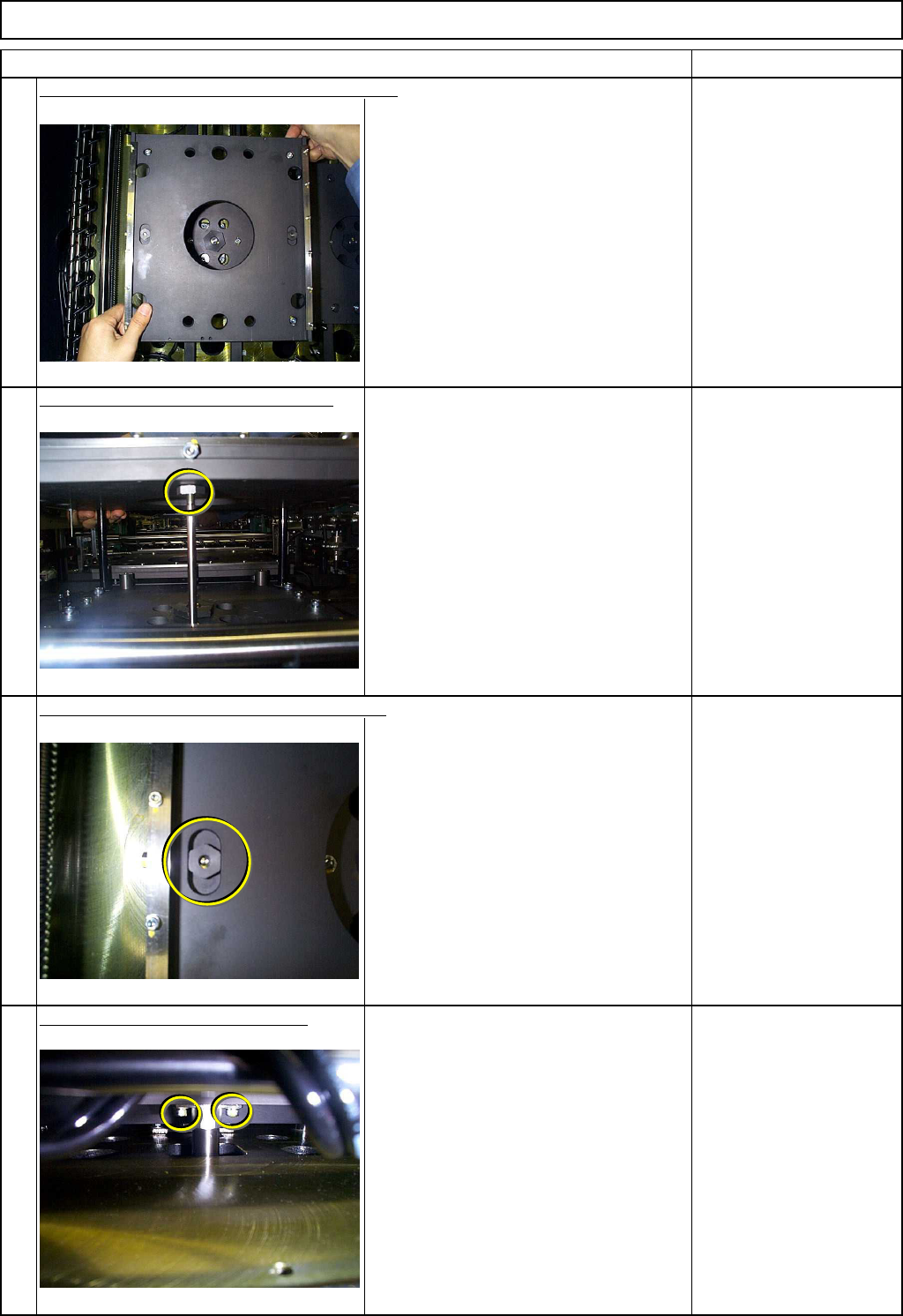

Raise the support-plate change plate by hand.
Place approximately 10-cm blocks under
the plate.
Loosen the cylinder plate holding unit.
3-000107
Wrench 13 mm
Nut 13 mm
Remove the nut from the end of the cylinder.
3-000109
Wrench 12 mm
Nut 12 mm
Remove the cylinder holding bolts.
3-000114
Allen key 3 mm
Screw M4 2 pcs.
5
6
7
8
EJM8A-E-SMA050204-A01-00
Page 5-2-4-3
