Machinery Part Replacement This section describes the procedures for replacing the transfer head assembly. ・ Tools Phillips screwdriver #1 Phillips screwdriver #2 Allen key 5 mm Pipe Nipper ・ Jig Refer to teaching sectio…
Machinery Part Replacement Board Holder Unit
Remarks
Item

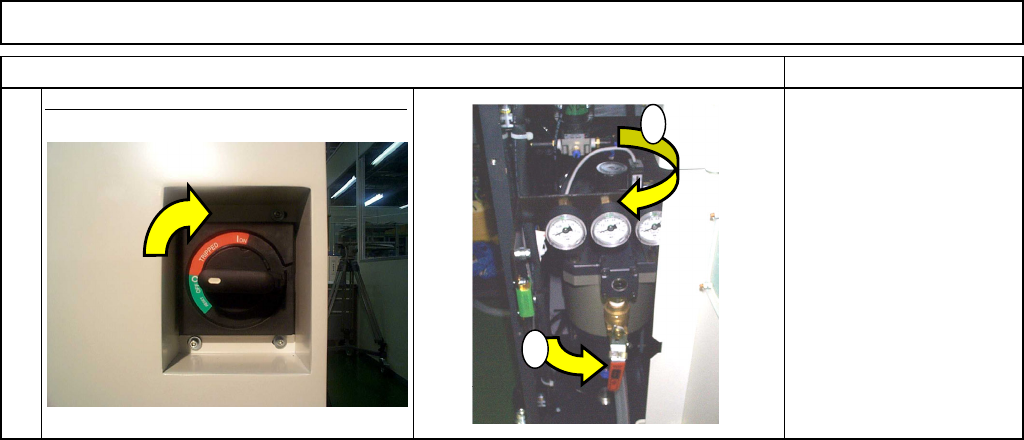

Switch on the main power and air supply.
ｶﾊﾞｰ達
From 0.49MPa
to 0.54MPa
17
1
2
EJM8A-E-SMA050204-A01-00
Page 5-2-4-6
Machinery Part Replacement
This section describes the procedures for replacing the transfer head assembly.

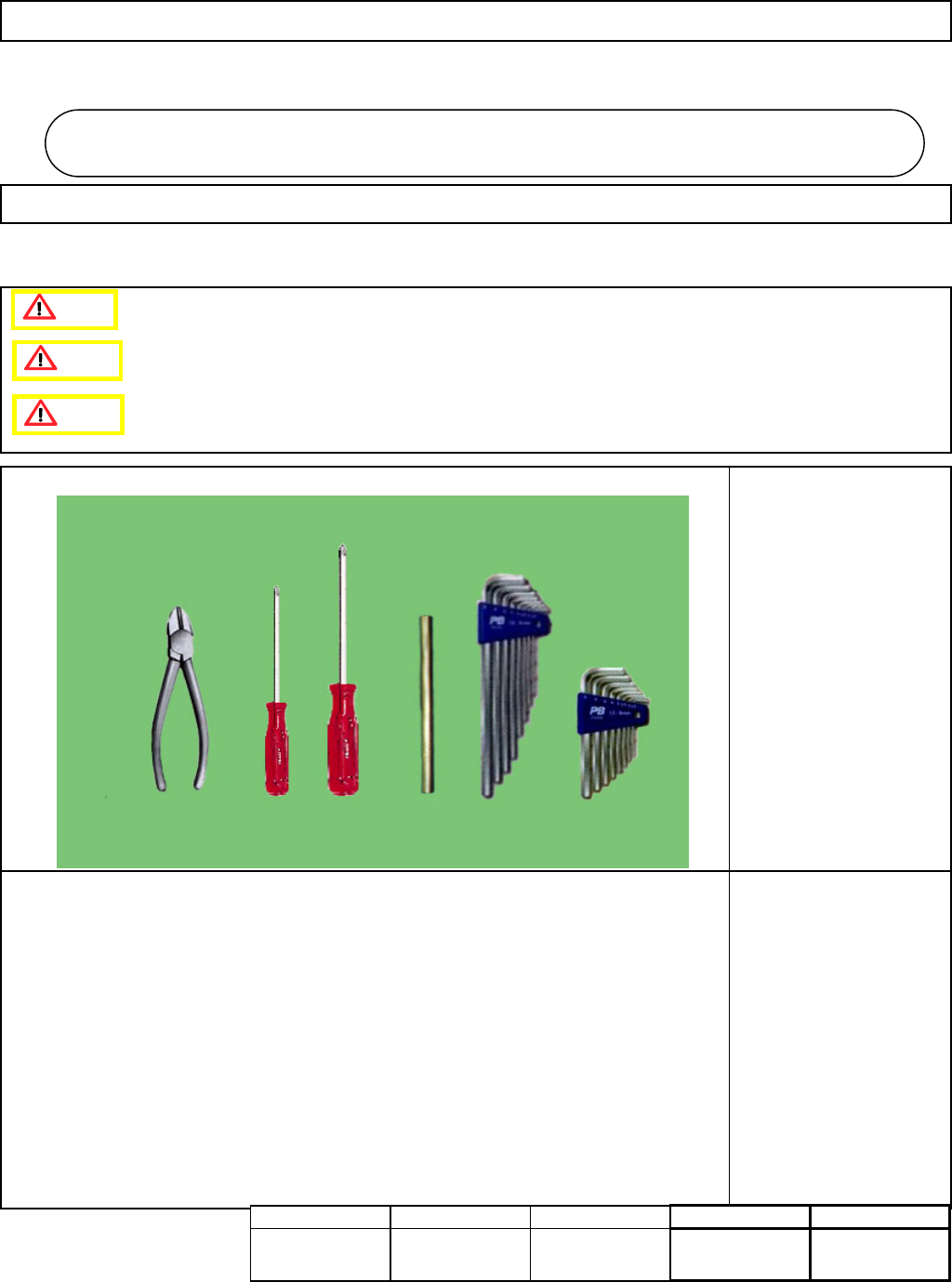

・Tools
Phillips screwdriver #1
Phillips screwdriver #2
Allen key 5 mm
Pipe
Nipper
・Jig
Refer to teaching sections
of this manual.
Be sure to remove the nozzles and the nozzle holders beforehand.
[Check before replacement!!]
All head driver software versions should be the same.
If alll the versions are not the same, trouble may occur.
L
ight Transfer-Head Assembly (8-nozzle type
)
5-3-1 Transfer Head Assembly Replacement
Caution
Dange
r
Warning
Assembly/Adjustment
30 min.
Teaching
77 min.
Removal/Disassembly
10 min.
Total Time
117 min.
Part Weight
k
g
s.
10
Li
g
ht Transfer-Head Assembl
y
(
8-nozzle t
yp
e
)
5-3
EJM8A-E-SMA050301-A01-00
Page5-3-1-1
Machinery Part Replacement
Remarks
Switch off the power and the air supply.
Remove all nozzles from the head.
Place bubble wrap over the line sensor
camera.
To prevent damage in case the head
assembly falls onto the camera.
Bubble wrap
Remove the upper head cover.
Phillips screwdriver #2
Round cross-head screw
M4 x 4
3
Item
4
1
2
Transfer Head Assembly (8-nozzle type)
1
2
EJM8A-E-SMA050301-A01-00
Page5-3-1-2
