Machinery Part Replacement Remarks Item Transfer Head Assembly (8-nozzle type) Remove the LED cables. Remove the camera cable. Camera connector Remove the head holding bolts. Allen key 5 mm Pipe Screw M6 x 3 After removi…

100%1 / 1093

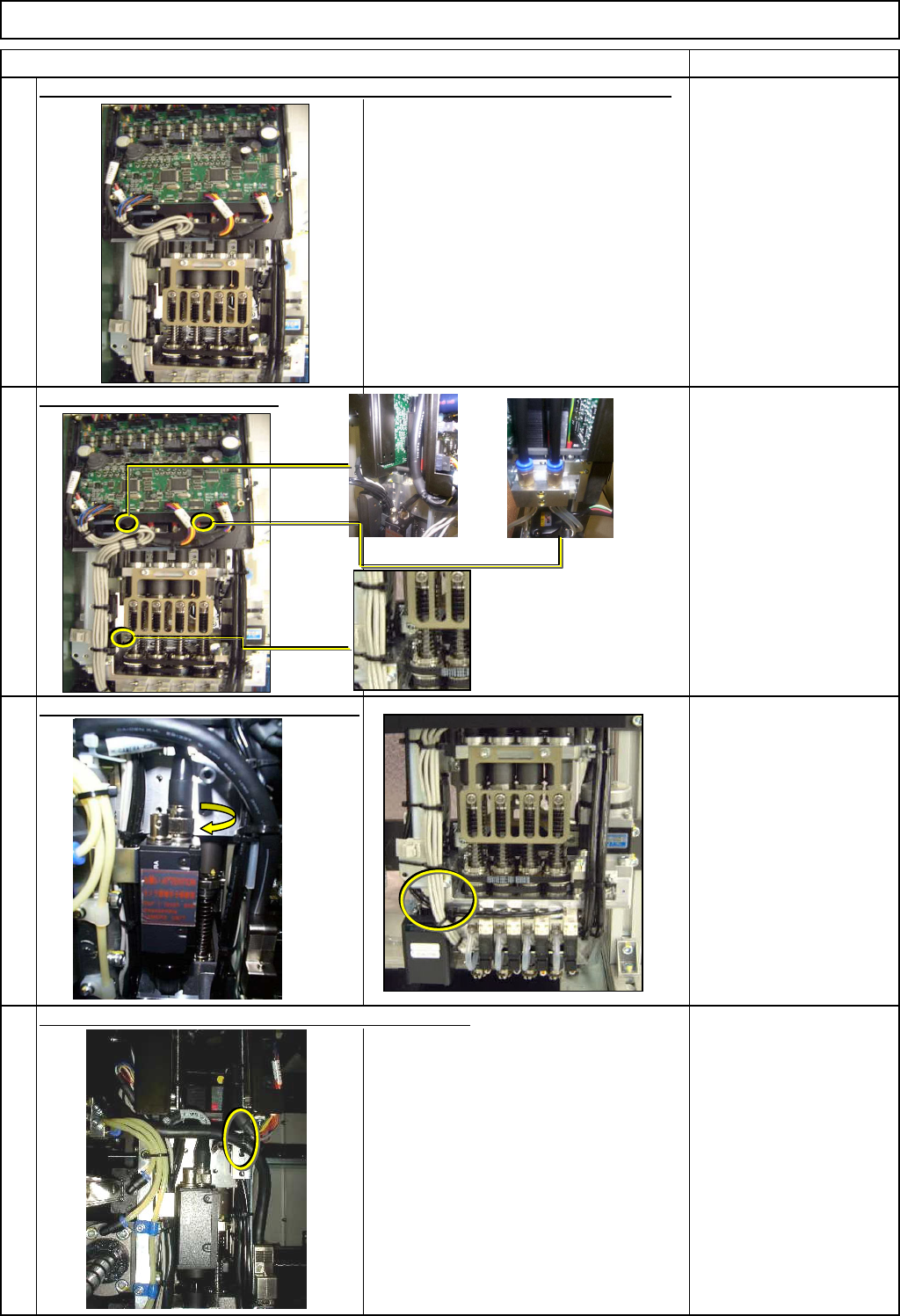

Machinery Part Replacement
Remarks
Item
Transfer Head Assembly (8-nozzle type)
Phillips screwdriver #1
Round cross-head screw
M3 x 4
Remove the cable tie and the earth cable.
Phillips screwdriver #2
Round cross-head screw
M4 1pc.
Remove the connectors.
Remove the air tube. Remove the air tube.
Remove the front head cover.
6
5
8
7
Put down the pin.
Pull it out.
CN13
MC15CX
Heat sink
CN3
SW1
CN1
CN12
CN16
CN11
SW2
CN2
SW3
CN10
CN4
CN5
CN7
CN6
CN9
CN8
CN15
CN14
Turn and remove.
EJM8A-E-SMA050301-A01-00
Page5-3-1-3
Machinery Part Replacement
Remarks
Item
Transfer Head Assembly (8-nozzle type)
Remove the LED cables.
Remove the camera cable.
Camera connector
Remove the head holding bolts.
Allen key 5 mm
Pipe
Screw M6 x 3
After removing the screw,
hold the head.
(Otherwise, the head may
fall down.)
Remove the cable ties from the LED and the camera cables.
9
10
11
12
EJM8A-E-SMA050301-A01-00
Page5-3-1-4
Machinery Part Replacement
Remarks
Item
Transfer Head Assembly (8-nozzle type)
Head installing dowel pin
Tighten the head holding bolts.
Allen key 5 mm
Pipe
Screw M6 x 3
Connect the camera and the LED cables.
Connector
Cable tie 150 x1
Check that the connectors and the tubes are connected properly to the new head.
Secure the camera and the LED cables with a cable tie.
13
14
15
16
EJM8A-E-SMA050301-A01-00
Page5-3-1-5
