CM602-L
Service Manual
41

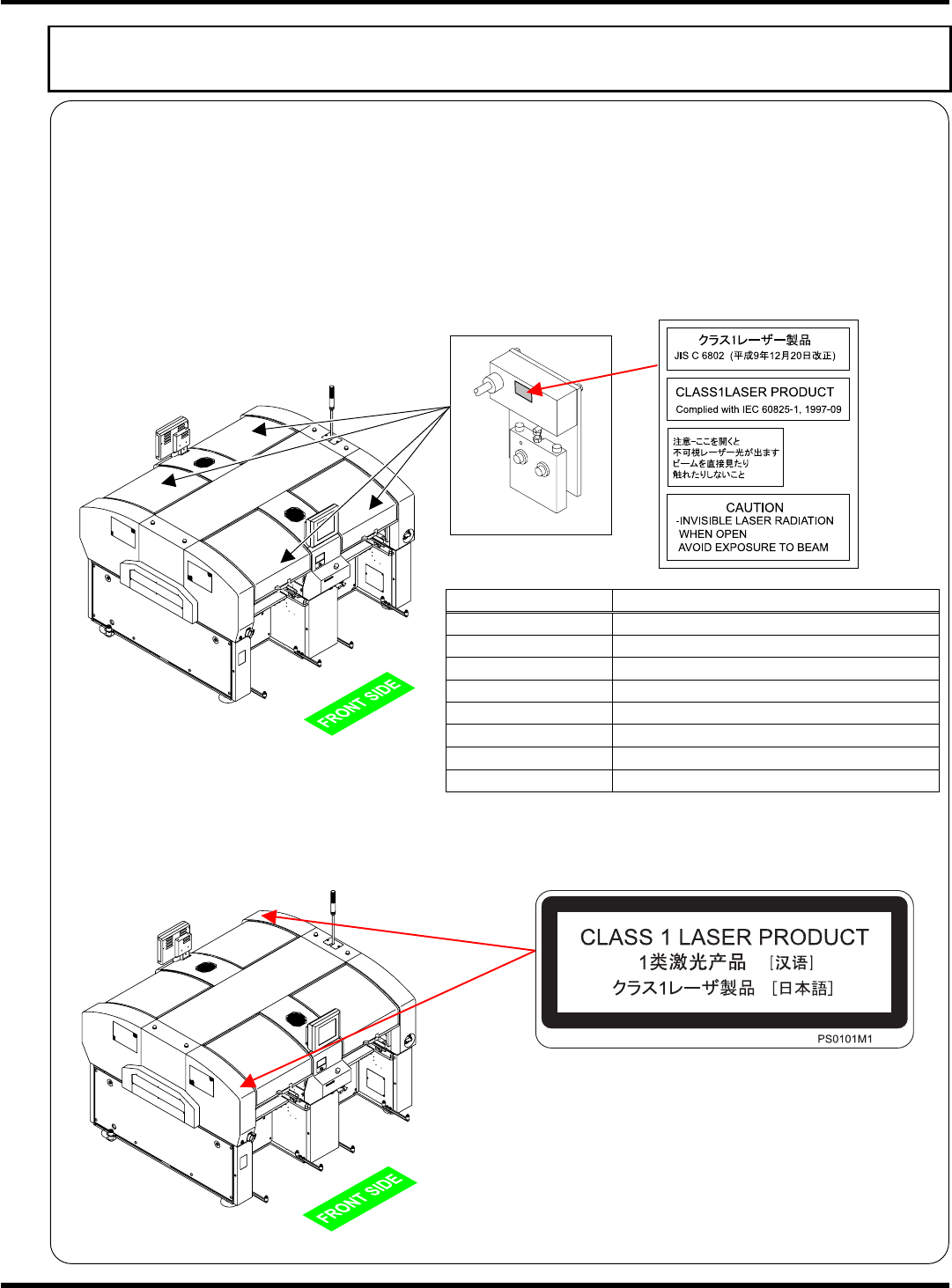

Handling of the lead checker (option)
Since the lead checker complies with the Class 1 limits of IEC60825-1 (Laser Safety Standards), it is
basically safe under a normal usage pattern. In maintenance or operation, however, avoid looking
directly at it.
2.Lead checker (Option)
The lead checker can be installed in the front and the rear of the machine.
The maximum output of the laser components used in the lead checker is 3 mW. The sensor head has
such a structure as will not expose workers directly to the laser radiation if they open its cover. For
safety’s sake, however, never open the cover of the sensor head.
Item Laser specifications
Manufacturer Anritsu Corporation
Model No. KXF05GDAA00
Wavelength 850 nm
Output 0.061 mW
Class Class 1
Detection method
Scanning per 60
µ
s
Installation location See the left figure.
Limits IEC60825-1 2001
Laser class label on the machine
The following label is attached to the machine with the lead checker (option) installed.
EJM8A-E-XXA00-A04-01
EJM4A-AA01
EJM4A-AA01
E64C-008E
EJM4A-840E
CM602-L
Service Manual
42

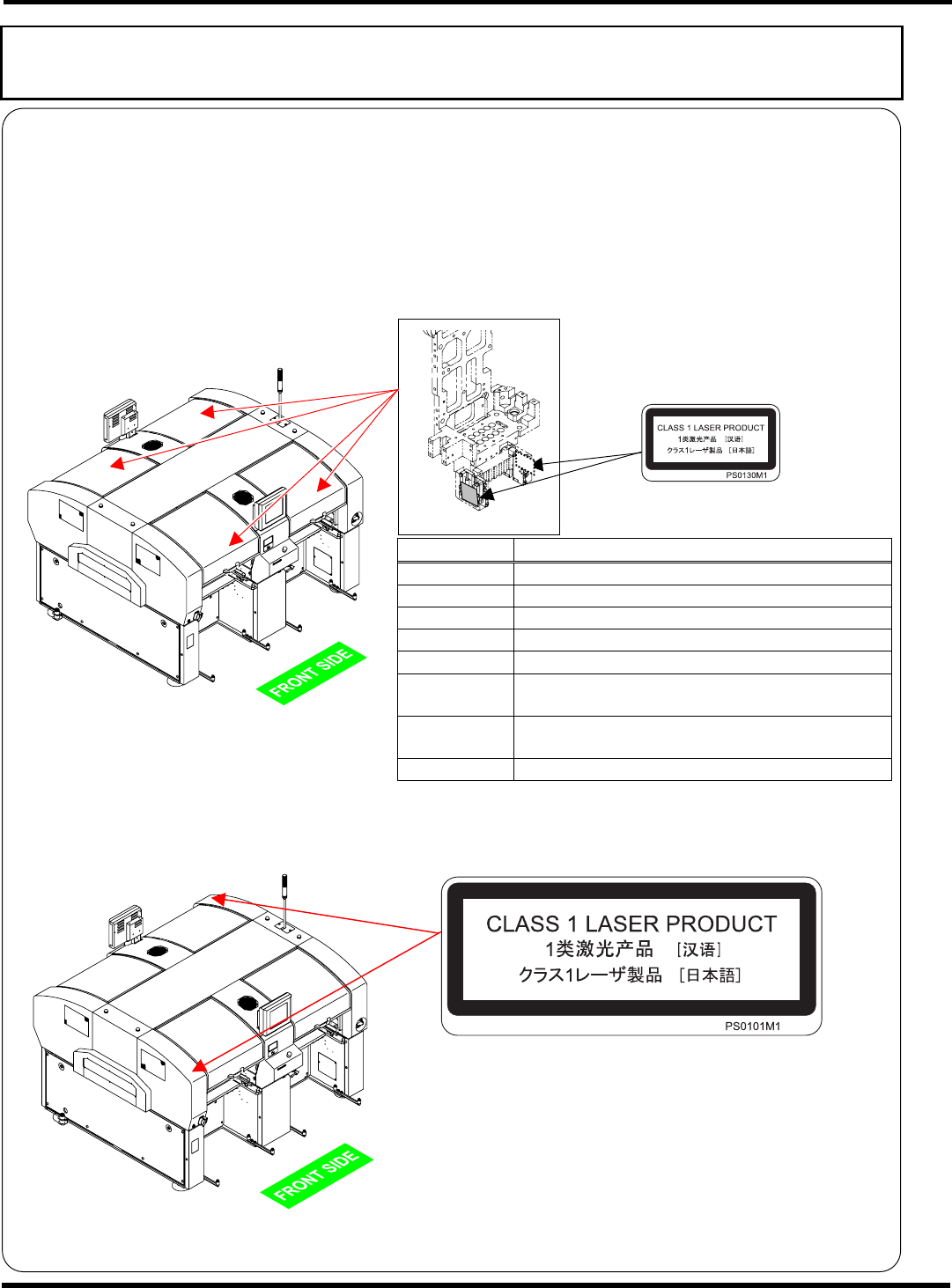

Handling of the component thickness sensor (option)
Since the component thickness sensor (option) complies with the Class 1 limits of IEC60825-1 (Laser
Safety Standards), it is basically safe under a normal usage pattern. In maintenance or operation,
however, avoid looking directly at it.
1.
Component thickness sensor (on-the-head type) (optional for the high-speed head (12 nozzles))
The component thickness sensor (on-the-head type) can be installed in the front and the rear of the machine.
The maximum output of the laser components is 0.35 mW. The sensor head has such a structure as
will not expose workers directly to the laser radiation if they open its cover. For safety’s sake, however,
never open the cover of the sensor head.
Item Laser specifications
Manufacturer Panasonic Factory Solutions Co., Ltd.
Model No. N610024026AB
Wavelength 655 nm
Output 0.350 mW
Class Class 1
Emission
duration
Anytime during power on
Installation
location
See the left figure.
Limits IEC60825-1 2001
Laser class label on the machine
The following label is attached to the machine with the component thickness sensor
(on-the-head type) installed.
EJM8A-E-XXA00-A04-01
EJM4A-AA01
EJM4A-AA01
EJM8A-109E
CM602-L
Service Manual
43
Handling of the component thickness sensor (option)
Since the component thickness sensor (option) complies with the Class 1 limits of IEC60825-1 (Laser
Safety Standards), it is basically safe under a normal usage pattern. In maintenance or operation,
however, avoid looking directly at it.
2.
Component thickness sensor (fixed-on-the-machine type) (optional for the high-speed head (8 nozzles))
The component thickness sensor (fixed-on-the-machine type) can be installed in the front and the rear
of the machine.
The maximum output of the laser components is 0.35 mW. The sensor head has such a structure as
will not expose workers directly to the laser radiation if they open its cover. For safety’s sake, however,
never open the cover of the sensor head.
Item Laser specifications
Manufacturer Panasonic Factory Solutions Co., Ltd.
Model No. N610016841AA
Wavelength 655 nm
Output 0.350 mW
Class Class 1
Emission
duration
Anytime during power on
Installation
location
See the left figure.
Limits IEC60825-1 2001
Laser class label on the machine
The following label is attached to the machine with the component thickness sensor
(fixed-on-the-machine type) installed.
EJM8A-E-XXA00-A04-00
EJM4A-AA01
EJM4A-AA01
EJM8A-110E
