Machinery Part Replacement This section describes the procedures for replacing the cooling fan. ・ Tools Phillips screwdriver #1 Phillips screwdriver #2 Allen key 2.5 mm BARRIERTA IEL (Grease) ・ Jig None 5-3-9 Cooling Fan…
Machinery Part Replacement
Remarks
Item
L
ight Transfer-Head Assembly (8-nozzle type
)

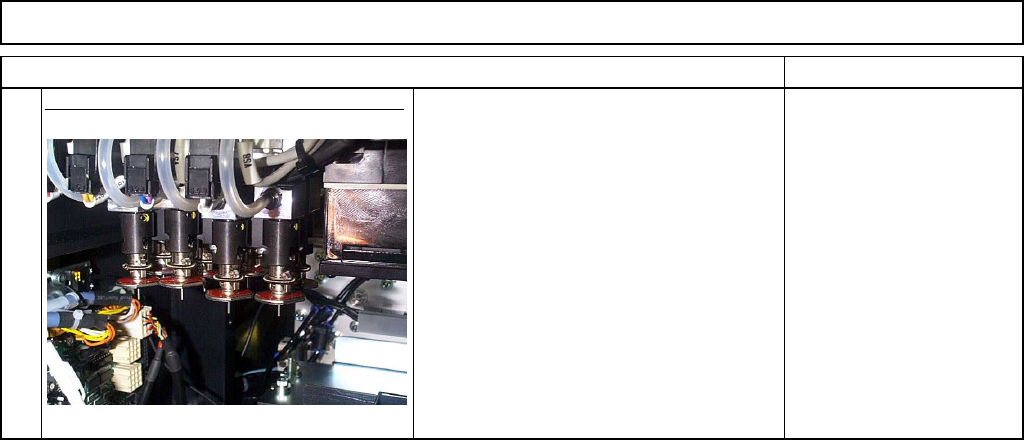

Fit the spring and then the nozzle holder.
5
EJM8A-E-SMA050308-A01-00
Page 5-3-8-3
Machinery Part Replacement
This section describes the procedures for replacing the cooling fan.

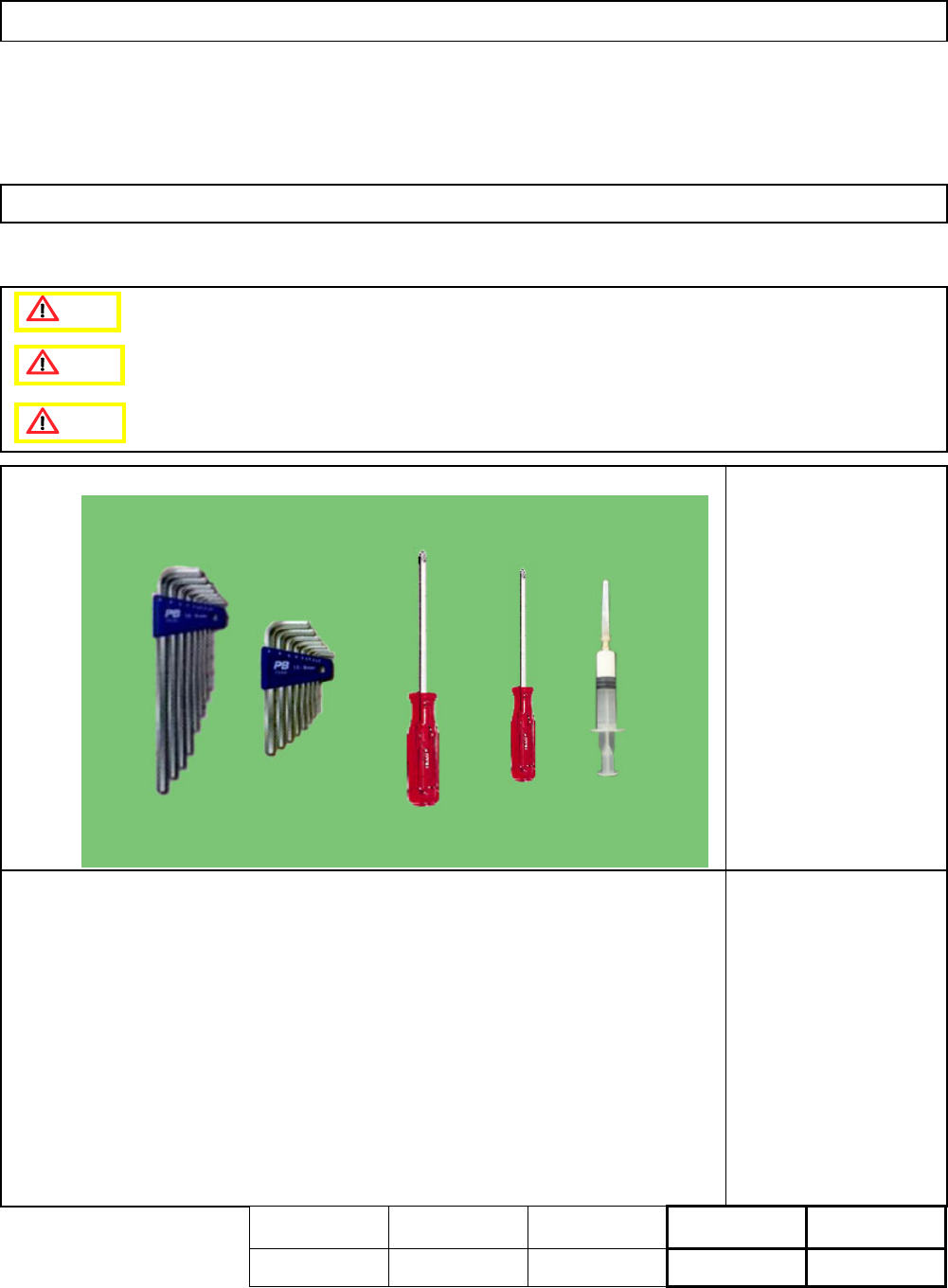

・Tools
Phillips screwdriver #1
Phillips screwdriver #2
Allen key 2.5 mm
BARRIERTA IEL
(Grease)
・Jig
None
5-3-9 Cooling Fan Replacement
Light Transfer-Head Assembly (8-nozzle type)
Caution
Dange
r
Warning
Assembly
Adjustment
8min.
Teaching
min.
Total Time Weight of
Part
Removal
Disassembly
7min.
15min.
kgs
EJM8A-E-SMA050309-A01-00
Page 5-3-9-1
Machinery Part Replacement
Remarks

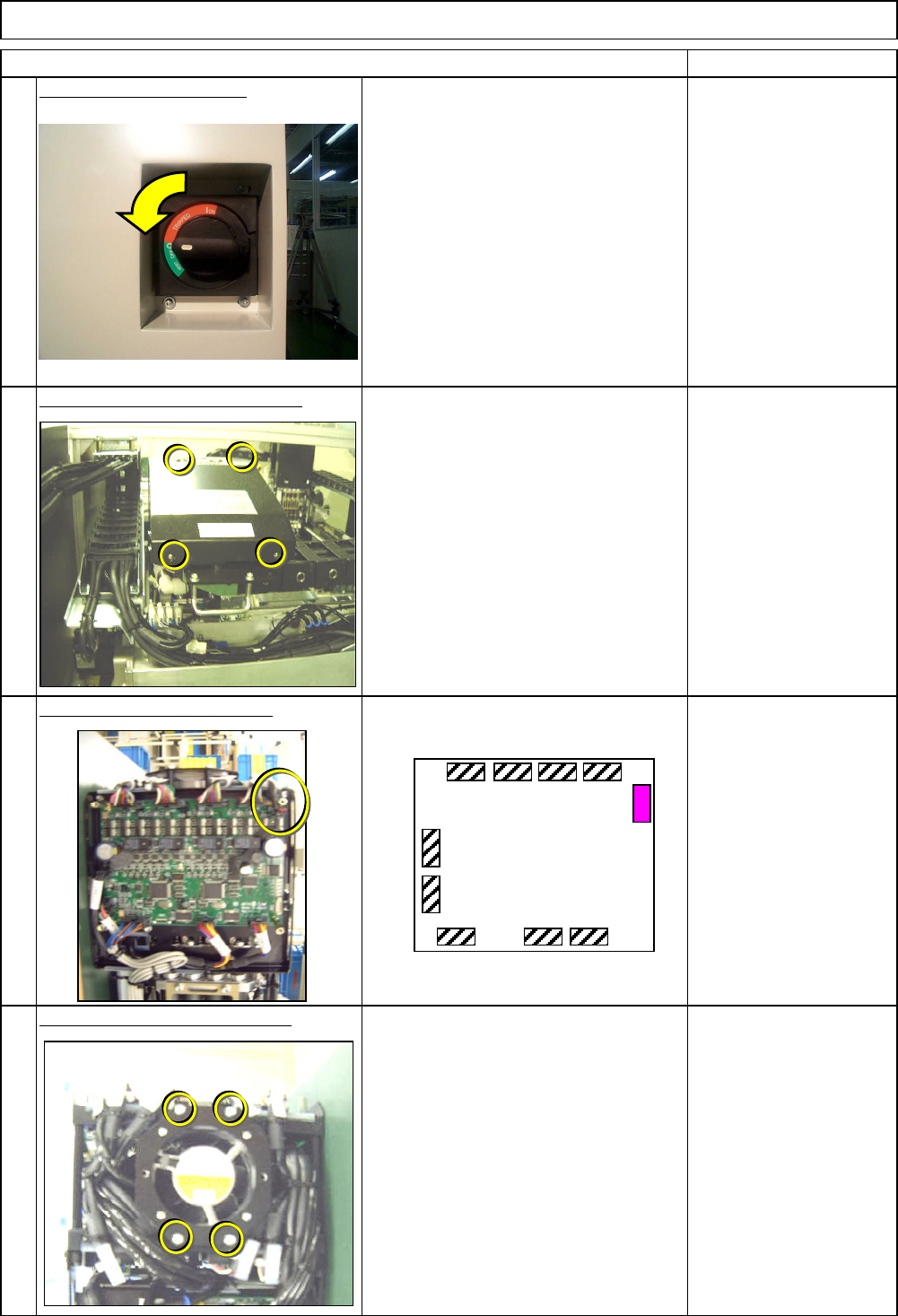

Switch off the main power.
Remove the cover from the head.
Phillips screwdriver #1
Phillips screwdriver #2
Remove Fan Connector CN5.
Remove the fan holding screws.
Allen key 2.5 mm
Screw M3 4 pcs.
3
4
1
2
Light Transfer-Head Assembly (8-nozzle type)
Item
CN1
CN2
CN3 CN4
CN5
CN12
CN10CN9
CN7
CN6
MC14CX
EJM8A-E-SMA050309-A01-00
Page 5-3-9-2
