CM602all_EJM8AESM_Service Manual - 第474页
Machinery Part Replacement This section describes the procedures for replacing the theta motor. • Tools Allen key 2.5 mm Allen key 3 mm Feeler gauge Nipper • Jigs Theta-center-alignment jig Light Transfer-Head Assembly (…
Machinery Part Replacement
Remarks
Item
L
ight Transfer-Head Assembly (8-nozzle type
)

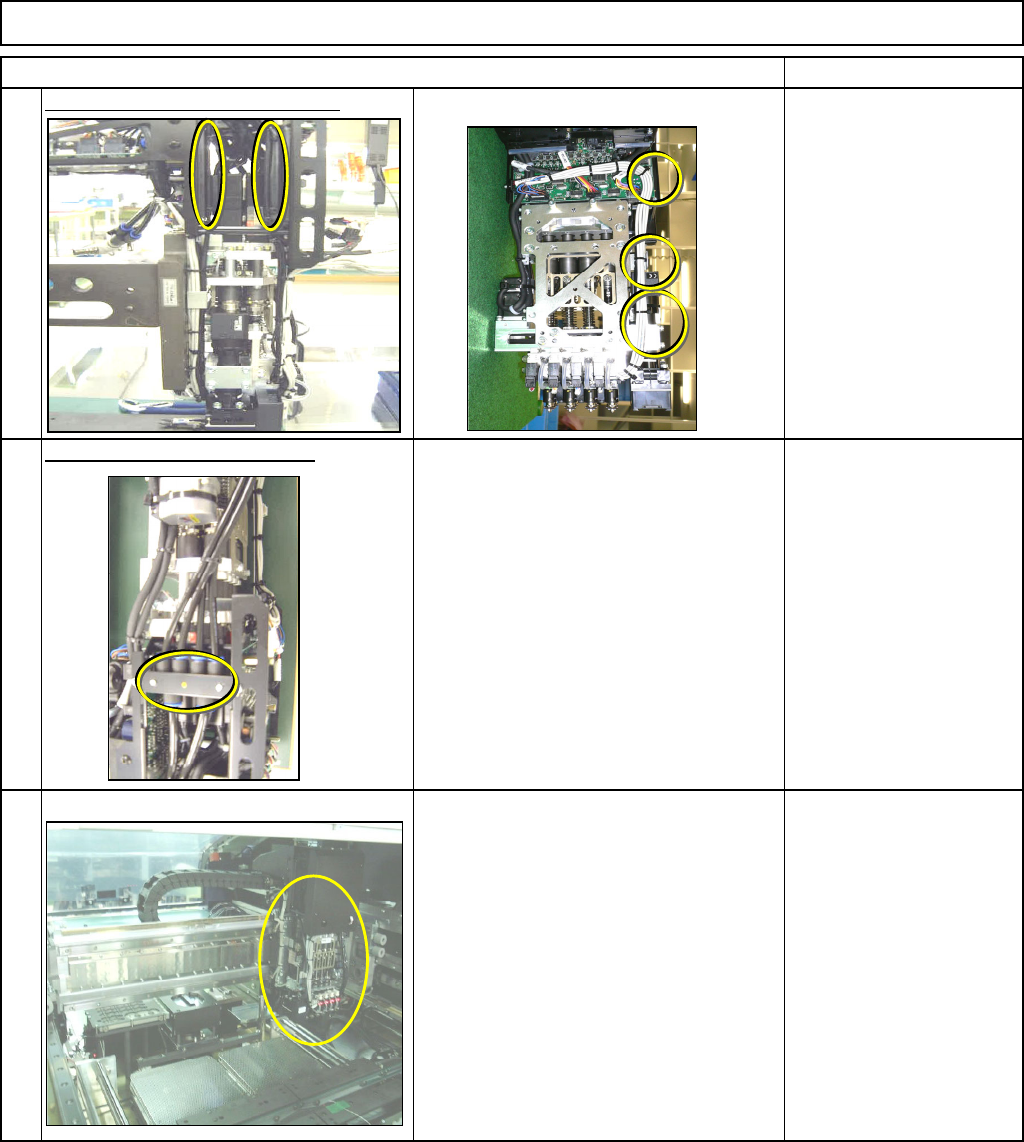

Secure the cables with cable ties.
Nipper
Cable ties
Connect the vacuum air tubes.
Install the head assembly.
Refer to "Transfer Head Replacement." Section 5-3-1
18
17
19
EJM8A-E-SMA050314-A01-00
Page 5-3-14-6
Machinery Part Replacement
This section describes the procedures for replacing the theta motor.
• Tools
Allen key 2.5 mm
Allen key 3 mm
Feeler gauge
Nipper
• Jigs
Theta-center-alignment jig
Light Transfer-Head Assembly (3-nozzle type)
5-4-1 Theta Motor Replacement
Light Transfer-Head Assembly (3-nozzle type)
5-4
Caution
Dange
r
Warning
Assembly/Adjustment
40 min.
Teaching
77 min.
Removal/Disassembly
40 min.
Total Time
157 min.
Part Weight
k
g
s.
EJM8A-E-SMA050401-A01-00
Page 5-4-1-1
Machinery Part Replacement
Remarks
Switch off the main power and air supply.
Remove the head unit.
2-000087
See "Head-Unit Replacement" Section 5-4-2
2-000081
Nipper
Remove the cover.
2-000091
Allen key 3 mm
M4 x 8L 3 pcs.
Item
2
1
Light Transfer-Head Assembly (3-nozzle type)
Cut off the cable tie. Disconnect the connector.
3
4
1
2
EJM8A-E-SMA050401-A01-00
Page 5-4-1-2
