Machinery Part Replacement This section describes the procedures for replacing the head unit. • Tools Phillips screwdriver #1 Phillips screwdriver #2 Allen key 3mm Nipper Cable tie • Jigs None Light Transfer-Head Assembl…
Machinery Part Replacement
Remarks
Item
Light Transfer-Head Assembly (3-nozzle type)

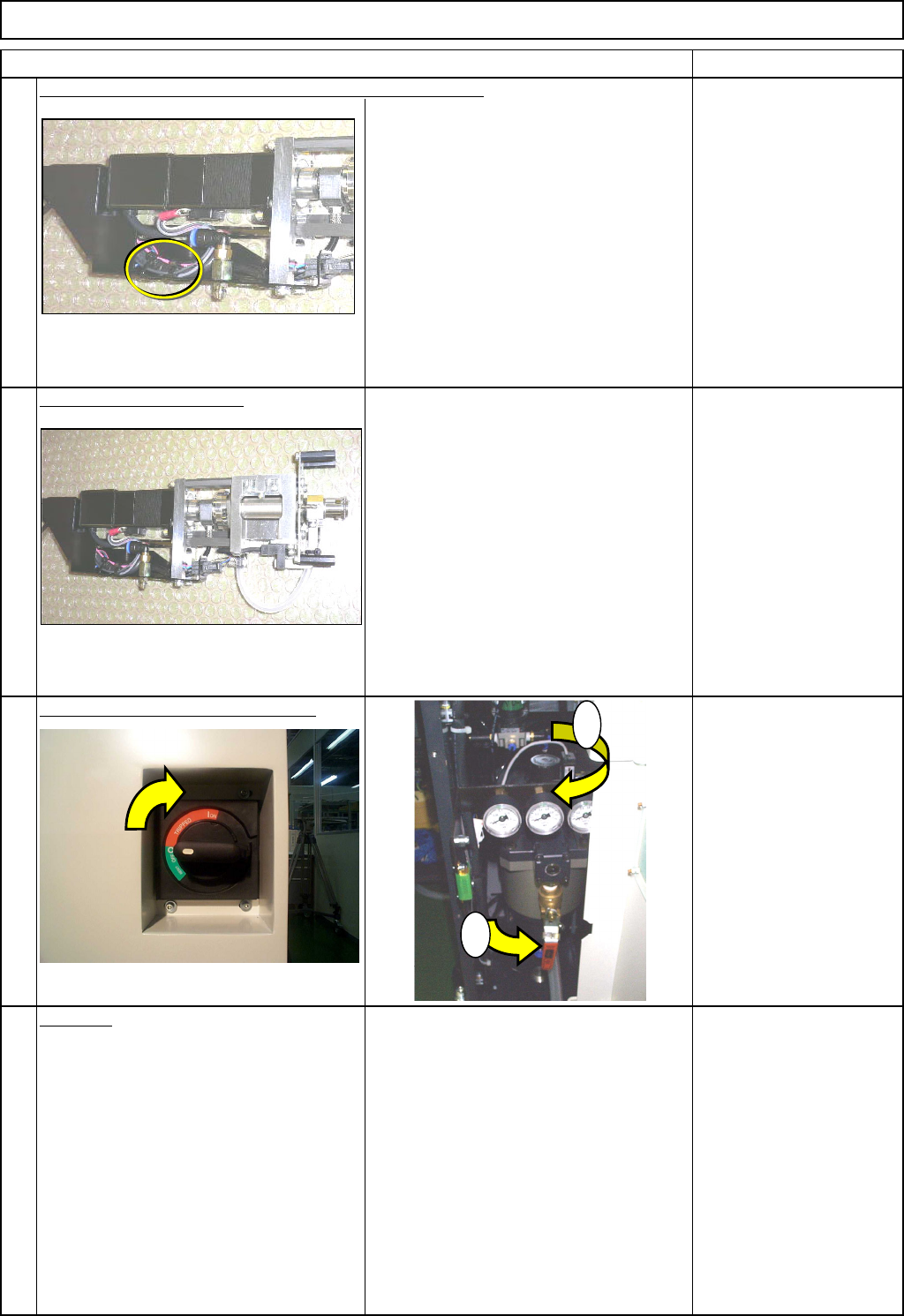

Connect the connector. Secure the cable with a cable tie.
2-000081
Nipper
Cable tie
Put the theta unit back on.
2-000087
Switch on the power and air suppl
y.
Teaching
Board Recognition Camera
--- X and Y-axis Origin Offset
Z-axis Origin Offset
Chip Recognition Camera
and Theta-axis Origin Offset
Determining the Mounting Height and
Positioning the Board
Mounting Position
Pickup Position
Nozzle Exchange Position
Section 4-2-2
Section 4-2-3
Section 4-2-4
Section 4-2-5
Section 4-2-7
Section 4-2-8
Section 4-2-9
16
13
14
15
1
2
EJM8A-E-SMA050401-A01-00
Page 5-4-1-5
Machinery Part Replacement

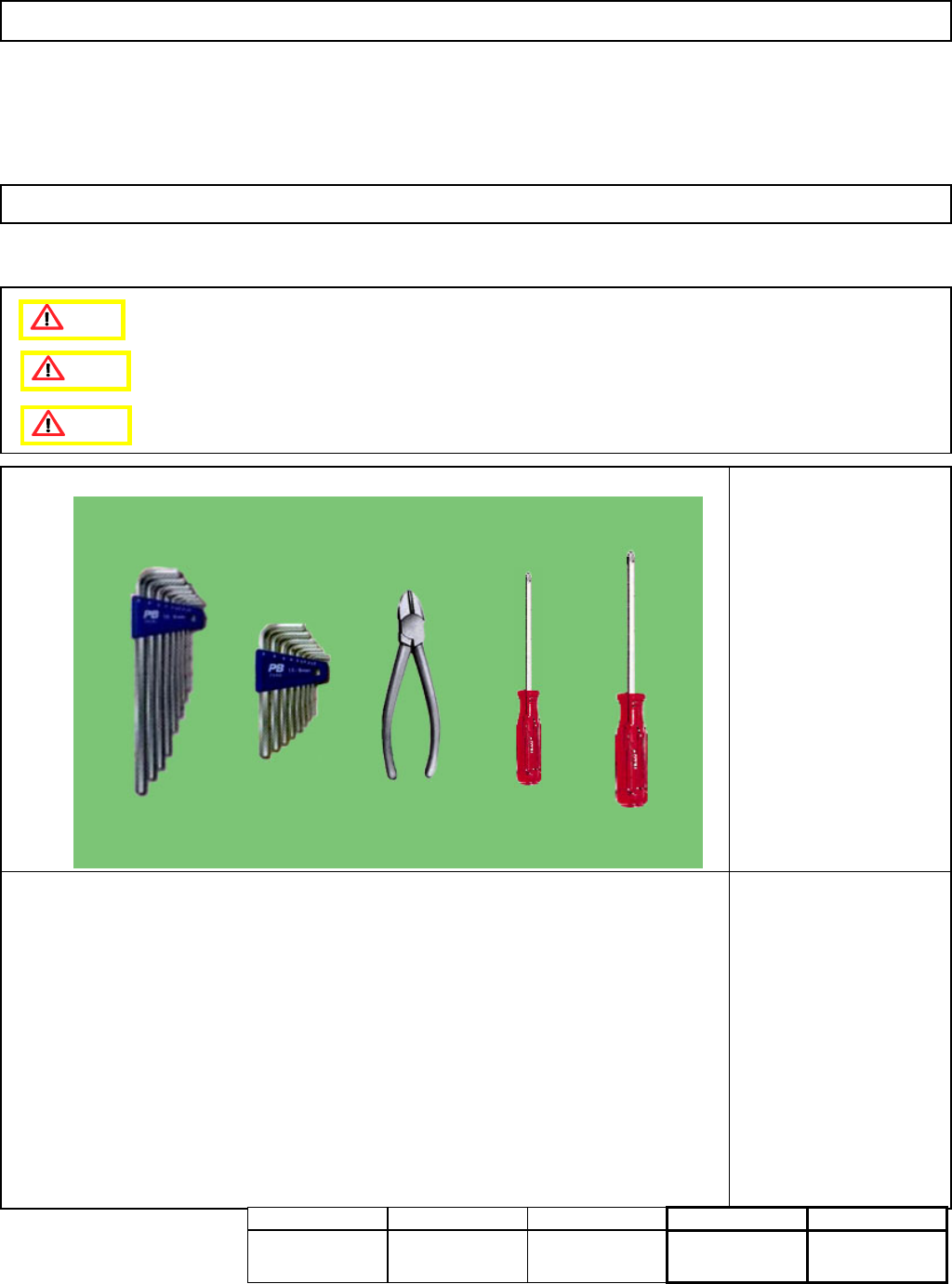

This section describes the procedures for replacing the head unit.
• Tools
Phillips screwdriver #1
Phillips screwdriver #2
Allen key 3mm
Nipper
Cable tie
• Jigs
None
Light Transfer-Head Assembly (3-nozzle type)
5-4-2 Head Unit Replacement
Caution
Dange
r
Warning
Assembly/Adjustment
20 min.
Teaching
95 min.
Removal/Disassembly
20 min.
Total Time
135 min.
Part Weight
k
g
s.
EJM8A-E-SMA050402-A01-00
Page 5-4-2-1
Machinery Part Replacement
Remarks
Switch off the main power and air supply.
Remove the feeder cover. Place bubble wrap over the table.
ｶﾊﾞｰ達
Phillips screwdriver #2
Screw M4 2 pcs.
Remove the head cover.
2-000157、000158
Phillips screwdriver #1
Phillips screwdriver #2
Screw M3 2 pcs.
Screw M4 2 pcs.
Remove the connectors from the unit to replace.
2-000163
4
1
Item
2
Light Transfer-Head Assembly (3-nozzle type)
3
1
2
EJM8A-E-SMA050402-A01-00
Page 5-4-2-2
