6 Tool/Spec/Installation Allen key 2.5 mm Screw M3 2 pcs. Tool/Spec/Installation 7 Remove the sensor holding screws. Replace the sensor. Tool/Spec/Installation Disconnect the sensor connector. 5 Z Unit (3-nozzle type) Re…
Machinery Part Replacement
Z Unit (3-nozzle type)
1

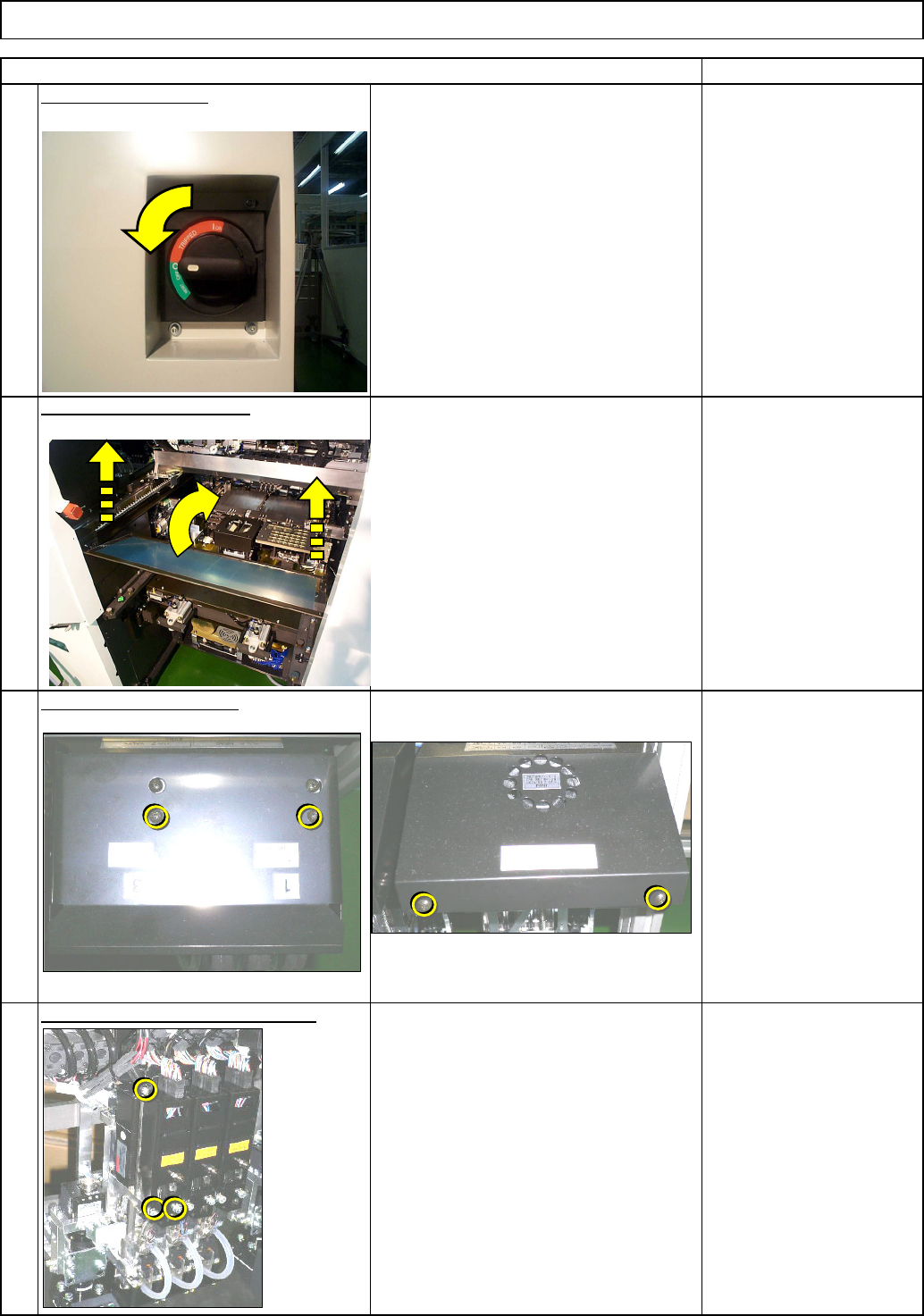

Remove the feeder cover.
Switch off the power.
Phillips screwdriver #1
Phillips screwdriver #2
Screw M3 2 pcs
Screw M4 2 pcs.
4
3
2
Allen key 3 mm
Screw M4 3 pcs.
Phillips screwdriver #2
Screw M4 2 pcs.
Remove the head cover.
Tool/Spec/Installation
Item Remarks
Tool/Spec/Installation
Tool/Spec/Installation
Remove the cover holding screws.
Tool/Spec/Installation
EJM8A-E-SMA050501-A01-00
Page 5-5-1-2
6
Tool/Spec/Installation
Allen key 2.5 mm
Screw M3 2 pcs.
Tool/Spec/Installation
7
Remove the sensor holding screws. Replace the sensor.
Tool/Spec/Installation
Disconnect the sensor connector.
5
Z Unit (3-nozzle type)
Remarks
Machinery Part Replacement
Item

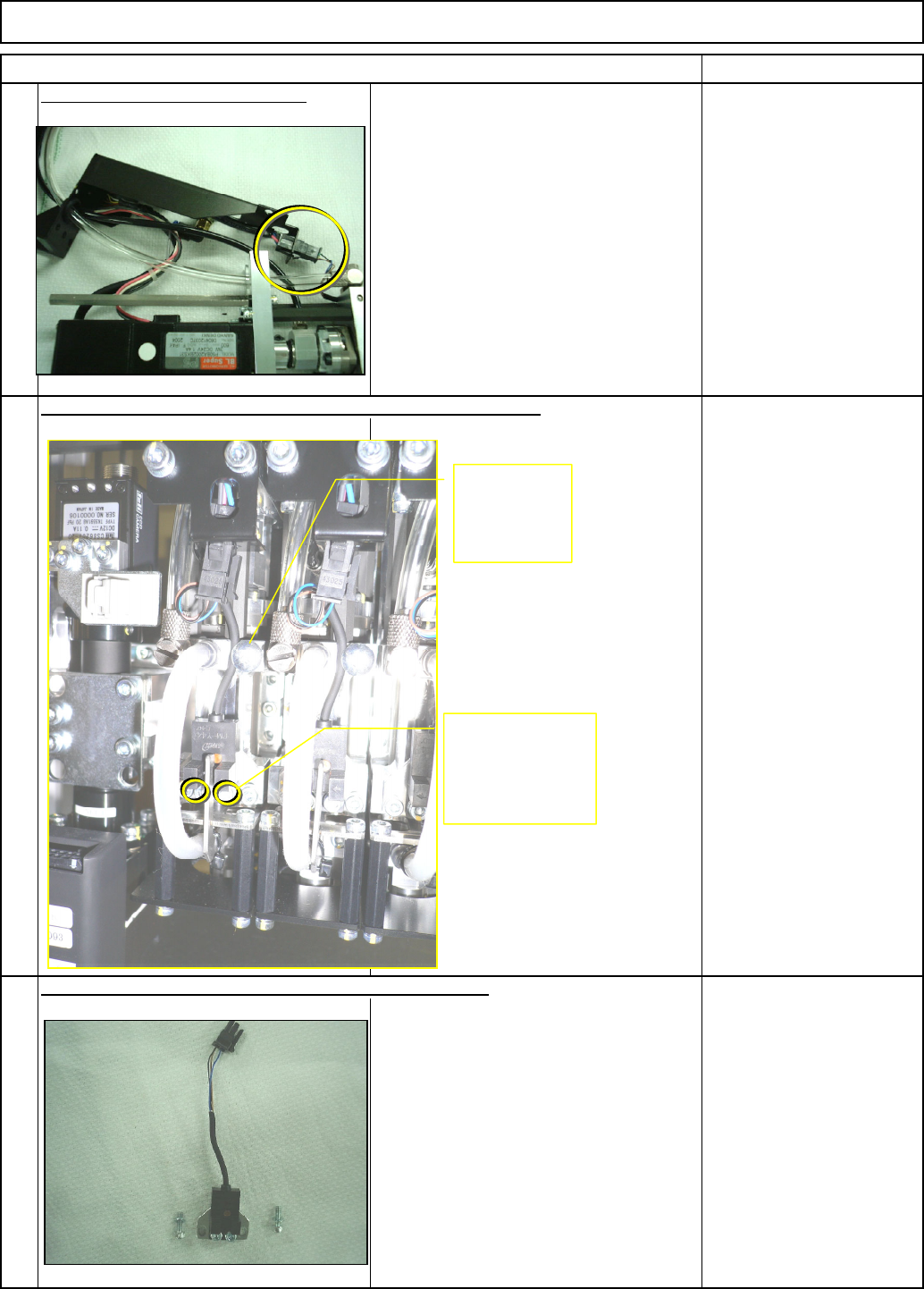

Remove the sensor-cable-holding screws. Remove the sensor.
Allen key 3 mm
Screw M4 2 pcs.
Remove the
cable-holding
screw.
Remove the
sensor-holding-
bracket screw.
EJM8A-E-SMA050501-A01-00
Page 5-5-1-3

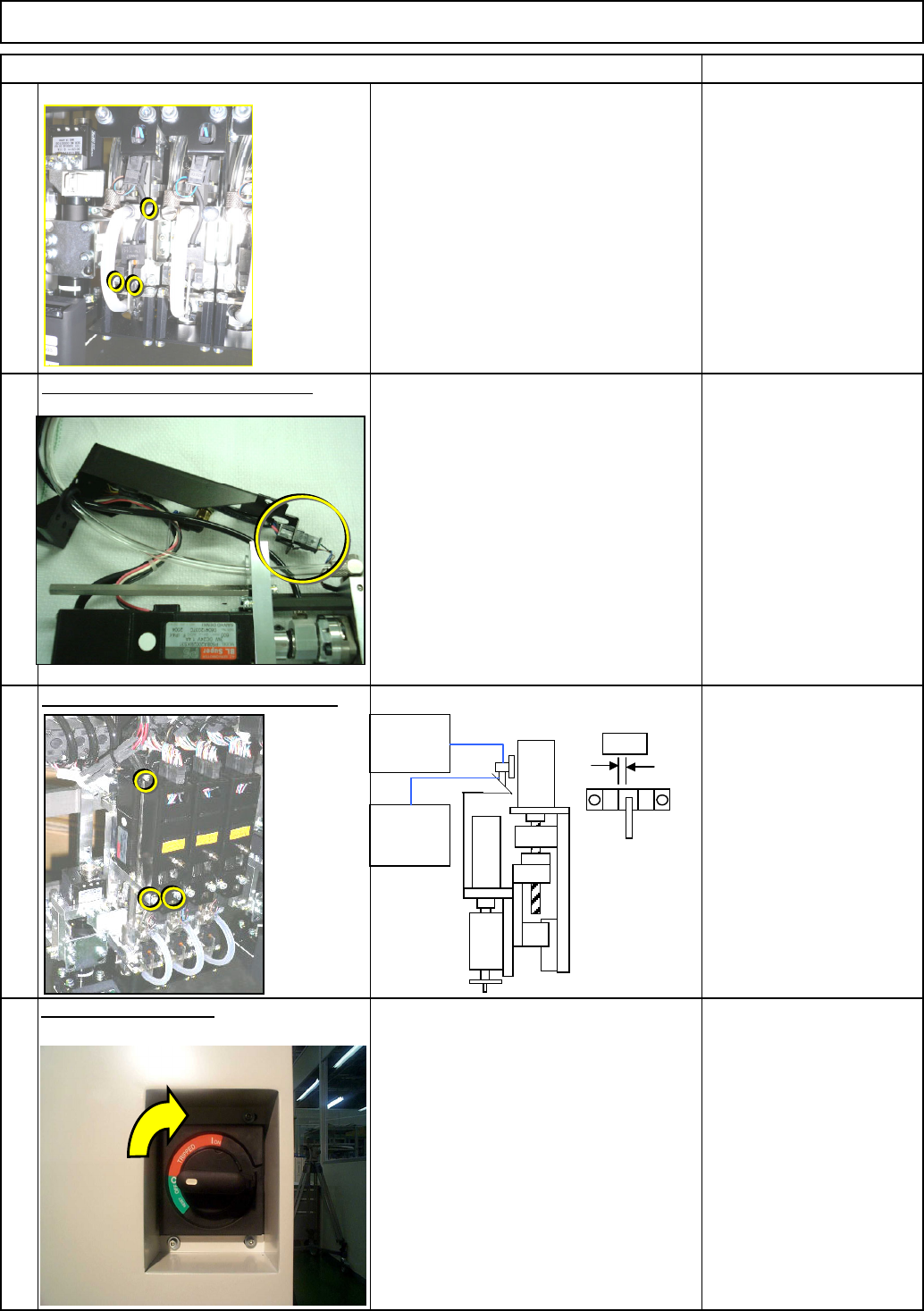

* Sensor installation
* Securin
g
the sensor cable
Be careful of cable-cau
g
ht.
Switch ON the power.
Tool/Spec/Installation
9
Connect the sensor connector.
Machinery Part Replacement
Z Unit (3-nozzle type)
Item Remarks
Allen key 3 mm
Screw M4 2 pcs.
Allen key 3 mm
Screw M4 3 pcs.
The sensor and the dog
should not interfere with
each other.
11
8
Tighten the cover holding screws.
Tool/Spec/Installation
10
Tool/Spec/Installation
Z-axis
rough origin
PH
Z-axis
rough origin
dog
Gap
EJM8A-E-SMA050501-A01-00
Page 5-5-1-4
