Machinery Part Replacement Remarks Z Unit (3-nozzle type) Item Connect the air, vacuum, and electropneumatic regulator tubes. Be sure to lock it. Phillips screwdriver #2 Truss screw M4 1 pc. Put the head cover back on. P…

100%1 / 1093
Machinery Part Replacement
Remarks
Z Unit (3-nozzle type)
Item

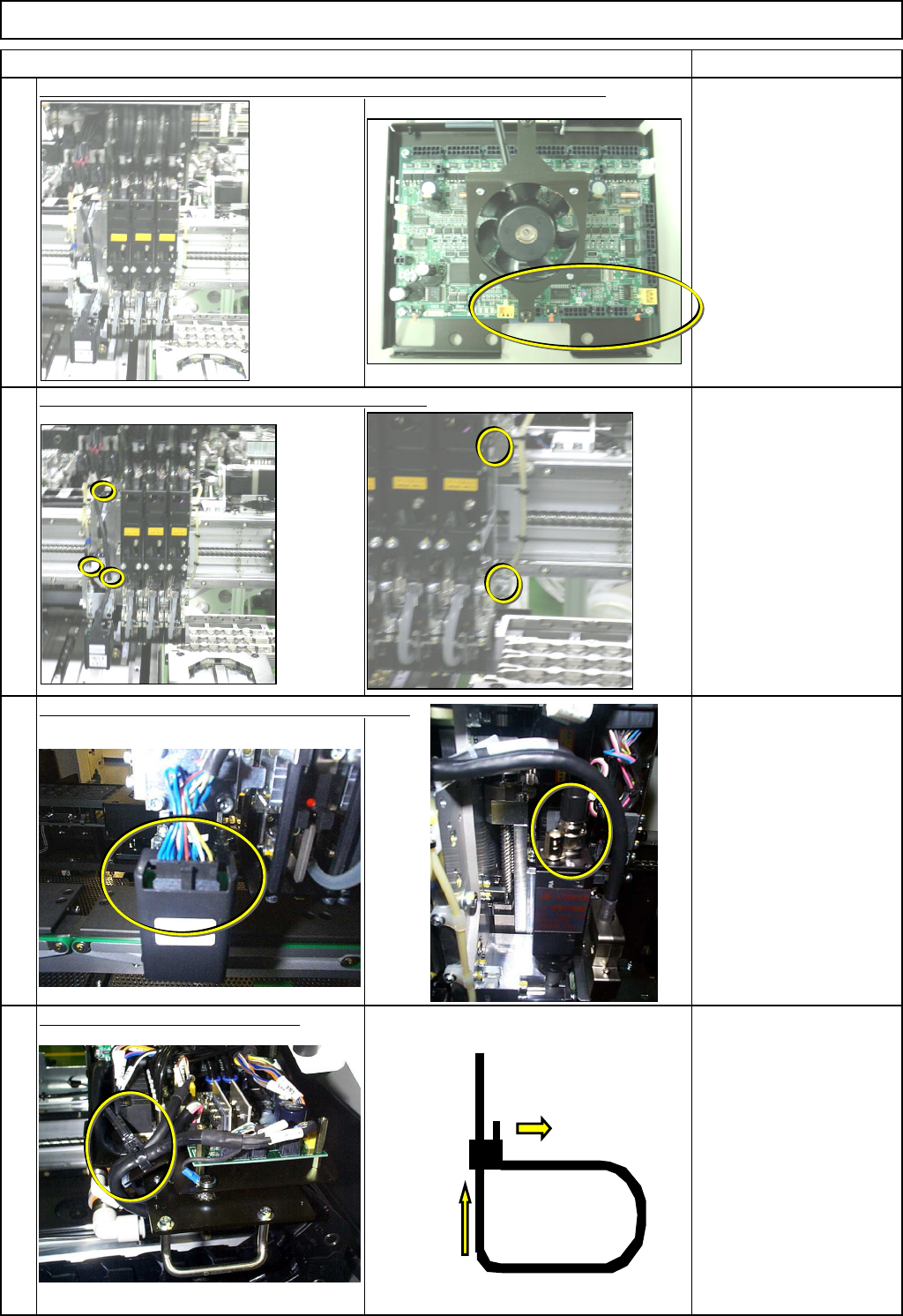

Check that the connectors and the tubes are connected to the new head.
Install the head. Tighten the head-holding screws.
Allen key 3 mm
Screw M4 5 pcs.
Connect the LED lamp and camera connectors.
Secure the cables with cable ties.
12
9
10
11
Put down the pin.
Insert it.
EJM8A-E-SMA050502-A01-00
Page 5-5-2-4
Machinery Part Replacement
Remarks
Z Unit (3-nozzle type)
Item
Connect the air, vacuum, and electropneumatic regulator tubes.
Be sure to lock it.
Phillips screwdriver #2
Truss screw M4 1 pc.
Put the head cover back on.
Phillips screwdriver #1
Phillips screwdriver #2
Screw M3 2 pcs.
Screw M4 2 pcs.
Put the feeder cover back on. Remove the bubble wrap.
Phillips screwdriver #2
Screw M4 2 pcs.
15
16
14
Secure the connector and the earth cable.
13
EJM8A-E-SMA050502-A01-00
Page 5-5-2-5
Machinery Part Replacement
Remarks
Z Unit (3-nozzle type)
Item
Switch on the power and air suppl
y.
from 0.49MPa
to 0.54MPa
A
d
j
ustment:
Head Camera Adjustment --- Focus and
Theta
Teaching:
Board Recognition Camera --- X and Y-
axis Origin Offset
Z-axis Origin Offset
Chip Recognition Camera --- Theta Axis
Origin Offset
Determining the Mounting Height and
Positioning the Board
Mounting Position
Pickup Position
Nozzle Exchange Position
Section 4-1-2
Section 4-2-2
SectionNo:4-2-3
SectionNo:4-2-4
SectionNo:4-2-5
SectionNo:4-2-7
SectionNo:4-2-8
SectionNo:4-2-9
18
17
1
2
EJM8A-E-SMA050502-A01-00
Page 5-5-2-6
