CM602all_EJM8AESM_Service Manual - 第526页
Machinery Part Replacement Remarks Item Z Unit (3-nozzle type) Remove a set of manifolds. Replace the valves. One set consists of three valves. Allen key 2.5 mm Screw M3 6 pcs. Put a new set of manifolds in position. All…

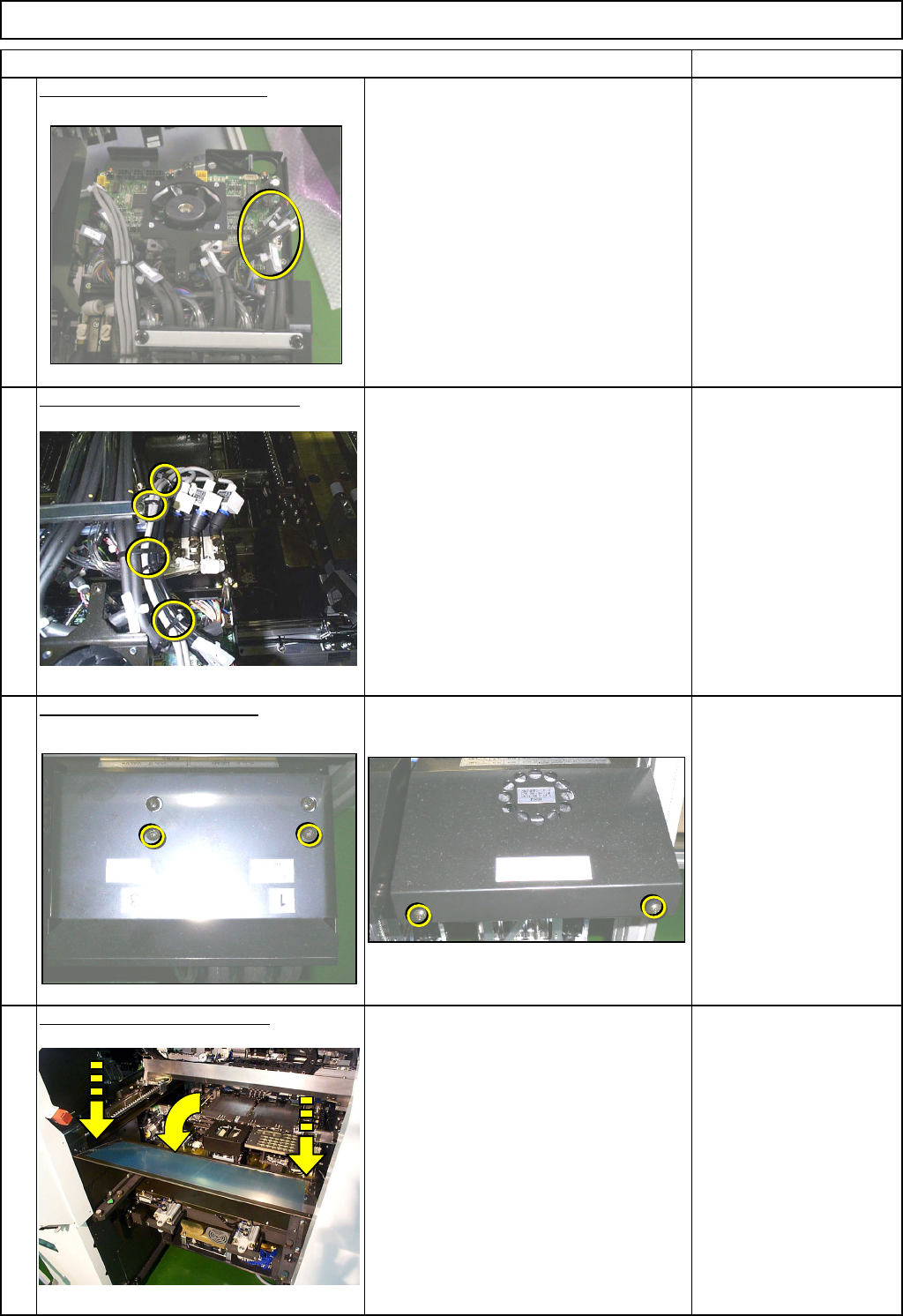

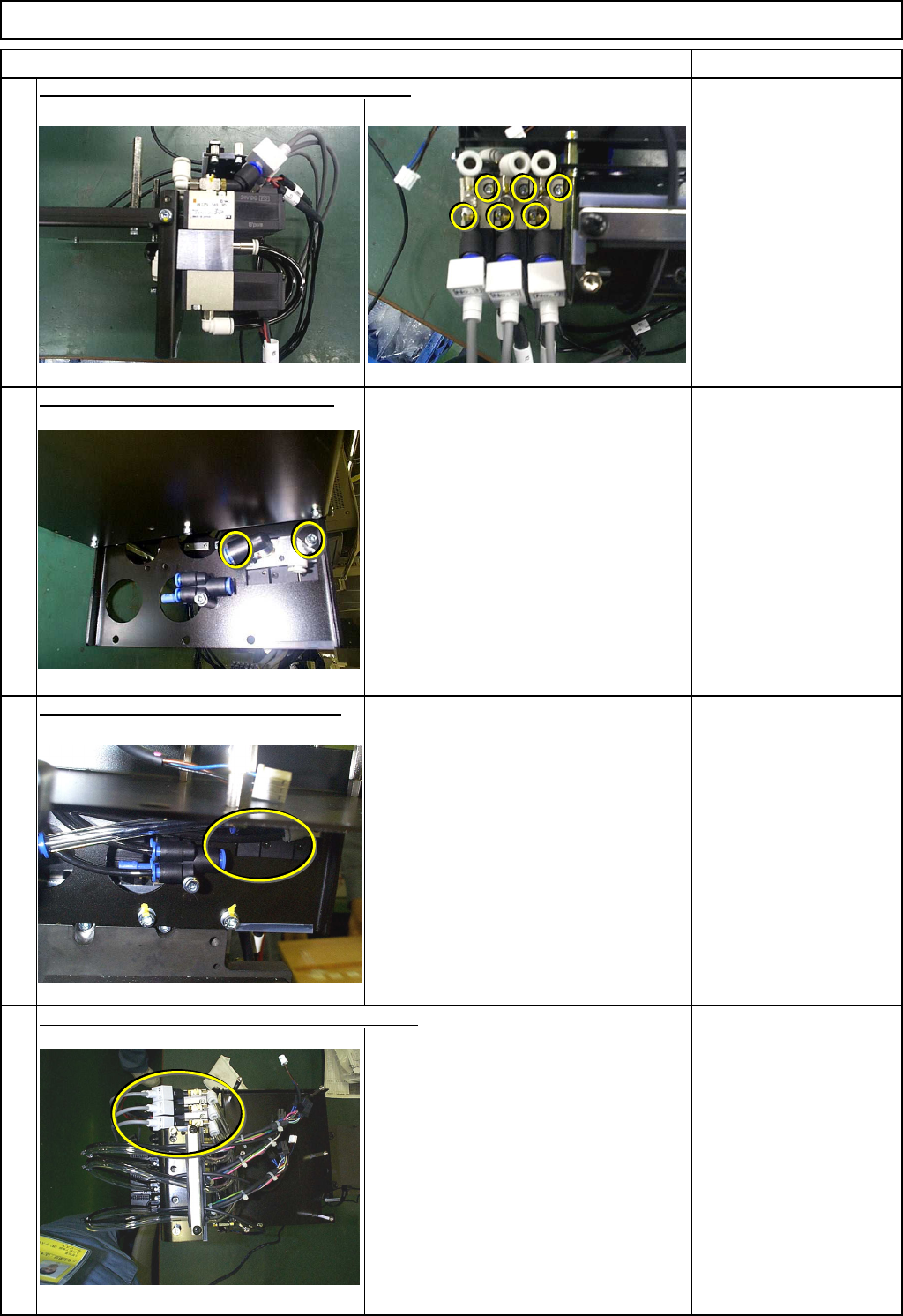

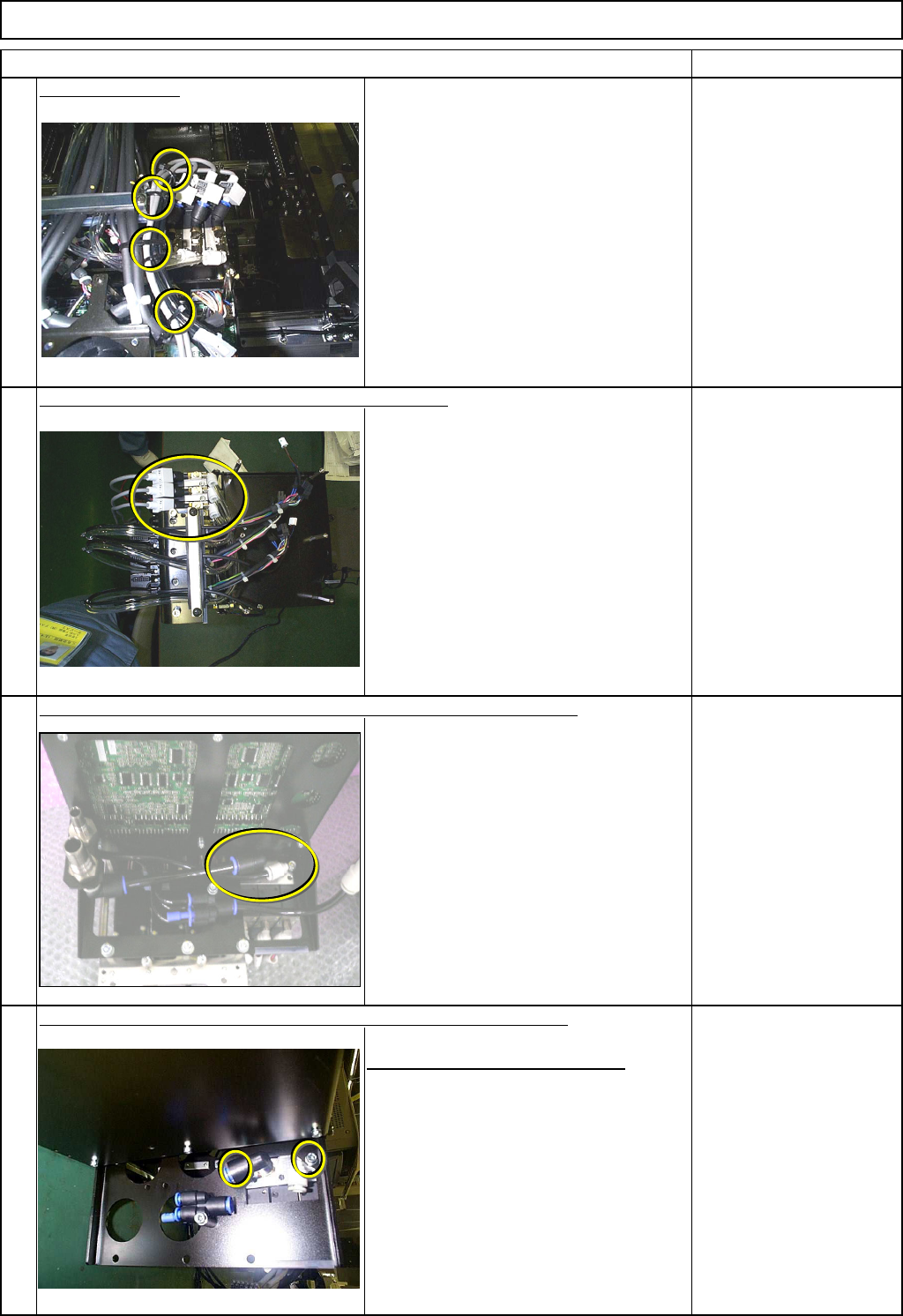

Machinery Part Replacement
Remarks
Item
Z Unit (3-nozzle type)
Cut the cable ties.
2-000170
Nipper
Remove the vacuum tubes from the vacuum sensor.
2-000004
Remove the vacuum and the air tubes from the rear side of the head.
Remove the manifold holding screws from the rear side of the head.
Be careful not to let the valve fall.
Allen key 3 mm
Screw M4 2 pcs.
6
5
7
8
EJM8A-E-SMA050506-A01-00
Page 5-5-6-3
Machinery Part Replacement
Remarks
Item
Z Unit (3-nozzle type)
Remove a set of manifolds. Replace the valves.
One set consists of three valves. Allen key 2.5 mm
Screw M3 6 pcs.
Put a new set of manifolds in position.
Allen key 3 mm
Screw M4 2 pcs.
Connect the vacuum and the air tubes.
Connect the vacuum tube to the vacuum sensor.
2-000004
12
9
10
11
EJM8A-E-SMA050506-A01-00
Page 5-5-6-4
Machinery Part Replacement
Remarks
Item
Z Unit (3-nozzle type)
Connect the valve connector.
Secure the cables with cable ties.
2-000170
Nipper
Cable tie
Put the head cover back on.
Phillips screwdriver #1
Phillips screwdriver #2
Screw M3 2 pcs.
M4 2 pcs.
Put the feeder cover back on.
ｶﾊﾞｰ達
Phillips screwdriver #2
Screw M4 2 pcs.
13
14
15
16
EJM8A-E-SMA050506-A01-00
Page 5-5-6-5
