Machinery Part Replacement Remarks Switch off the main power. Remove the feeder cover and the chute. Phillips screwdriver #2 Allen key 3 mm Screw M4 2 pcs. Screw M4x10 mm 3 pcs. Thick washer 3 pcs. Remove the lower chute…
Machinery Part Replacement
This section describes the procedures for replacing the line camera.

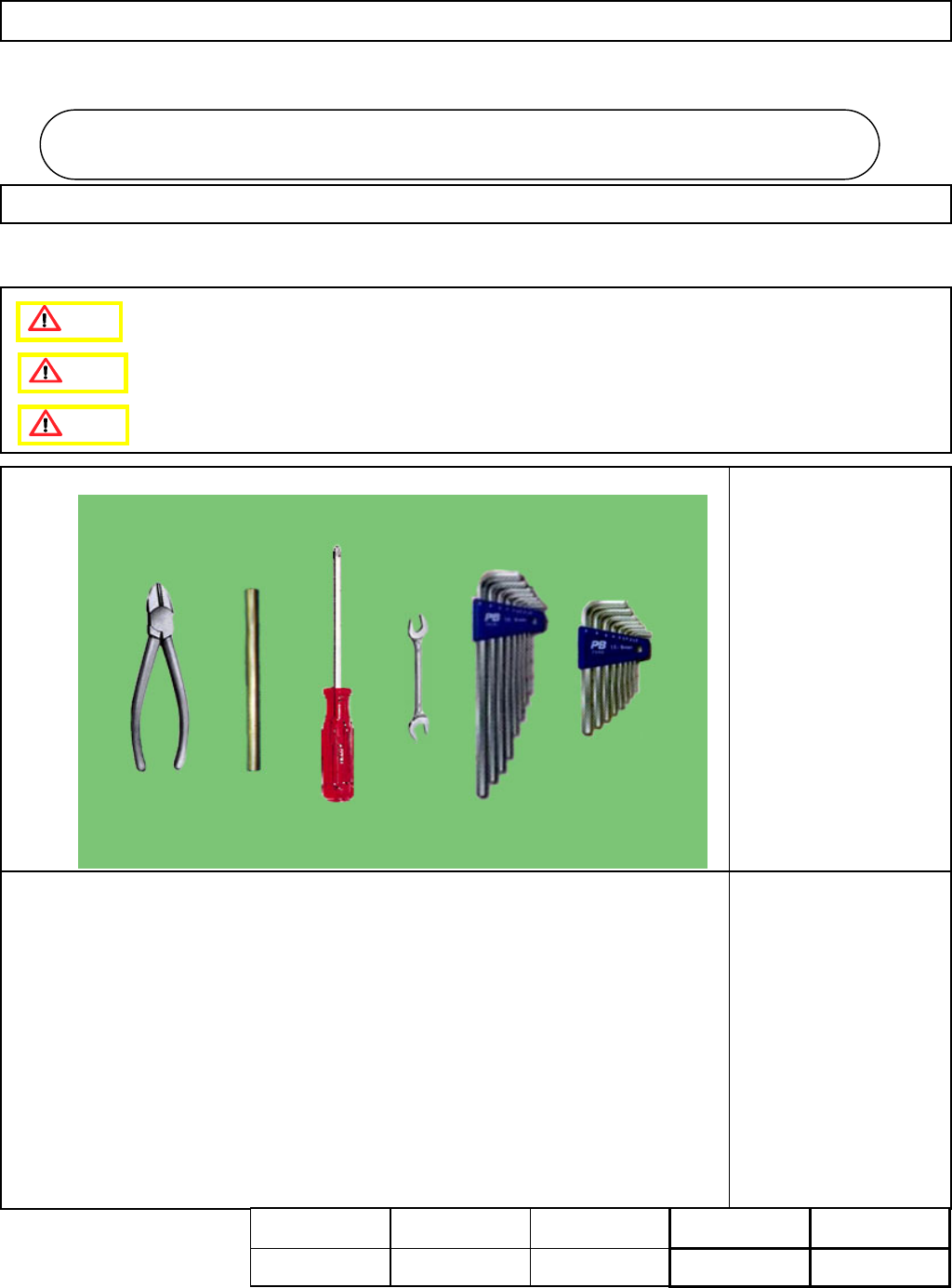

・Tools
Phillips screwdriver #2
Allen key 2.5 mm
Allen key 3 mm
Allen key 4 mm
Allen key 5 mm
Special short wrench 4
mm
Pipe
Wrench 5.5 mm
Nipper
・Jig
None
5-7-1 Line Camera Replacement
Line Camera Unit
Line Camera Unit
5-7
Caution
Dange
r
Warning
Assembly
Adjustment
50min.
Teaching
55min.
Total Time Weight of
Part
Removal
Disassembly
30min.
135min.
kgs
EJM8A-E-SMA050701-A01-00
Page 5-7-1-1
Machinery Part Replacement
Remarks

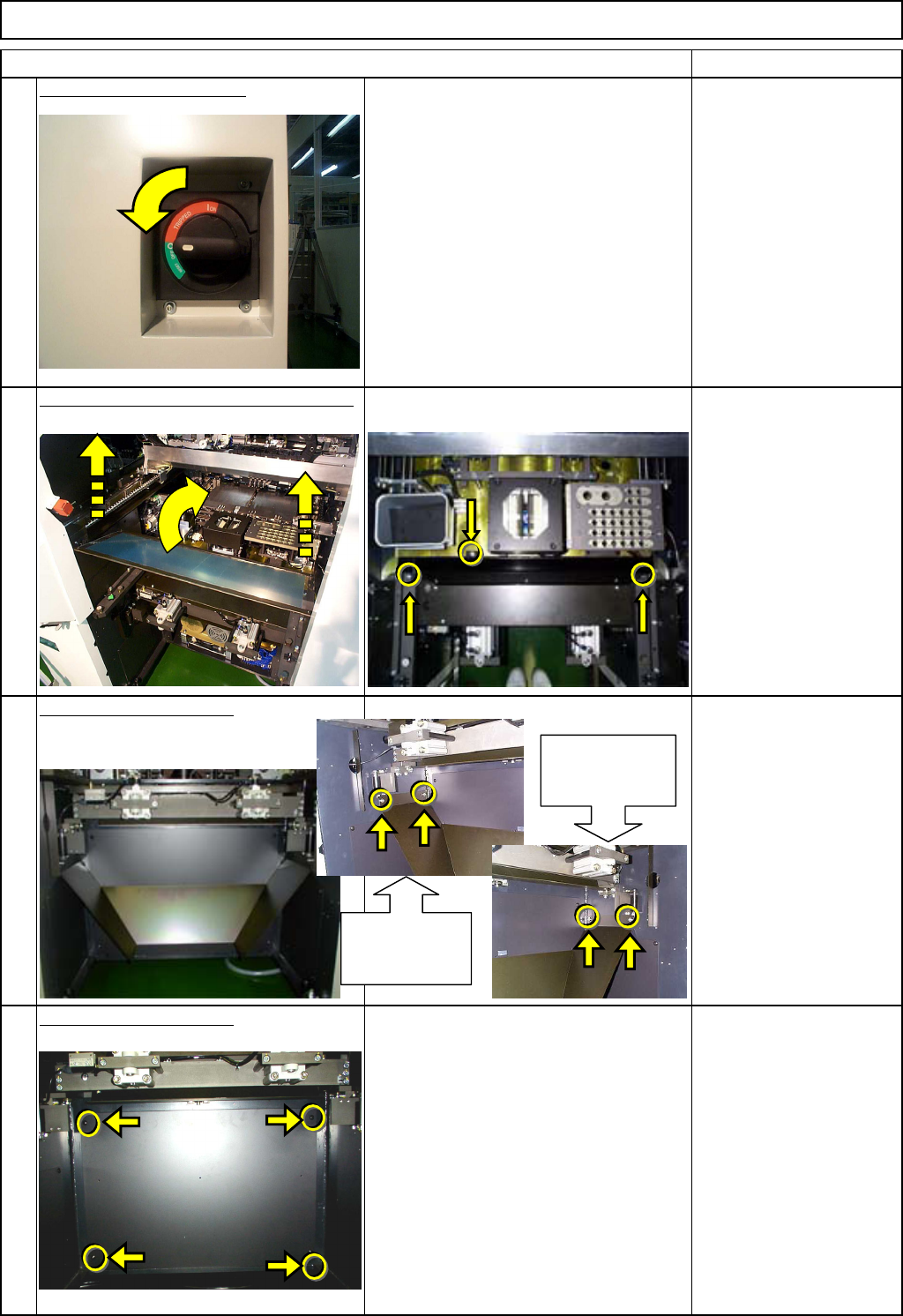

Switch off the main power.
Remove the feeder cover and the chute.
Phillips screwdriver #2
Allen key 3 mm
Screw M4 2 pcs.
Screw M4x10 mm 3 pcs.
Thick washer 3 pcs.
Remove the lower chute.
Allen key 4 mm
Screw M5x12mm 4 pcs.
Thick washer 4 pcs.
Remove the lower cover.
Phillips screwdriver #2
Round cross-head screw
M5 4 pcs.
Line Camera Unit
Item
3
4
1
2
Chute installing
section (left)
Chute installing
section (right)
EJM8A-E-SMA050701-A01-00
Page 5-7-1-2
Machinery Part Replacement
Remarks
Line Camera Unit
Item

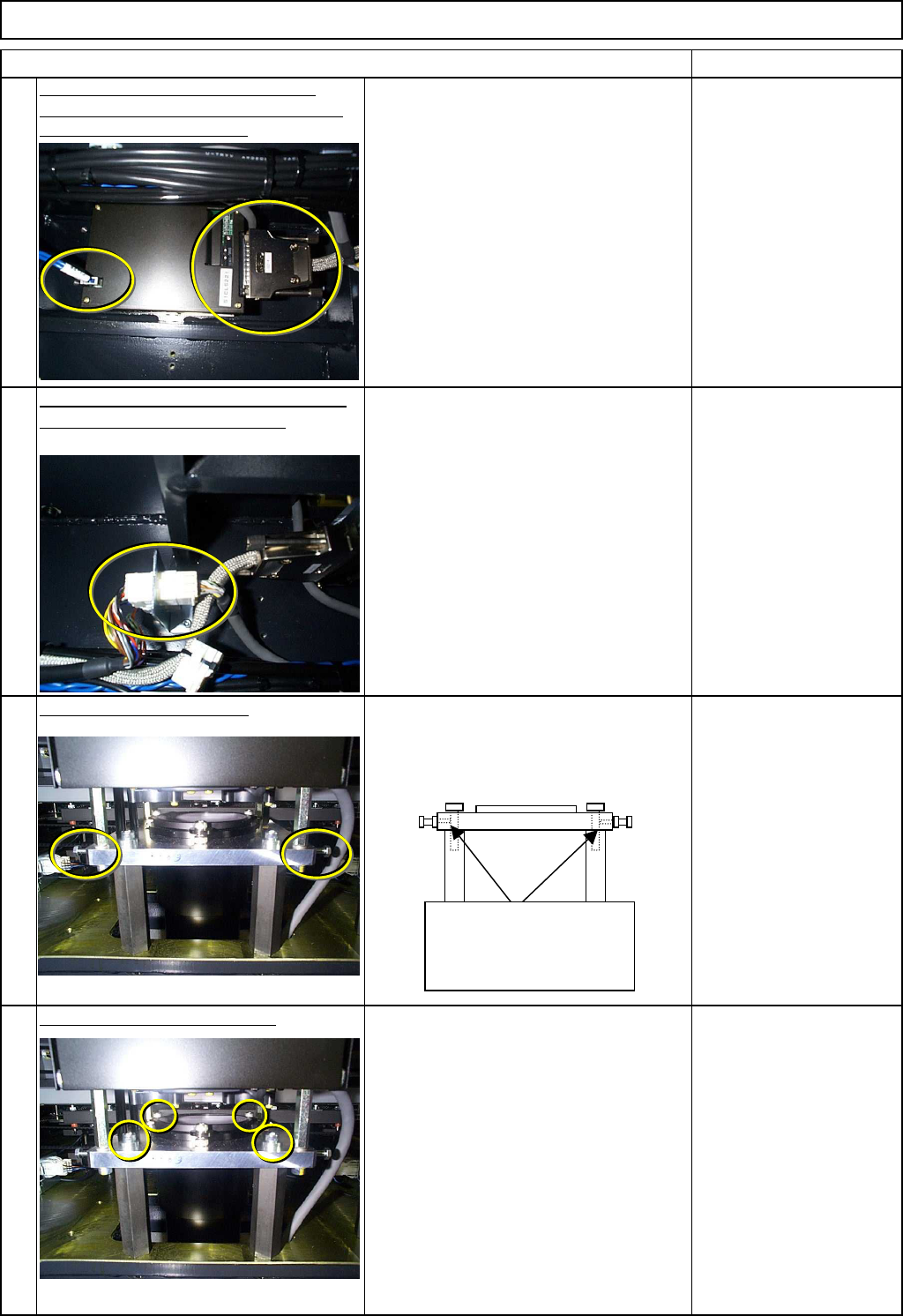

Remove the camera connector and the
camera power supply connector, which are
placed under the board table.
Nipper
JAE connector
Remove the LED li
g
ht connector, which
is placed under the board table. AMP12pin, CH12□□
Loosen the adjusting bolts.
Loosen the adjusting bolts before
removing the camera-LED unit.
Otherwise, the threads of the holding
screws will be damaged.
Allen key 2.5 mm
Wrench 5.5 mm
Screw M3×30 2 pcs.
Remove the camera-LED unit.
Allen key 5 mm
Pipe
Screw M6×20 2 pcs.
Screw M4×12 1 pcs.
5
6
7
8
Adjusting bolts make
contact with the thread of
the holding screws.
EJM8A-E-SMA050701-A01-00
Page 5-7-1-3
