Machinery Part Replacement
Remarks
Line Camera Unit
Item
Remove the camera connector and the
camera power supply connector, which are
placed under the board table.
Nipper
JAE connector
Remove the LED li
g
ht connector, which
is placed under the board table. AMP12pin, CH12□□
Loosen the adjusting bolts.
Loosen the adjusting bolts before
removing the camera-LED unit.
Otherwise, the threads of the holding
screws will be damaged.
Allen key 2.5 mm
Wrench 5.5 mm
Screw M3×30 2 pcs.
Remove the camera-LED unit.
Allen key 5 mm
Pipe
Screw M6×20 2 pcs.
Screw M4×12 　1 pcs.
5
6
7
8
Adjusting bolts make
contact with the thread of
the holding screws.
EJM8A-E-SMA050701-A01-00
Page　5-7-1-3
Machinery Part Replacement
Remarks
Line Camera Unit
Item

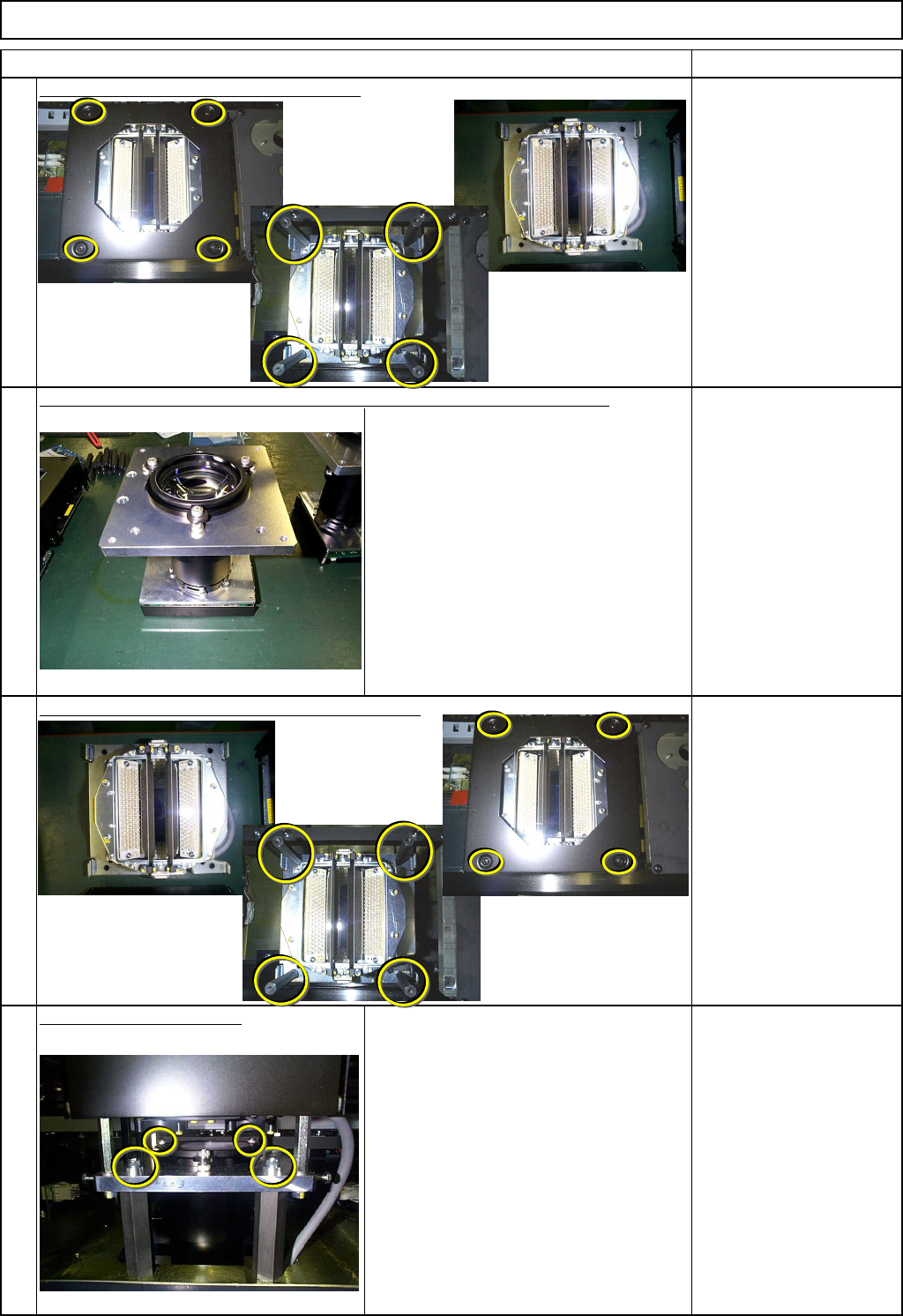

Separate the LED lamp from the camera.
Phillips screwdriver #2
Wrench 10 mm
Screw M4 4 pcs.
Hexagonal spacer 4 pcs.
Check to see that there is no damage to the lens of the new chip camera.
Mount on the LED lamp on the new chip camera.
Phillips screwdriver #2
Wrench 10 mm
Screw M4 4 pcs.
Hexagonal spacer 4 pcs.
Install the camera -LED unit.
Take care with the orientation of the unit. The
cable should be positioned at right when
seen from the front.
Allen key 5 mm
Pipe
Screw M6×20 2 pcs.
Screw M4×12 1 pcs.
9
10
11
12
EJM8A-E-SMA050701-A01-00
Page　5-7-1-4
Machinery Part Replacement
Remarks
Line Camera Unit
Item

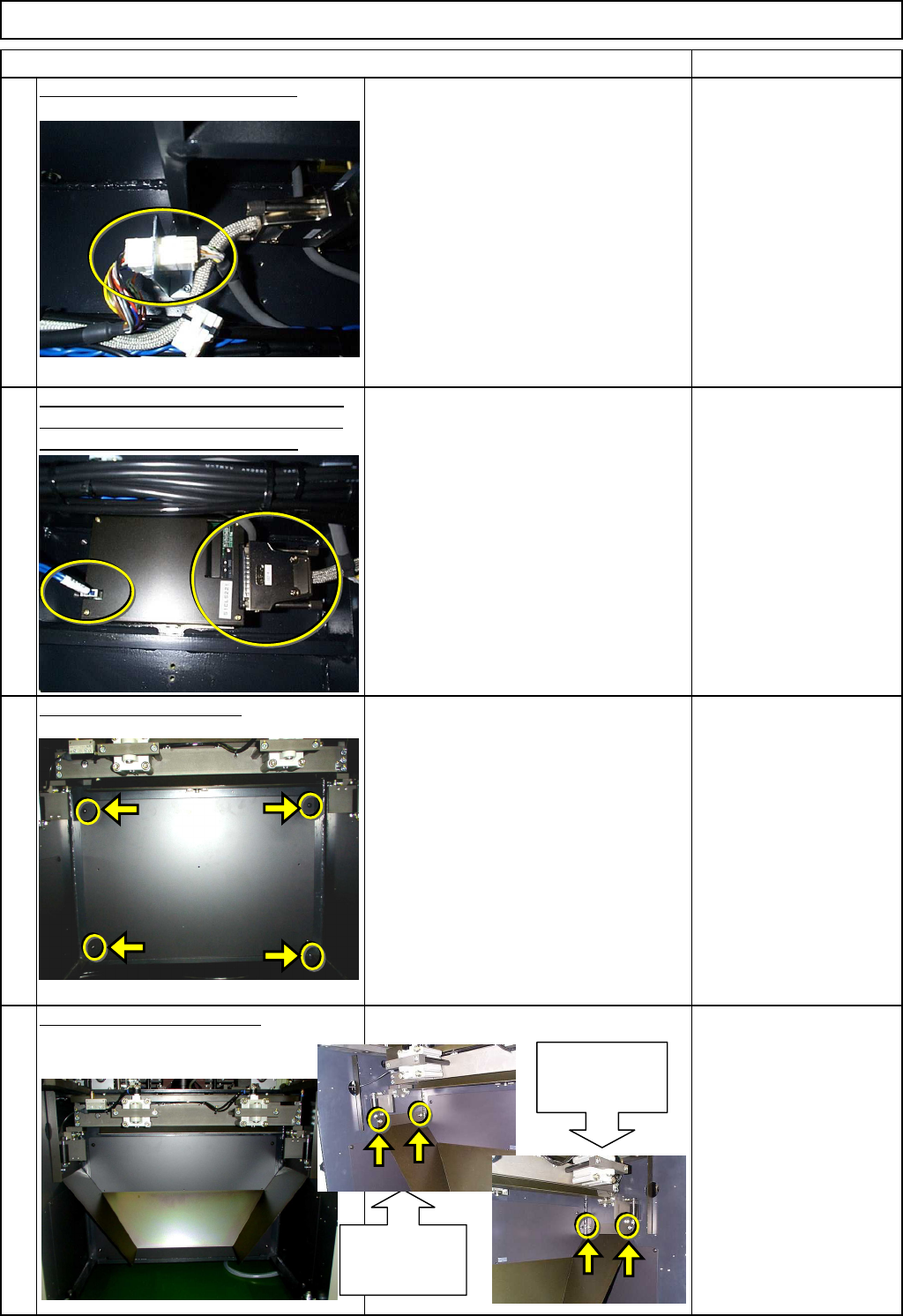

Connect the LED light connector.
Nipper
JAE connector
Connect the camera connector and the
camera power supply connector, which
are placed under the board table.
Put back the lower cover.
Phillips screwdriver #2
Round cross-head screw
M5 4 pcs.
Put the lower chute back on.
Allen key 4 mm
Screw M5x12mm 4 pcs.
Thick washer 4 pcs.
14
13
15
16
Chute installing
section (left)
Chute installing
section (right)
EJM8A-E-SMA050701-A01-00
Page　5-7-1-5
