Machinery Part Replacement ・ Tools Allen key 3 mm Allen key 4 mm Allen key 6 mm Allen key 8 mm 17-mm wrench 2 pcs. Caliper Pipe Nipper Snap ring pliers Feeler gauge ・ Jig None Cutting Unit 5-9-2 Cylinder Replacement This…
Machinery Part Replacement
Remarks
Cutting Unit
Item

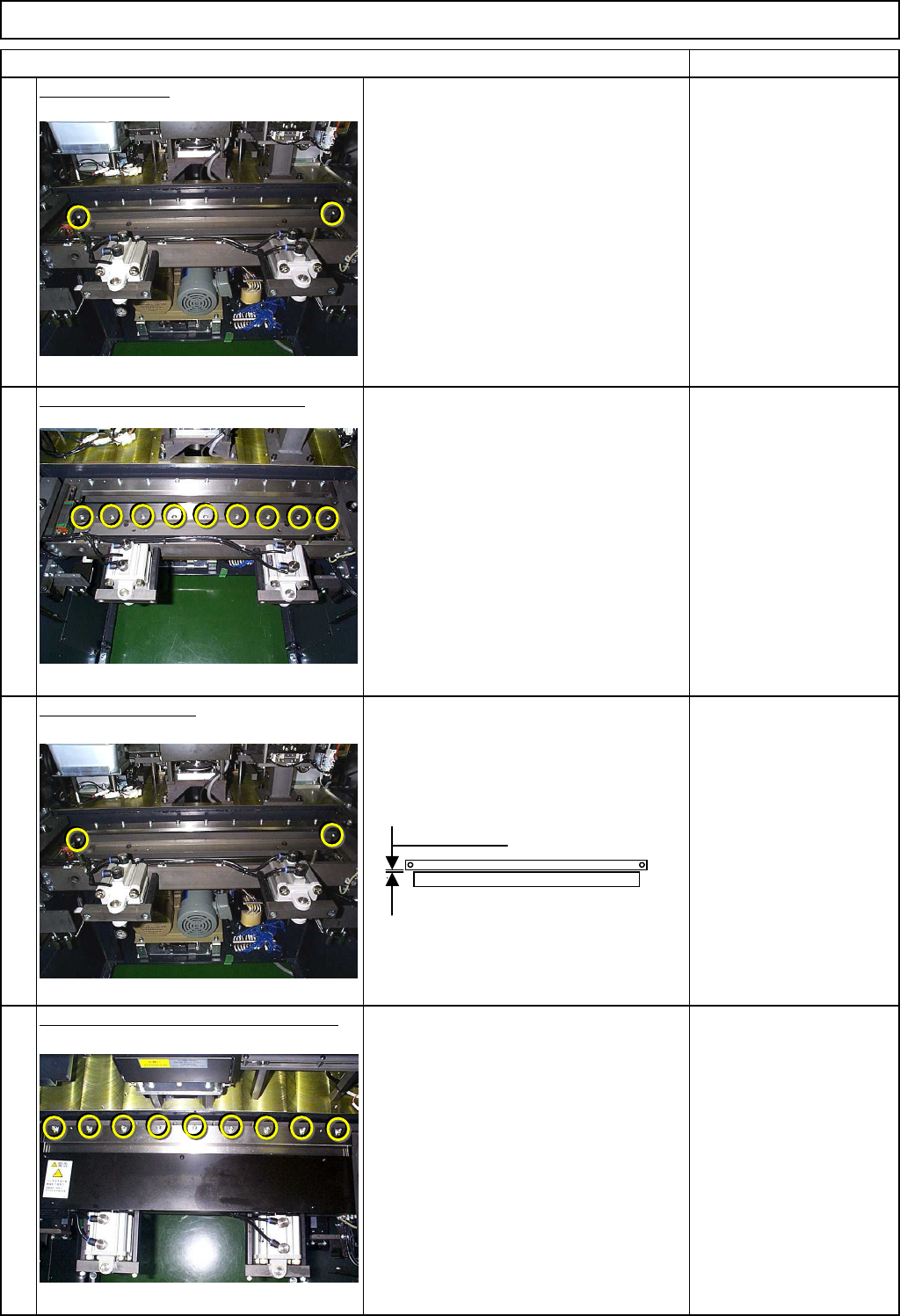

Remove the bar.
Allen key 3 mm
Screw M4 2 pcs.
Replace the movable cutter blade.
Danger: Be careful not to get your hand
cut.
Allen key 4 mm
Screw M5 9 pcs.
Put the bar back on.
Adjust the clearance from the movable
cutter blade and the bar.
Specification
Clearance:
0.05 mm to 0.2 mm
Place the fixed cutter blade in position.
6-000118
Allen key 4 mm
Screw M5 9 pcs.
8
7
5
6
0.05 mm to 0.2 mm
0.05-mm feeler gauge should pass
through; 0.2-mm one should NOT
be inserted.
EJM8A-E-SMA050901-A01-00
Page 5-9-1-3
Machinery Part Replacement

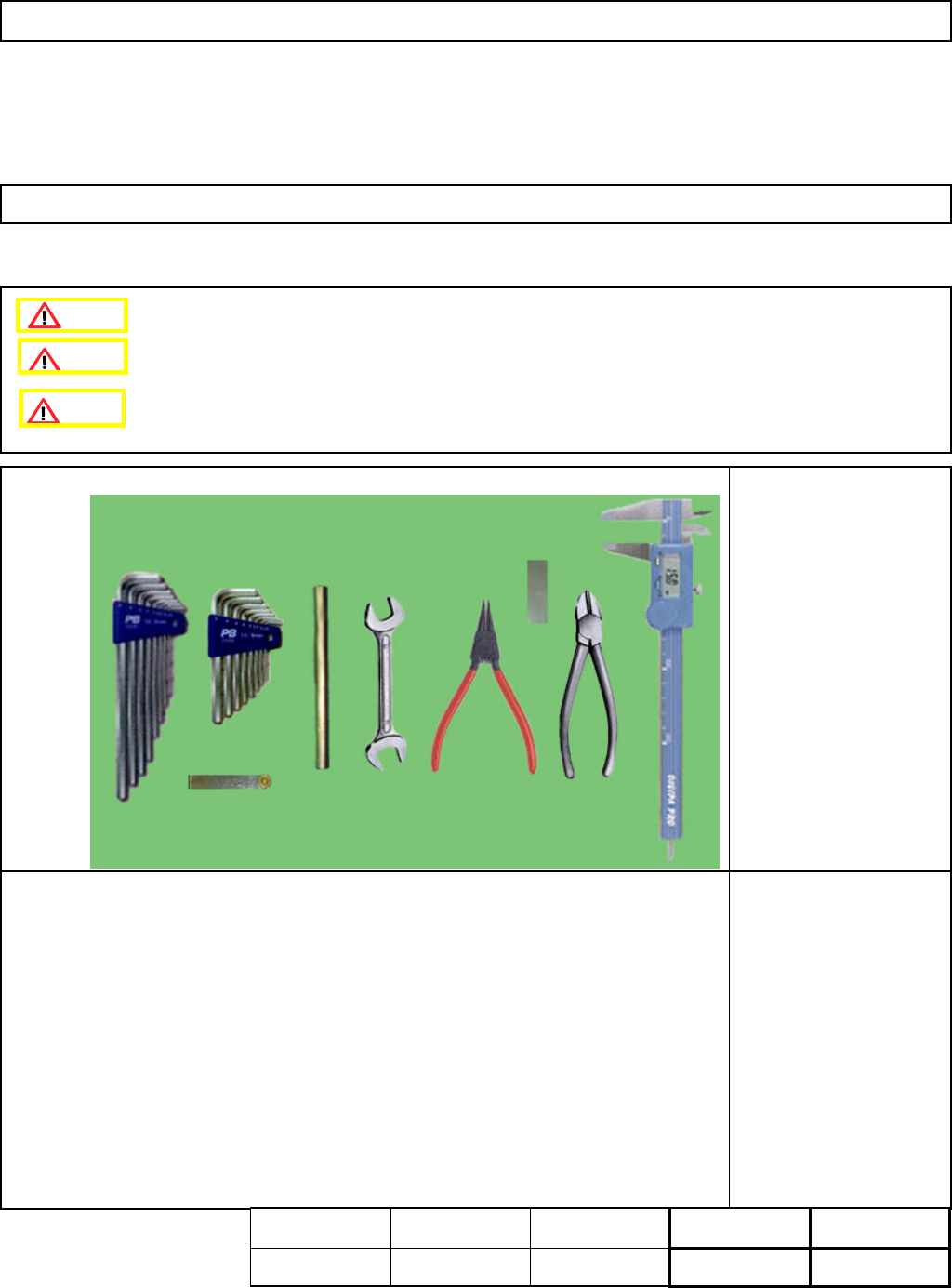

・Tools
Allen key 3 mm
Allen key 4 mm
Allen key 6 mm
Allen key 8 mm
17-mm wrench 2 pcs.
Caliper
Pipe
Nipper
Snap ring pliers
Feeler gauge
・Jig
None
Cutting Unit
5-9-2 Cylinder Replacement
This section describes the procedures for replacing the Y-axis motor.
Assembly
A
d
j
ustment
15min.
Teaching
min.
Total Time Weight of
Part
Removal
Disassembl
y
15min.
30min. kgs
Caution
Dange
r
Warning
EJM8A-E-SMA050902-A01-00
Page 5-9-2-1
Machinery Part Replacement
Remarks

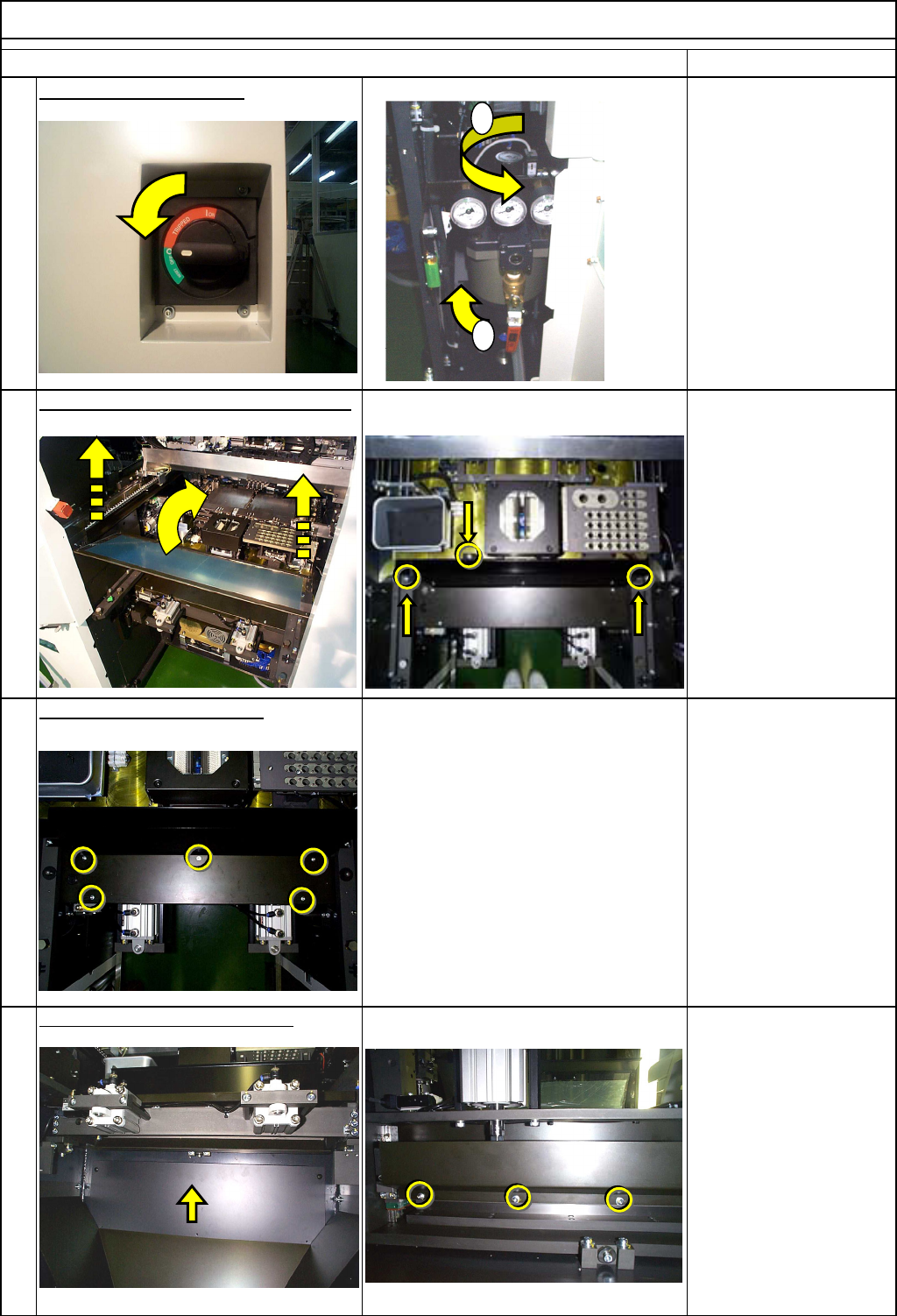

Switch off the main power.
Remove the feeder cover and the chute.
Phillips screwdriver #2
Allen key 3 mm
Screw M4 2 pcs.
Screw M4x10mm 3 pcs.
Thick washer 3 pcs.
Remove the top cutter cover.
Allen key 3 mm
Screw M4x8mm 5 pcs.
Remove the bottom cutter cover.
Allen key 3 mm
Screw M4x10mm 5 pcs.
1
2
3
Cutting Unit
Item
4
1
2
EJM8A-E-SMA050902-A01-00
Page 5-9-2-2
