Machinery Part Replacement
Remarks
Cutting Unit
Item

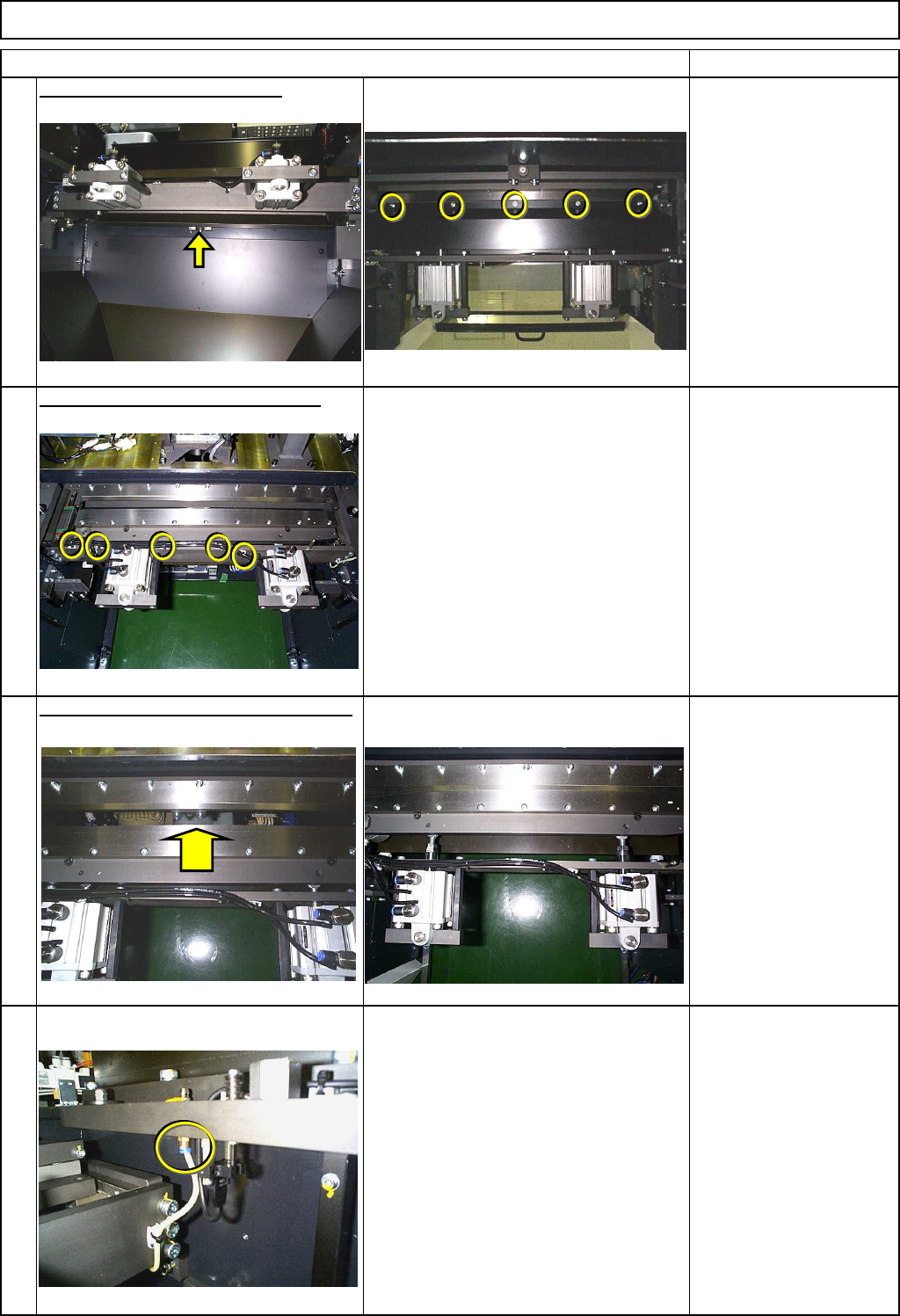

Remove the lower cutter cover.
Allen key 3 mm
Pipe
Screw M4x10mm 5 pcs
Cut the cable ties from the air tubes.
Nipper
Cable tie 100 6 pcs.
Close the movable cutter blade by hand.
Note: Do not touch the blade. Normally it is closed.
Remove the grease tube.
8
5
6
7
EJM8A-E-SMA050904-A01-00
Page　5-9-4-3
Machinery Part Replacement
Remarks
Cutting Unit
Item
Remove the feeder gang exchange cart sensor.
Nipper
Allen key 2.5 mm
Wrench 5.5 mm
Screw M3 3 pcs.
Nut 5.5 mm 1 pc.
Spacer 2 pcs.
Remove the side bracket.
Allen key 3 mm
Screw M4×8 4 pcs.
Allen key 5 mm
Screw M6-30 2 pcs.
Screw M6-45 1 pc.
9
10
11
Remove the cutter unit holding bolts. (See the illustration in Step 12.)
12
Remove the three screws tightened at the bottom of the unit.
Remove these three screws, which have rubber pads.
Cutter unit
M6-30
M6-45
M6-30
EJM8A-E-SMA050904-A01-00
Page　5-9-4-4
Machinery Part Replacement
Remarks
Cutting Unit
Item
Remove the cutter unit, using the cutter cart.
Weight: 40 kgs approx.
Put the cutter unit on the machine, using the cutter cart.
Weight: 40 kgs approx.
Lightly tighten the cutter unit holding bolts.
Allen key 5 mm
Screw M6-30 2 pcs.
Screw M6-45 1 pc.
Position the cutter unit, using the cutter unit
positioning jig. Adjust the cutter unit to parallel, using
the jig as fulcrum.
Cutting Unit Positioning
Jig
13
14
15
16
Remove the three screws tightened at the bottom of the unit.
EJM8A-E-SMA050904-A01-00
Page　5-9-4-5
