Machinery Part Replacement Remarks Cutting Unit Item Place the dial gauge mounting plate onto the head. Dial gauge mounting plate Allen key 3 mm Adjust the cutter unit to parallel. Specification: Parallelism: within 0.1 …
Machinery Part Replacement
Remarks
Cutting Unit
Item

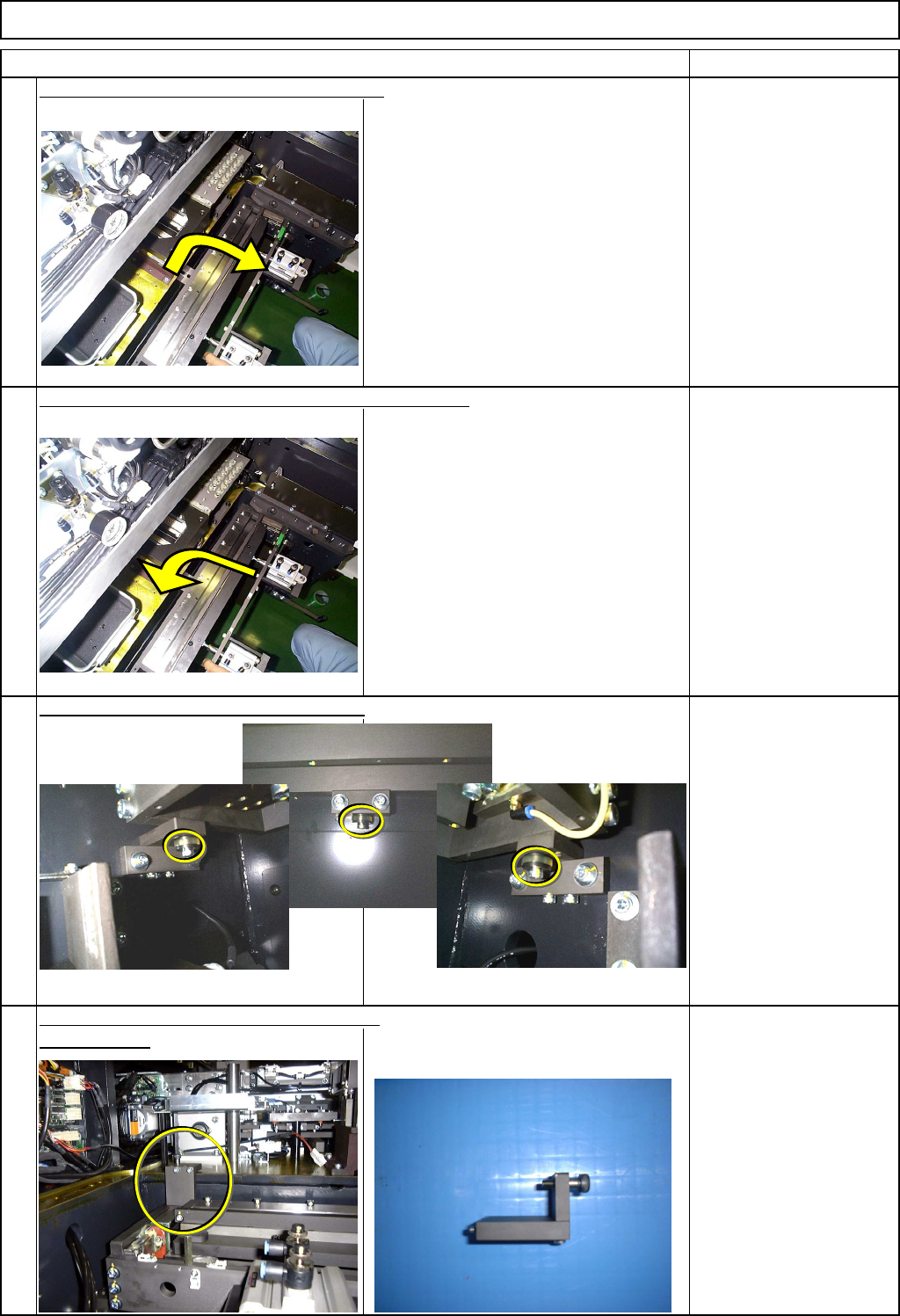

Remove the cutter unit, using the cutter cart.
Weight: 40 kgs approx.
Put the cutter unit on the machine, using the cutter cart.
Weight: 40 kgs approx.
Lightly tighten the cutter unit holding bolts.
Allen key 5 mm
Screw M6-30 2 pcs.
Screw M6-45 1 pc.
Position the cutter unit, using the cutter unit
positioning jig. Adjust the cutter unit to parallel, using
the jig as fulcrum.
Cutting Unit Positioning
Jig
13
14
15
16
Remove the three screws tightened at the bottom of the unit.
EJM8A-E-SMA050904-A01-00
Page 5-9-4-5
Machinery Part Replacement
Remarks
Cutting Unit
Item

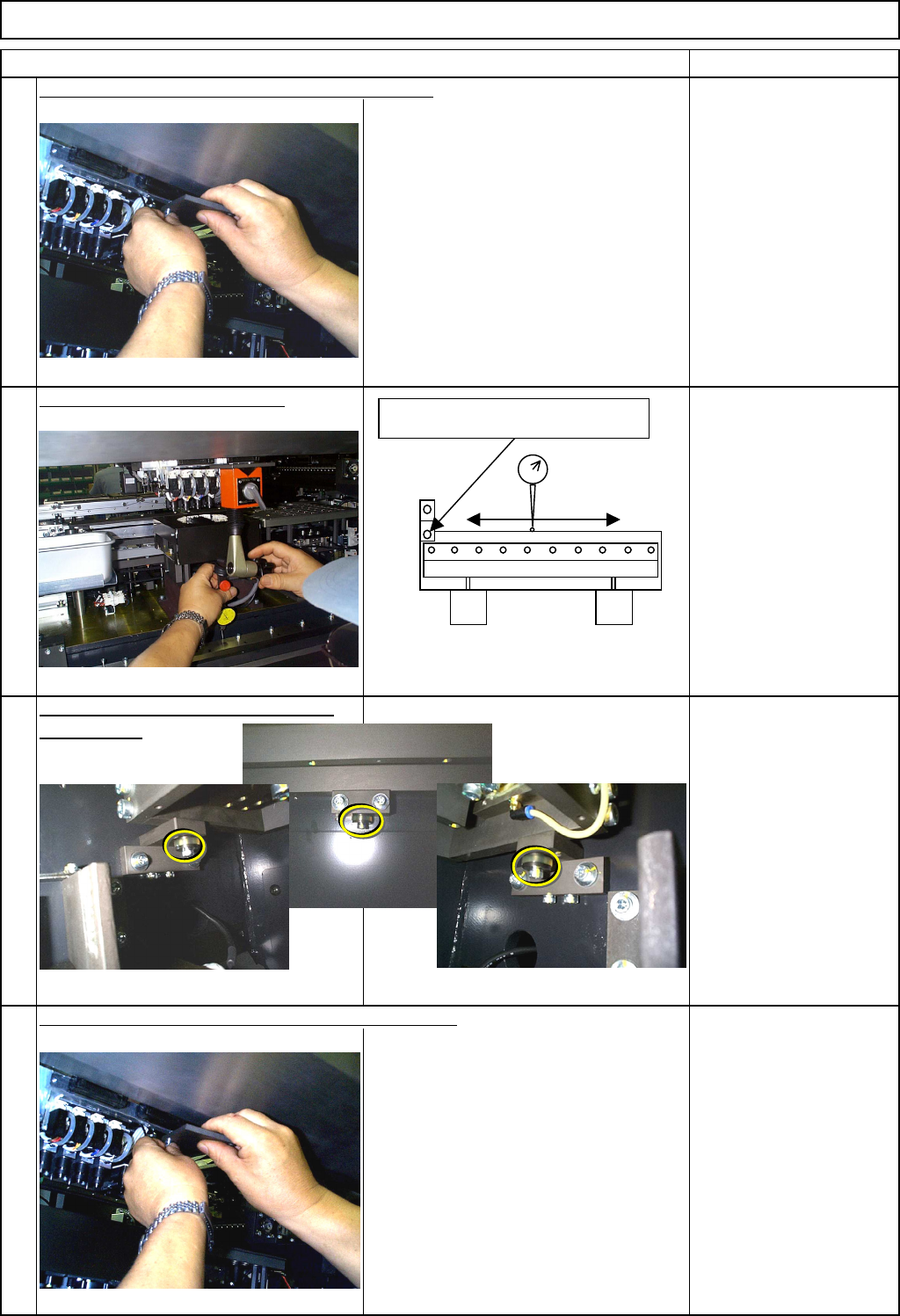

Place the dial gauge mounting plate onto the head.
Dial gauge mounting plate
Allen key 3 mm
Adjust the cutter unit to parallel.
Specification:
Parallelism:
within 0.1 mm
Dial gauge
Magnetic stand
Secure the tightness of the cutter unit
Be very careful not to let the unit fall.
holding bolts.
Allen key 5 mm
Screw M6-30 2 pcs.
Screw M6-45 1 pc.
Remove the dial gauge mounting plate from the head.
Dial gauge mounting plate
Allen key 3 mm
17
18
19
20
Fulcrum (Cutter positioning jig)
EJM8A-E-SMA050904-A01-00
Page 5-9-4-6
Machinery Part Replacement
Remarks
Cutting Unit
Item

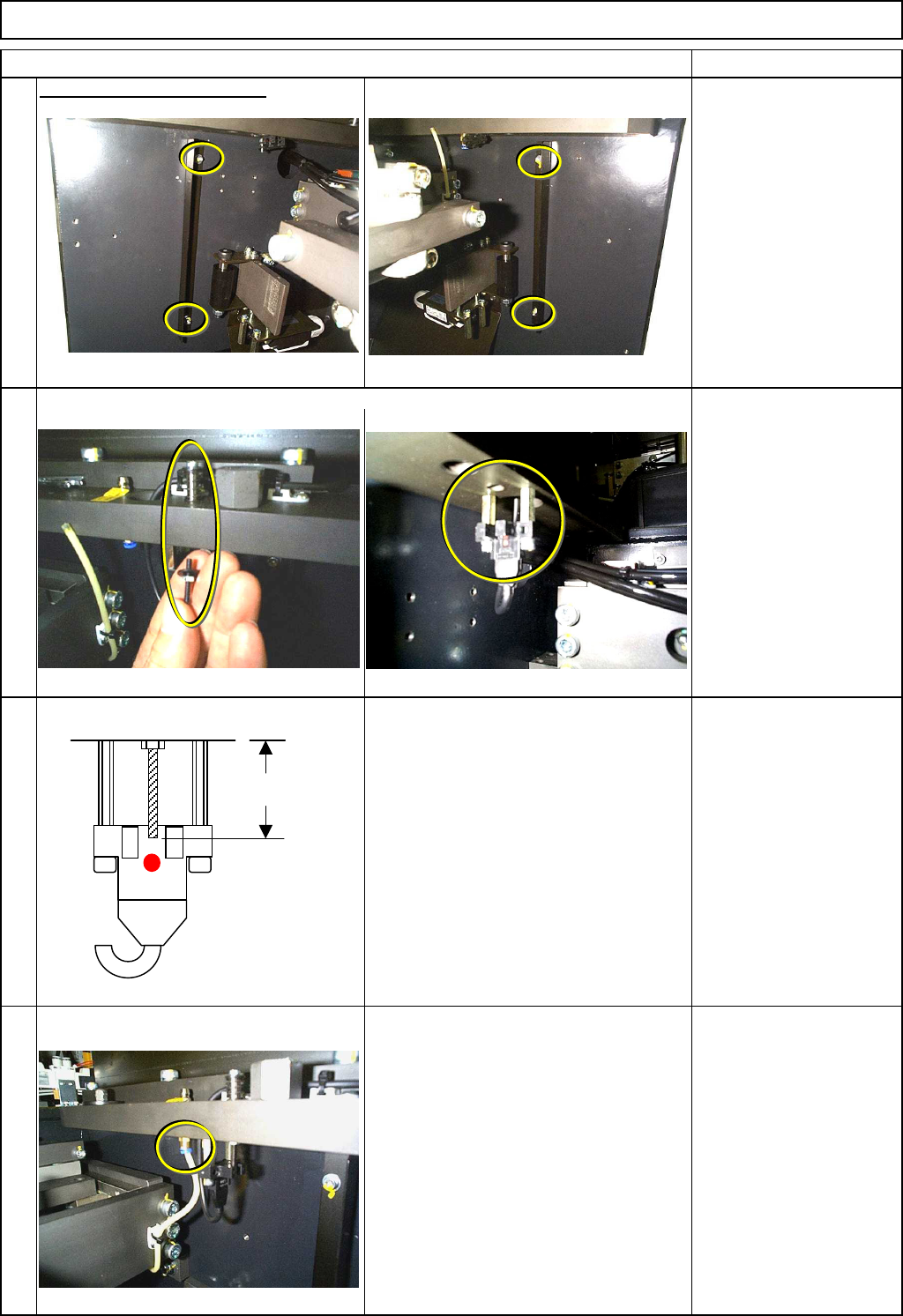

Put the side bracket back on.
Allen key 3 mm
Screw M4 4 pcs.
Allen key 2.5 mm
Wrench 5.5 mm
Screw M3 3 pcs.
Nut 5.5 mm 1 pc.
Spacer 2 pcs.
Precisely position the sensor and dog.
Connect the grease tube.
Put the feeder gang exchange cart sensor back on.
22
23
21
24
17mm
EJM8A-E-SMA050904-A01-00
Page 5-9-4-7
