Machinery Part Replacement Remark Item 12-Nozzle Head Unit Mount the transfer head on the X beam. • Check there are no dust or cuts on the X-beam head plate. • Mount the head, checking the mounting guides on the head and…

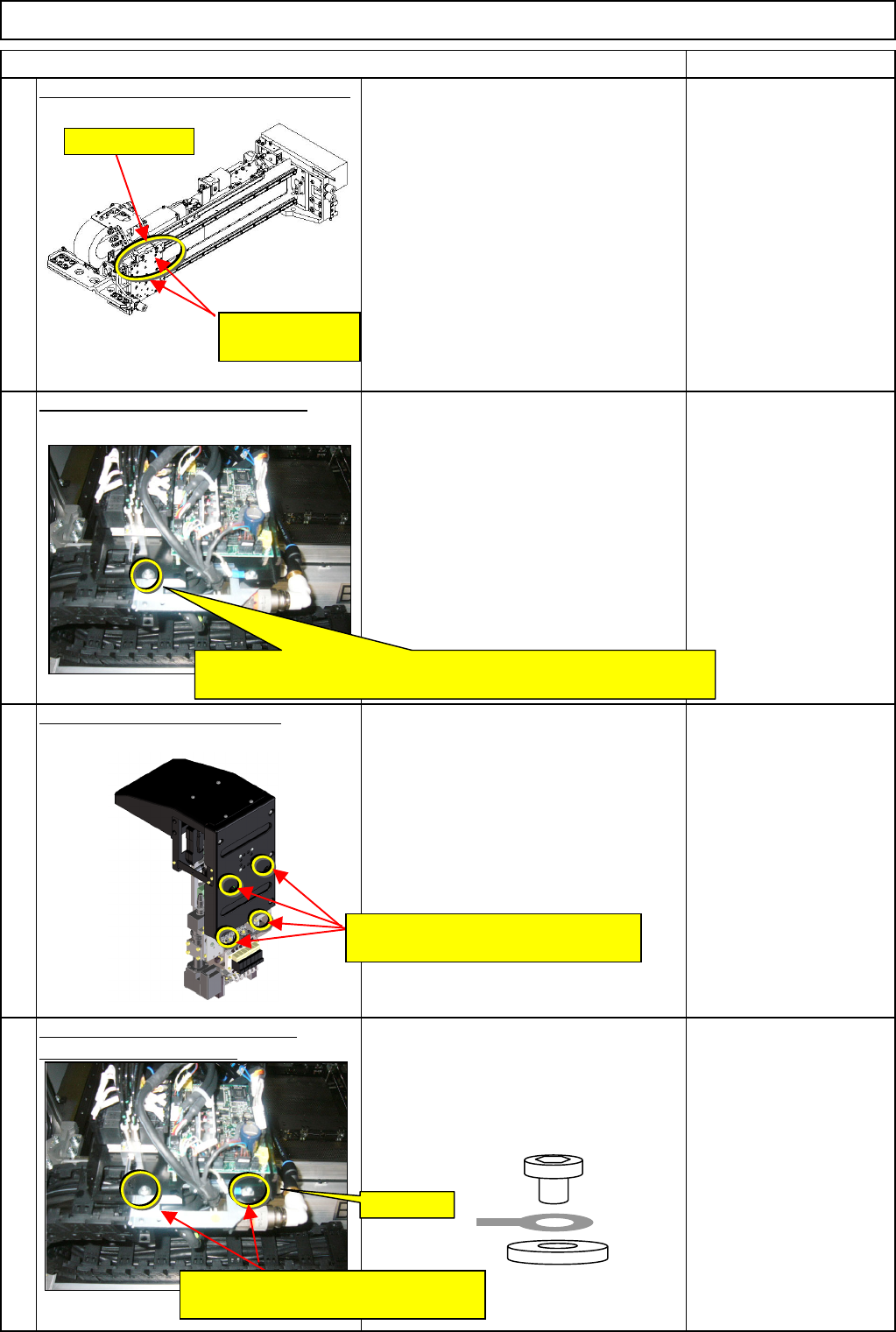

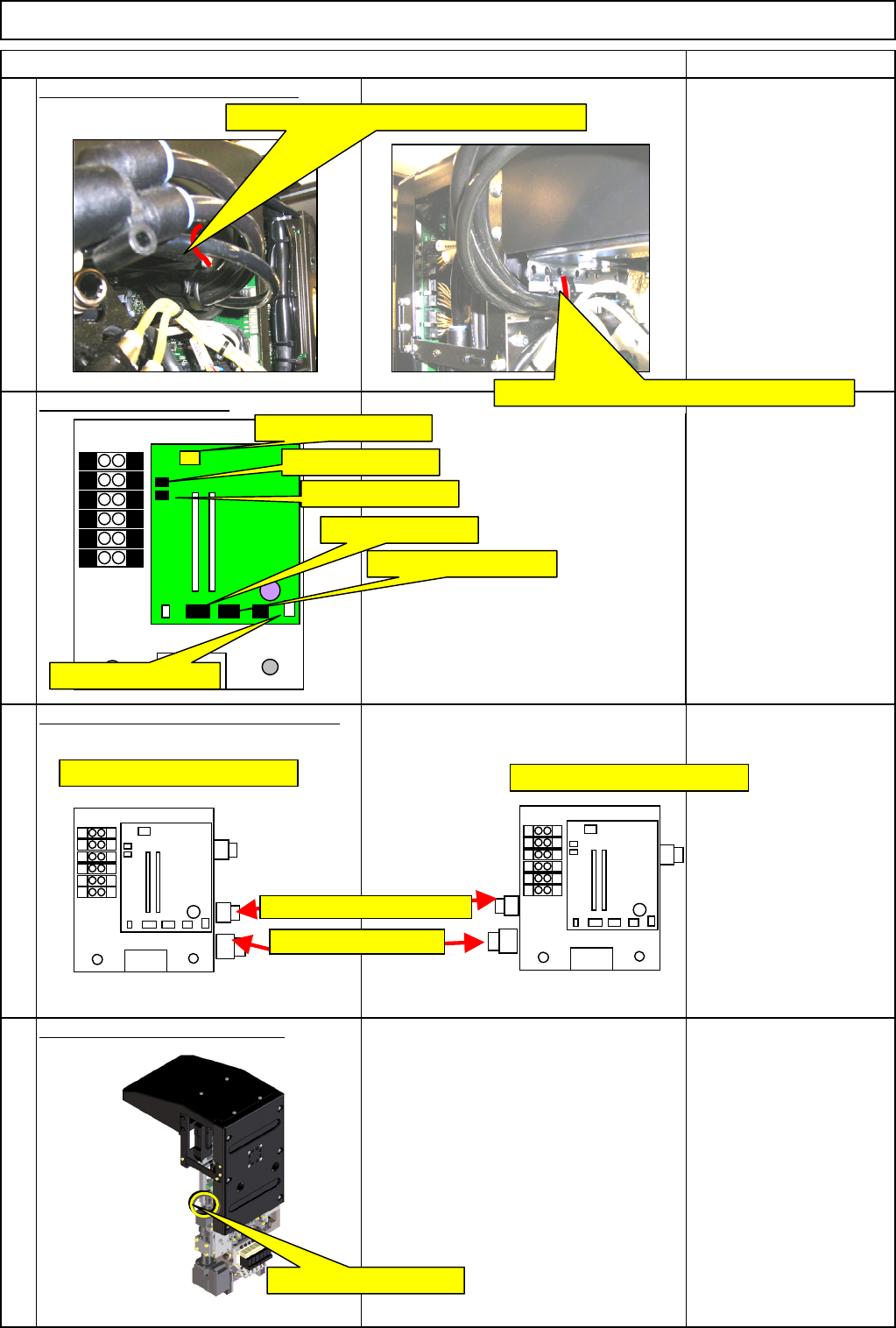

Machinery Part Replacement

Remark

Item

12-Nozzle Head Unit

Remove the LED connector.

Remove the head-holding bolts.

Allen key 5 mm

Pipe

M6 screw 4 pcs.

After the screws have

been removed, hold the

head by hand.

(Otherwise, it can fall

down.)

Check the positions of the air tube joints

of the new head and the head-mounting

table.

* Positions of the joints when seen from

the operator's side:

AF and BR: Right

AR and BR: Left

Remove the upper head cover.

Phillips screwdriver #2

M4 truss 4 pcs.

LED light connector

Positions of AF and BR joints Positions of AR and BF joints

Insert an Allen key through these

positions into the head-holding bolts.

EJM8A-E-SMA051001-A01-00

Page　5-10-1-5

Machinery Part Replacement

Remark

Item

12-Nozzle Head Unit

Mount the transfer head on the X beam.

• Check there are no dust or cuts on the

X-beam head plate.

• Mount the head, checking the

mounting guides on the head and the

plate sides.

• Check the dowel-pin hole on the head

side is aligned with the dowel-pin

position on the plate side.

• Check no cables are caught.

Provisionally fix the head in place.

• Hold the head by hand until the head

has been fixed provisionally.

• Put the bolts somewhere convenient so

that you can get them immediately when

you need them.

M4 x 8L

Thick washer

Tighten the head-holding bolts.

• Check the head makes a close contact

with the plate.

Allen key 5 mm

Pipe

M6 screw 4 pcs.

Tighten the earth section and the

provisionally holding bolt. • Tighten the upper provisionally holding

bolt.

• Put the earth terminal on the right, and

tighten it.

M4 x 8L 2 pcs.

Thick washer

Mounting guide

Head-positioning

dowel pins

Provisionally fix the head with the M4 x 8L screw and the thick

washer.

FG⇒Earth

Tighten them with the M4 x 8L screws

and the thick washers.

Insert an Allen key through these

positions into the head-holding bolts.

EJM8A-E-SMA051001-A01-00

Page　5-10-1-6

Machinery Part Replacement

Remark

Item

12-Nozzle Head Unit

Secure the tubes with a cable tie.

Nippers

Connect the connectors.

Connect the tube joints and lock them.

Connect the camera connector.

Secure the AF and BR tubes with a cable tie.

Secure the AR and BF tubes with a cable tie.

C12-M(st,No)⇒CN12

C8-M(st,No)⇒CN8

C9-M(st,No)⇒CN9

C1-M(st,No)⇒CN1

CN11-M(st,No)⇒CN11

CN2-M(st,No)⇒CN2

Positions of AF and BR joints

Positions of AR and BF joints

Head camera connector

Vacuum joints

Vacuum release joints

EJM8A-E-SMA051001-A01-00

Page　5-10-1-7
