Machinery Part Replacement Remark Item 12-Nozzle Head Unit Put the nozzle back on. Turn on the power and air supply. Adjustment Teaching Head Camera Adjustment (Focus and q) Board Recognition Camera XY Origin Offset Z-ax…

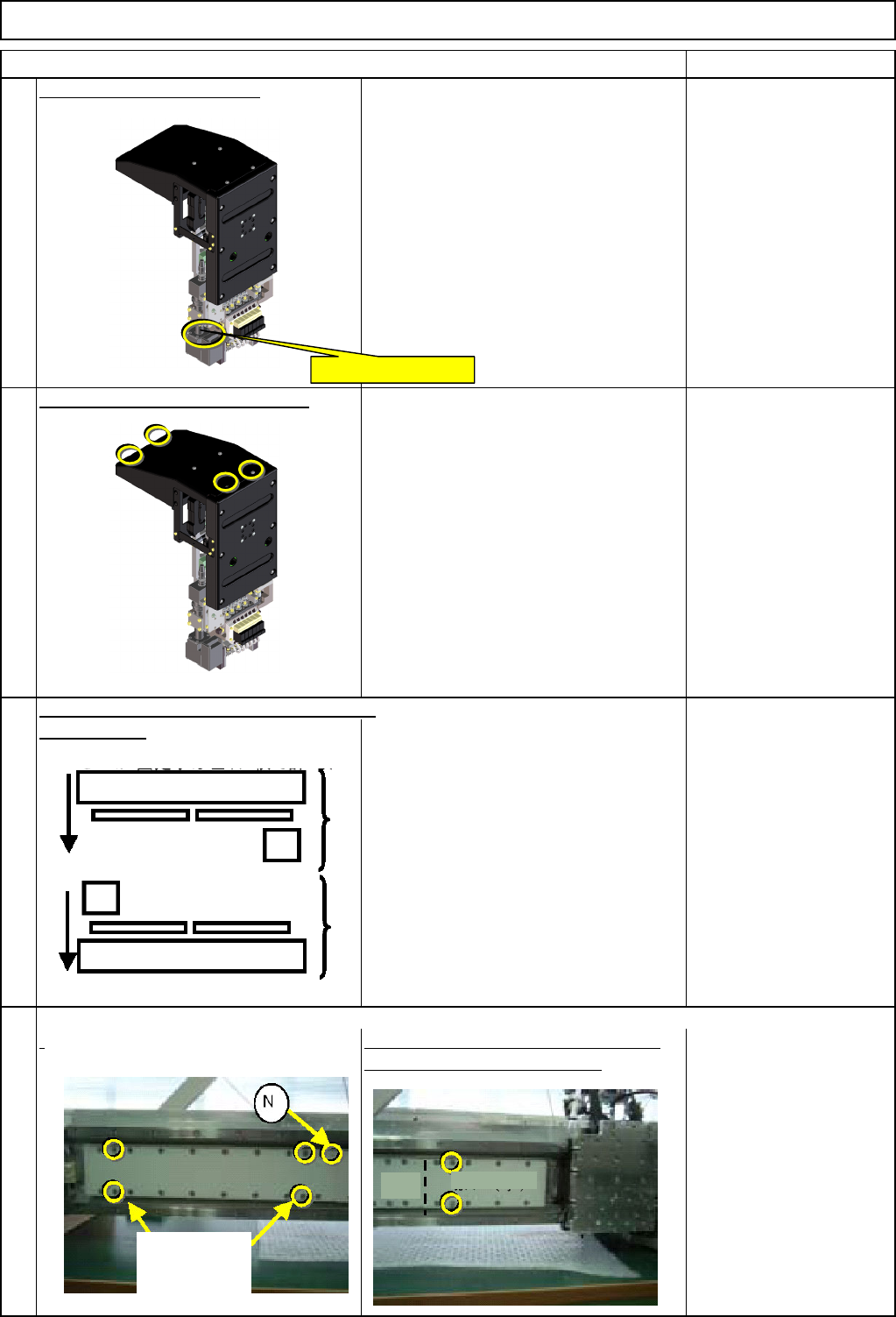

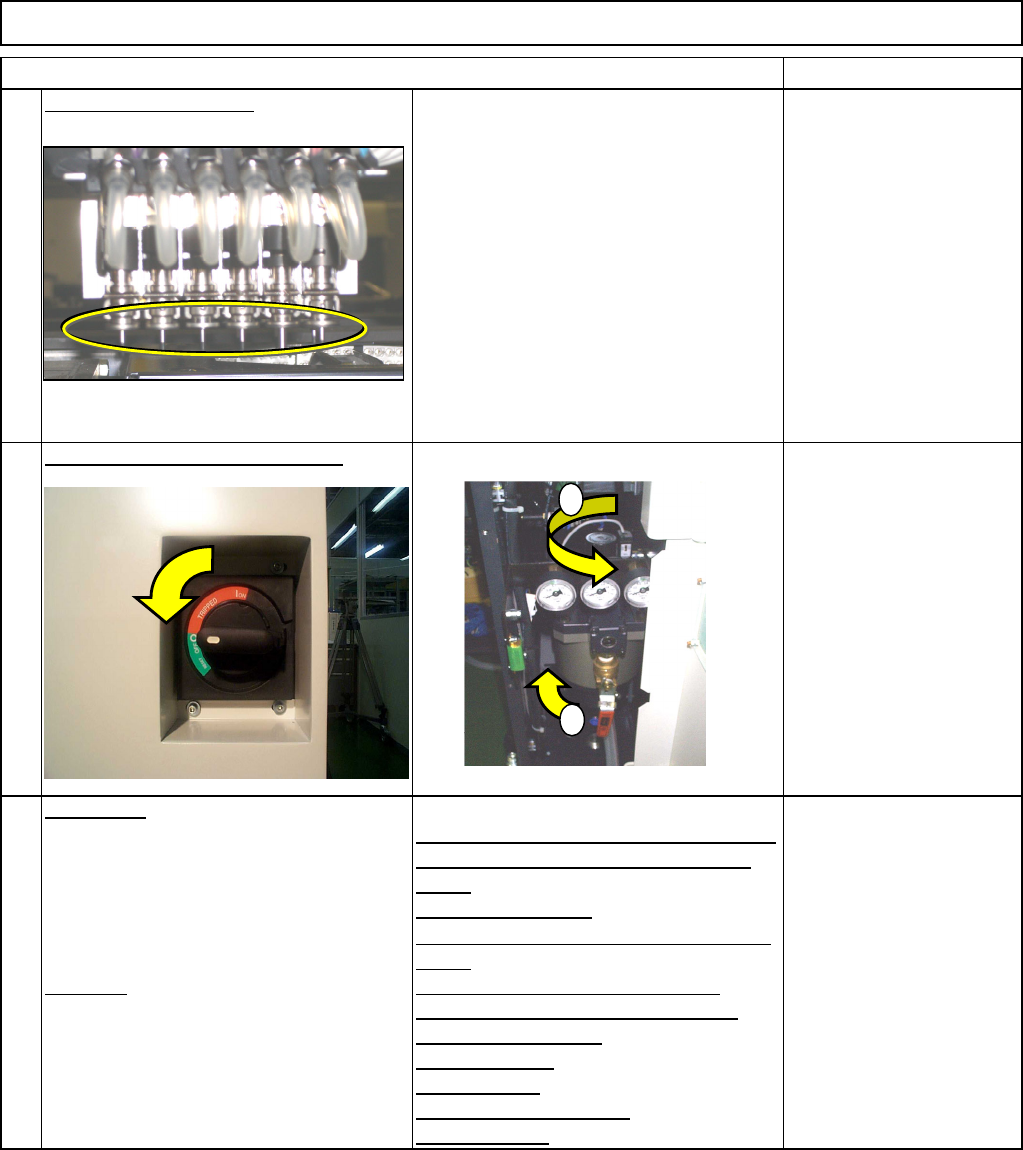

Machinery Part Replacement
Remark
Item
12-Nozzle Head Unit
Connect the LED connector.
Put the upper head cover back on.
Phillips screwdriver #2
M4 truss 4 pcs.
the front side.
Remove the covers (large and small)
f
rom the secondary part. * Magnets are installed. Ensure safety
when working on the machine.
Cover (Large) Bolts x 4
Cover (Small) Bolts x 2
* Non-magnetic Allen
keys
Move the front and the rear beams towards
28
25
26
27
LED light connector
Rear
Front
(Large
)
Cover (Small)
Bolts
accompanying
the machine
EJM8A-E-SMA051001-A01-00
Page 5-10-1-8
Machinery Part Replacement
Remark
Item
12-Nozzle Head Unit
Put the nozzle back on.
Turn on the power and air supply.
Adjustment
Teaching
Head Camera Adjustment (Focus and q)
Board Recognition Camera XY Origin
Offset
Z-axis Origin Offset
Chip Recognition Camera, θ-axis Origin
Offset
Width Adjusting-axis Origin Offset
Mount Height and Board Positioning
XY Plane Calibration
Pickup Position
Light Intensity
Nozzle Change Position
Mount Position
Section 5-11-1
Section 5-11-2
Section 5-11-3
Section .5-11-4
Section 5-11-5
Section 5-11-6
Section 5-11-7
Section 5-11-8
Section 5-11-9
Section 5-11-10
Section 5-11-11
29
30
31
1
2
EJM8A-E-SMA051001-A01-00
Page 5-10-1-9

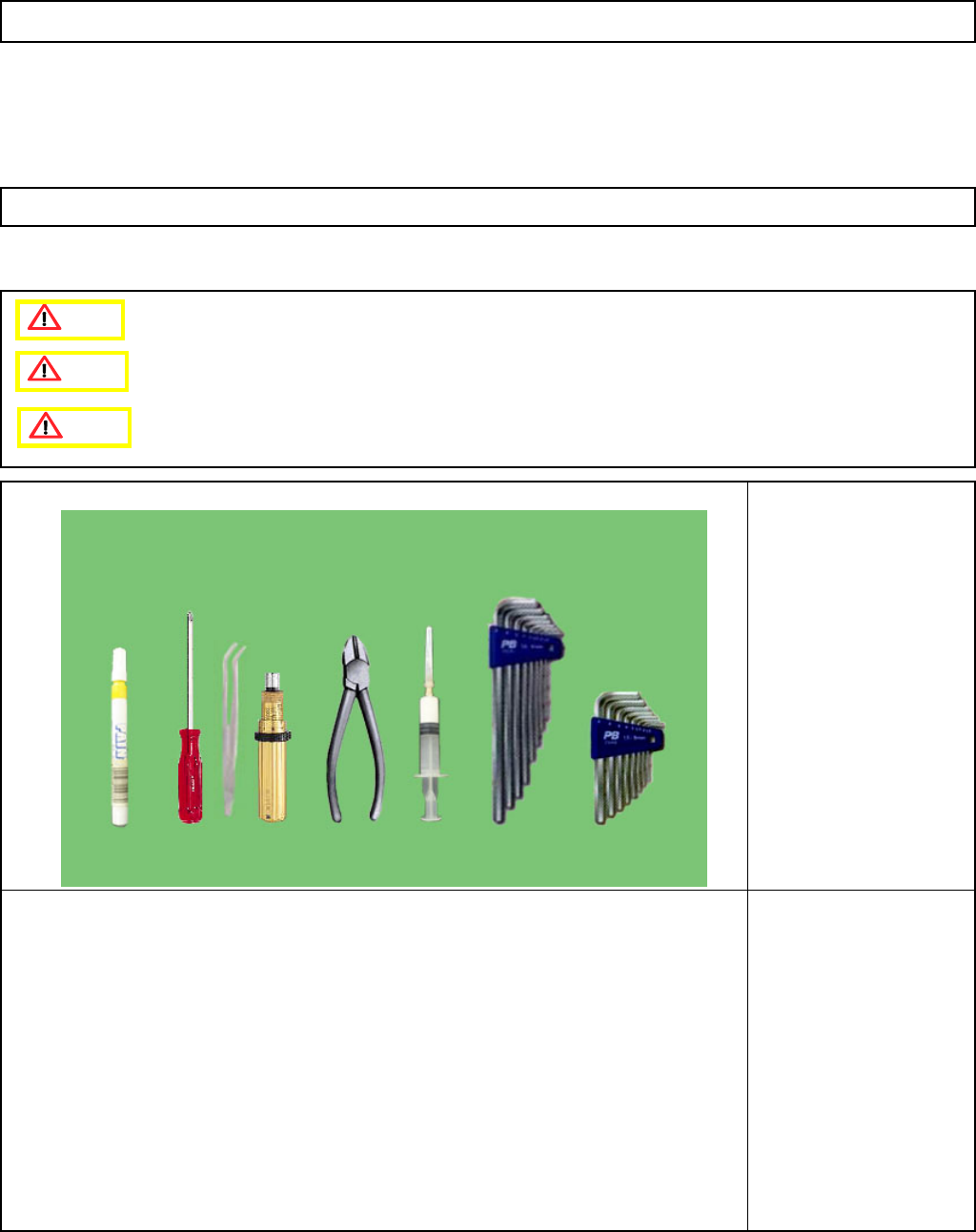

Machinery Part Replacement
This section describes the procedures for replacing the spline shaft.
Tools
Phillips screwdriver #1
Phillips screwdriver #2
Torque screwdriver
Allen key 2.5 mm
Allen key 4 mm
Nipper
Magic marker
Barrierta IEL/V
Tweezers
MP Grease 2S
Jig
Insertion jig (FM-1737)
5-10-2 Spline Shaft Replacement
12-Nozzle Head Unit
When there is no problem with the bearing case, replace the spline shaft only.
Caution
Dange
r
Warning
EJM8A-E-SMA051002-A01-00
Page 5-10-2-1
