Machinery Part Replacement This section describes the procedures for carrying out the XY plane calibration. Tools None Jig FM-1045 XY plane calibration jig 510 mm x 460 mm Remove dirt from the recognition side of the jig…
Machinery Part Replacement
Remarks
12-Nozzle Head Teaching
Item

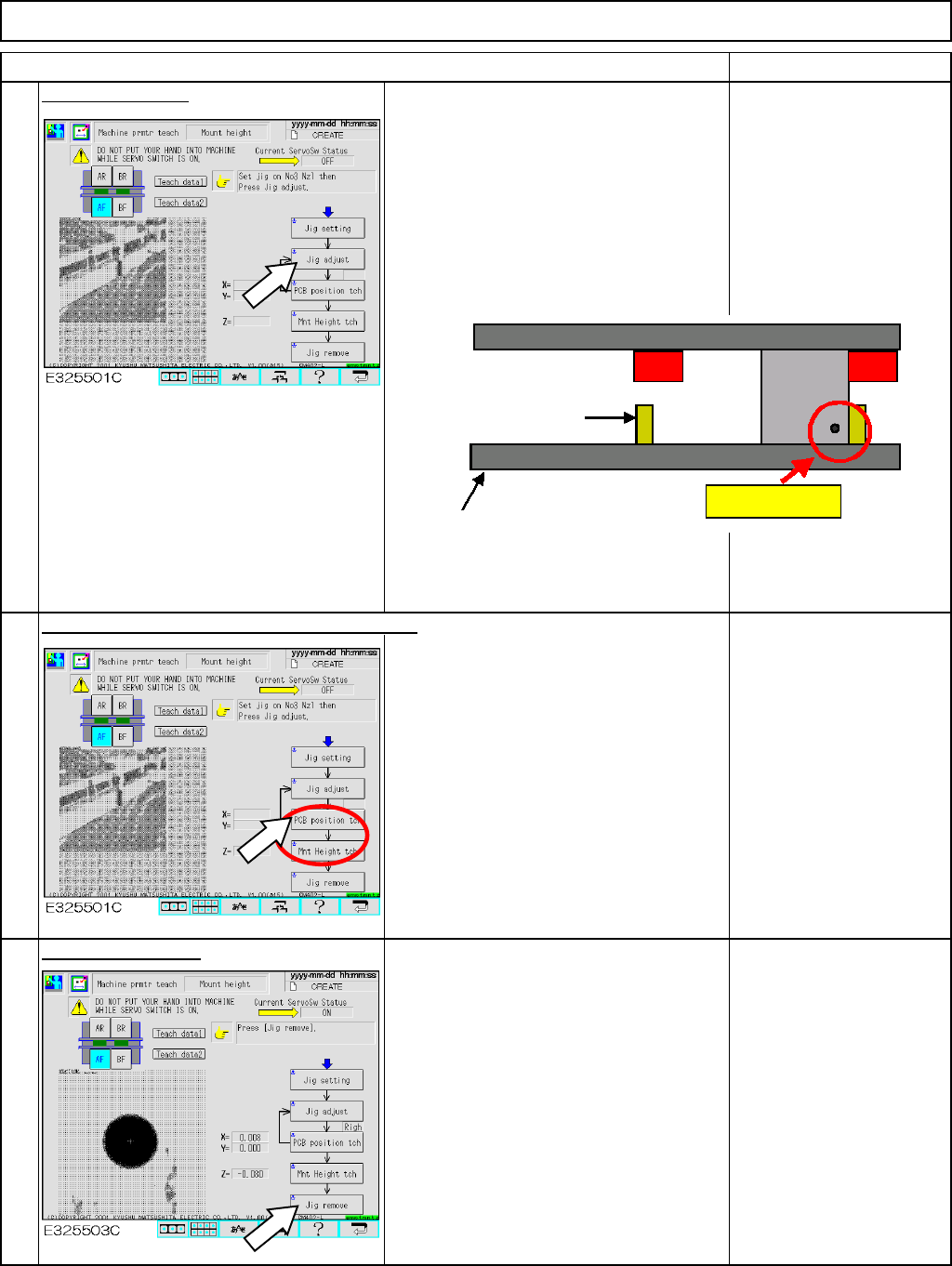

Press [Jig adjust]
• Either "Right" or "Left" is displayed
immediately below the [Jig adjust]. Check
"Right" is displayed.
• Press the board-positioning and mount-
height jig against the board-conveyor-
holding guide and the board stopper
manually.
Press [PCB position tch] and [Mnt Height tch].
• The camera moves to the hole (1 mm)
of the board-positioning and mount-
height jig, and recognizes it.
• The nozzle 130S moves to the upper
surface of the board-positioning and
mount-height jig and measures the
mount height.
Press [Jig remove].
• Remove the board-positioning and
mount-height jig from the machine.
6
7
8
Left Righ
t
Stopper
Conveyor holding guide
Press
EJM8A-E-SMA051106-A01-00
Page 5-11-6-4
Machinery Part Replacement

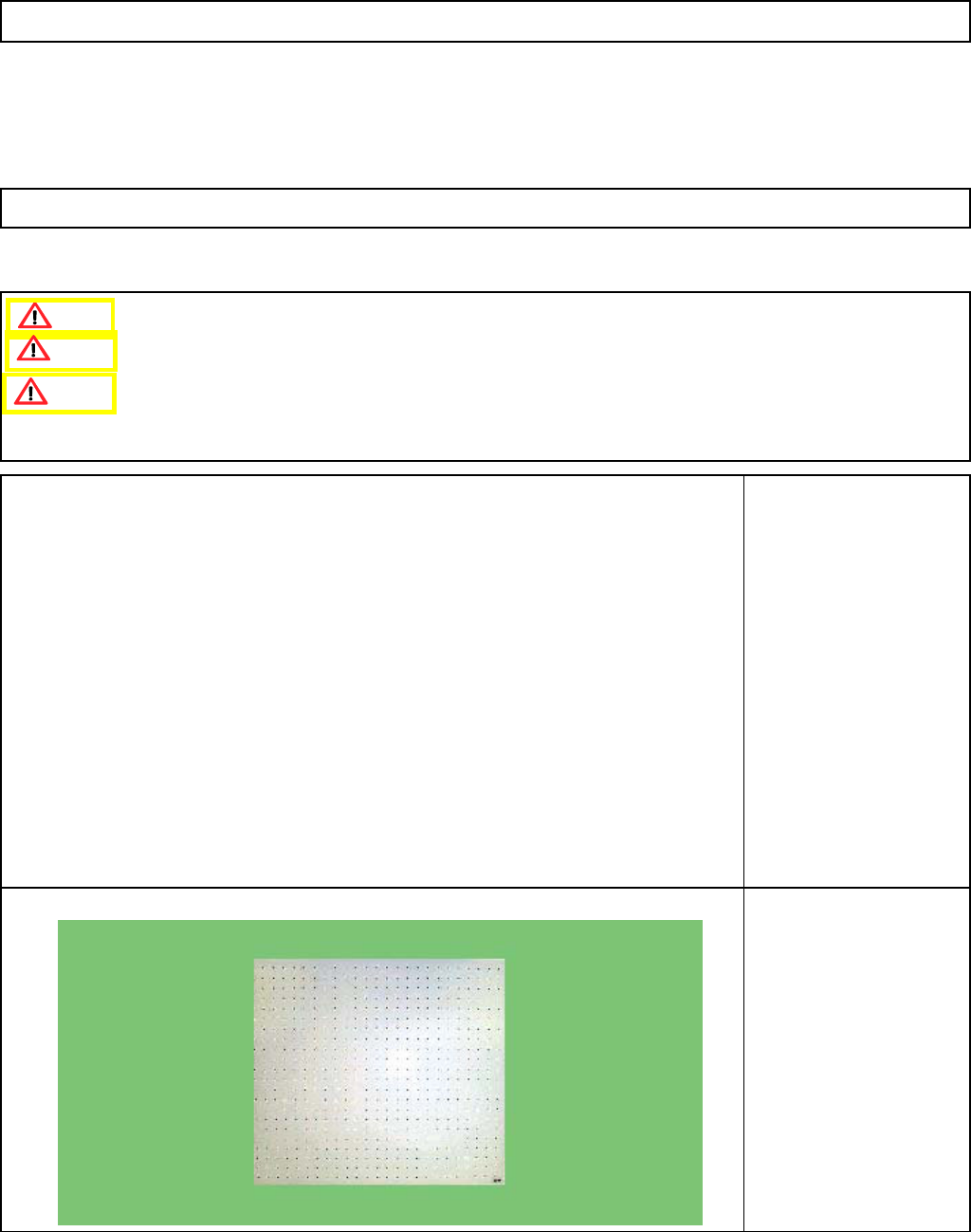

This section describes the procedures for carrying out the XY plane calibration.
Tools
None
Jig
FM-1045
XY plane calibration jig
510 mm x 460 mm
Remove dirt from the
recognition side of the jig
with soft cloth.
12-Nozzle Head Teaching
5-11-7 XY Plane Calibration
Remove the support pins beforehand.
Handle the jig with care since it is made of glass.
This calibration should be carried out on the operator's side; it cannot be performed at the rear.
Caution
Dange
r
Warning
EJM8A-E-SMA051107-A01-00
Page 5-11-7-1
Machinery Part Replacement
Remarks

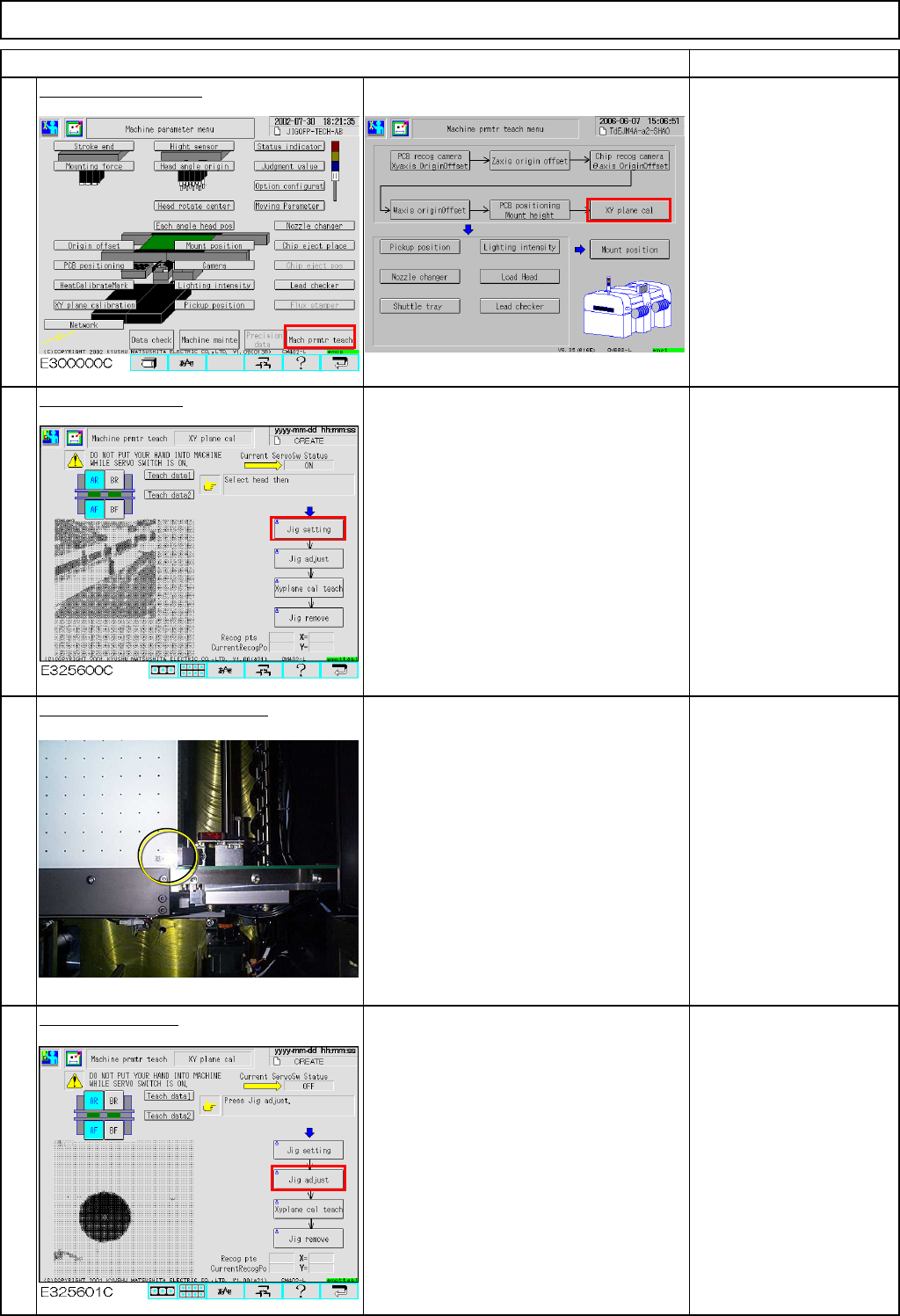

Press [XY plane cal].
Conveyor width is
adjusted to 460 mm
automatically.
Press [Jig setting].
The AF head moves away.
Place the jig on the conveyor.
Place the jig by hand, pressing the
reference-mark corner of the jig against
the fixed conveyor and the board
stopper.
Press [Jig adjust].
The jig is clamped in the Y direction.
(Option)
Check that the jig is
locked once clamped in
the Y direction.
12-Nozzle Head Teaching
Item
3
4
1
2
EJM8A-E-SMA051107-A01-00
Page 5-11-7-2
