Machinery Part Replacement Remarks 12-Nozzle Head Teaching Item Change stages. Select Stage B. Carry out Steps 2 to 8 in the same way as Stage A. Check the data after teaching. The offsets are entered automatically into …
Machinery Part Replacement
Remarks
12-Nozzle Head Teaching
Item
Press [Xyplane cal teach].
The jig is clamped in the Z direction.
The AF head recognizes the dots on the
jig. Then the AR head recognizes them.
Press [Jig remove].
Both AF and AR heads move away.
Once they finish moving away, remove
the jig.
Press the "Return" key.
Press [Run].
5
7
8
6
EJM8A-E-SMA051107-A01-00
Page 5-11-7-3
Machinery Part Replacement
Remarks
12-Nozzle Head Teaching
Item

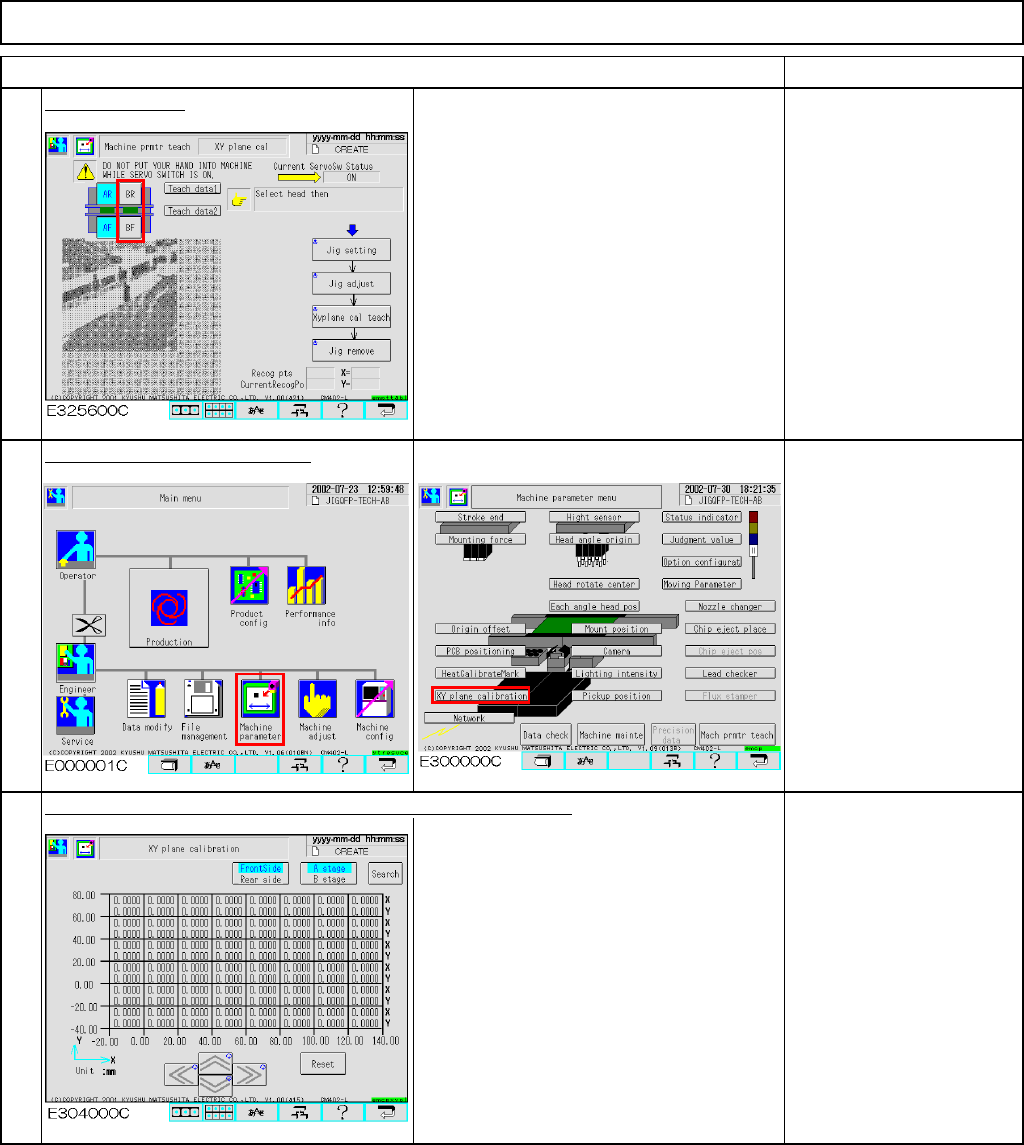

Change stages.
Select Stage B.
Carry out Steps 2 to 8 in the same way
as Stage A.
Check the data after teaching.
The offsets are entered automatically into the screen below:
Offset range:
X: -0.5 mm to +0.5 mm
Y: -0.5 mm to +0.5 mm
11
9
10
EJM8A-E-SMA051107-A01-00
Page 5-11-7-4
Machinery Part Replacement
This section describes the procedures for teaching the pickup position.
Tools
None
Jig
FM-1043
Nozzle Height Teaching
Jig
Nozzle 130S
Install the feeder change cart.
12-Nozzle Head Teaching
5-11-8 Pickup Position
Caution
Dange
r
Warning
EJM8A-E-SMA051108-A01-00
Page 5-11-8-1
