Machinery Part Replacement Remarks Nozzle Changer (12-nozzle) Unit Item Mount the nozzle changer. (Adjust the speed control.) Allen key 5 mm M6 screw 3 pcs. Speed control cd adjustment: * Right front: 1 turn from the ful…
Machinery Part Replacement
Remarks
Nozzle Changer (12-nozzle) Unit
Item

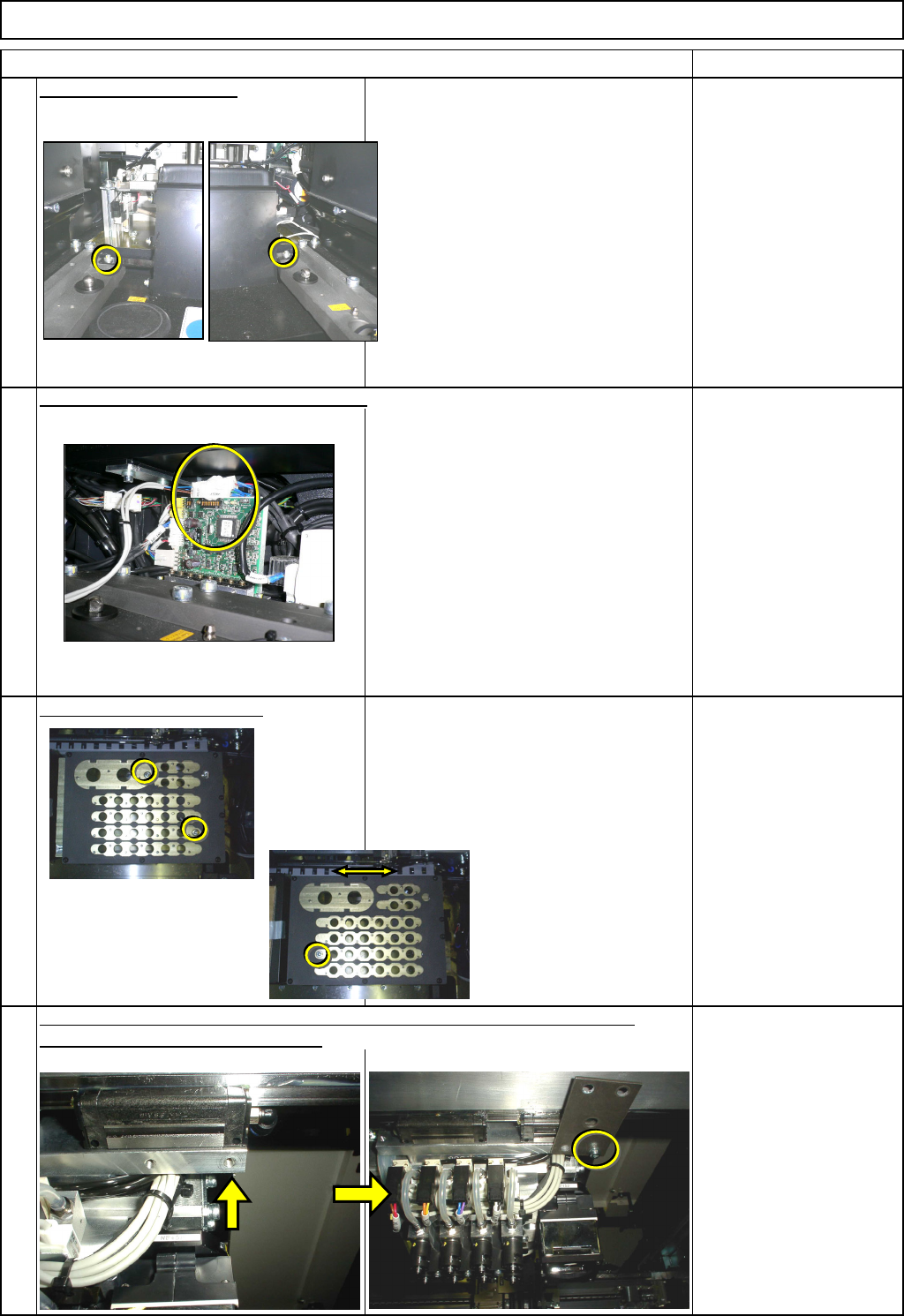

Remove the upper chute.
Allen key 3 mm
M4 screw 2 pcs.
Remove the nozzle changer.
Allen key 4 mm
M5 screw 3 pcs.
Iron plate
Allen key 3 mm
M4 x 8 mm 1 pc.
Put an iron plate on the bottom of the head. (Different picture from the actual
machine, but the same procedures.)
Disconnect the nozzle-changer connector.
5
6
7
8
EJM8A-E-SMA051201-A01-00
Page 5-12-1-3
Machinery Part Replacement
Remarks
Nozzle Changer (12-nozzle) Unit
Item

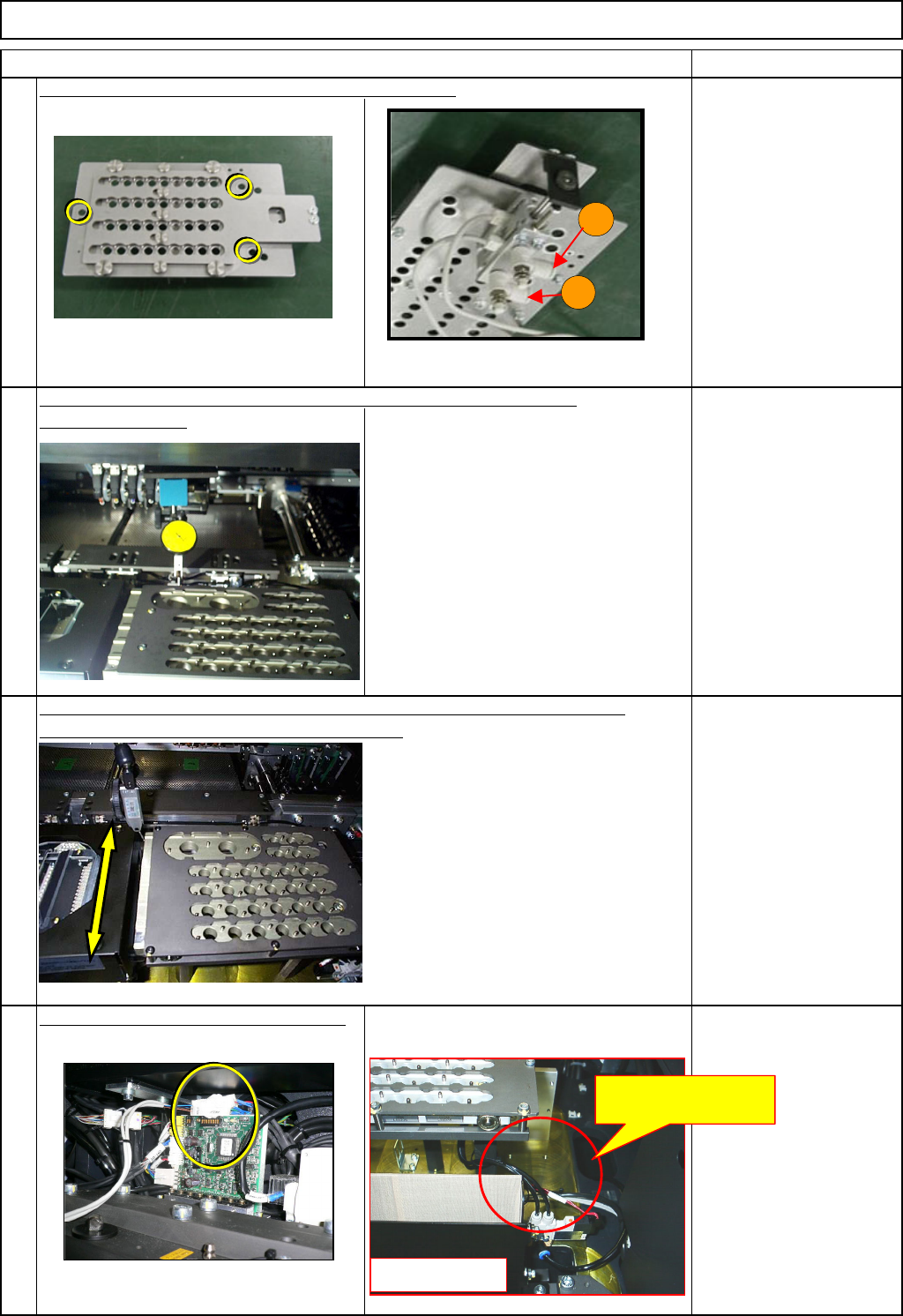

Mount the nozzle changer. (Adjust the speed control.)
Allen key 5 mm
M6 screw 3 pcs.
Speed control cd
adjustment:
* Right front: 1 turn from
the fully-closed position
* Left front: 0.5 turns form
the fully-closed position
Put an dial gauge. (Different picture from the actual machine, but the
same procedures.) Dial gauge
Magnetic stand
the actual machine, but the same procedures.)
Parallelism:
Specifications: 0.02 mm
or less
Connect the nozzle-chan
g
er connector.
Position the nozzle changer so that it will be parallel. (Different picture from
9
10
11
12
Possibly interfere with
the chute.
Ex. of bad tubing
１
２
EJM8A-E-SMA051201-A01-00
Page 5-12-1-4
Machinery Part Replacement
Remarks
Nozzle Changer (12-nozzle) Unit
Item

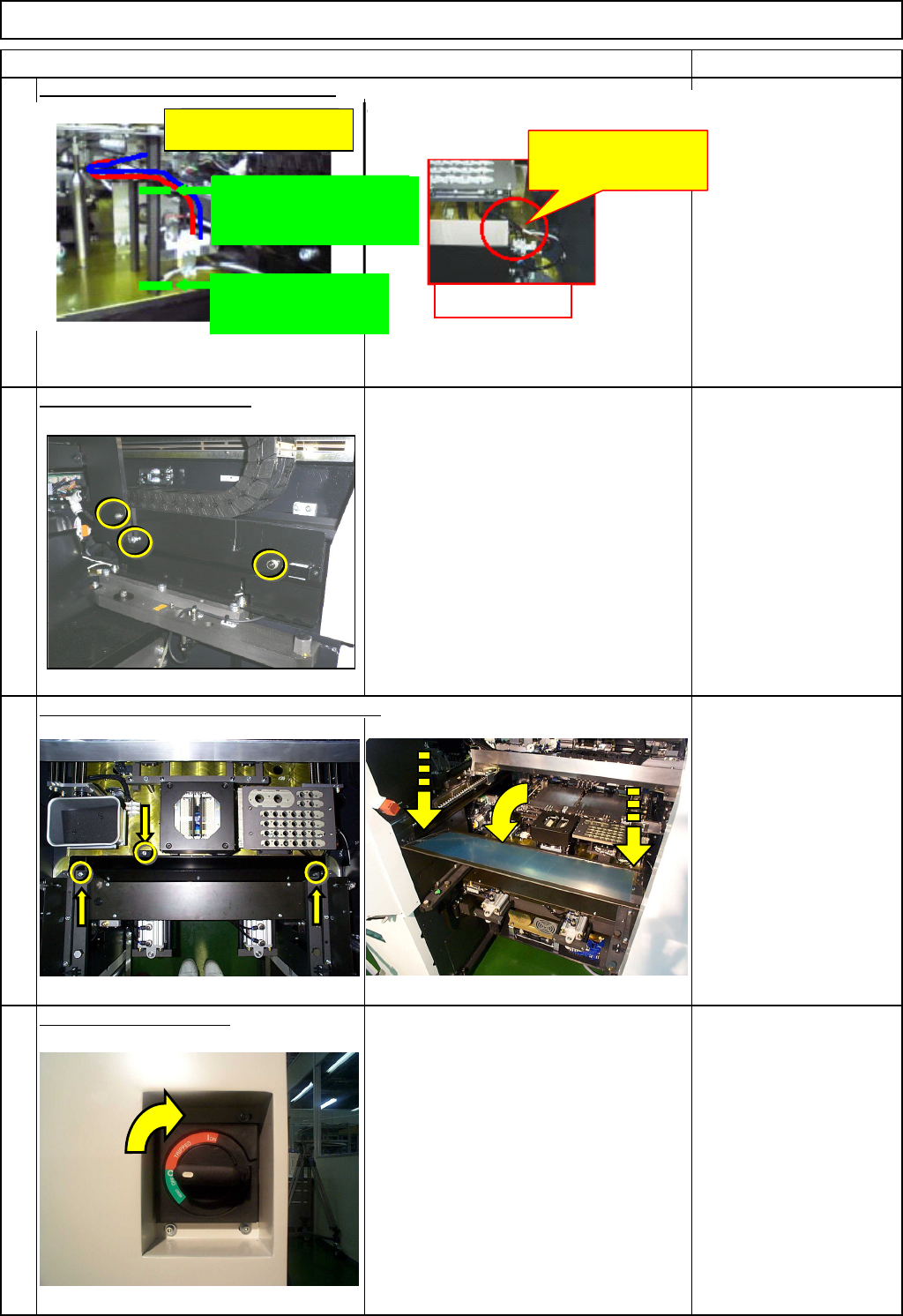

Put the side cover back on.
Allen key 3 mm
M4 screw 3 pcs.
Put the feeder cover and the chute back on.
Allen key 3 mm
M4 screw 4 pcs.
Turn on the main power.
Turn the switch to the right.
Secure the cables according to wiring.
16
13
14
15
Tube: in front of the pole
Cable: behind the pole
Secure the cable and the tube
at the point 60-mm away from
the top with a cable tie.
Secure the cable with a
100-mm cable tie.
Connection and wiring/tubing of cables and tubes
Possibly interfere with
the chute.
Ex. of bad tubing
EJM8A-E-SMA051201-A01-00
Page 5-12-1-5
