Optional Accessory Parts Replacement Remarks Switch off the main power and air supply. Remove the feeder cover. Phillips screwdriver #2 Screw M4 2 pcs. Remove the right side cover. Phillips screwdriver #2 Screw M4 4 pcs.…
Optional Accessory Parts Replacement
This section describes the procedures for replacing the slide cylinder (for high-speed machines).

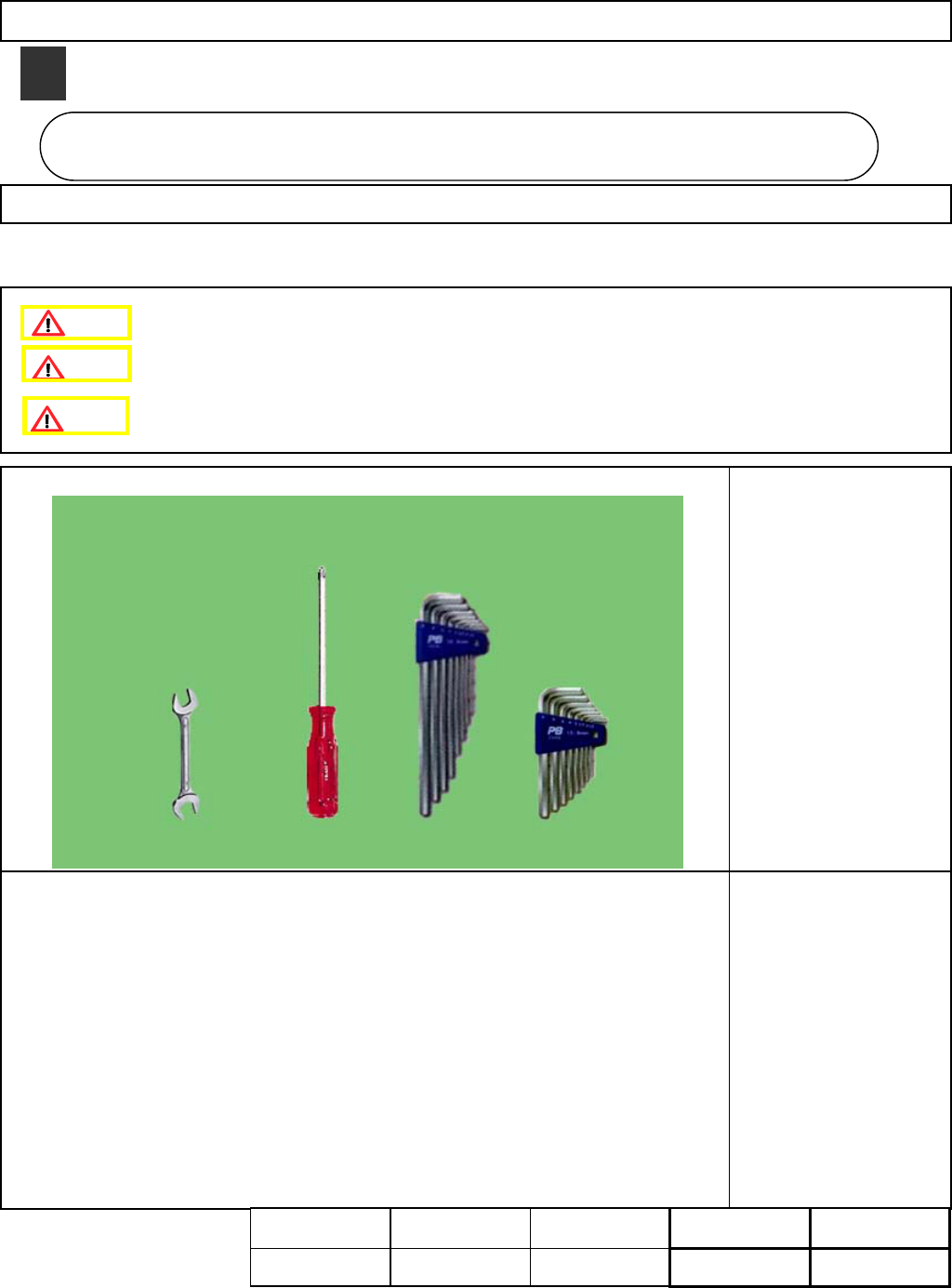

・Tools
Phillips screwdriver #2
Allen key 2.5 mm
Allen key 3 mm
Wrench 8 mm
・Jig
None
Nozzle Changer Unit (8-nozzle type)
6-1-1 Slide Cylinder Replacement (High-Speed Machines)
Nozzle Changer Unit (8-nozzle type)
6-1
Assembly
A
d
j
ustment
25min.
Teaching
min.
Total Time Weight of
Part
Removal
Disassembl
y
20min.
45min.
kgs
6
Optional Accessory Parts Replacement
Caution
Dange
r
Warning
EJM8A-E-SMA060101-A01-00
Page 6-1-1-1
Optional Accessory Parts Replacement
Remarks
Switch off the main power and air supply.
Remove the feeder cover.
Phillips screwdriver #2
Screw M4 2 pcs.
Remove the right side cover.
Phillips screwdriver #2
Screw M4 4 pcs.
Disconnect the connectors from the sensor.
Nozzle Changer Unit (8-nozzle type)
3
1
Item
2
4
1
2
EJM8A-E-SMA060101-A01-00
Page 6-1-1-2
Optional Accessory Parts Replacement
Remarks
Nozzle Changer Unit (8-nozzle type)
Item
Remove the cylinder air tubes.
5-000033
Remove the slide cover bracket.
5-000021
Allen key 2.5 mm
Round cross-head screw
M3 2 pcs.
Remove the cylinder holding screws.
取り直し
Allen key 3 mm
Screw M4 2 pcs.
Remove the bracket from the cylinder.
5-000021
Wrench 8 mm
Nut 1 pc.
8
5
6
7
EJM8A-E-SMA060101-A01-00
Page 6-1-1-3
