Optional Accessory Parts Replacement Remarks Nozzle Changer Unit (8-nozzle type) Item Remove the cylinder air tubes. 5-000033 Remove the slide cover bracket. 5-000021 Allen key 2.5 mm Round cross-head screw M3 2 pcs. Rem…
Optional Accessory Parts Replacement
Remarks

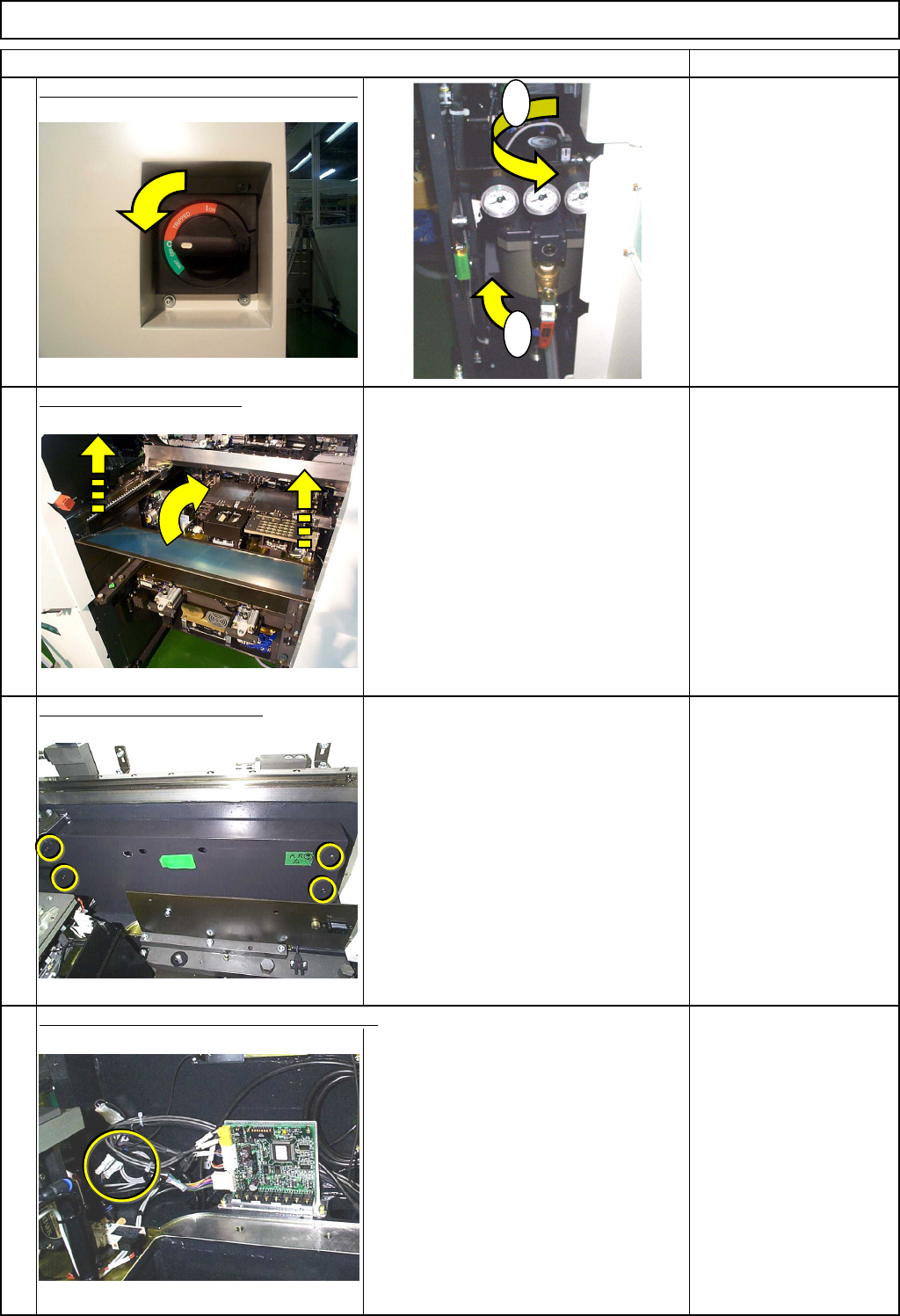

Switch off the main power and air supply.
Remove the feeder cover.
Phillips screwdriver #2
Screw M4 2 pcs.
Remove the right side cover.
Phillips screwdriver #2
Screw M4 4 pcs.
Disconnect the connectors from the sensor.
Nozzle Changer Unit (8-nozzle type)
3
1
Item
2
4
1
2
EJM8A-E-SMA060101-A01-00
Page 6-1-1-2
Optional Accessory Parts Replacement
Remarks
Nozzle Changer Unit (8-nozzle type)
Item

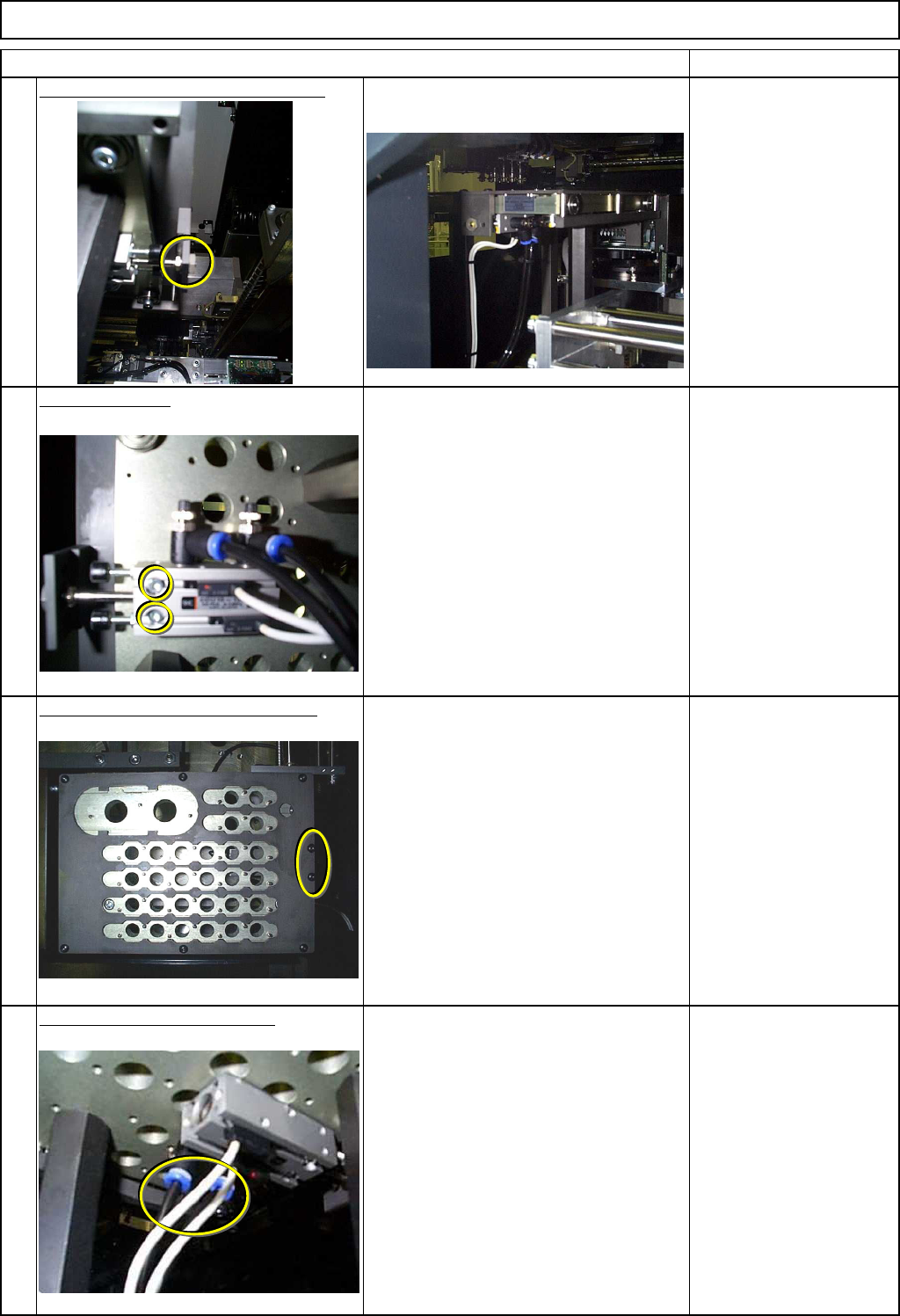

Remove the cylinder air tubes.
5-000033
Remove the slide cover bracket.
5-000021
Allen key 2.5 mm
Round cross-head screw
M3 2 pcs.
Remove the cylinder holding screws.
取り直し
Allen key 3 mm
Screw M4 2 pcs.
Remove the bracket from the cylinder.
5-000021
Wrench 8 mm
Nut 1 pc.
8
5
6
7
EJM8A-E-SMA060101-A01-00
Page 6-1-1-3
Optional Accessory Parts Replacement
Remarks
Nozzle Changer Unit (8-nozzle type)
Item

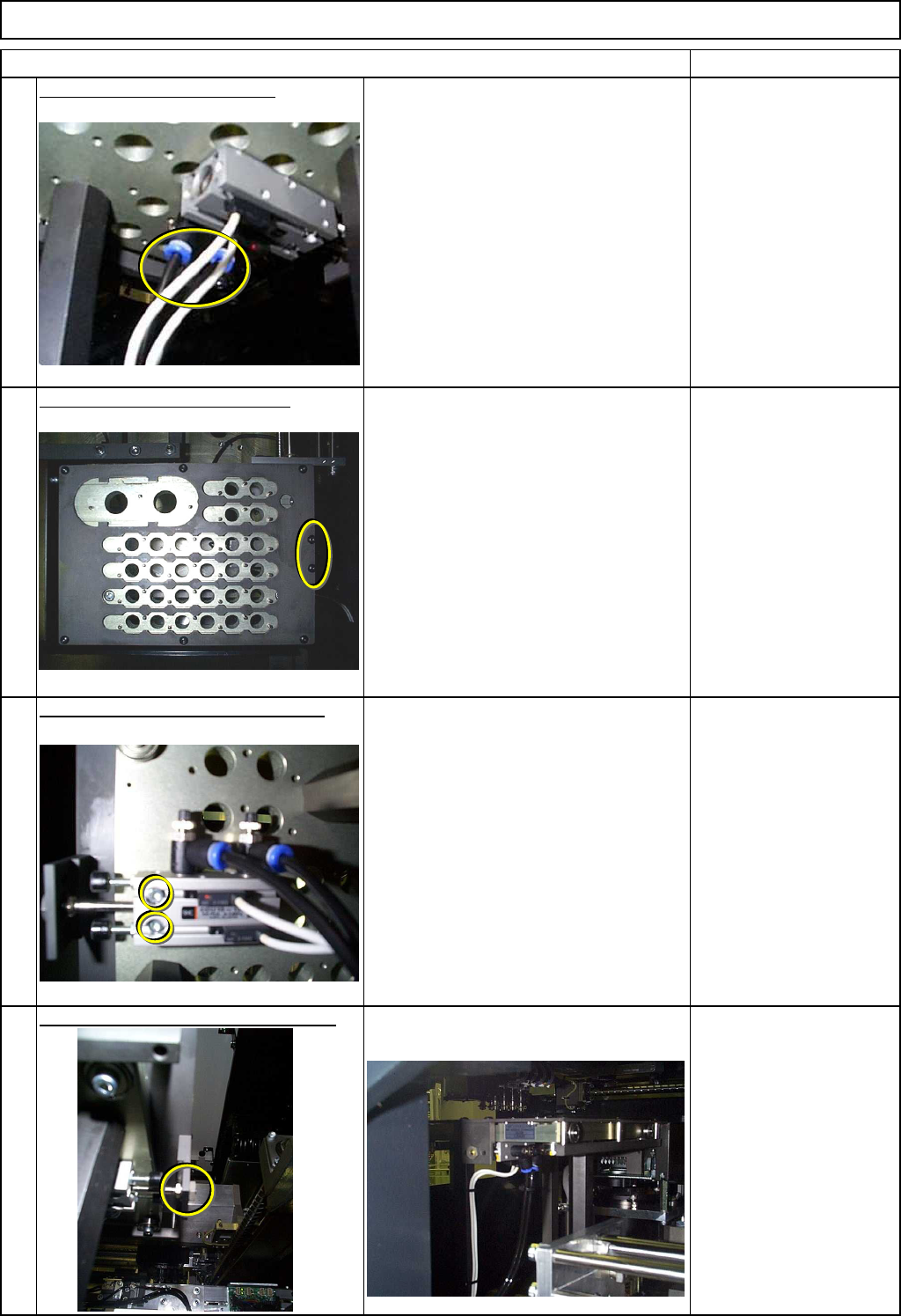

Fit the bracket onto the new cylinder.
5-000021
Wrench 8 mm
Nut 1 pc.
Lock the cylinder
取り直し
Allen key 3 mm
Screw M4 2 pcs.
Put the slide cover bracket back on.
5-000021
Allen key 2.5 mm
Round cross-head screw
M3 2 pcs.
Connect the cylinder air tubes.
5-000033
11
12
9
10
EJM8A-E-SMA060101-A01-00
Page 6-1-1-4
