Optional Accessory Parts Replacement Remarks Nozzle Changer Unit (8-nozzle type) Item Connect the sensor connectors. Put the right side cover back on. Phillips screwdriver #2 Screw M4 4 pcs. Switch on the main power and …
Optional Accessory Parts Replacement
Remarks
Nozzle Changer Unit (8-nozzle type)
Item
Fit the bracket onto the new cylinder.
5-000021
Wrench 8 mm
Nut 1 pc.
Lock the cylinder
取り直し
Allen key 3 mm
Screw M4 2 pcs.
Put the slide cover bracket back on.
5-000021
Allen key 2.5 mm
Round cross-head screw
M3 2 pcs.
Connect the cylinder air tubes.
5-000033
11
12
9
10
EJM8A-E-SMA060101-A01-00
Page 6-1-1-4
Optional Accessory Parts Replacement
Remarks
Nozzle Changer Unit (8-nozzle type)
Item

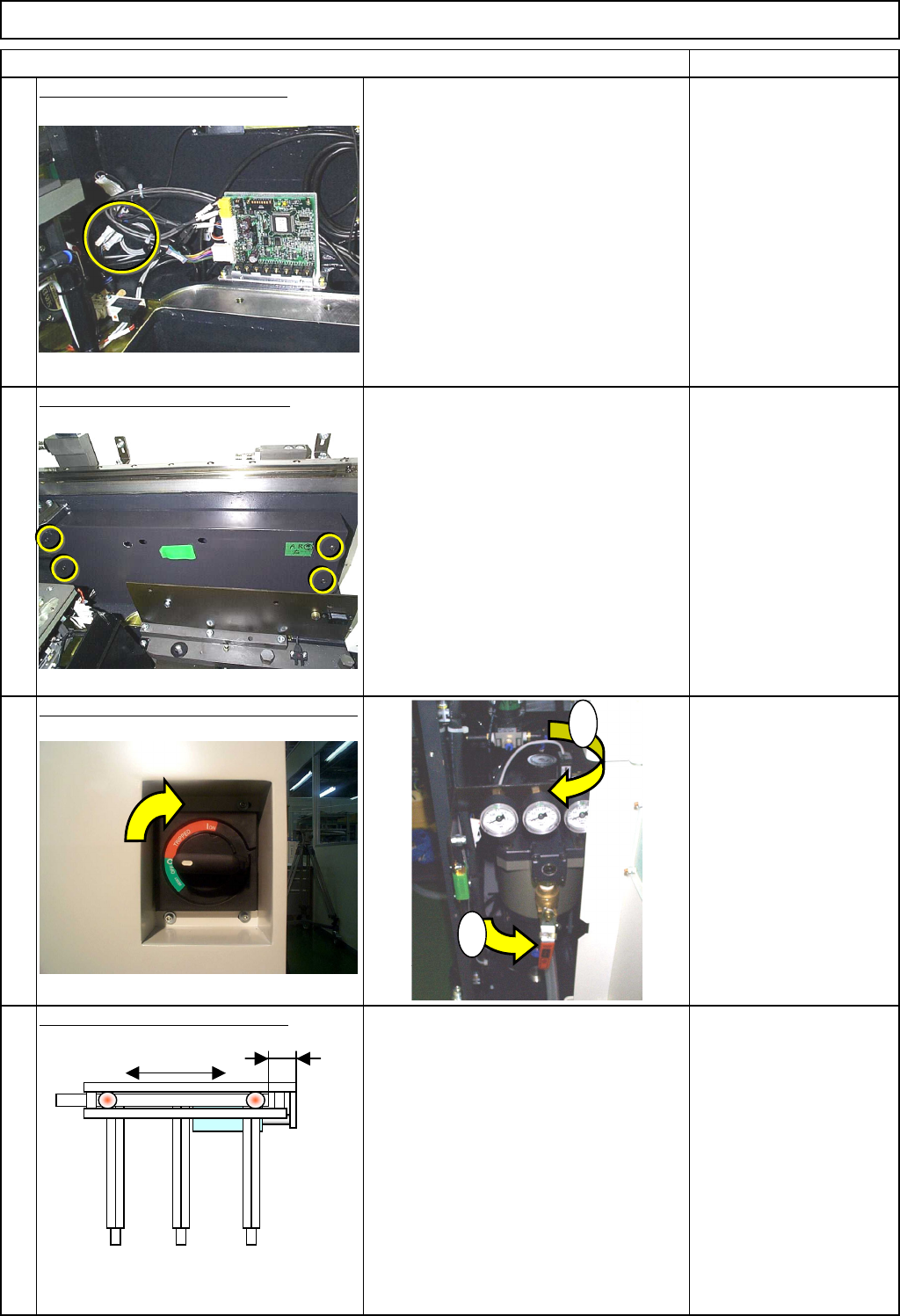

Connect the sensor connectors.
Put the right side cover back on.
Phillips screwdriver #2
Screw M4 4 pcs.
Switch on the main power and air supply.
Adjust the stroke of the cylinder.
When the shutter is
closed:
A=13mm+/-0.3mm
When the shutter is open:
A=2.5mm+/-0.3mm
13
15
16
14
1
2
Open Closed
A
Apply 0.5Mpa air pressure to the
cylinder in order to move the shutter.
Measure Distance A.
EJM8A-E-SMA060101-A01-00
Page 6-1-1-5
Optional Accessory Parts Replacement
Remarks
Nozzle Changer Unit (8-nozzle type)
Item

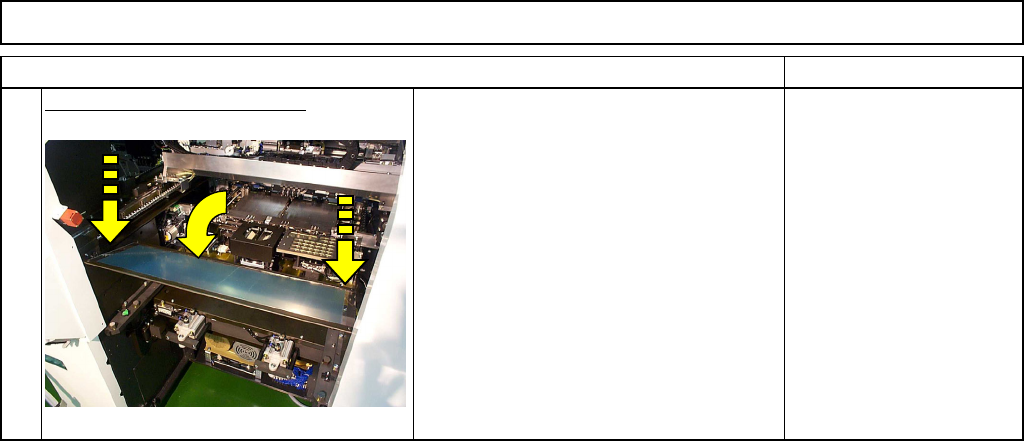

Put the feeder cover back on.
Phillips screwdriver #2
Screw M4 2 pcs.
17
EJM8A-E-SMA060101-A01-00
Page 6-1-1-6
