5 Put the feeder cover back on. Phillips screwdriver #2 Screw M4 2 pcs. Tools and Specifications Optional Accessory Parts Replacement Nozzle Changer Unit (3-nozzle type) Item Remarks EJM8A-E-SMA060204-A01-00 Page 6-2-4-3
Take care with orientation of the slider.
Tools and Specifications
Replace the slider and lock it.
Adjust the stroke.
Calipers
Wrench 13 mm
Flat-head screwdriver #2
When shutter open:
A: 15.75±0.25mm
B: 0±0.25mm
When shutter closed:
A: 0±0.25mm
B: 15.75±0.25mm

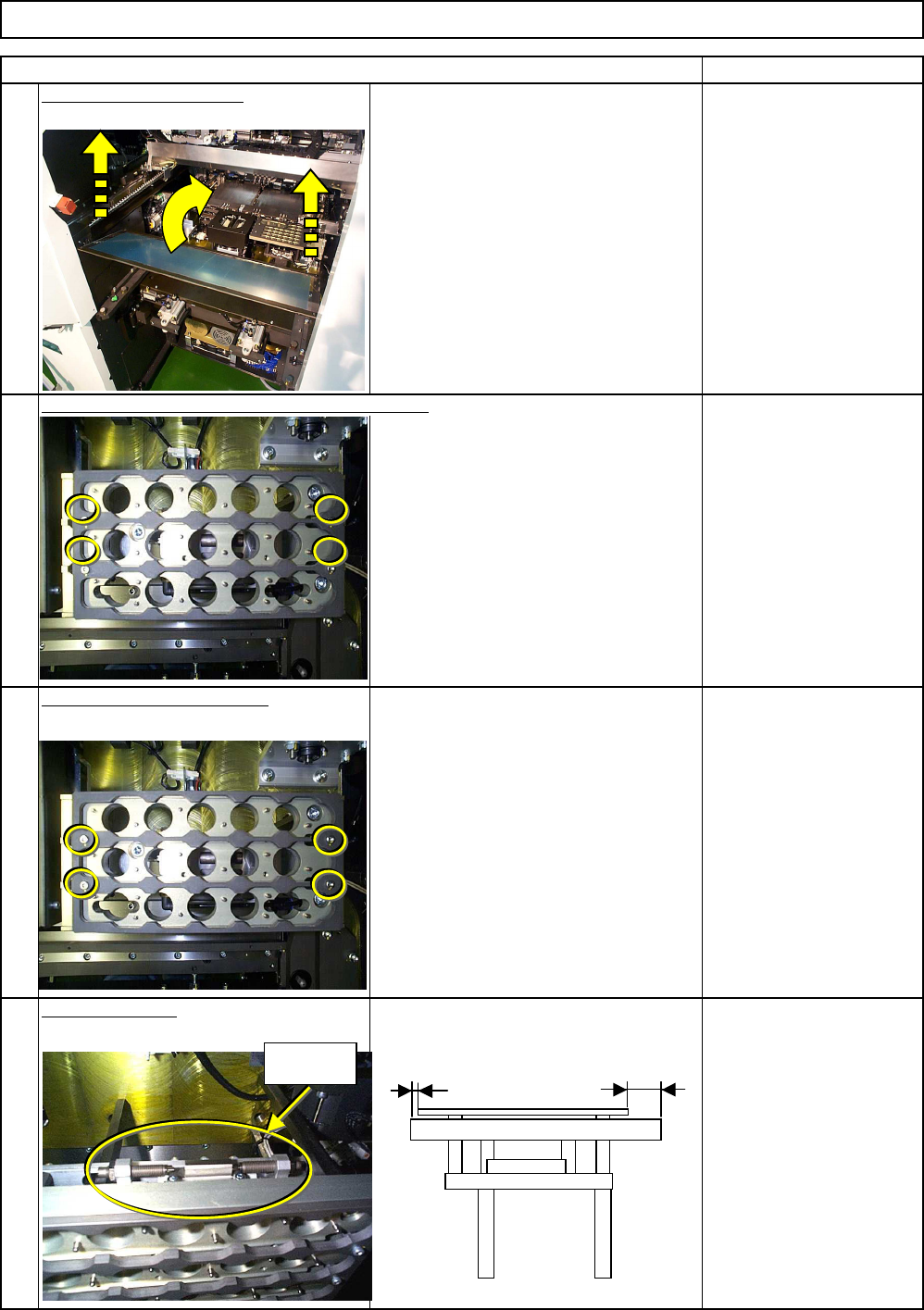

Remove the nozzle changer slider holding screw
s
Tools and Specifications
3
Item Remarks
Allen key 2.5 mm
Screw M3 4 pcs.
4
2
1
Optional Accessory Parts Replacement
Remove the feeder cover.
Phillips screwdriver #2
Screw M4 2 pcs.
Allen key 2.5 mm
Screw M3 4 pcs.
Nozzle Changer Unit (3-nozzle type)
Tools and Specifications
B
A
Adjust
here.
EJM8A-E-SMA060204-A01-00
Page 6-2-4-2
5

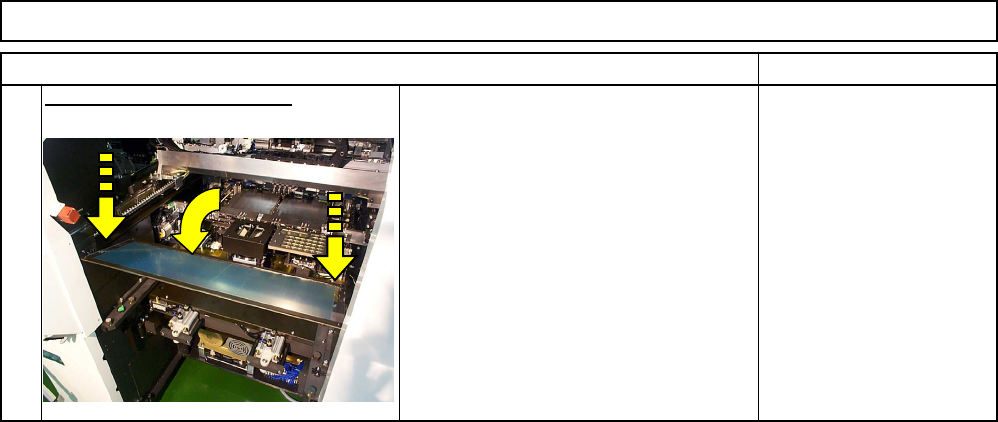

Put the feeder cover back on.
Phillips screwdriver #2
Screw M4 2 pcs.
Tools and Specifications
Optional Accessory Parts Replacement Nozzle Changer Unit (3-nozzle type)
Item Remarks
EJM8A-E-SMA060204-A01-00
Page 6-2-4-3
Removal
Disassembl
y
A
ssembl
y
A
d
j
ustment
Teaching
5 min. 10 min.
15
min
.
min.

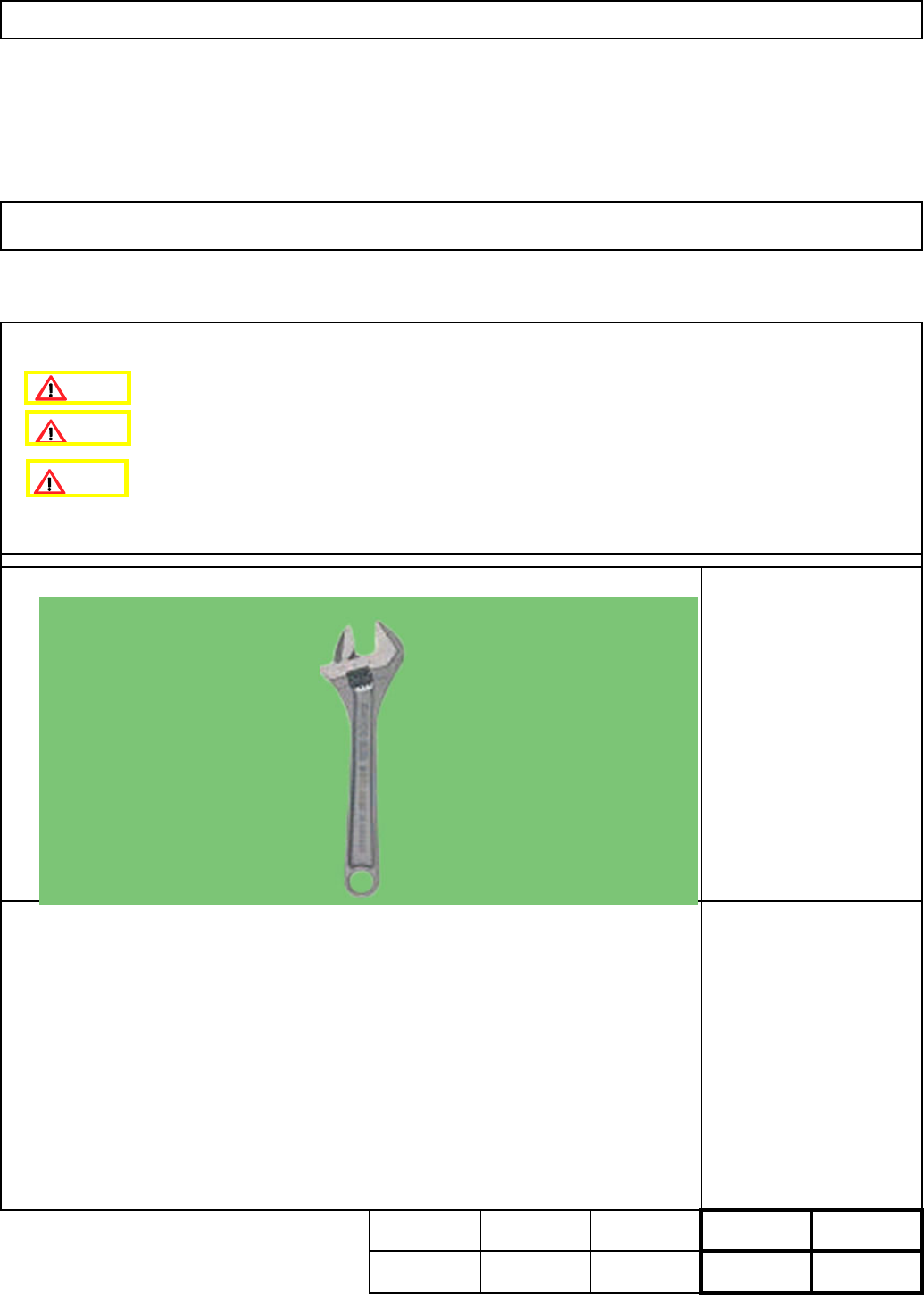

6-2-5 3-Head Support Regulator Replacement
Optional Accessory Parts Replacement Nozzle Changer Unit (3-nozzle type)
This section describes the procedures for replacing the 3-head support regulator.
Adjustable wrench 24 mm
None
Weight of
Par
t
• Tools
• Jigs
Kgs
.
Total Time
Caution
Danger
Warning
EJM8A-E-SMA060205-A01-00
Page6-2-5-1
