Option Part and Accessory Replacement Component-Thickness-Measuring Unit Remark Turn off (O) the servo switch. Open the safety cover. Remove the nozzle. Close the safety cover. Turn on (I) the servo switch. * Repeat Step…

100%1 / 1093
Option Part and Accessory Replacement
Component-Thickness-Measuring Unit
Remark
• Nozzle 120S can substitute for Nozzle
130S.
* See the picture.
Close the safety cover.
Turn on (I) the servo switch.
Fit the Nozzle 130S on the nozzle position displayed on the screen.
Item
8
9
Press [UNLOCK] on the operation panel and [Height org tch] simultaneously.
10
11
Repeat Steps 6 to 10 to teach the nozzle positions 2 to 12.
Each head
Gang
Each head
Gang
10
11
EJM8A-E-SMA060403-A01-00
Page　6-4-3-9
Option Part and Accessory Replacement
Component-Thickness-Measuring Unit
Remark

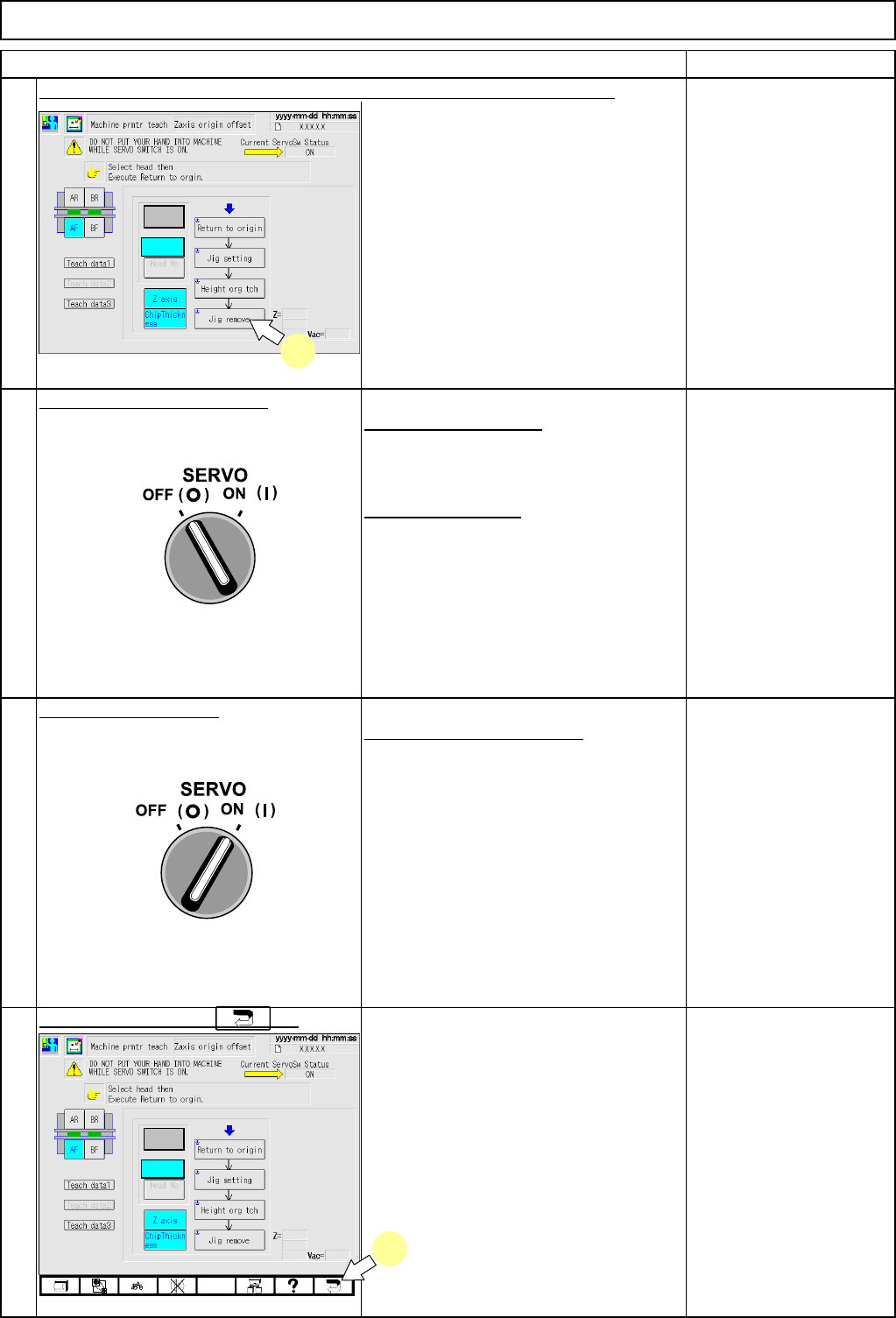

Turn off (O) the servo switch.
Open the safety cover.
Remove the nozzle.
Close the safety cover.
Turn on (I) the servo switch. * Repeat Steps 2 to 14 for
the other tables.
Press the function key .
12
13
Press [UNLOCK] on the operation panel and [Jig remove] simultaneously.
14
15
Item
Each head
Gang
Each head
Gang
12
15
EJM8A-E-SMA060403-A01-00
Page　6-4-3-10
Option Part and Accessory Replacement
Component-Thickness-Measuring Unit
Remark
Item
16

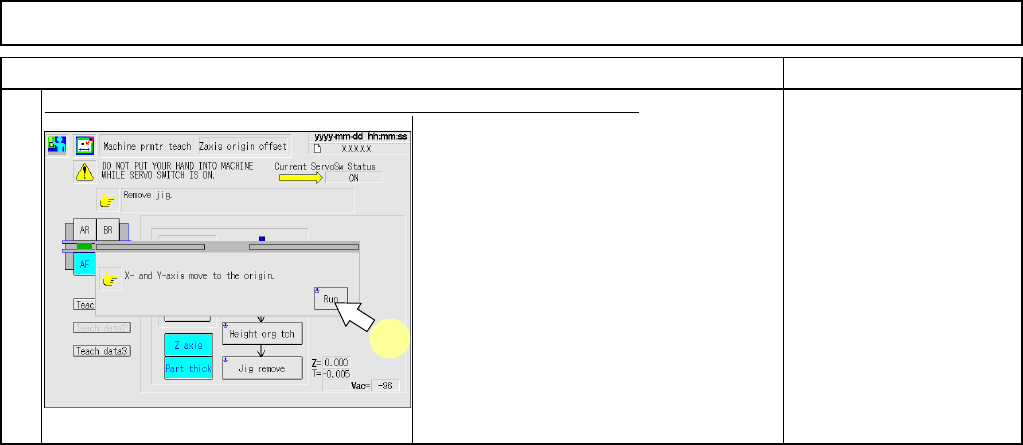

Press [UNLOCK] on the operation panel and [Run] simultaneously.
16
EJM8A-E-SMA060403-A01-00
Page　6-4-3-11
