Remarks Item Option Part and Accessory Replacement PCB-Warp-Sensor Unit (Caution) Do not put the cable in the head so that it is not necessary to remove the PCB- warp-sensor cable when replacing the head. Placing and sec…

100%1 / 1093
Remarks
Item
Option Part and Accessory Replacement
PCB-Warp-Sensor Unit

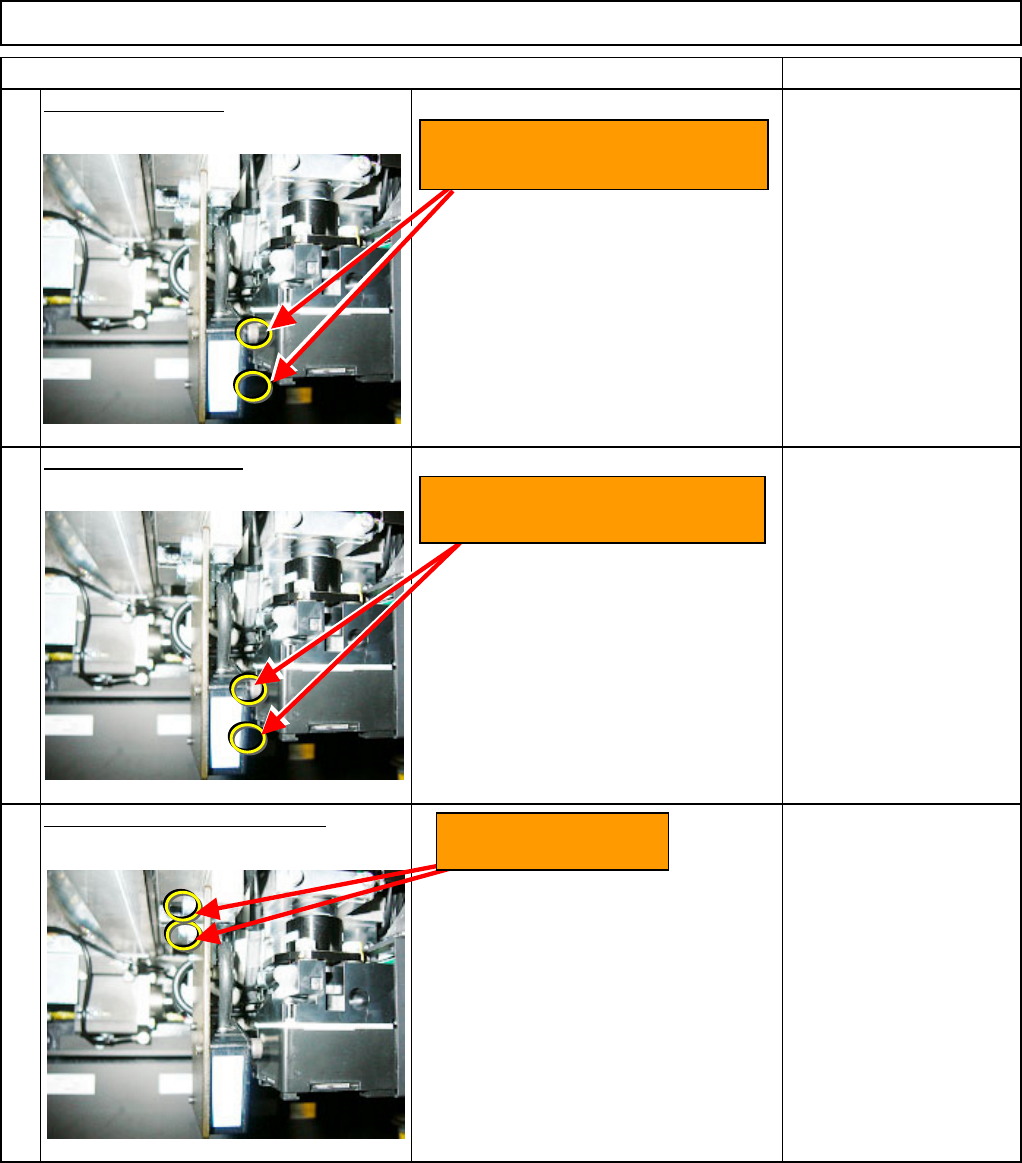

Remove the sensor.
Wrench M4
CB4-18 (2 pcs.)
Install the new sensor.
Wrench M4
CB4-18 (2 pcs.)
Put the sensor bracket back on.
Wrench M4
M4 x 14L (2 pcs.)
10
9
11
Loosen the two special bolts CB4-
18. Remove the sensor.
Install the sensor with two special
bolts CB4-18.
Install the bracket
with two M4x14L bolts.
EJM8A-E-SMA060504-A01-00
Page　6-5-4-4
Remarks
Item
Option Part and Accessory Replacement
PCB-Warp-Sensor Unit
(Caution)
Do not put the cable in the head so that
it is not necessary to remove the PCB-
warp-sensor cable when replacing the
head.

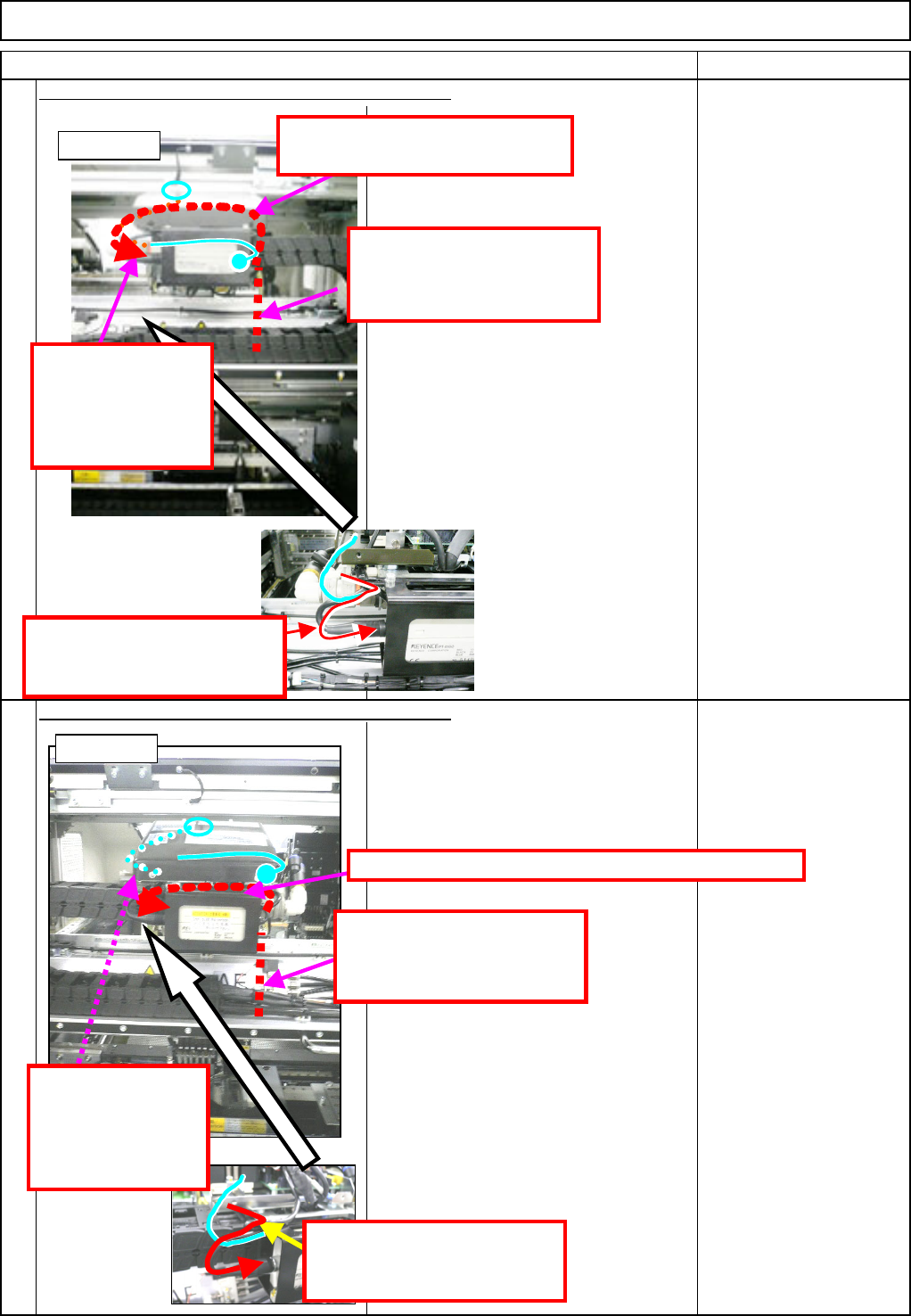

Placing and securing the sensor cable. (AR and BF)
Placing and securing the sensor cable. (AF and BR)
12
13
AR and BF
AF and BR
Put the cable through the upper
board and to the front left.
Tie the cable along
with the LED-light
and the head-camera
cables behind the
bracket.
Aligning the cable with the
grease tube, tie the cable and
the tube with a cable tie.
Put the cable through the air
j
oint, and connect it to the
amplifier.
Put the cables behind the amplifier, and to the front left.
Tie the cable along
with the LED-light
and the head-camera
cables behind the
bracket.
Put the cable through the air
j
oint, and connect it to the
amplifier.
Aligning the cable with the
grease tube, tie the cable and
the tube with a cable tie.
EJM8A-E-SMA060504-A01-00
Page　6-5-4-5
Remarks
Item
Option Part and Accessory Replacement
PCB-Warp-Sensor Unit

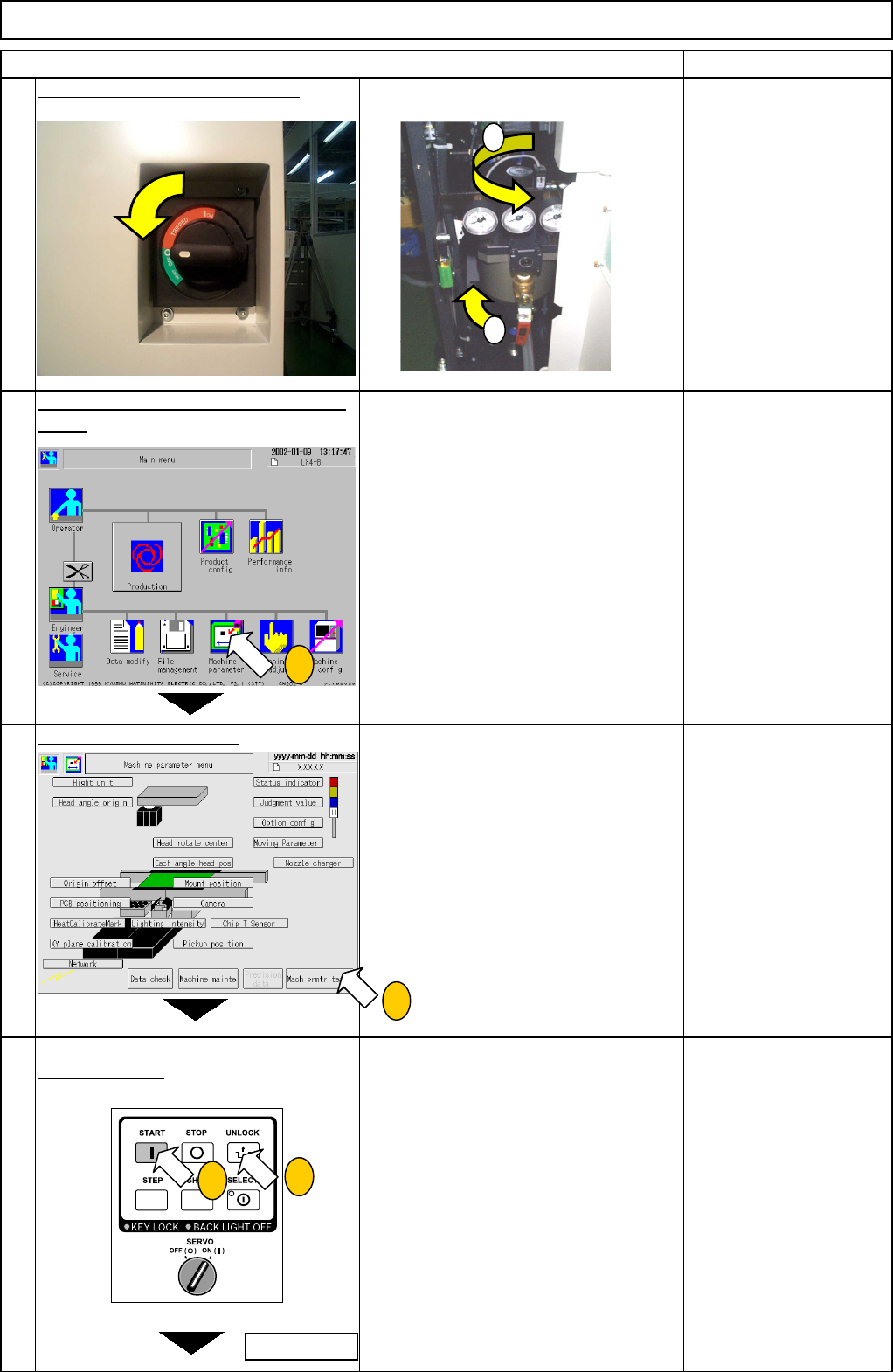

Turn on the power and air supply.
14
Press [Machine parameter] on the main
menu.
15
• The main menu of the Machine
Parameter is displayed.
Press [Mach prmtr teach].
16
• Press [Mach prmtr teach].
Press [UNLOCK] and [START] on the
operation panel.
17
• The "Machine parameter teach"
window is displayed.
* After the "return-to-origin" process, the
window is displayed.
1
2
1
2
3
3
To next page
EJM8A-E-SMA060504-A01-00
Page　6-5-4-6
