Install the upper part of the tray feeder to the machine and tighten the bolts. Re-confirm the levelness. Tighten the bolts that are half tightened. Item Remarks Tray Shuttle Tray 24 Carry out machine parameter teaching.…
Tray
Lower the pickup head.
Remarks
Leveling the pickup head, align it with the transfer head.
Press [Bst shuttle pick up head 1 down] and [Bst shuttle pick up head 2 down].
Feeler gauge: 0.5 mm
20
Wrench 270 mm
Confirm the levelness and tighten the nut.
19
18
17
Item
Shuttle Tray
Gap 0.5 mm
EJM8A-E-SMA070101-A01-00
Page 7-1-1-6
Install the upper part of the tray feeder to the machine and tighten the bolts.
Re-confirm the levelness. Tighten the bolts that are half tightened.
Item Remarks
Tray Shuttle Tray
24
Carry out machine parameter teaching.
23
Remove the sheet from the transfer
section. Mount the jig.
22
Allen key 4 mm
Bracket
Screw M5x10L 2 pcs.
Allen key 6 mm
Screw M8x40L 2 pcs.
Screw M8x20L 2 pcs.
21
Tighten them.
EJM8A-E-SMA070101-A01-00
Page 7-1-1-7
Precisely position the transfer head
and the shuttle head.
See Teaching sections.
28
Press [Offset set].
Offset range: -3.5 to 3.5
Details:

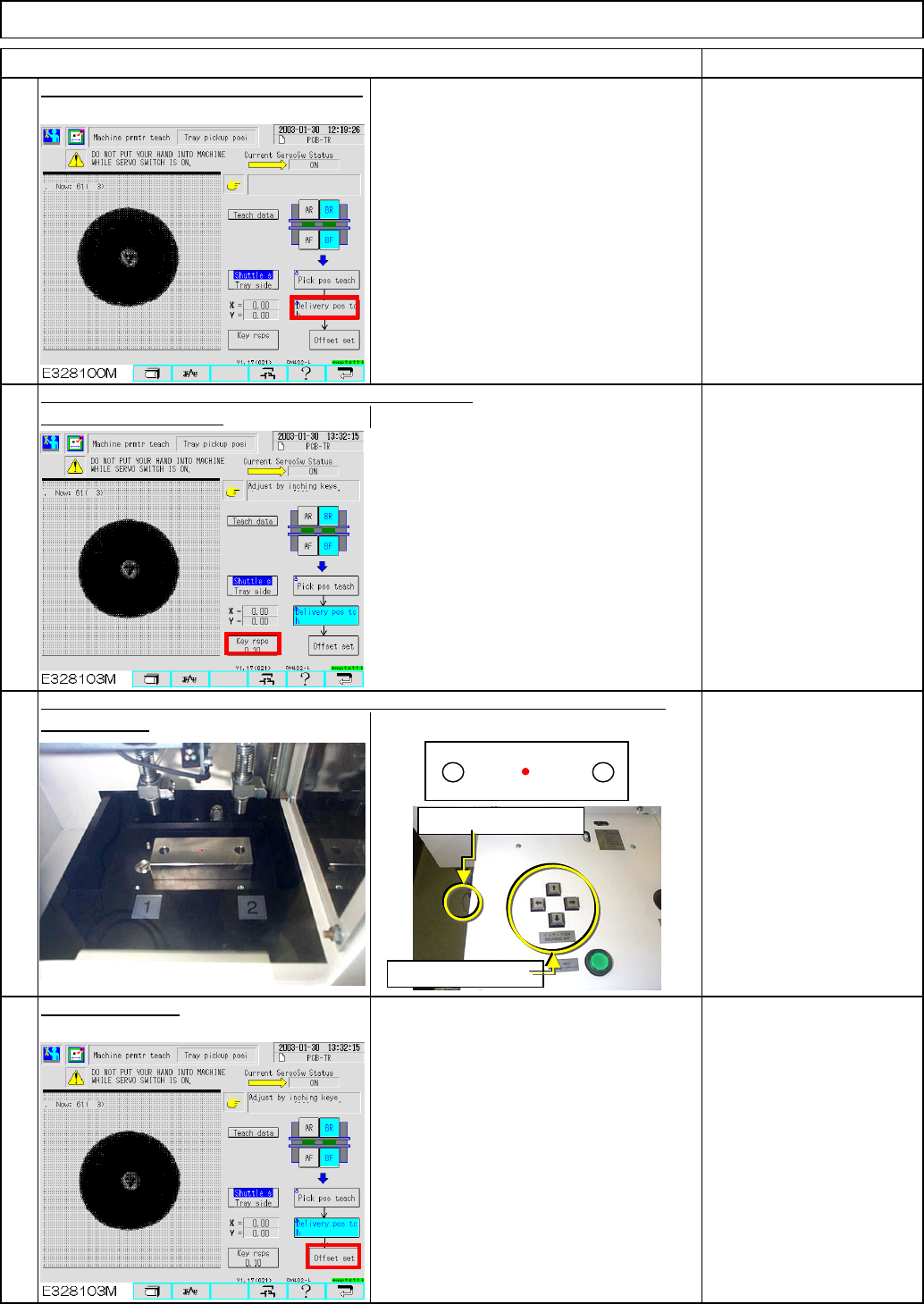

Shuttle Tray Teaching
27
as necessary.
Align the shuttle head sensor LED with the hole of the jig, using the inching keys
26
determine the key rsps.
Key rsps:
0.01, 0.10, 1.00
According to how much the shuttle head is out of place,
25
Key rsps:
0.01, 0.10, 1.00
Carry out the "Delivery position" teaching.
Item Remarks
Tray Shuttle Tray
Unlock switch
Inching keys
EJM8A-E-SMA070101-A01-00
