15 Min. Min. Shuttle Tray Tray ・ This section describes the procedurures for adjsuting the lift-axis storke. Key switch FM-0558: Palate jig 7-1-4 Lift-axis Stroke Adjustment Phillips screwdriver #2 Allen key 3 to 5 mm Wr…
Shuttle TrayTray
17
Put the side cover back on.
Phillips screwdriver #2
M4 x 8L Truss 8 pcs.
Item Remarks
EJM8A-E-SMA070103-A01-00
Page 7-1-3-6
15
Min. Min.
Shuttle TrayTray
・This section describes the procedurures for adjsuting the lift-axis storke.
Key switch
FM-0558: Palate jig

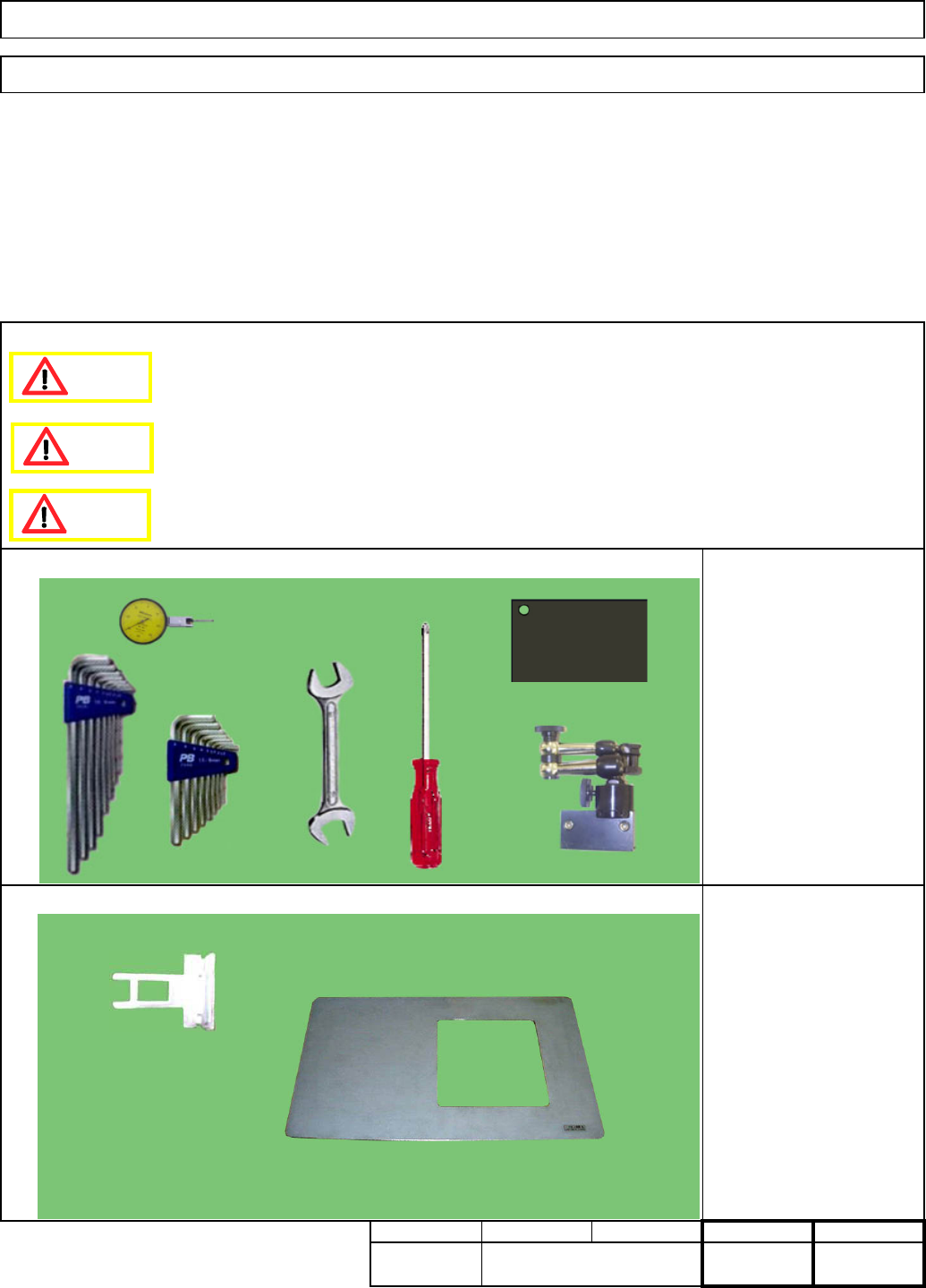

7-1-4 Lift-axis Stroke Adjustment
Phillips screwdriver #2
Allen key 3 to 5 mm
Wrench 14 mm
Magnetic stand
Magnetic stand holding iron
plate
Dial gauge
kgs.
3520
Min. Min.
I Since this adjustment requires releasing the safety cover switch, only those who are
authorized to release it based on the Document "Key Switch/Key Disk Receipt Confirmation
and Safety Precautions" are permitted to perform this adjustment.
・Tools
・Jigs
Removal/Disassembly Assembly/Adjustment
Teaching
Total Part Weight
Dange
r
Caution
Warning
EJM8A-E-SMA070104-A01-00
Page 7-1-4-1
3
4
Jig: FM0558
Palette jig
Phillips screwdriver #2
Allen key 3 mm
Screw M4 2 pcs.
Screw M4 x 10L 8 pcs.
Remarks

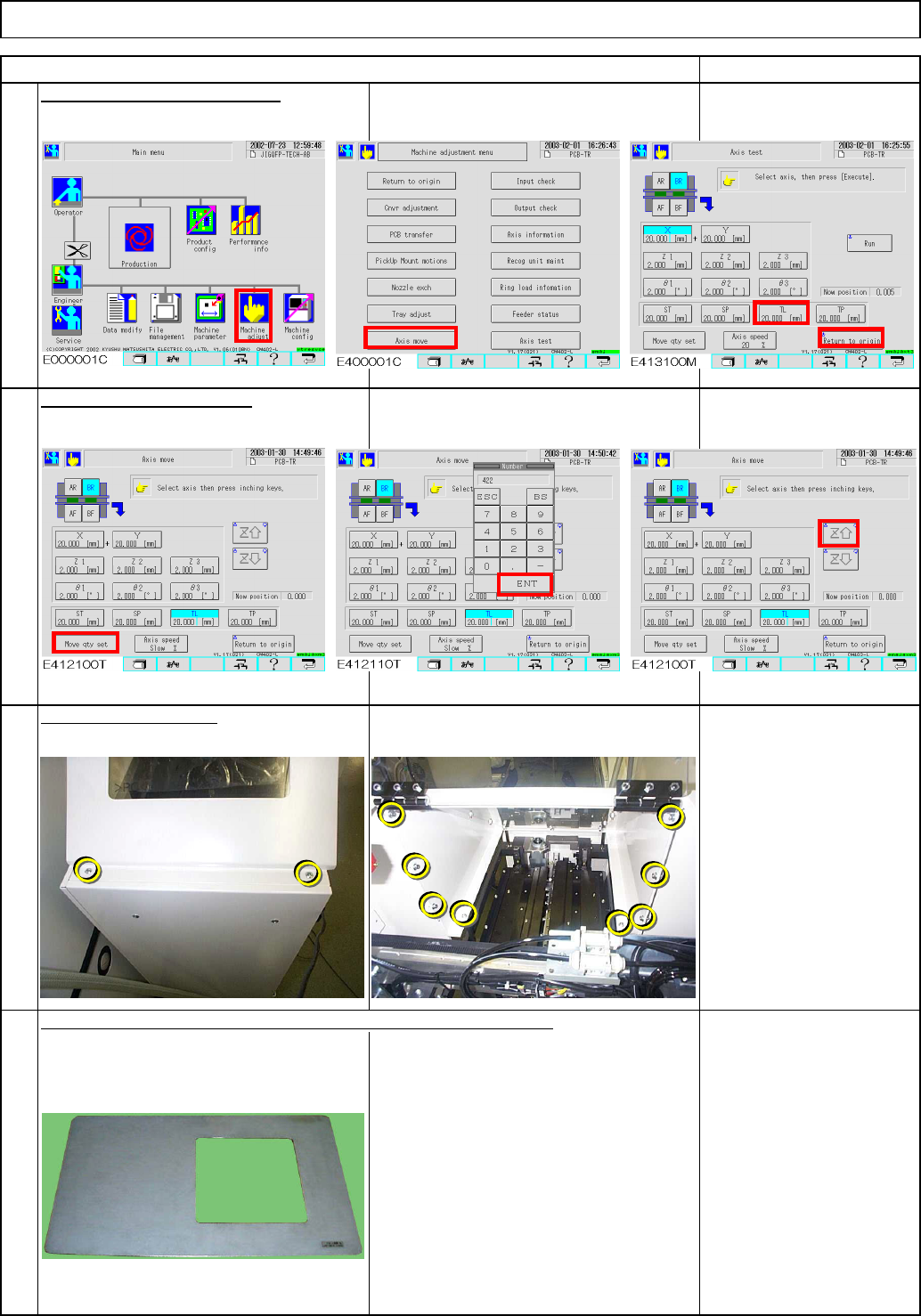

Return the lift-axis to the origin.
Mount the palette jigs on the lift table and the replenishment table.
Raise the lift-axis by 422 st.
Item
Tray Shuttle Tray
2
1
Remove the top cover.
422
EJM8A-E-SMA070104-A01-00
Page 7-1-4-2
