Fix the box and the cable in place. Allen key 4 mm Screw M5 2 pcs. MR-J2-20A-N26 Connect all driver connectors. Install the box. Be careful not to let the cable be caught. Phillips precision screwdriver Connector screws …
Phillips screwdriver #2
Nipper
Cut off the cable ties on the right side.
5
Allen key 4 mm
Screw M5 2 pcs.
Be careful not to let the
cables be caught.
Phillips precision
screwdriver
Connector screws

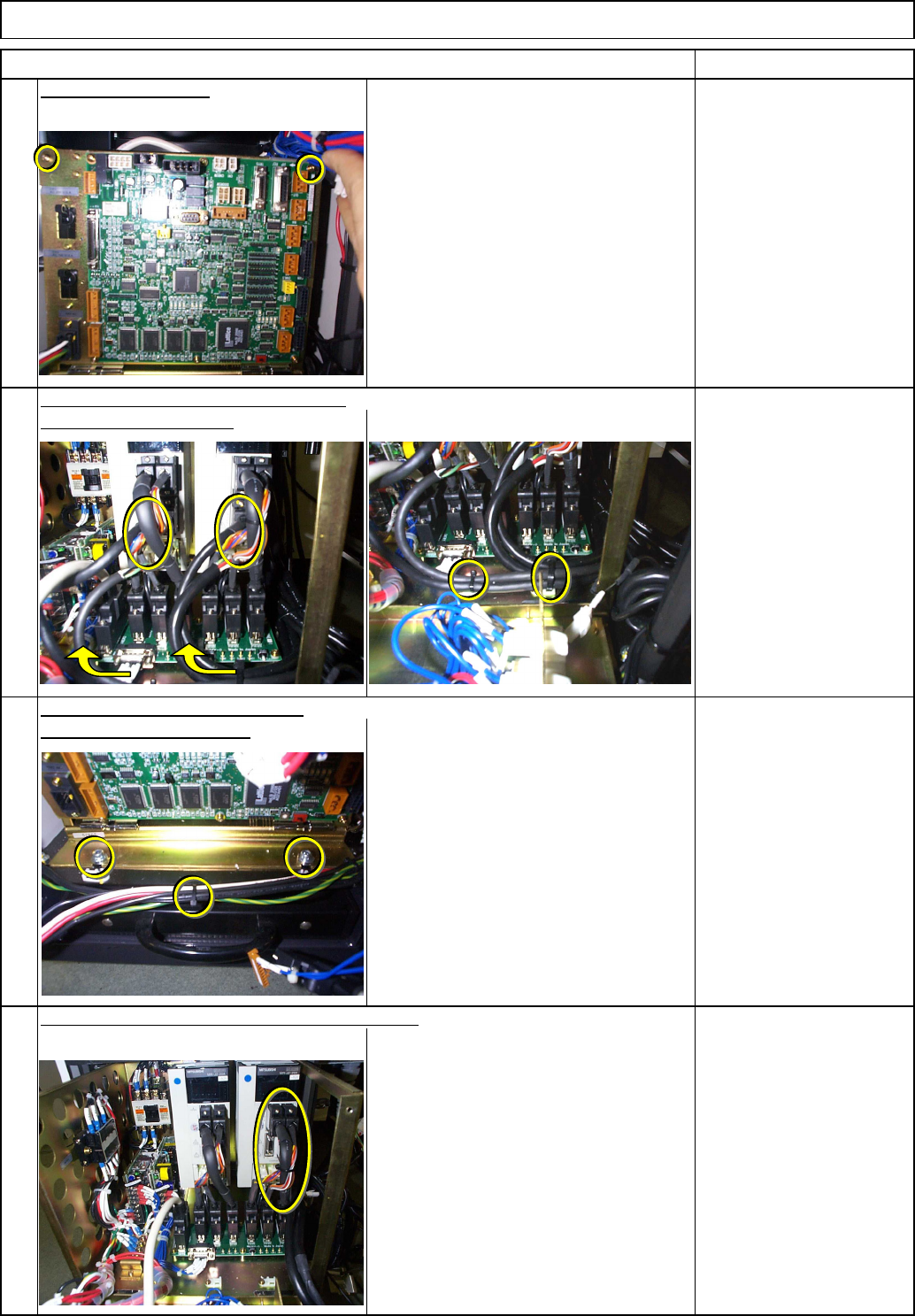

Open the front cover.
Cut off the front cable ties.
Item
Shuttle Tray
Remarks
Remove the box holding screws.
Pull out the box. Remove the driver connectors.
6
7
8
Tray
Remove the connectors.
EJM8A-E-SMA070105-A01-00
Page 7-1-5-3
Fix the box and the cable in place.
Allen key 4 mm
Screw M5 2 pcs.
MR-J2-20A-N26
Connect all driver connectors.
Install the box.
Be careful not to let the
cable be caught.
Phillips precision
screwdriver
Connector screws
Phillips precision
screwdriver
Connector screws
9

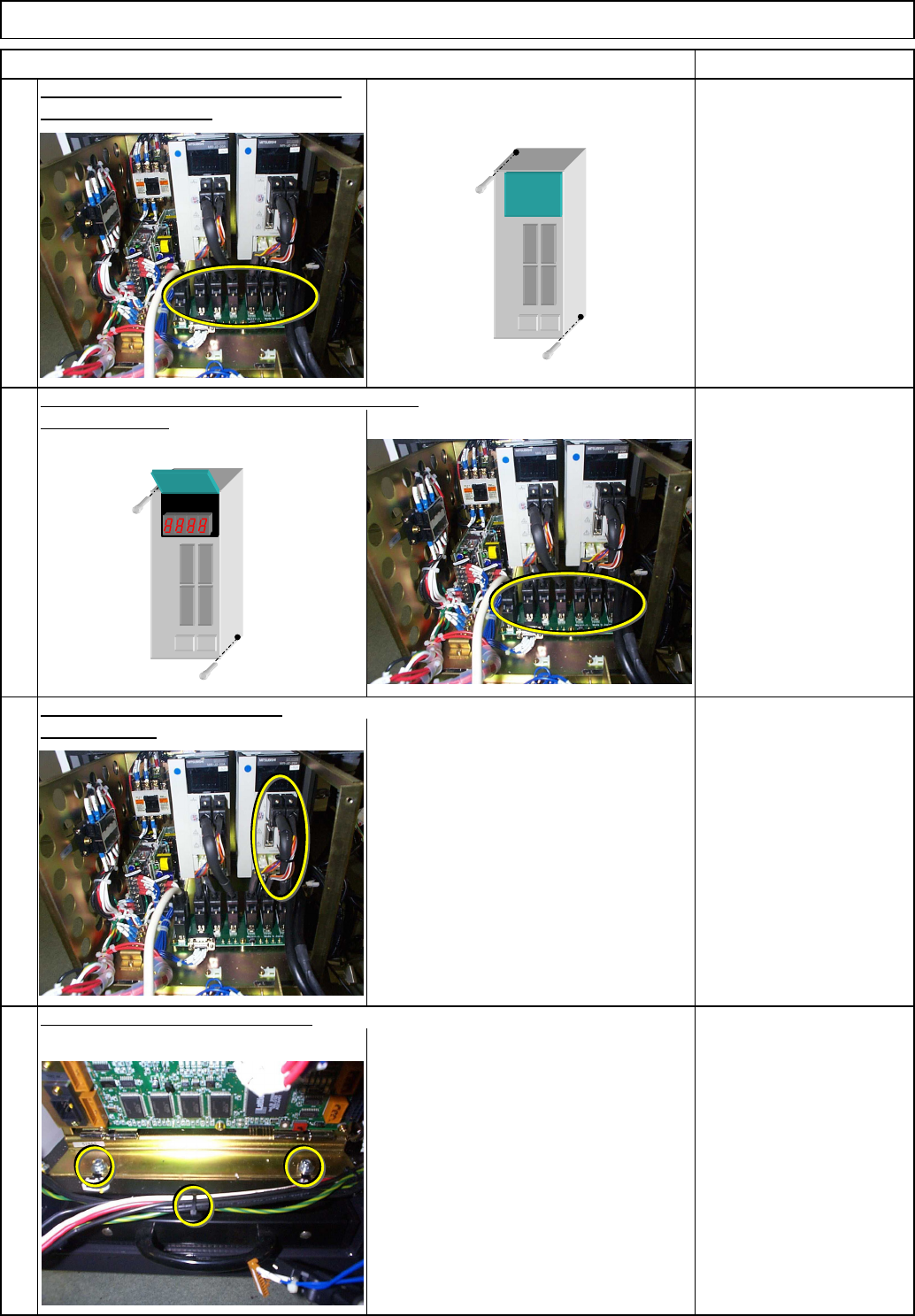

Remove the relay connectors and the
driver holding screws.
Phillips precision
screwdriver
Connector screws
10
11
12
Tray
Install the driver. Connect the relay connectors.
Shuttle Tray
Item Remarks
EJM8A-E-SMA070105-A01-00
Page 7-1-5-4
Connect the cable connectors on the right side.
Tray Shuttle Tray
Phillips screwdriver #2
Item Remarks
13
Nipper
Secure the cable ties.
Close the front cover. Fix it in place.
16
Phillips precision
screwdriver
Connector screws
14
Connect the connectors to the right side of the box.
Connect all connectors to the front board.
15
EJM8A-E-SMA070105-A01-00
Page 7-1-5-5
